Body Control Module Label (Early Production)

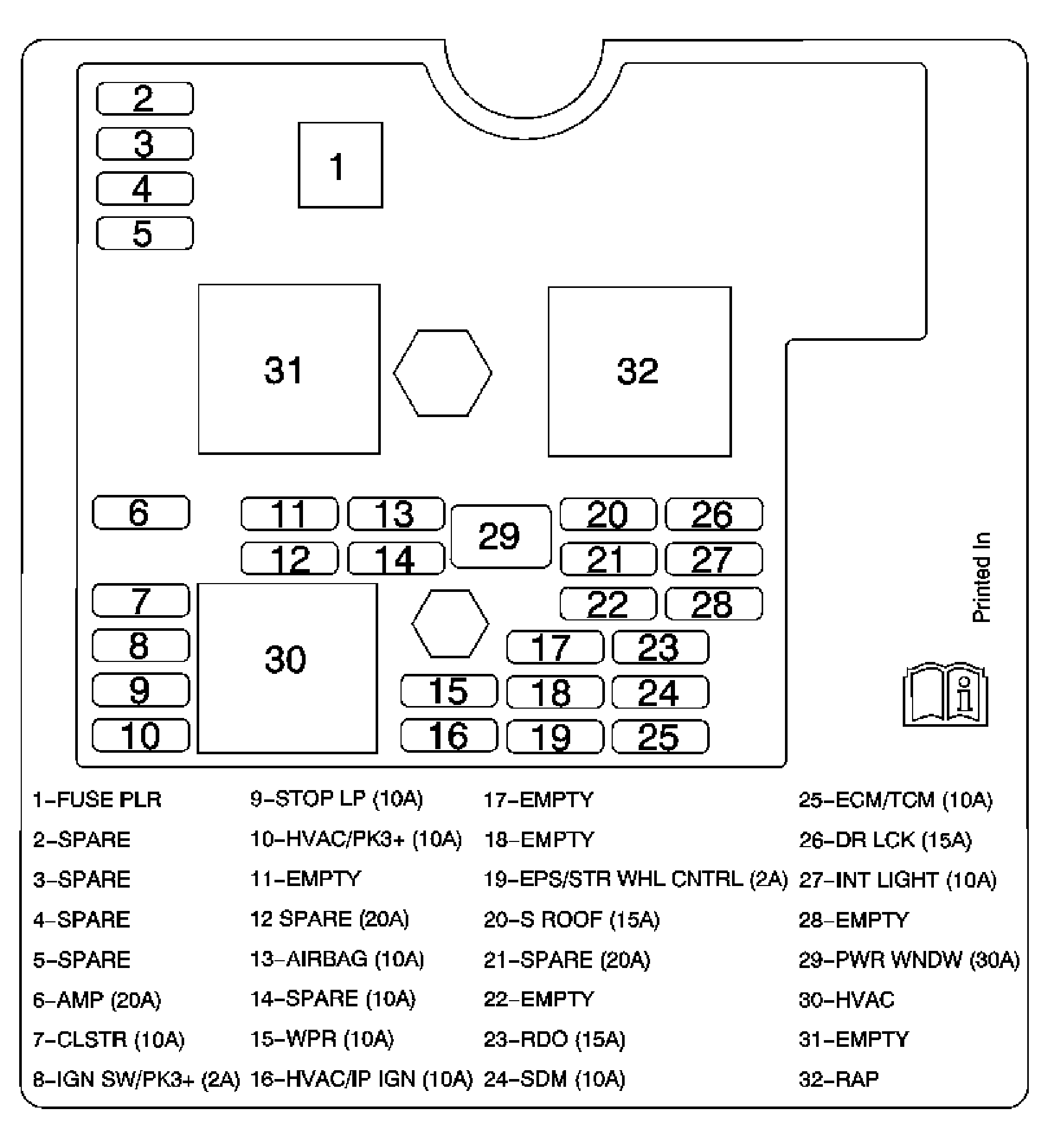

Fig 1: Body Control Module Label (Early Production)
GM1743466Courtesy of GENERAL MOTORS CORP.
