Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

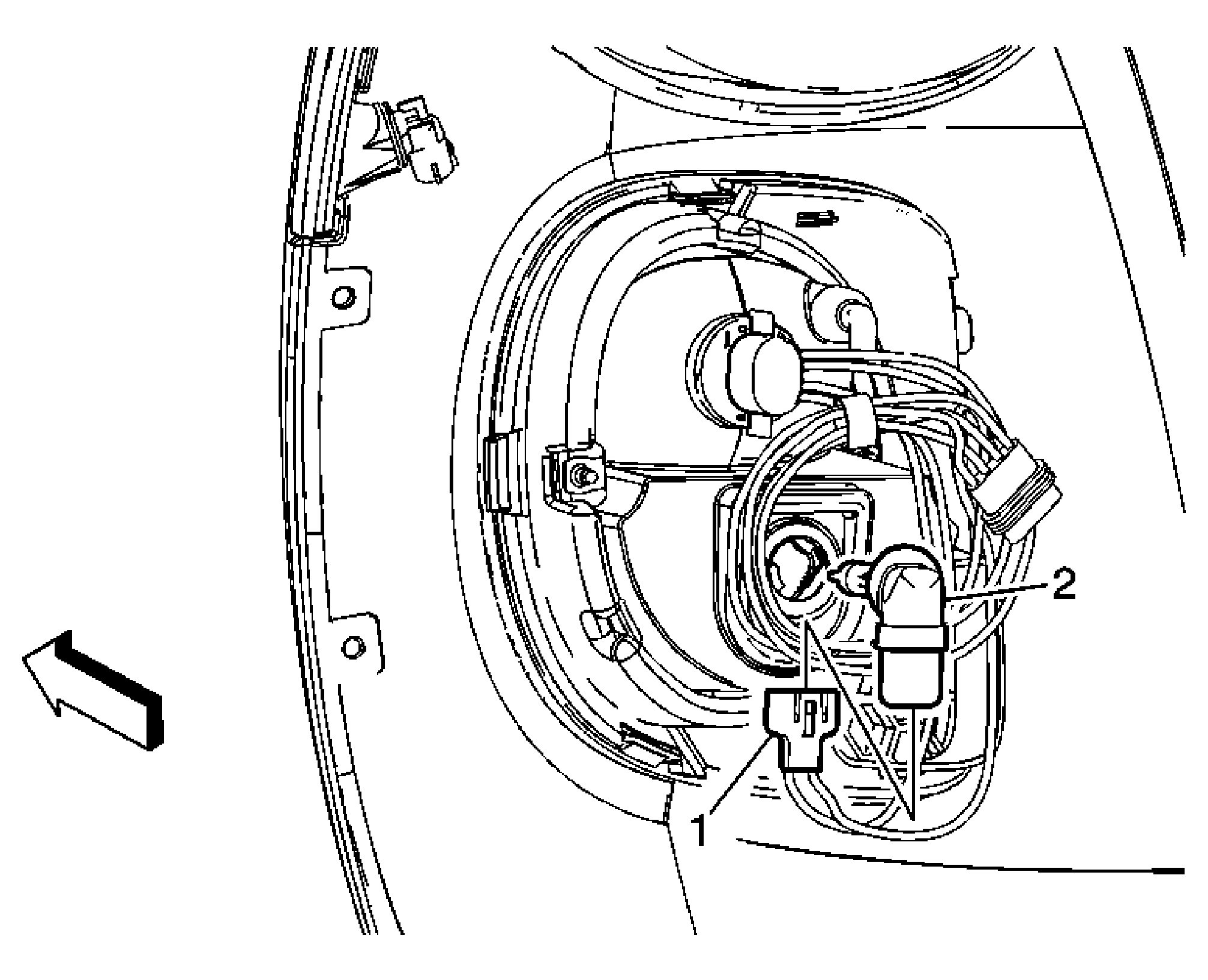

Fig 1: Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Open the hood. Reach in between the bumper and front hood opening to disconnect the fog lamp electrical connector.
1	Connector, Front Fog Lamp Electrical Tip: Release the tab and pull downward on the connector in order to remove.
2	Bulb, Front Fog Lamp CAUTION: Refer to Halogen Bulb Caution . Tip: Rotate the bulb socket counterclockwise from the lamp housing in order to remove.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Open the hood.
Reach in between the bumper and front hood opening to disconnect the fog lamp electrical connector.

Connector, Front Fog Lamp Electrical
Tip: Release the tab and pull downward on the connector in order to remove.

Bulb, Front Fog Lamp

CAUTION: Refer to Halogen Bulb Caution .

Tip: Rotate the bulb socket counterclockwise from the lamp housing in order to remove.
