Headlamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

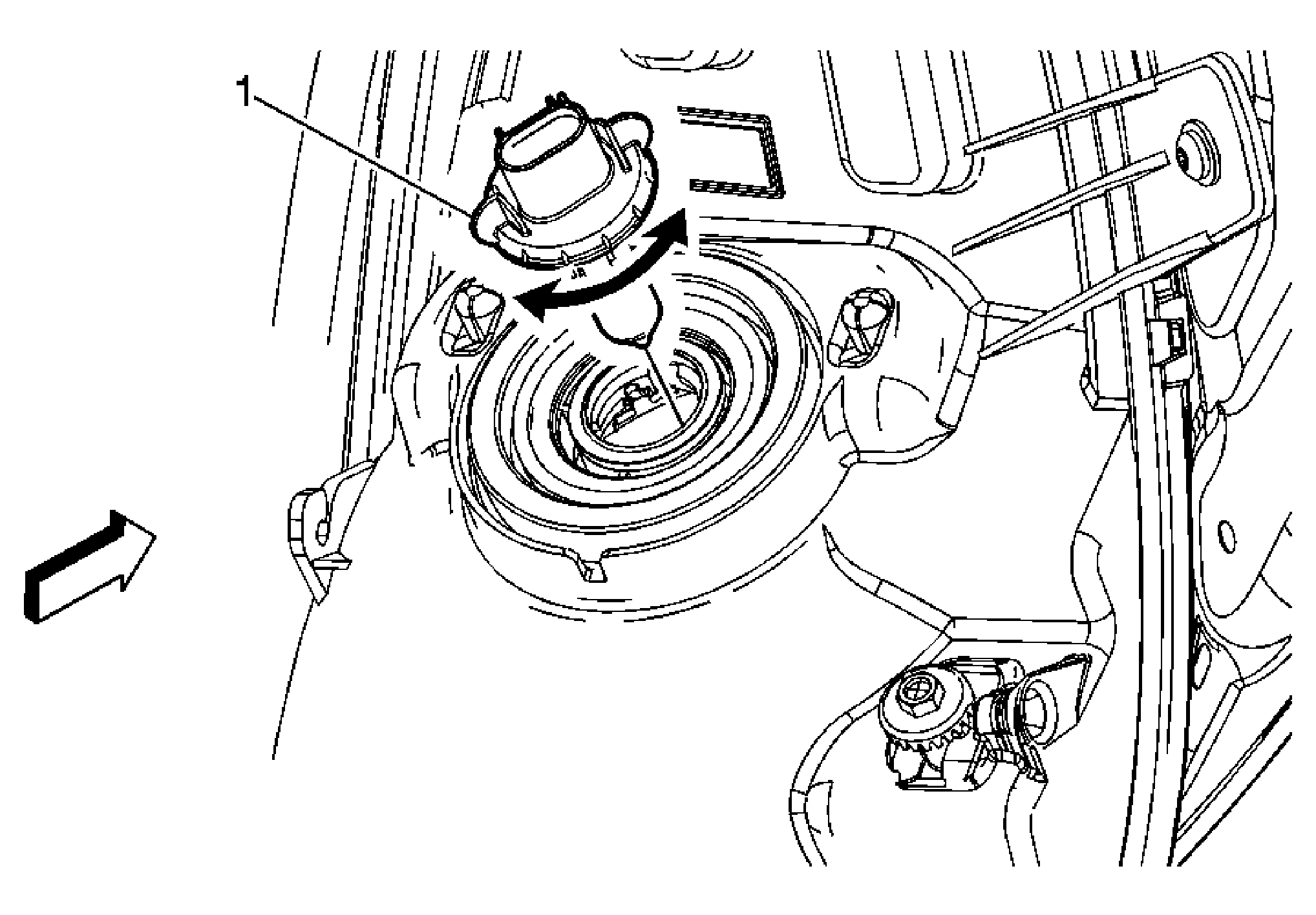

Fig 1: Headlamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Open the hood. Lift upward on the connector positive assurance (CPA) to release the electrical harness from the bulb socket. Disconnect the electrical connector.
1	Socket, Headlamp Bulb CAUTION: Refer to Halogen Bulb Caution . Tip: Turn the bulb socket counterclockwise in order to remove.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Open the hood.
Lift upward on the connector positive assurance (CPA) to release the electrical harness from the bulb socket.
Disconnect the electrical connector.

Socket, Headlamp Bulb

CAUTION: Refer to Halogen Bulb Caution .

Tip: Turn the bulb socket counterclockwise in order to remove.
