Tail Lamp Replacement
WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.
Tail Lamp Replacement

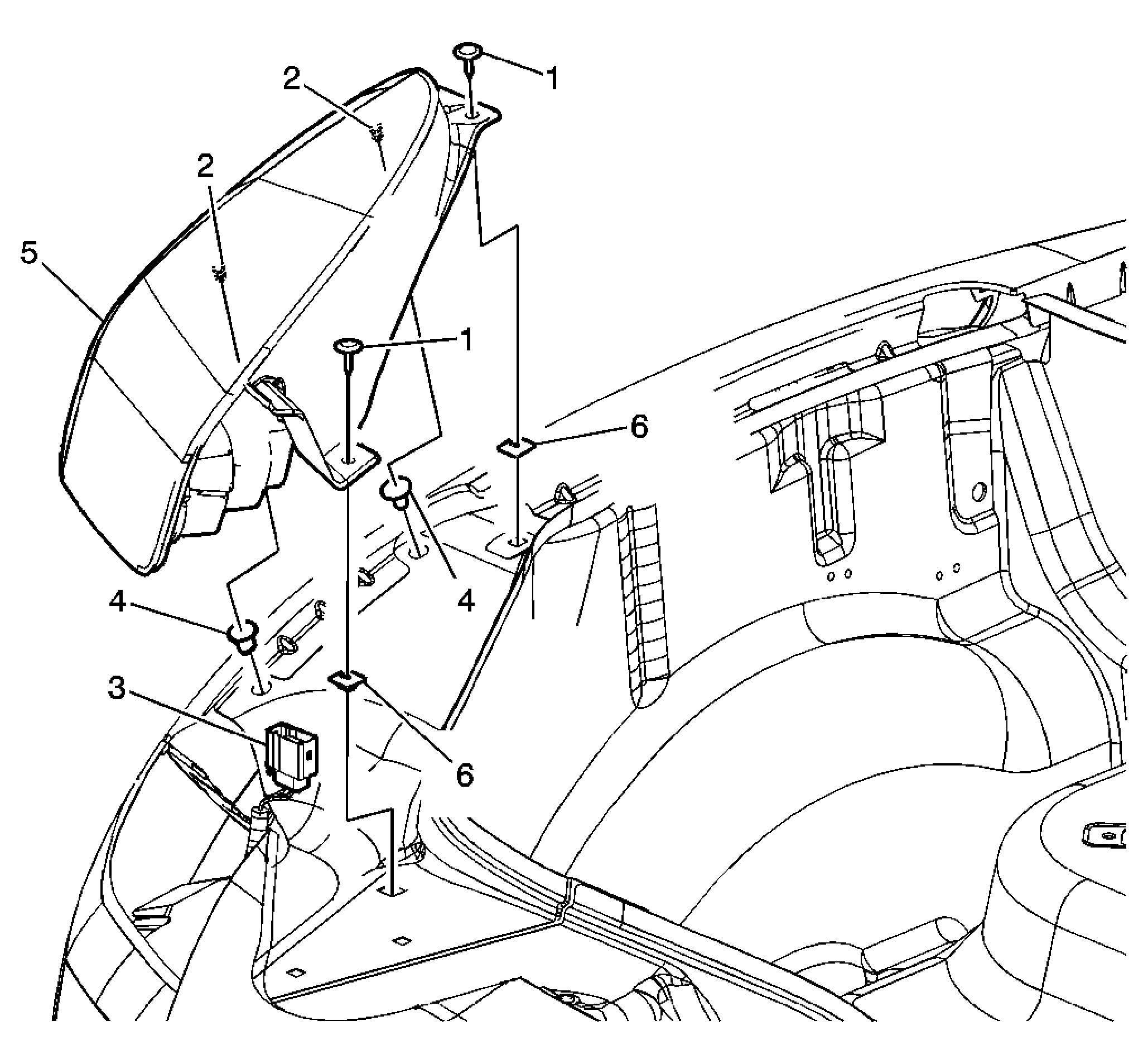

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Open the rear compartment lid in order to access the tail lamp screws. |
|
| 1 | Tail Lamp Assembly Screws (Qty: 2) Tighten: 2.5 N.m (40 lb in) |
| 2 | Locating Pins (Qty: 2) Tip: Lift upward on the tail lamp assembly in order to release the tail lamp locating pins from the quarter filler panel. |
| 3 | Chassis Electrical Connector Tip: Disconnect the electrical connector. |
| 4 | Quarter Filler Panel Nuts (Qty: 2) Tip: Ensure the quarter filler panel nuts are not damaged. Replace if damaged. |
| 5 | Tail Lamp Assembly Tip: Transfer the bulb into the new tail lamp. |
| 6 | Retainer Clips (Qty: 2) Tip: Ensure clips are secure to the quarter filler panel. |
