Cooling System Component Views
WARNING: This page is about a different car, the 2006 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Forward Lamp Harness |
| 2 |
Cooling Fan (3 TN) |
| 3 |
Cooling Fan Resistor (2 GY) |
| 4 |
Forward Lamp Harness |

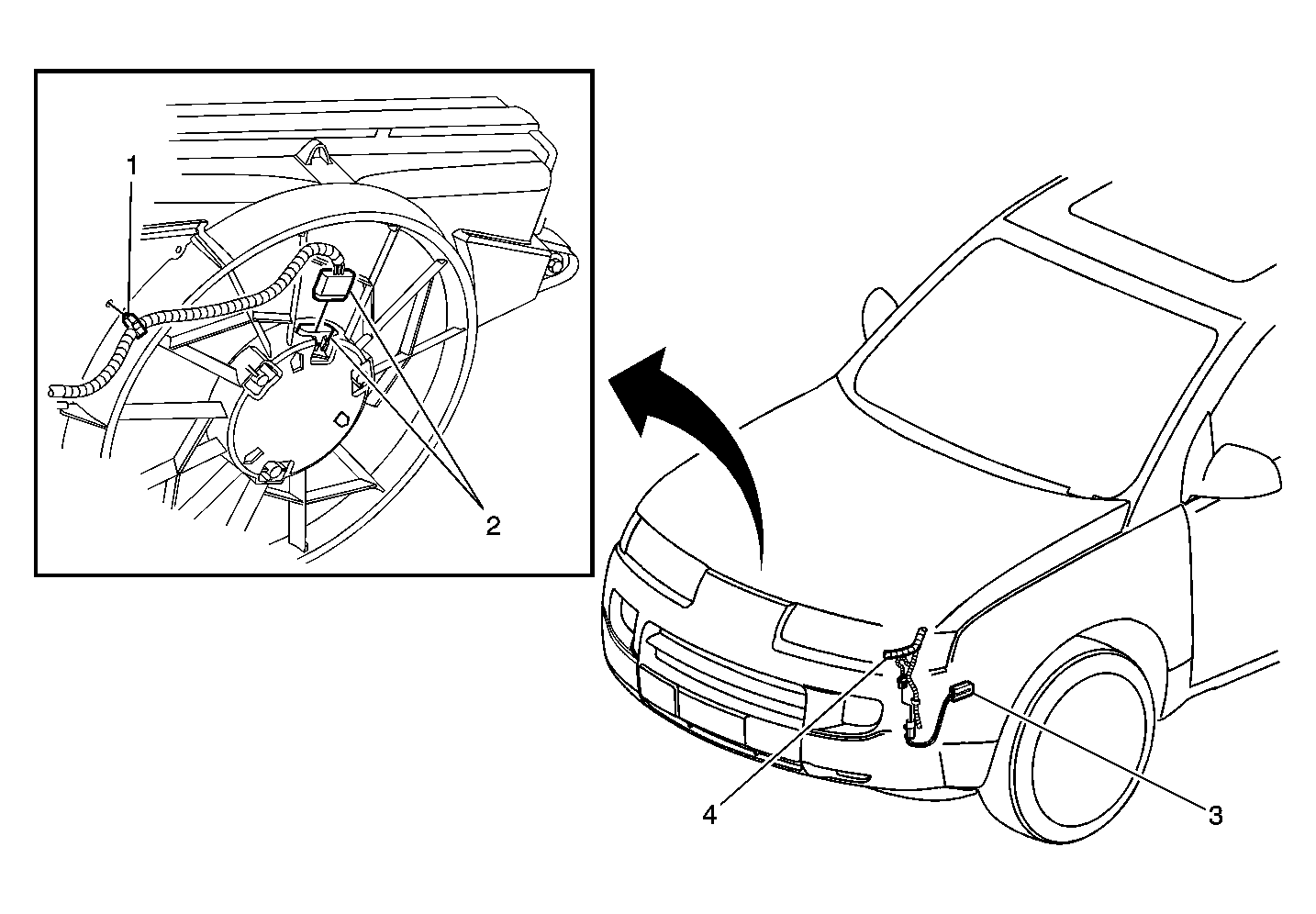

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cooling Fan - Left (3 TN) |
| 2 |
Cooling Fan - Right (3 TN) |
| 3 |
Cooling Fan Relay 3 (5 BK) |
| 4 |
Forward Lamp Harness |
