Immobilizer Schematics

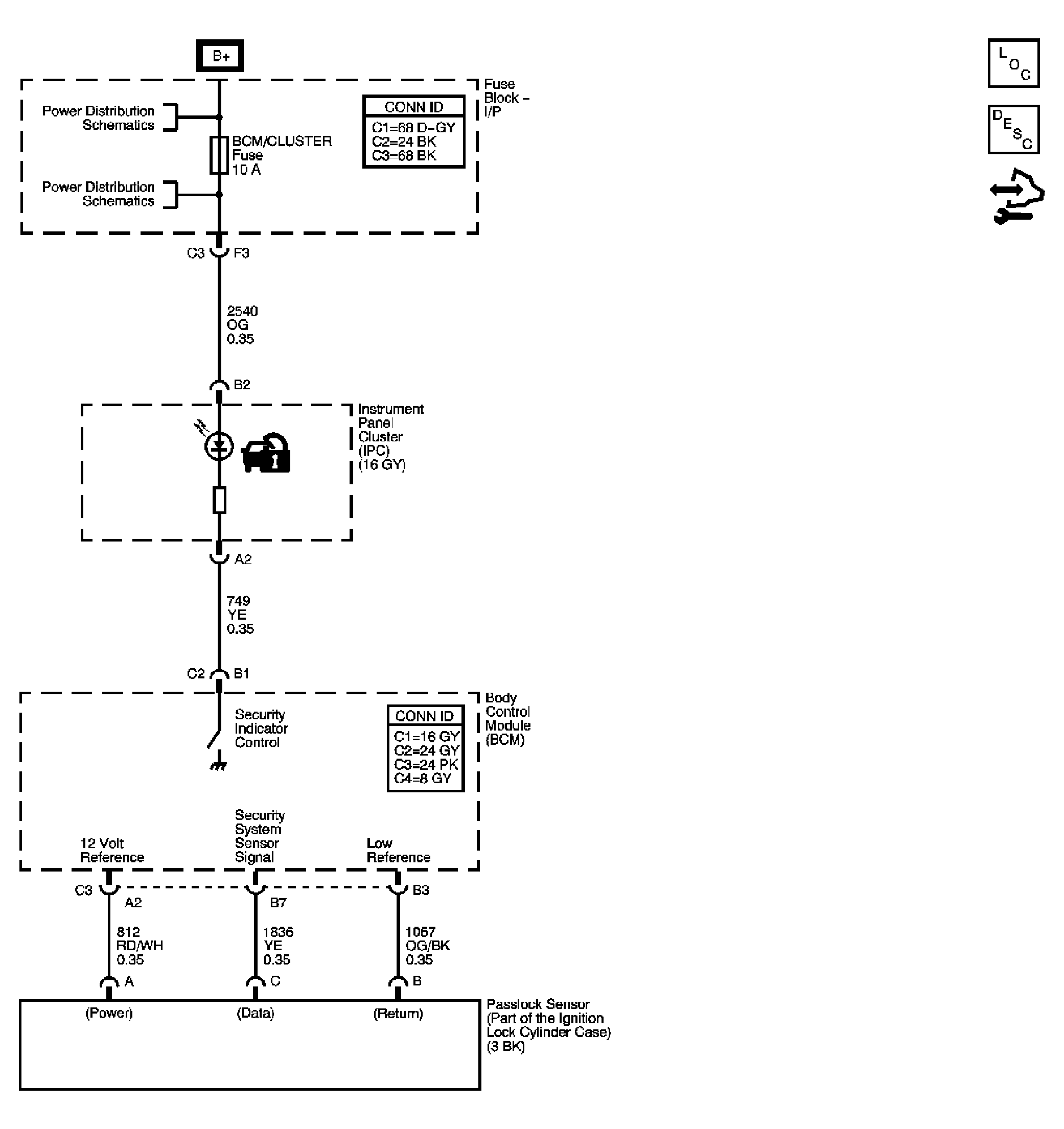

Fig 1: Vehicle Theft Deterrent Schematic
GM1798952Courtesy of GENERAL MOTORS CORP.

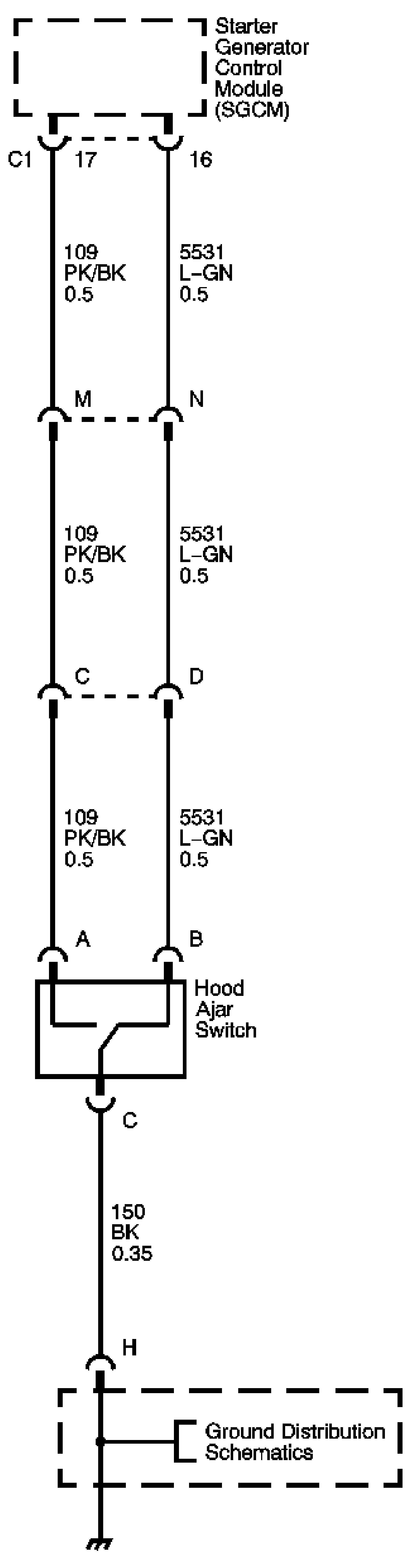

Fig 2: Hood Ajar Switch Schematic
GM1824238Courtesy of GENERAL MOTORS CORP.
