Front Side Turn Signal Lamp Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

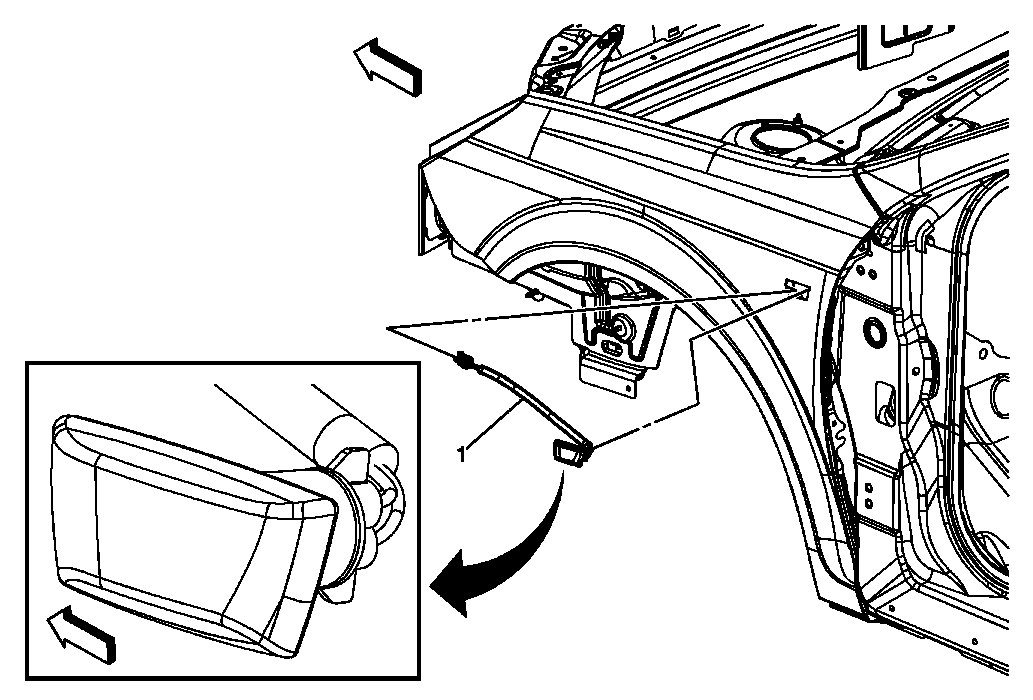

Fig 1: Front Side Turn Signal Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures CAUTION: Refer to Exterior Trim Emblem Removal Caution . Remove the front wheelhouse panel splash shield. Refer to Front Wheelhouse Panel Splash Shield Replacement . Disconnect the front turn signal lamp electrical connector from the forward lamp harness assembly at the topside of the fender panel. Rotate the lamp socket from the lamp housing. Squeeze the lamp housing locking tab and push outward in order to remove the lamp housing from the fender panel.
1	Front Turn Signal Lamp Assembly Tip: Replace the bulb, as needed.

Callout

Component Name

Preliminary Procedures

CAUTION: Refer to Exterior Trim Emblem Removal Caution .

Remove the front wheelhouse panel splash shield. Refer to Front Wheelhouse Panel Splash Shield Replacement .
Disconnect the front turn signal lamp electrical connector from the forward lamp harness assembly at the topside of the fender panel.
Rotate the lamp socket from the lamp housing.
Squeeze the lamp housing locking tab and push outward in order to remove the lamp housing from the fender panel.

Front Turn Signal Lamp Assembly
Tip: Replace the bulb, as needed.
