Body Control System Wiring Schematics

WARNING: This page is about a different car, the 2006 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

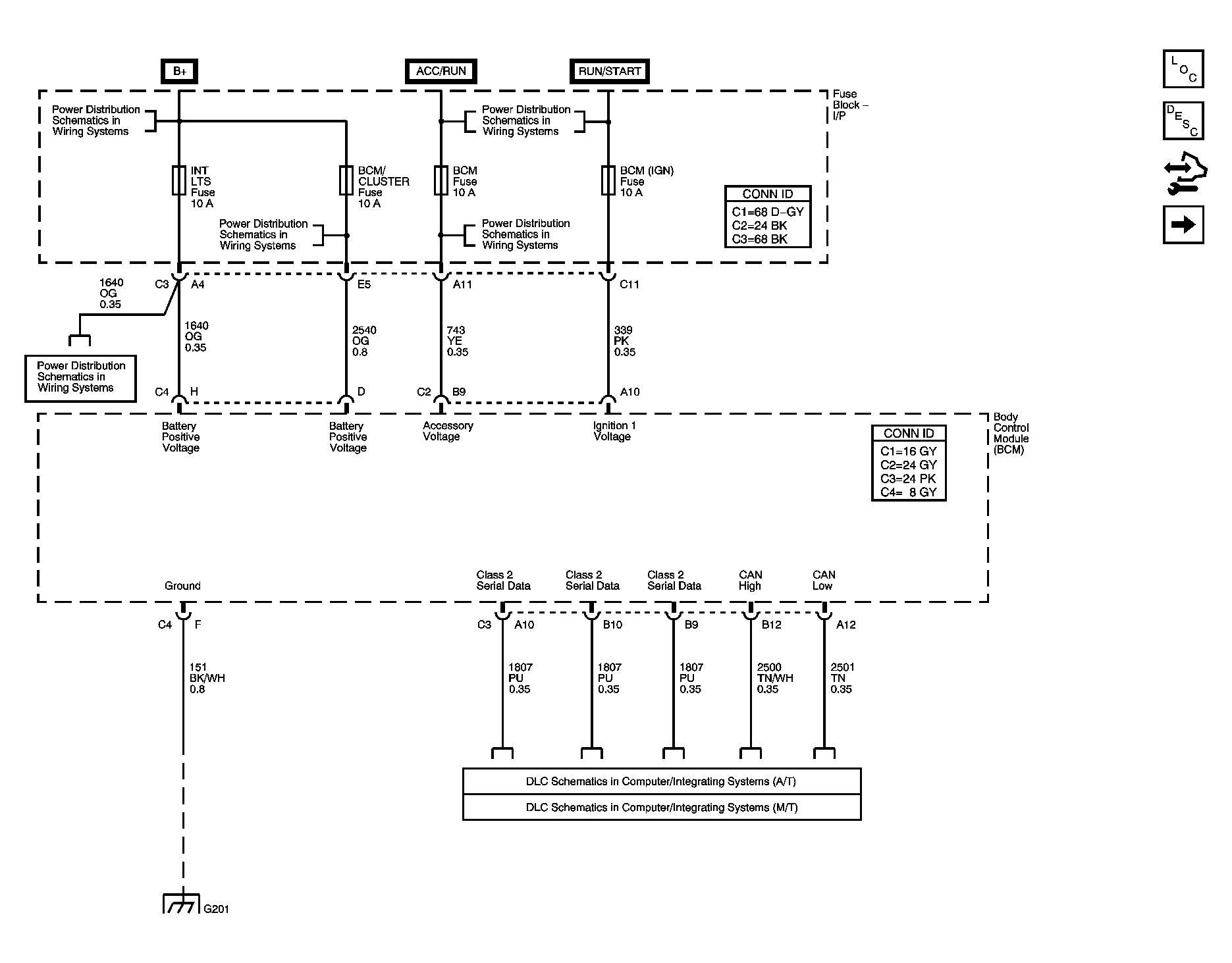

Fig 1: Power, Ground and Serial Data

Courtesy of GENERAL MOTORS CORP.

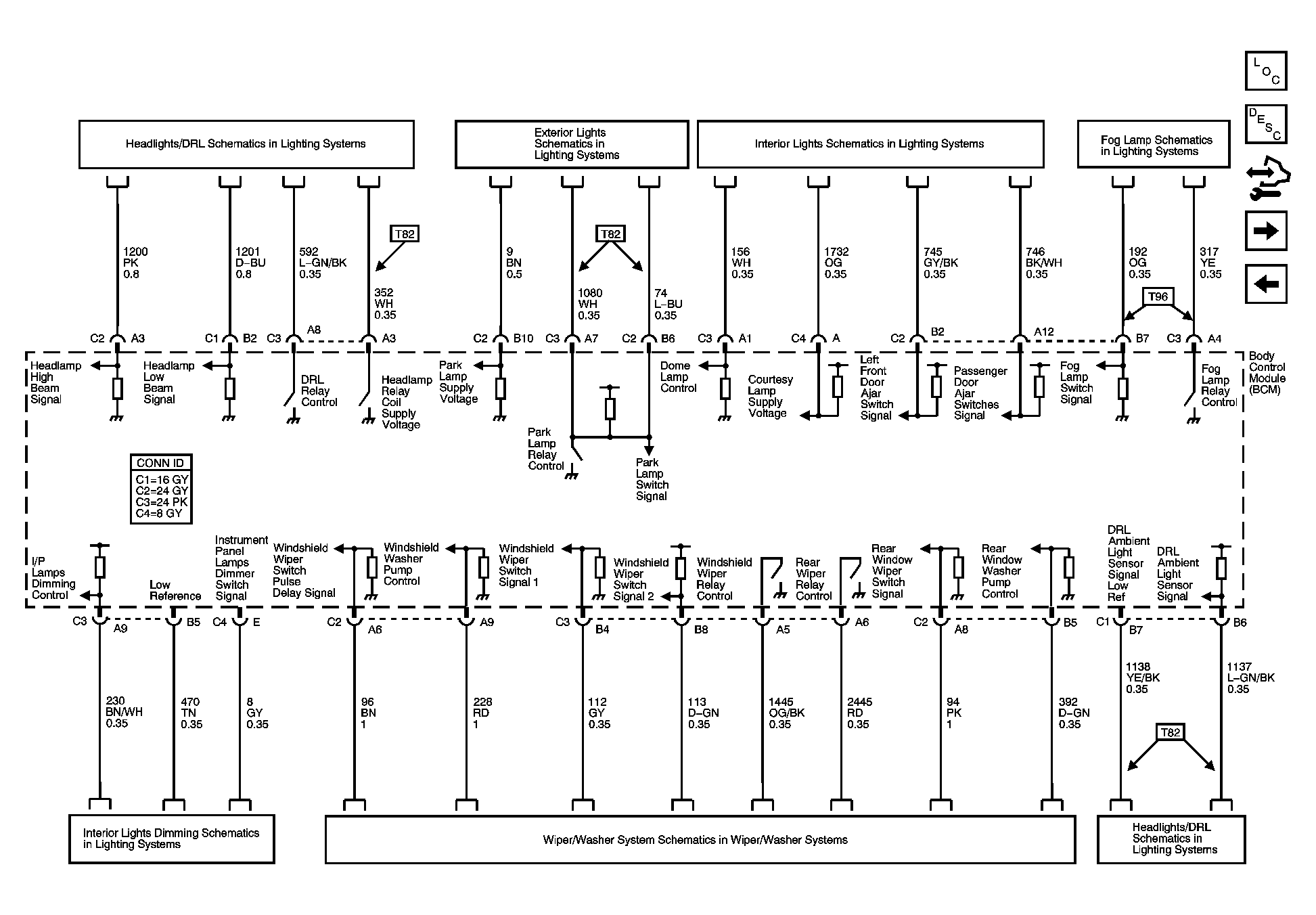

Fig 2: Lighting and Wiper/Washer System References

Courtesy of GENERAL MOTORS CORP.

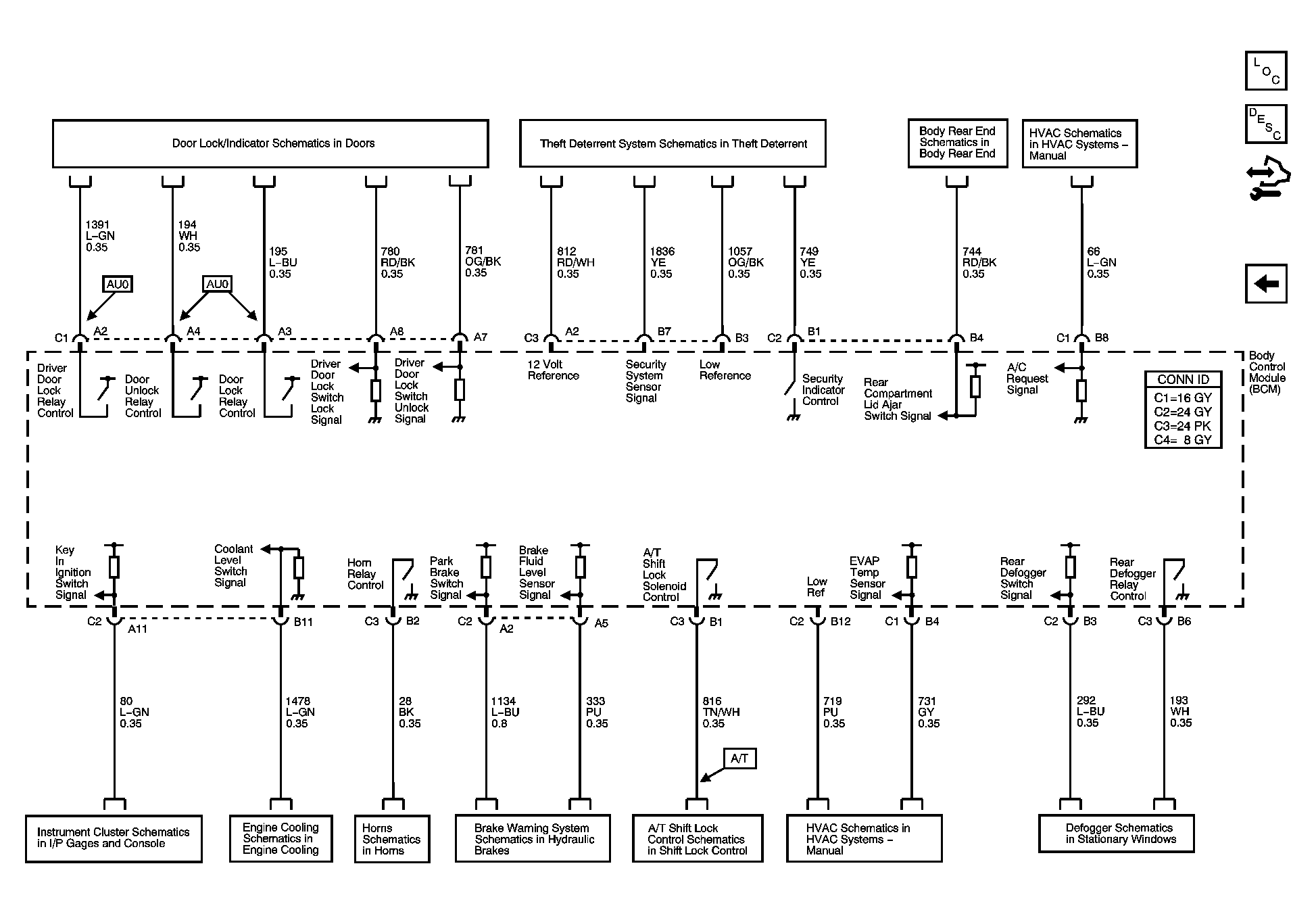

Fig 3: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
