Seat Belt Component Views

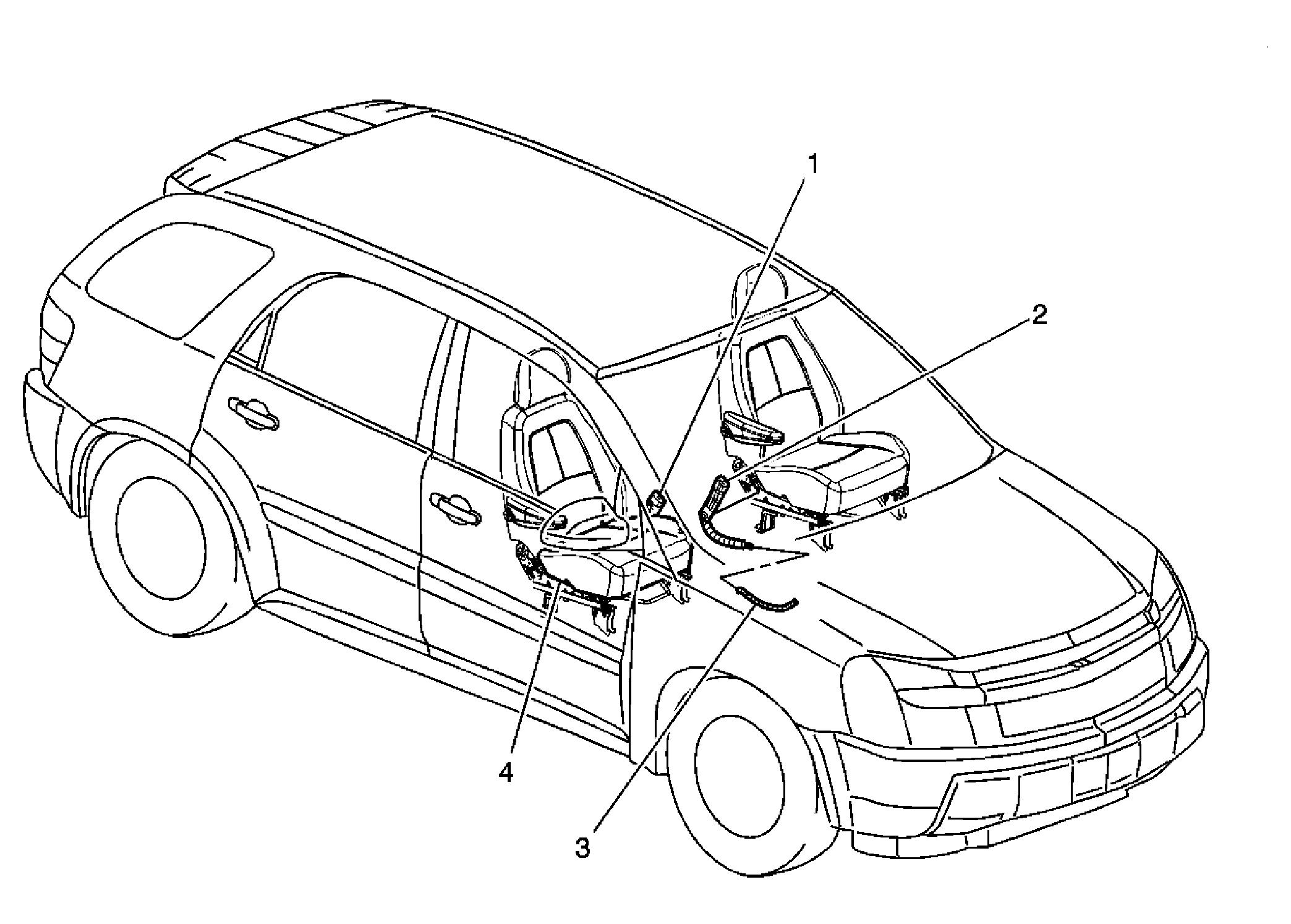

Fig 1: Seat Belt Components
GM1640120Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch - Passenger
2 Seat Belt Switch - Driver
3 I/P Wiring Harness
4 Inflatable Restraint Passenger Presence System (PPS) Sensor - Part of the Seat Cushion
