Steering Wheel Replacement

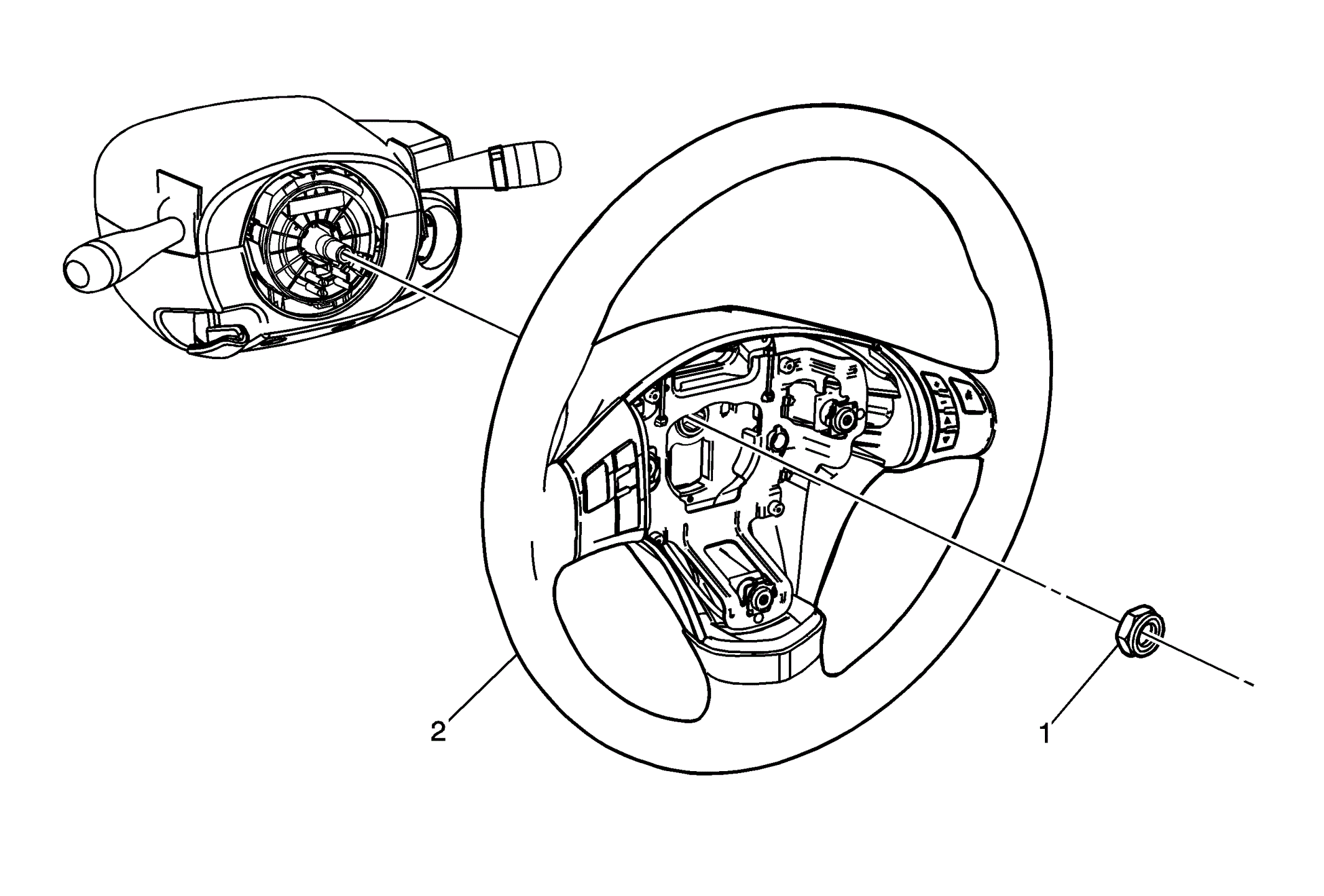

Courtesy of GENERAL MOTORS CORP. Steering Wheel Replacement
| Callout |
Component Name |
|
Preliminary Procedure
- Disable the SIR system. Refer to SIR Disabling and Enabling
.
- Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement
.
|
| 1 |
Steering Wheel Nut Tighten:
41 N.m (30 lb ft)
|
| 2 |
Steering Wheel Assembly
Tip:
- Disconnect the electrical connector.
- Remove the steering wheel using J 1859-A
Steering Wheel Puller with J 42578
Steering Wheel Puller Legs. See Special Tools .
- Make an alignment mark to note the relationship between the steering wheel and the steering shaft. The marks will be needed to align the wheel during installation.
Special Tools
- J 1859-A
Steering Wheel Puller
- J 42578
Steering Wheel Puller Legs. See Special Tools .
|
