Moveable Window Schematics

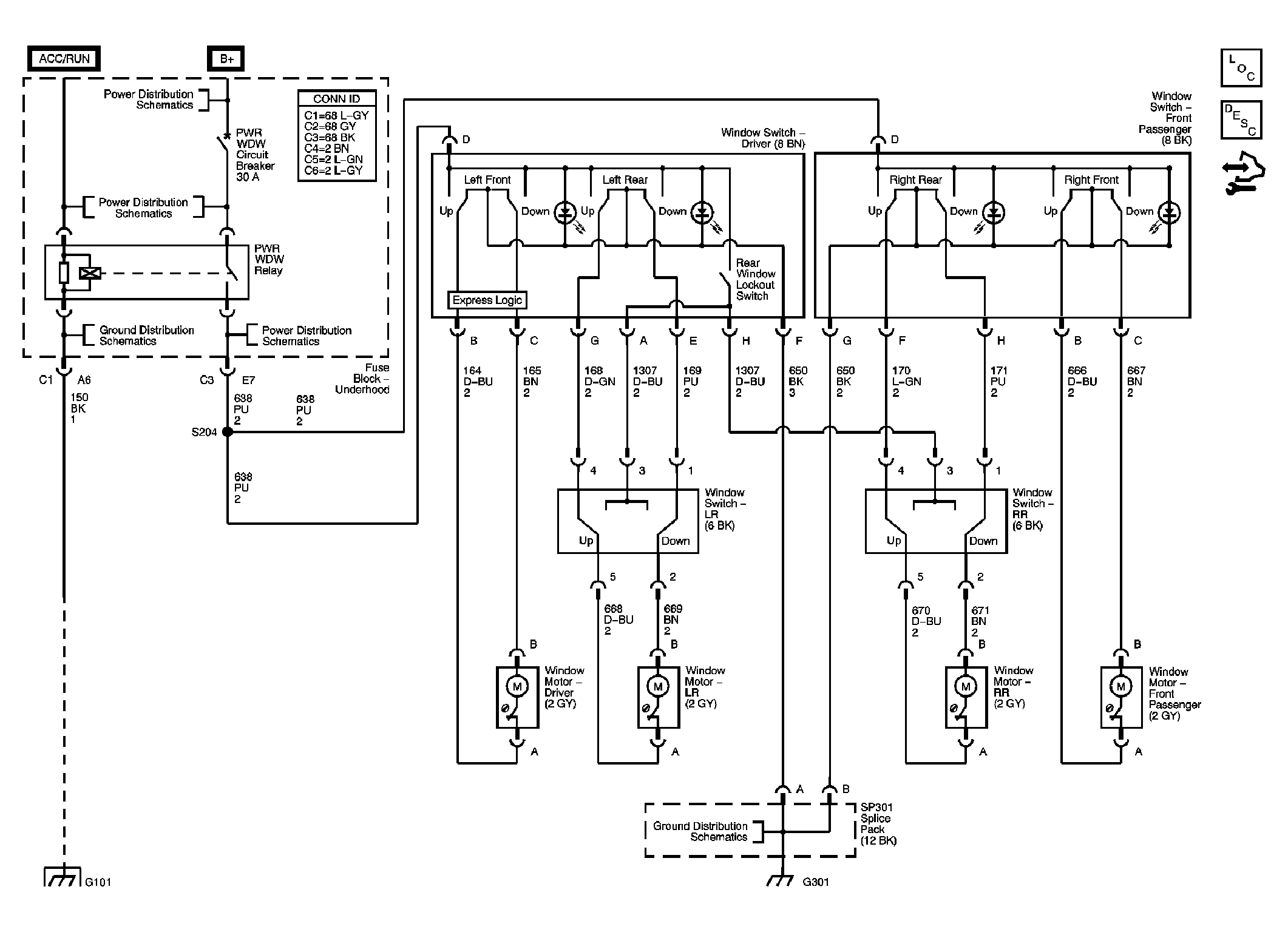

Fig 1: Moveable Window Schematic
GM1797080Courtesy of GENERAL MOTORS CORP.
