Installation Procedure

    Fig 1: Removing/Installing Wheel Speed Sensor
    GM929664Courtesy of GENERAL MOTORS CORP.
  1. Install the wheel speed sensor to the wheel bearing/hub assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Install the wheel speed sensor mounting bolt.

    Tighten:  Tighten the bolt to 8 N.m (71 lb in).

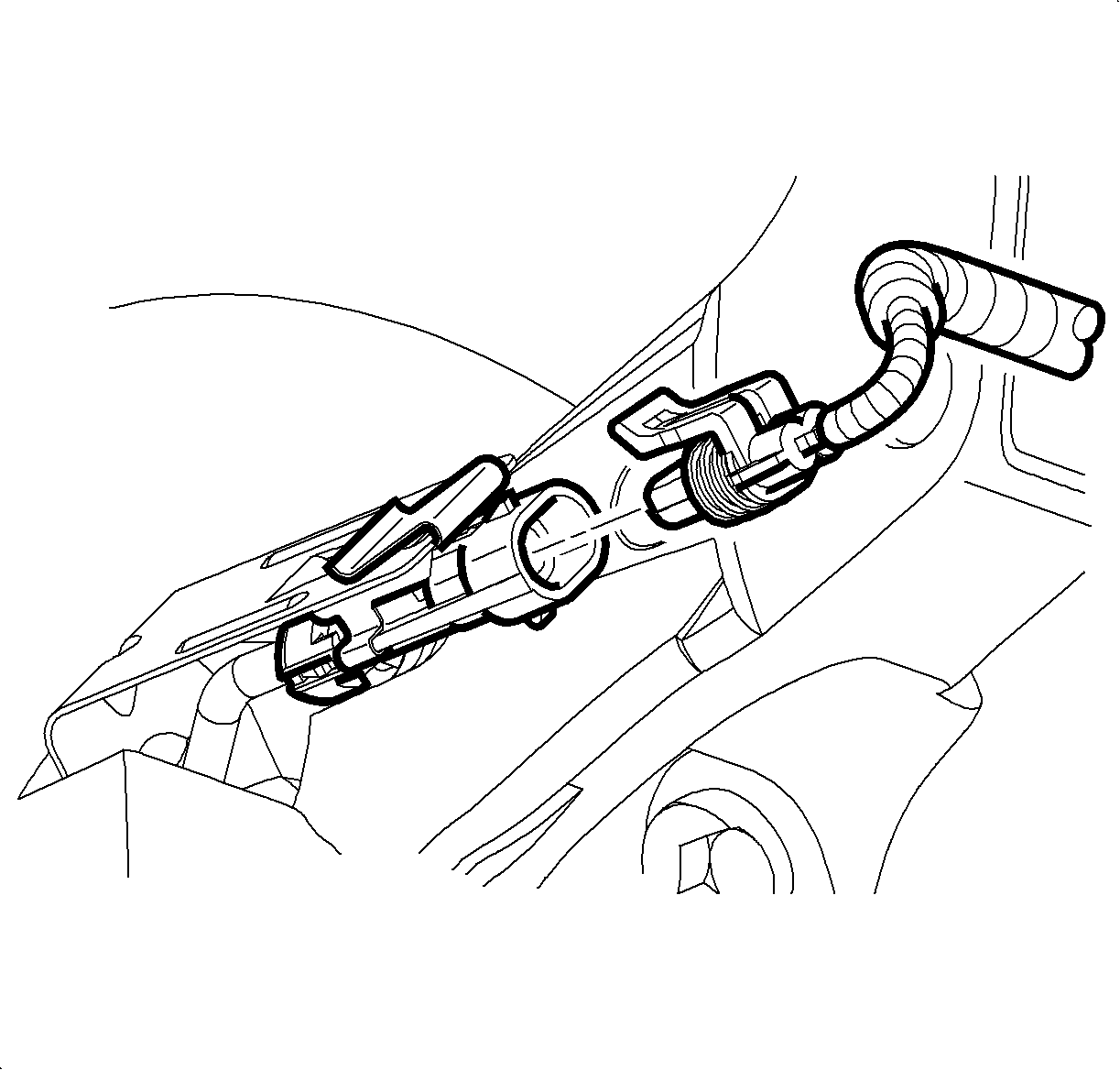

    3. Fig 2: View Of Front Wheel Speed Sensor
    GM926677Courtesy of GENERAL MOTORS CORP.
  3. Connect the wheel speed sensor electrical connector.
  4. Install the brake rotor. Refer to Brake Rotor Replacement .
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
