Antilock Brake System Schematics

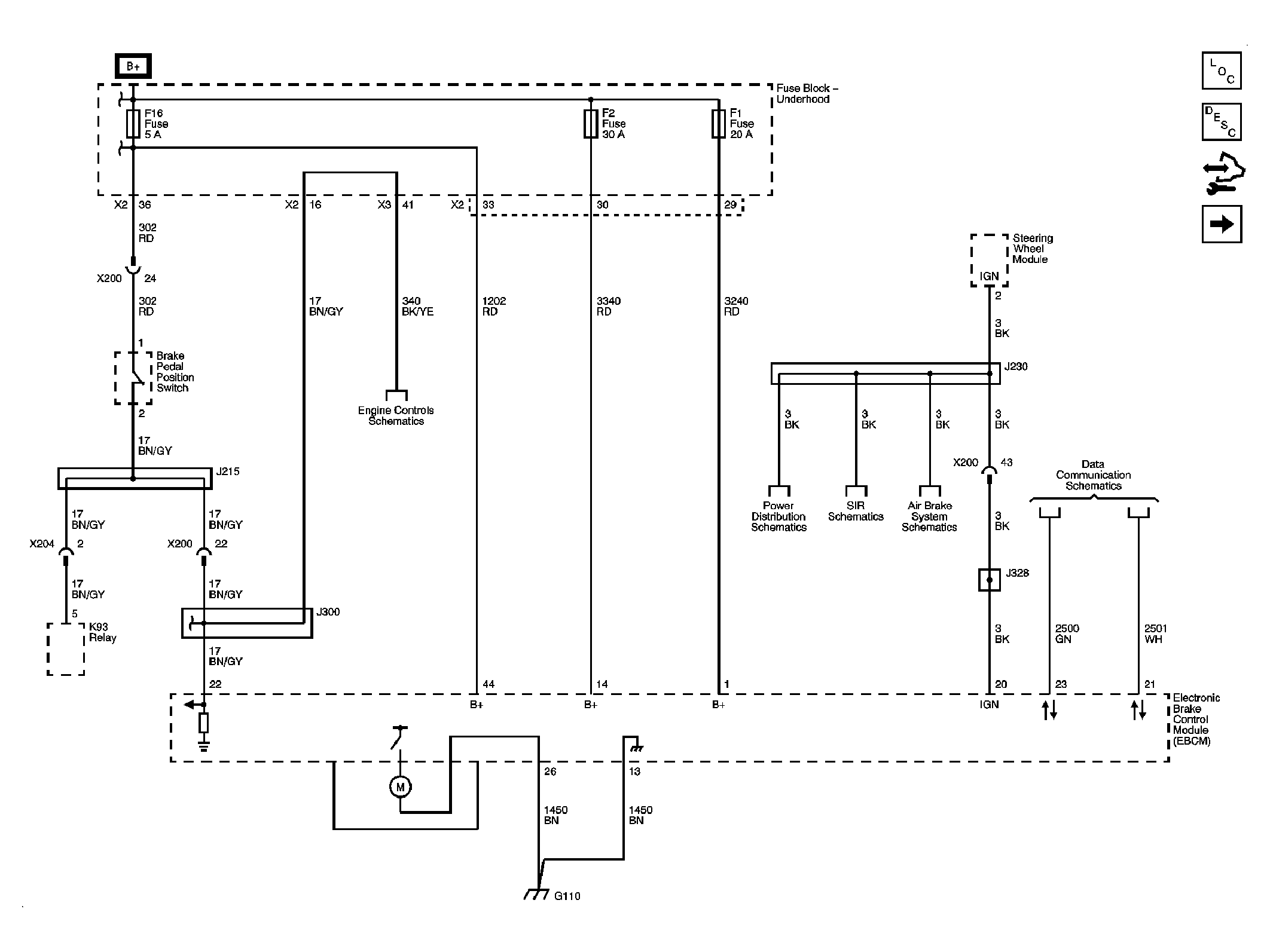

Fig 1: Power, Ground, Brake Pedal Position Switch, and Data Communications Schematic

Courtesy of GENERAL MOTORS CORP.

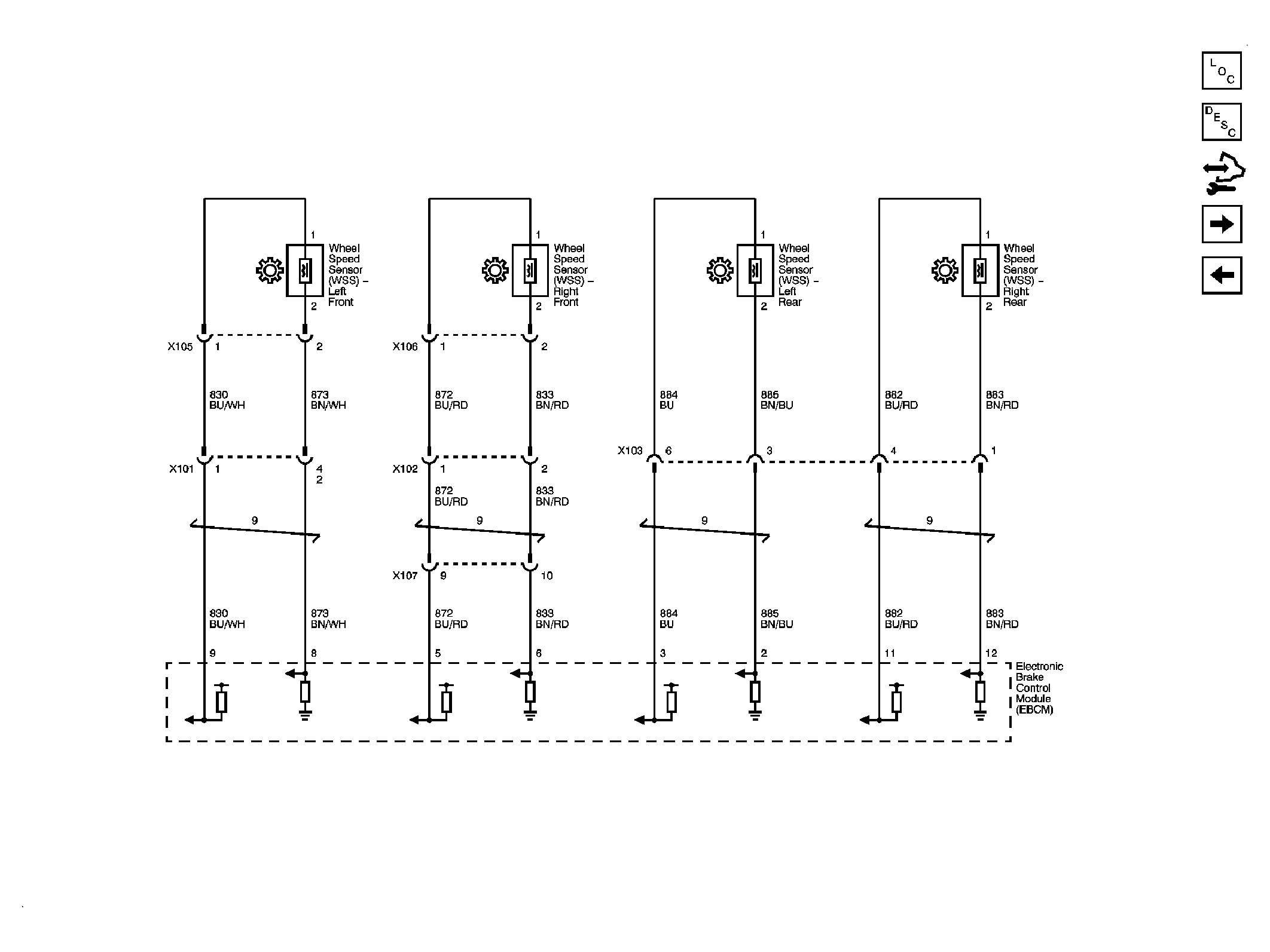

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Yaw and Lateral Accelerometer Sensor Schematic

Courtesy of GENERAL MOTORS CORP.
