Front of Vehicle/Engine Compartment Component Views

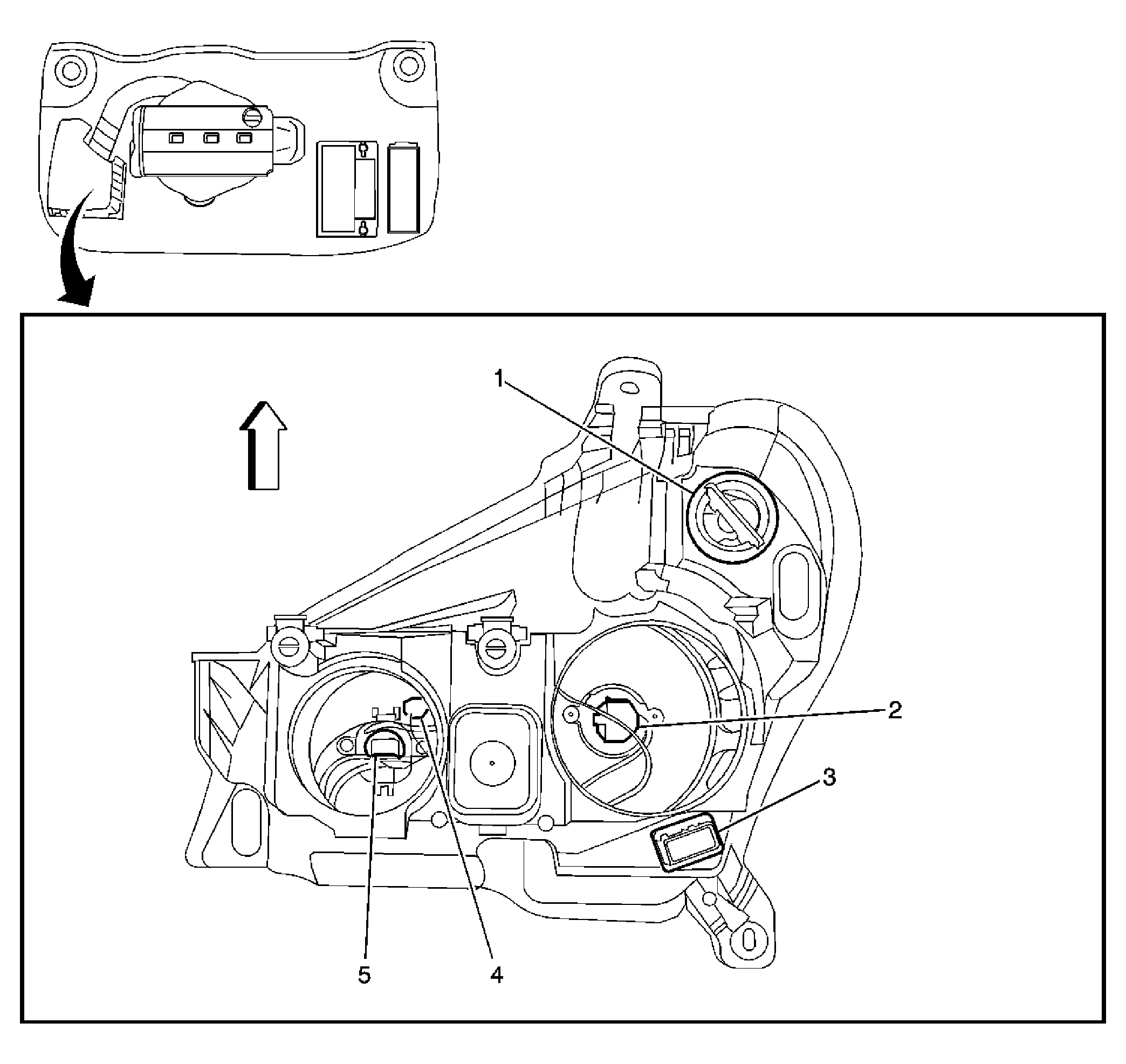

Fig 1: Headlamp Assembly-LF Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Lamp-LF
2	High Beam-LF
3	Parking Lamp-LF
4	Low Beam-LF

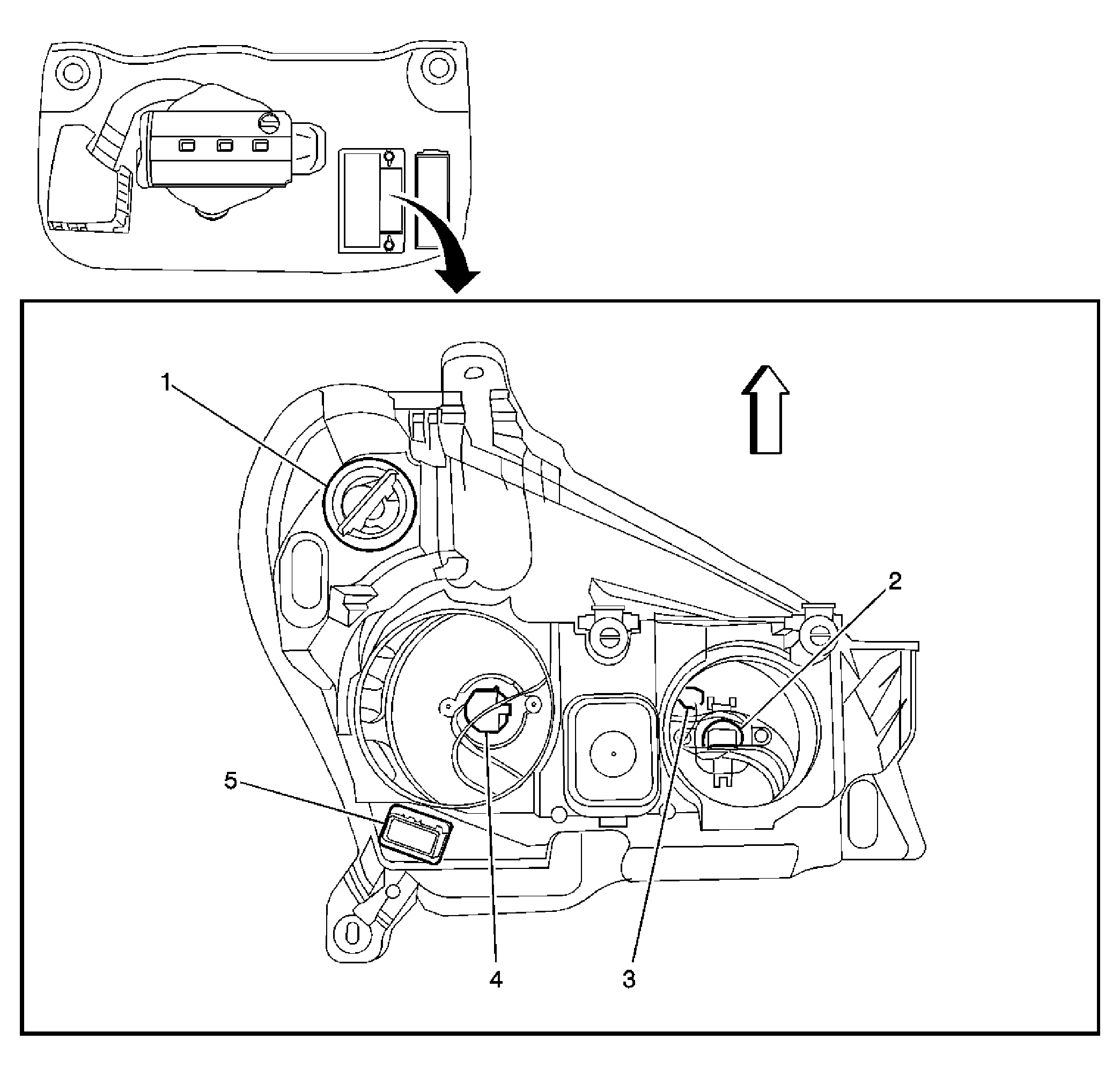

Fig 2: Headlamp Assembly-RF Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Lamp-RF
2	Low Beam-RF
3	Parking Lamp-RF
4	High Beam-RF

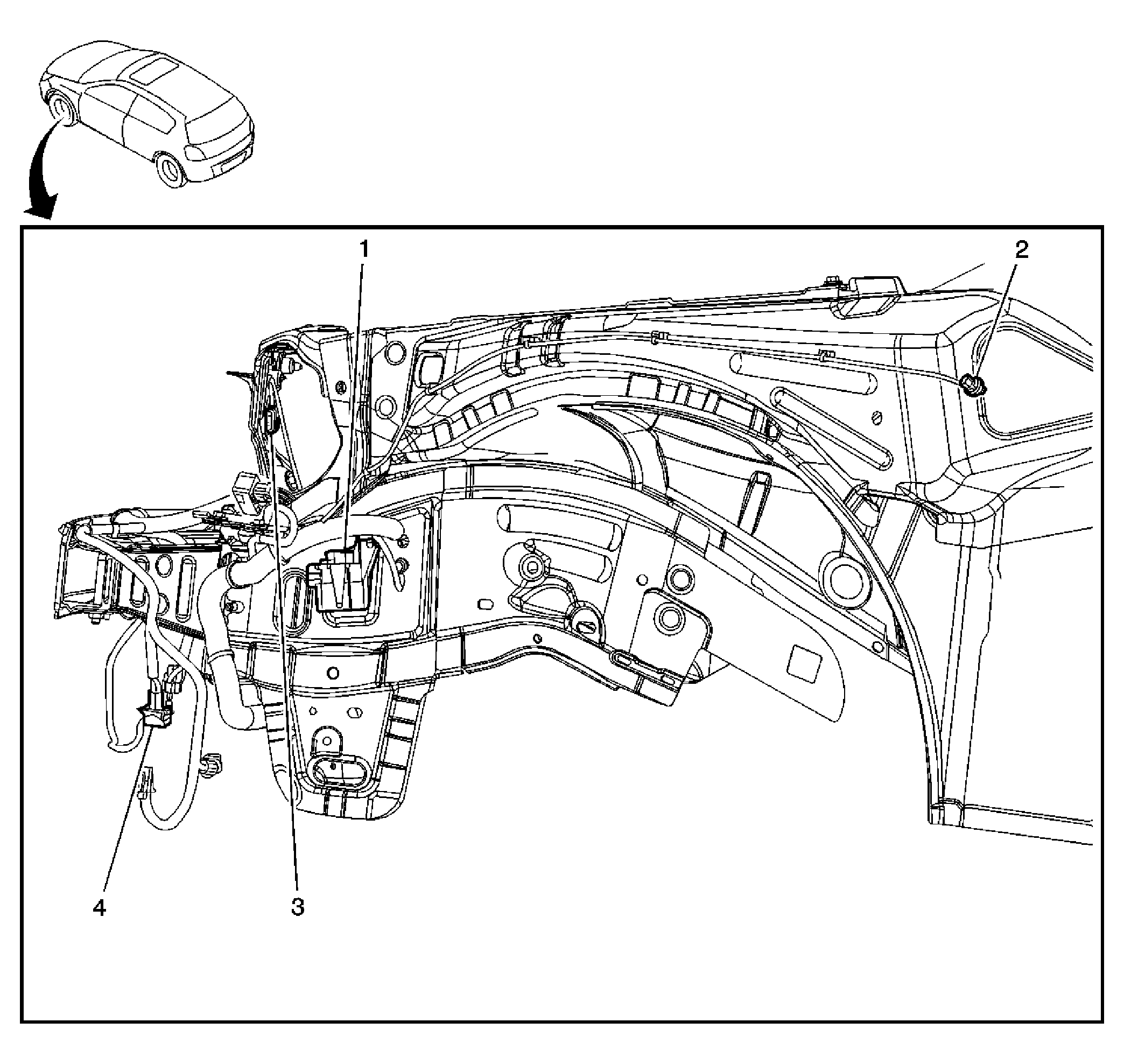

Fig 3: Engine Compartment-Left Front Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X111
2	Marker Lamp-LF
3	Inflatable Front End Sensor-Right
4	Windshield Washer Fluid Pump-Front

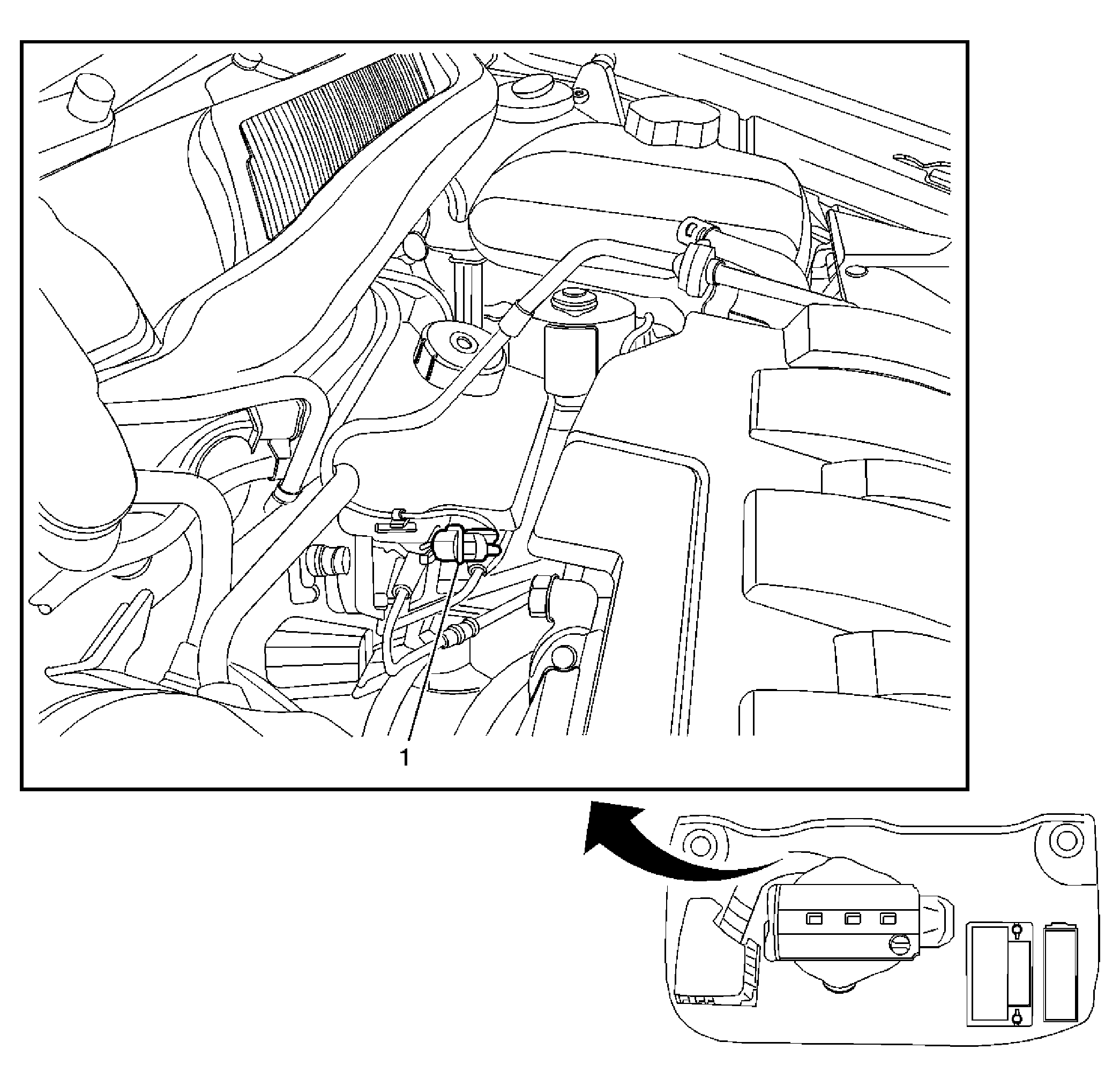

Fig 4: Engine Compartment-Left Front Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X107
2	Headlamp-Left Connector
3	Windshield Washer Fluid Level Switch
4	Fog Lamp-Left Front
5	Ambient Air Temperature Sensor - 1

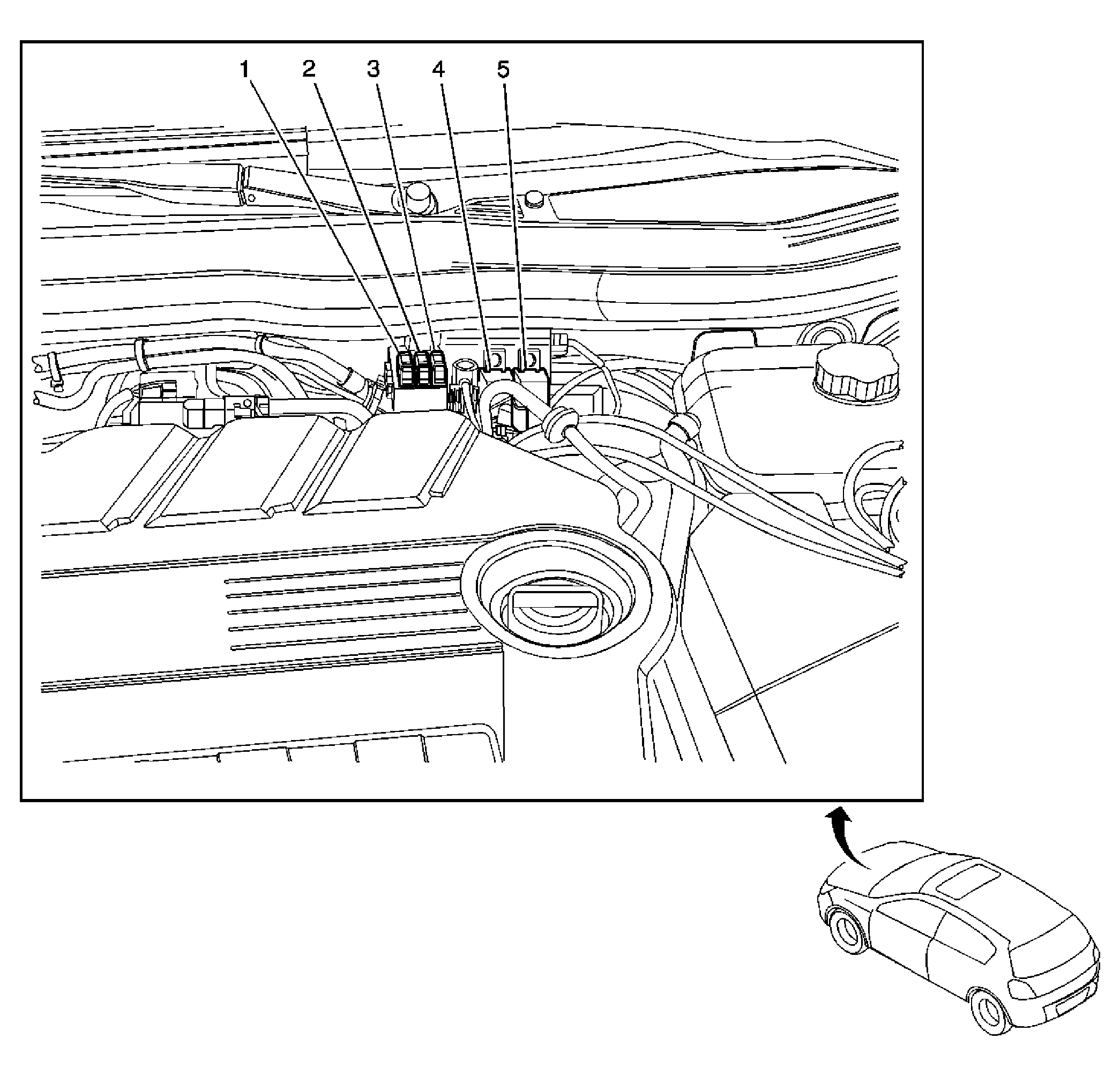

Fig 5: Engine Compartment-Left Rear Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse
2	Fuse
3	Fuse
4	Fuse
5	Fuse

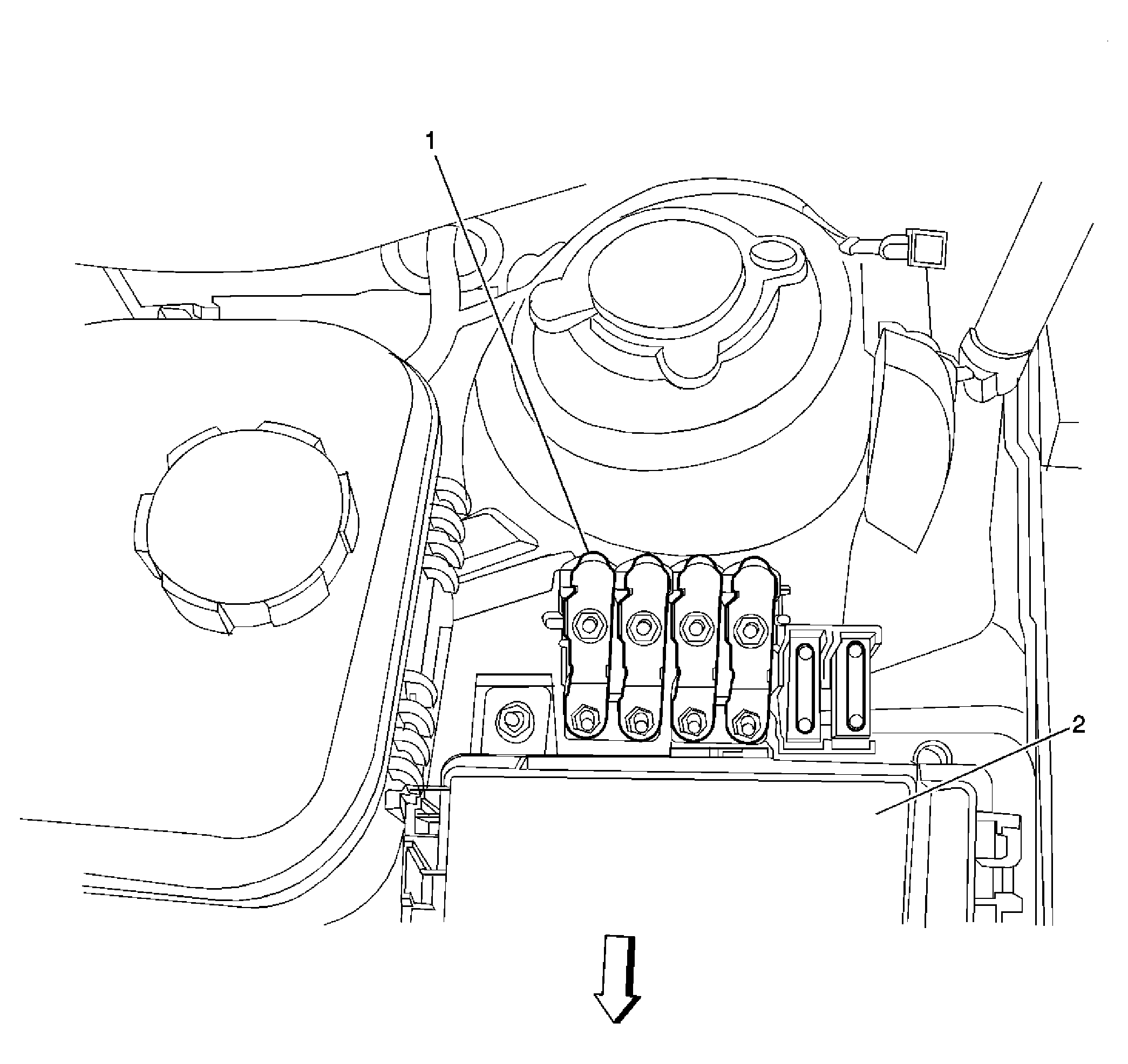

Fig 6: Engine Compartment-Rear Component

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch

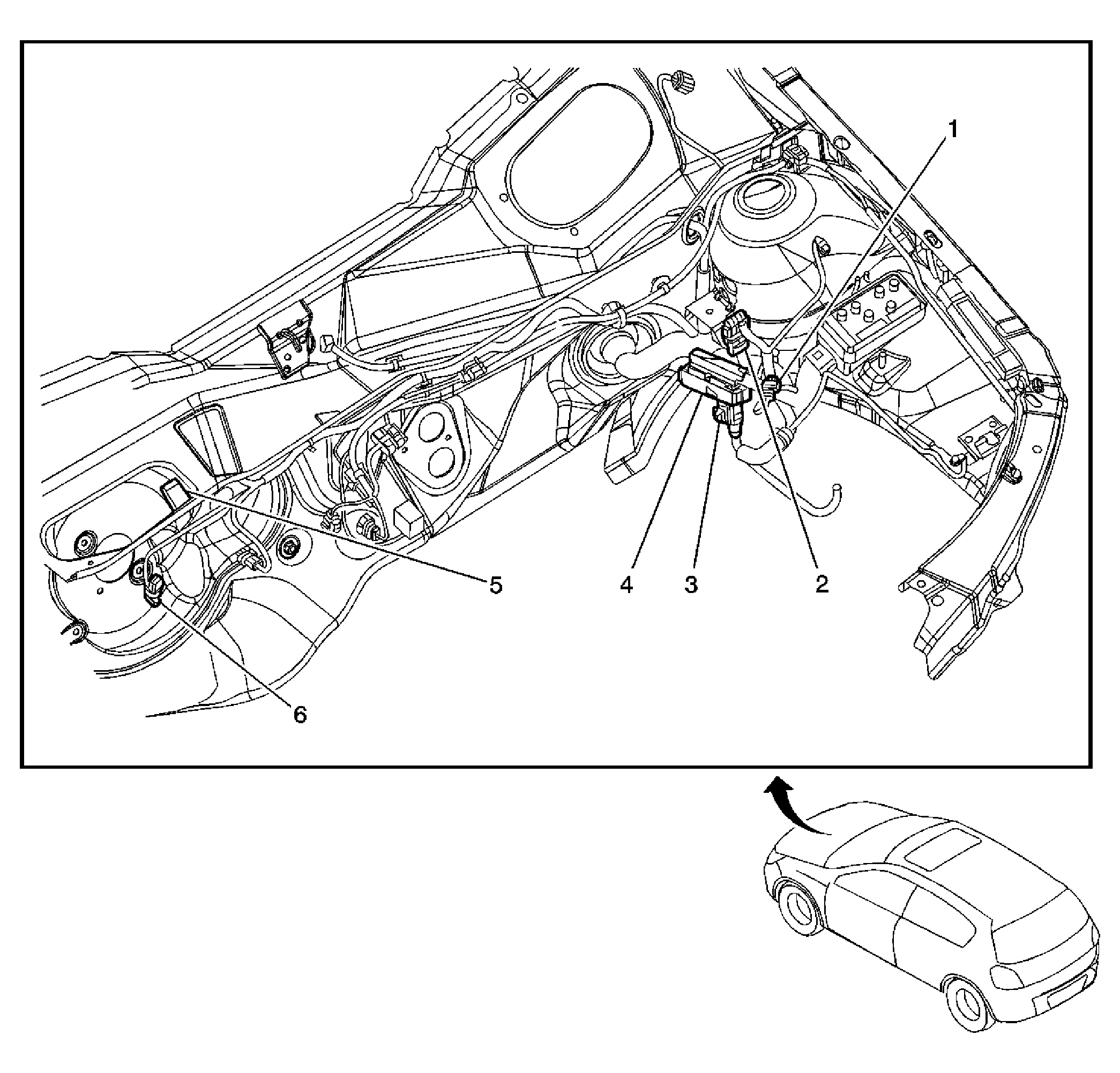

Fig 7: Engine Compartment-Rear Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Level Switch
2	X206
3	X101
4	Electronic Brake Control Module (EBCM) Connector
5	Windshield Wiper Motor
6	Hood Ajar Switch

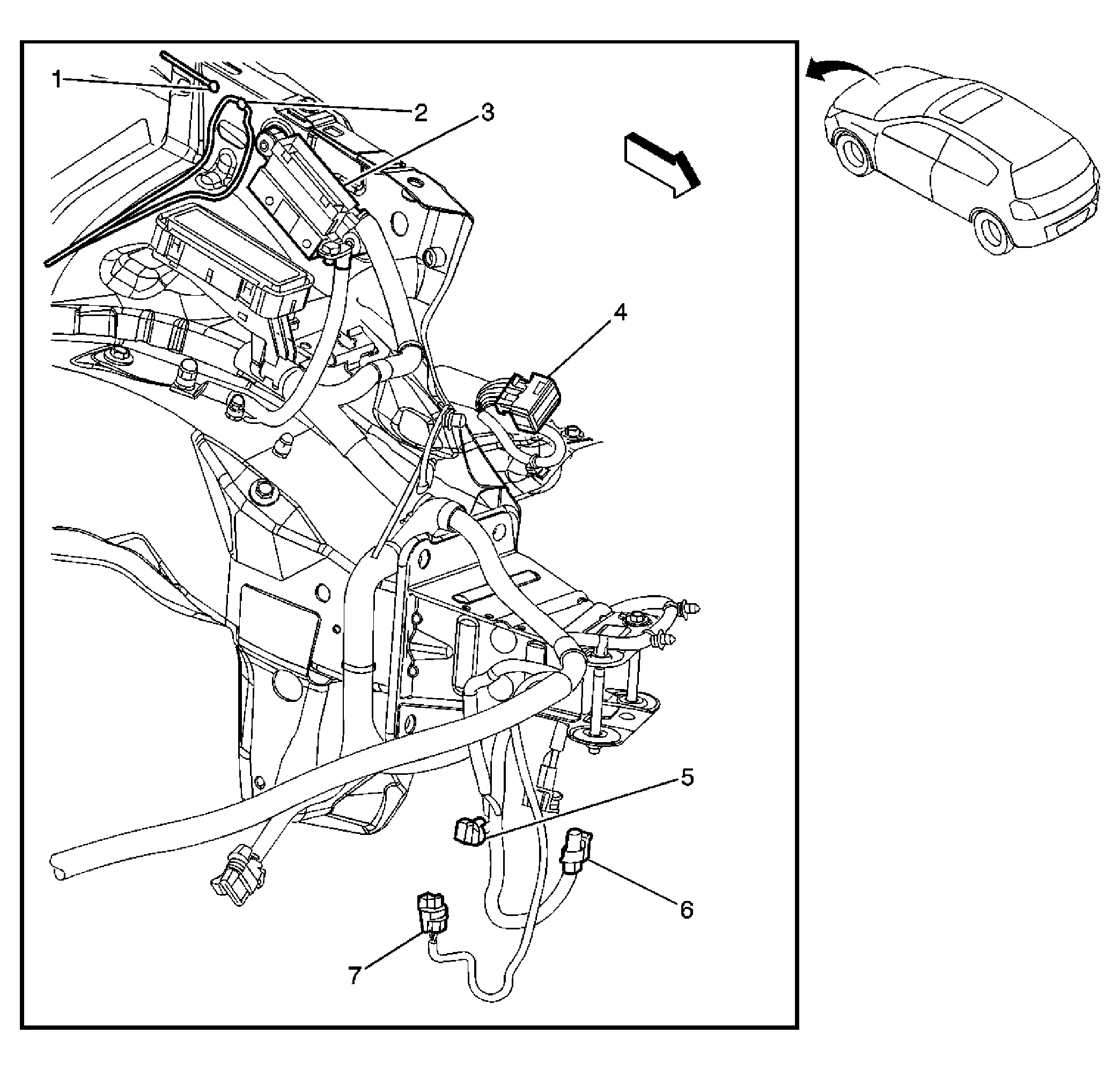

Fig 8: Engine Compartment-Left Rear Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse
2	Fuse
3	Fuse
4	Anti Theft Relay
5	Independent Heater Relay

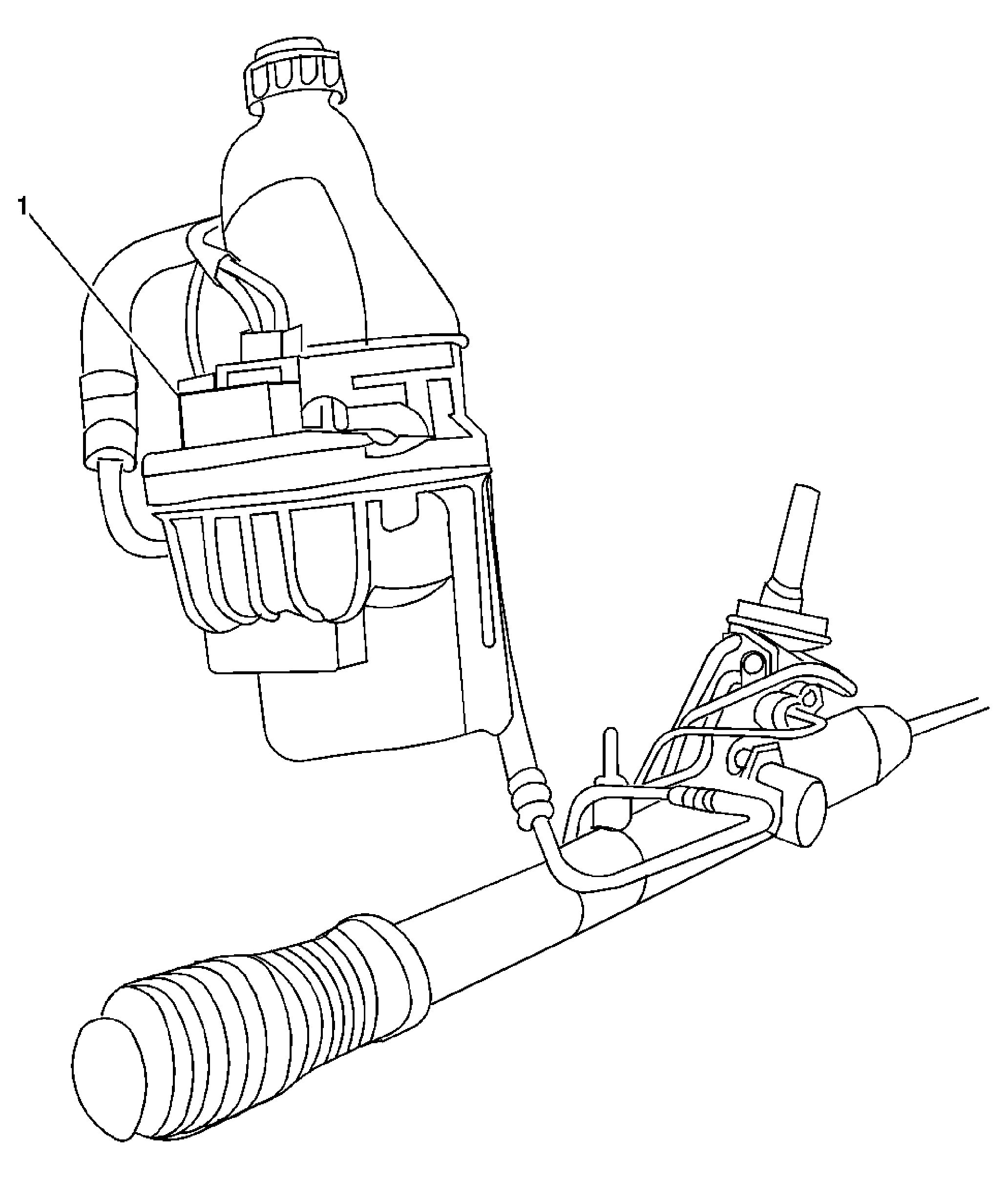

Fig 9: Power Steering Control Module Component

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Control Module
