Instrument Panel/Center Console Component Views

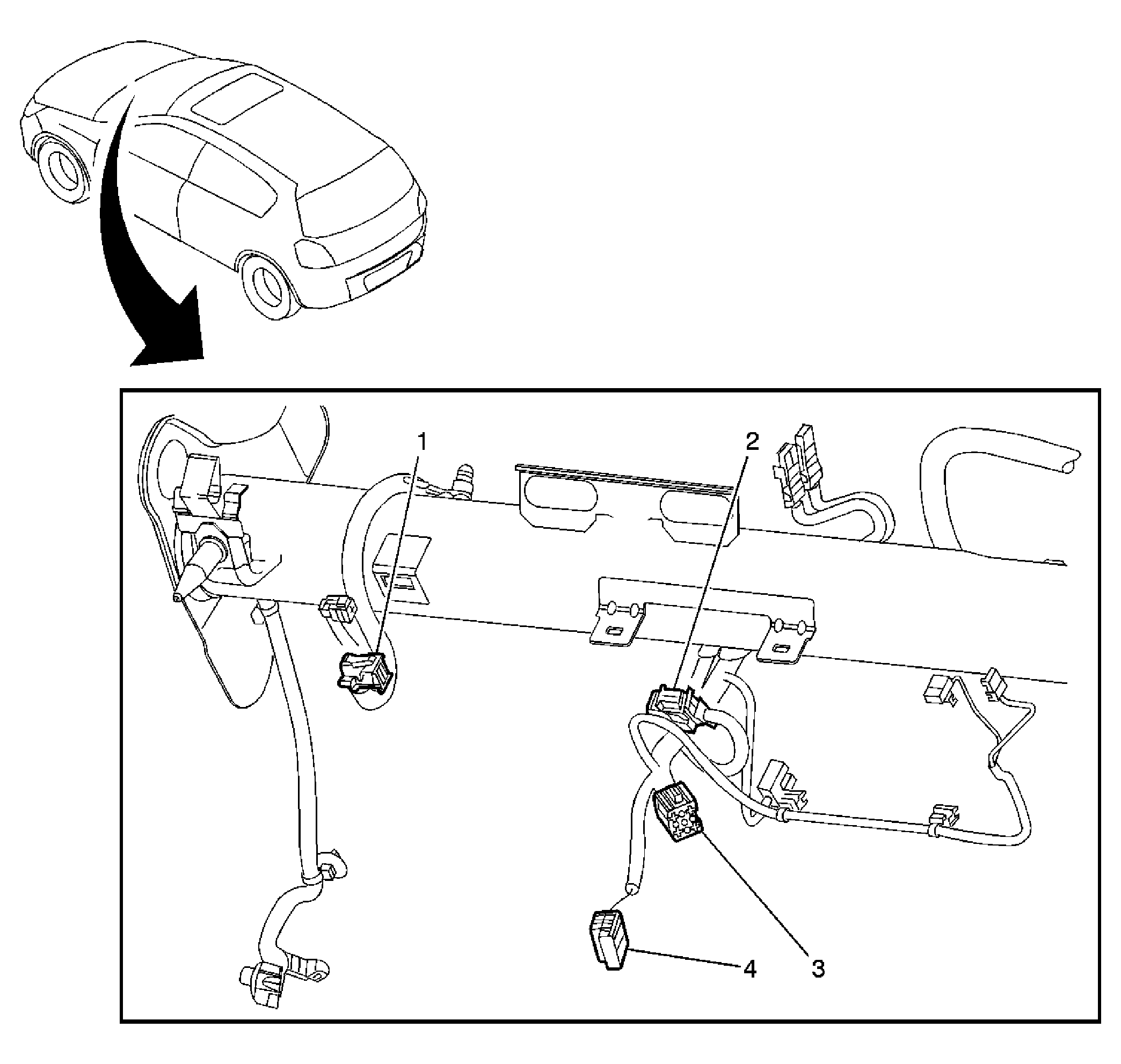

Fig 1: Instrument Panel-Right Side Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver
2	Tire Pressure Module
3	X201
4	Voltage Regulator

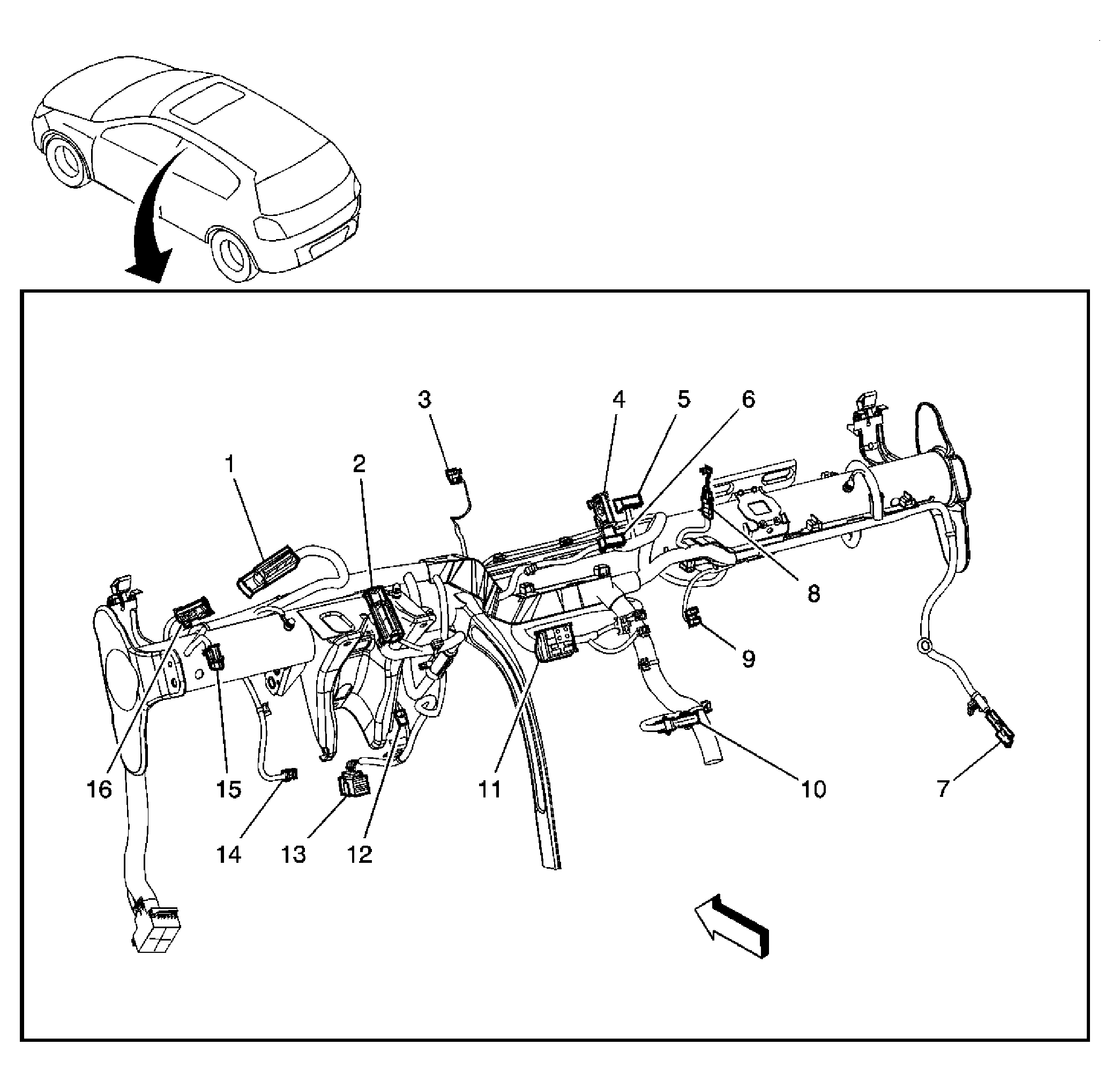

Fig 2: Instrument Panel Connectors Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Steering Column
3	Speaker - Front Center
4	Sunload Sensor
5	Ignition Switch
6	Driver Information Center (DIC)
7	Driver Information Center (DIC)
8	Center Console Switch Assembly
9	X203
10	Inflatable Restraint I/P Module
11	I/P Compartment - Lamp
12	HVAC Control Module
13	Radio
14	Radio
15	Radio
16	Brake Pedal Position (BPP) Switch
17	Accelerator Pedal Position (APP) Sensor
18	Clutch Pedal Position (CPP) Switch
19	Headlamp Switch
20	Cellular Microphone

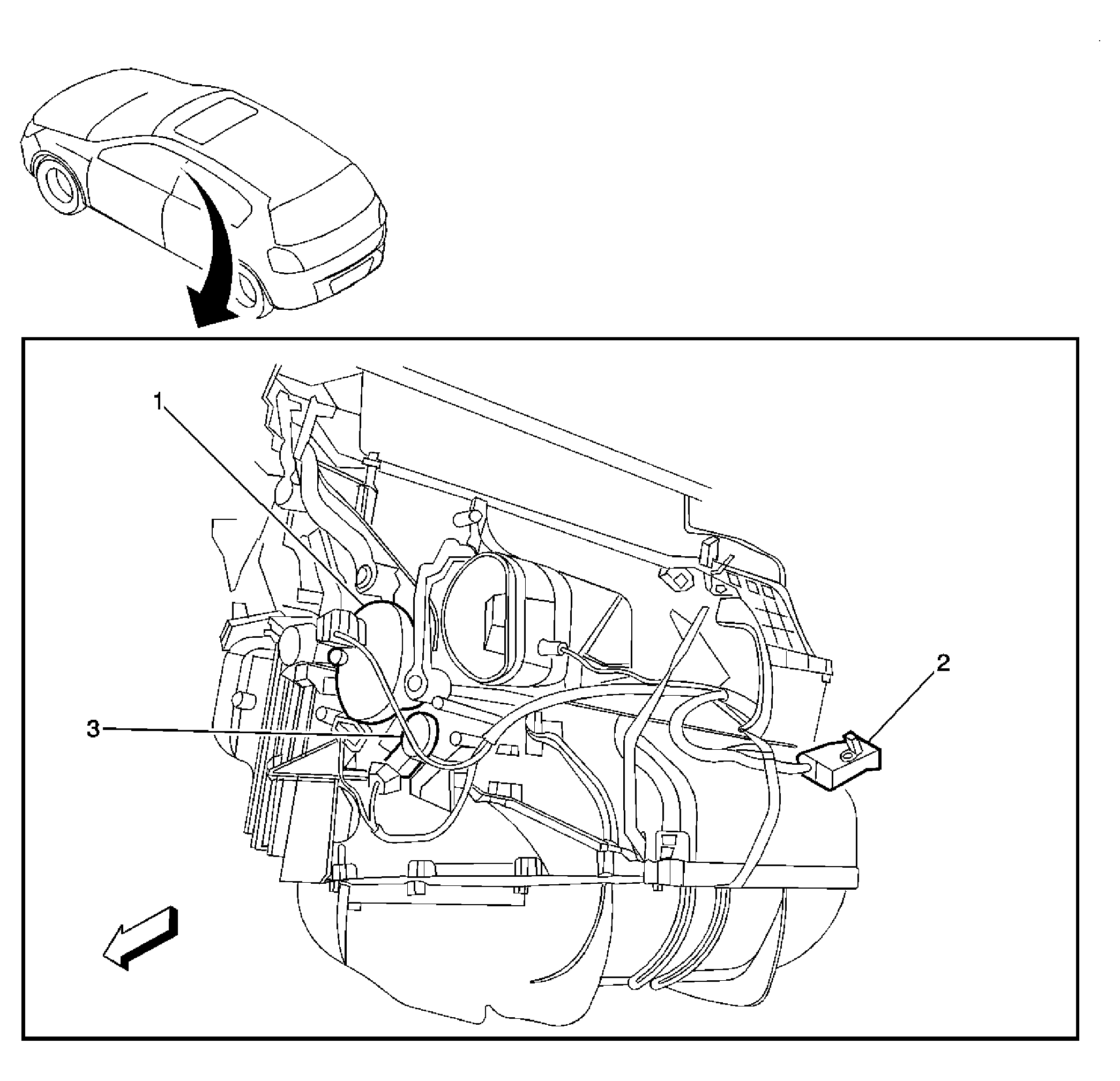

Fig 3: HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator
2	HVAC Air Temperature Sensor-Footwell
3	Inline Climate Control and Actuators
4	Mode Actuator

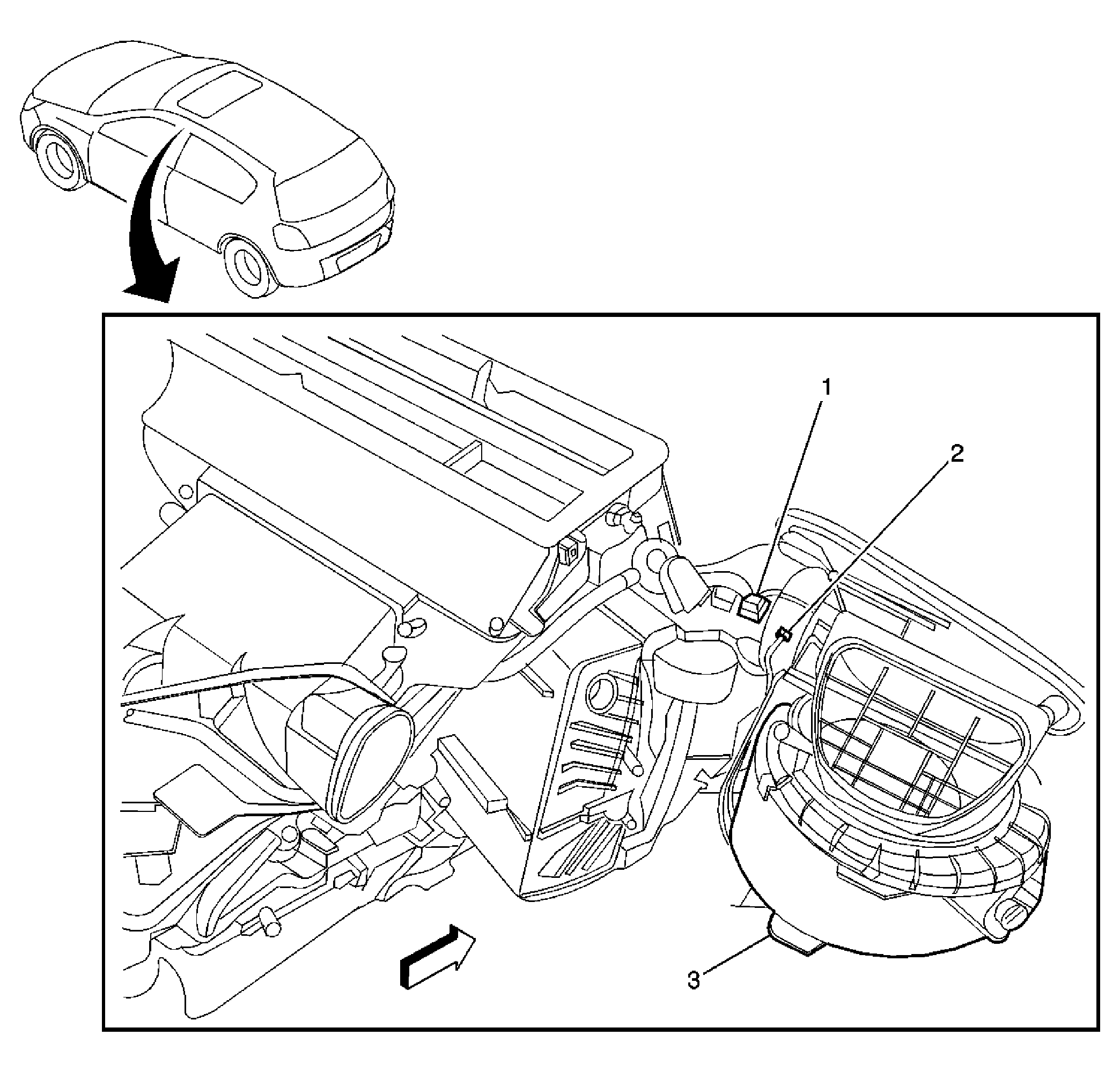

Fig 4: HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor - Preresistor
2	Recirculation Actuator
3	HVAC Blower Motor

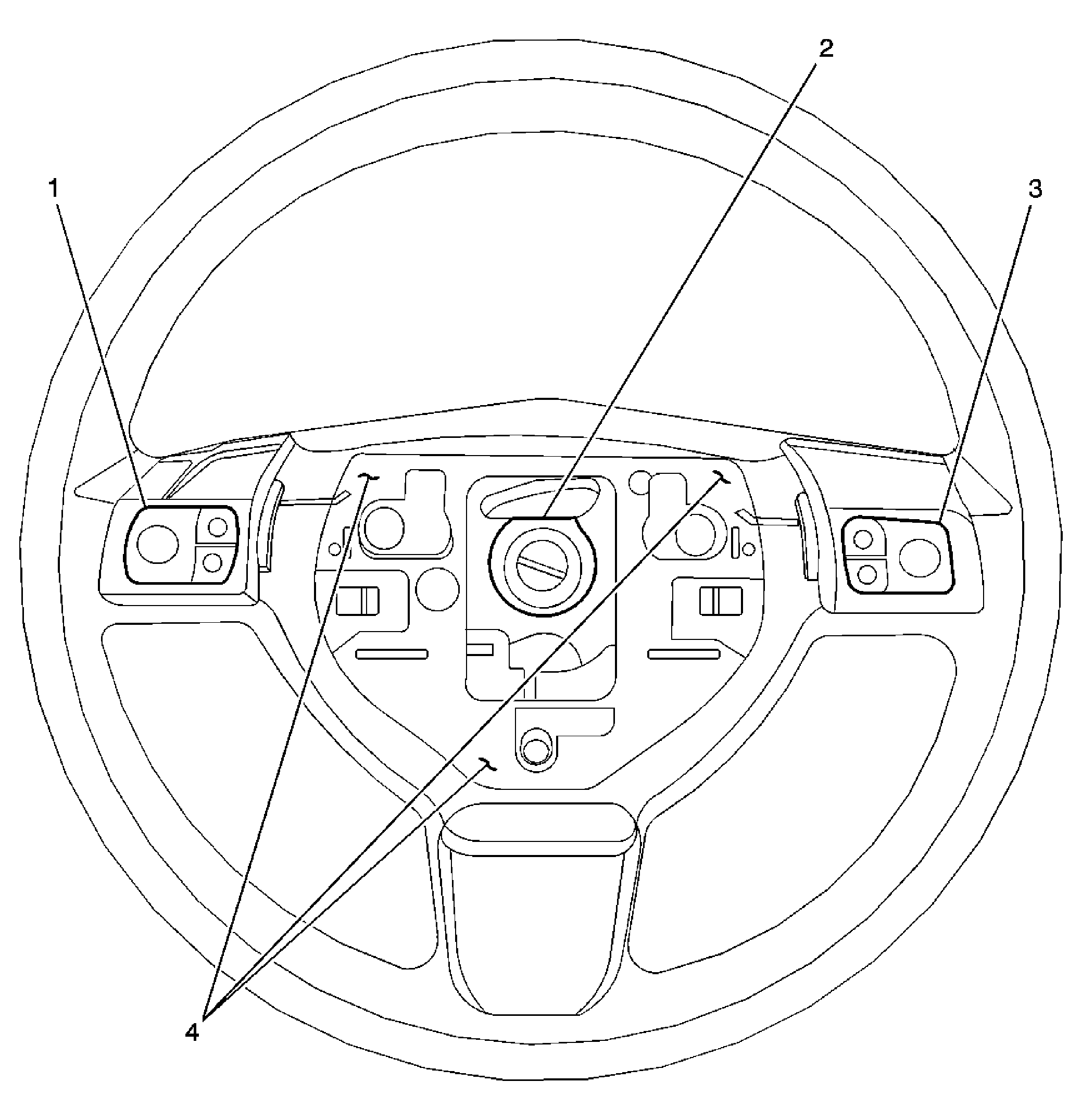

Fig 5: Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Control Switch - Left
2	Steering Wheel Control Switch -Right
3	Inflatable Restraint Steering Wheel Module Connector

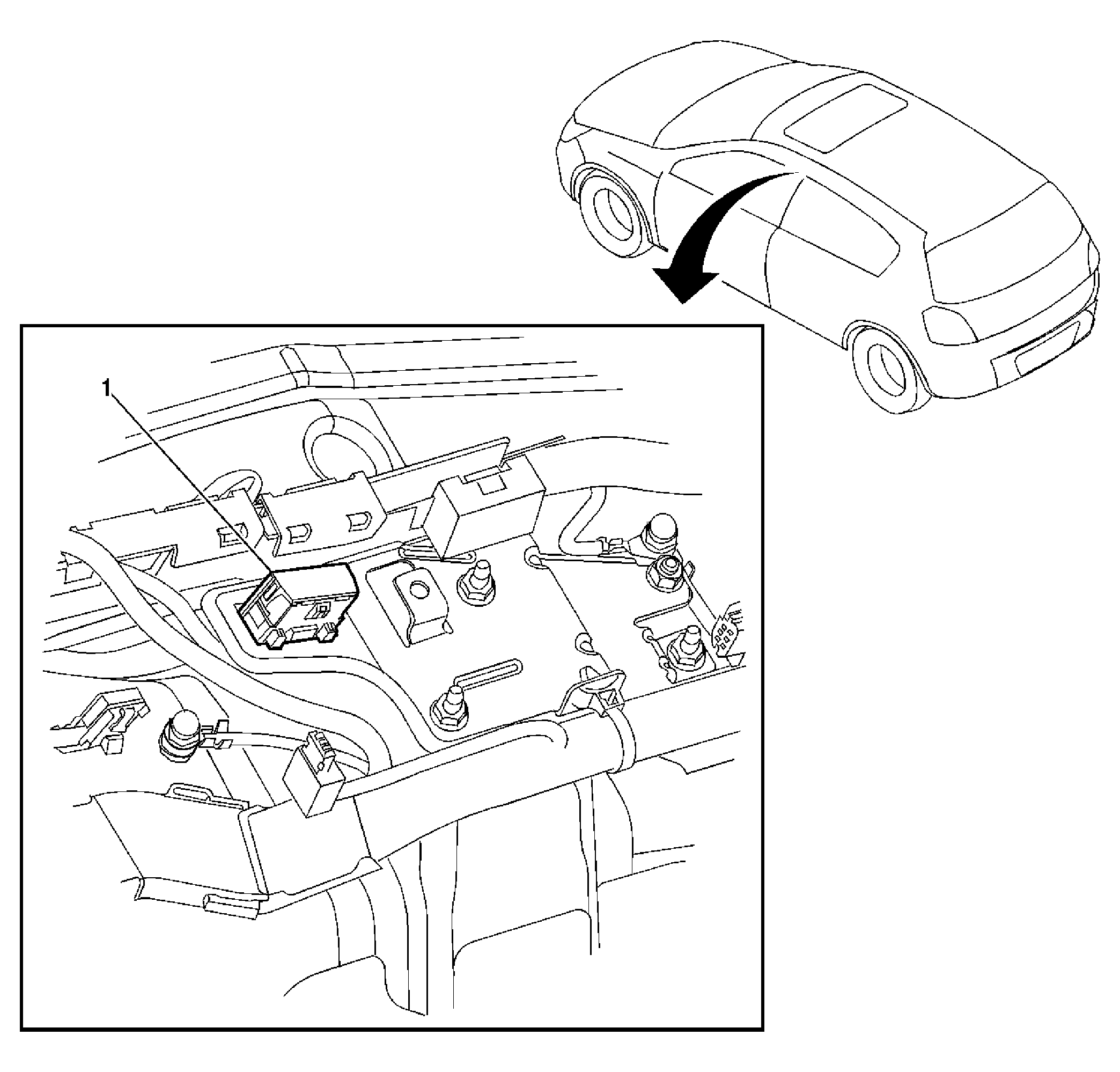

Fig 6: Passenger Compartment-Left Side Component

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Data Link Connector (DLC)

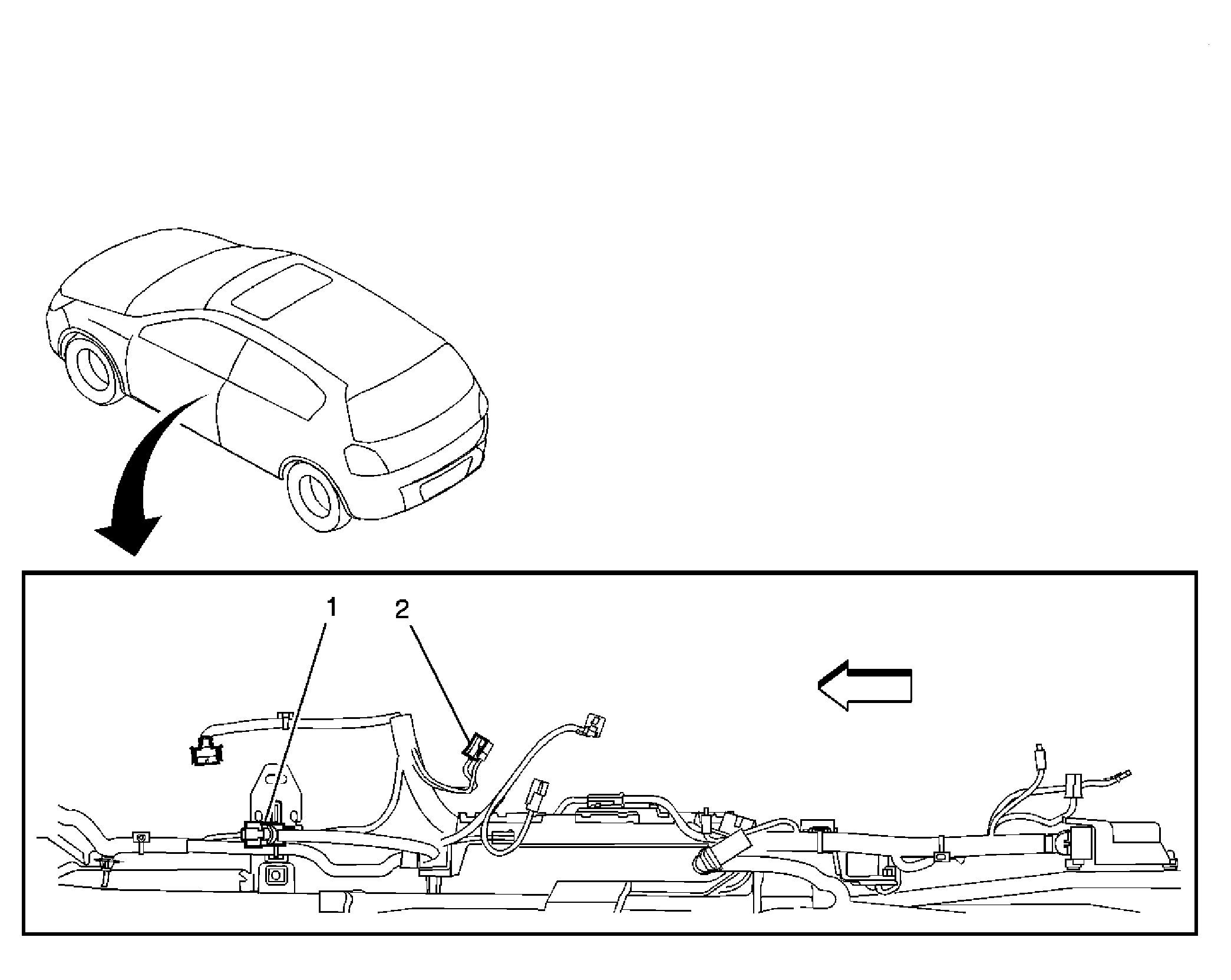

Fig 7: Passenger Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X204
2	Cigar Lighter
3	Auxiliary Outlet-Front
