Powertrain Component Views

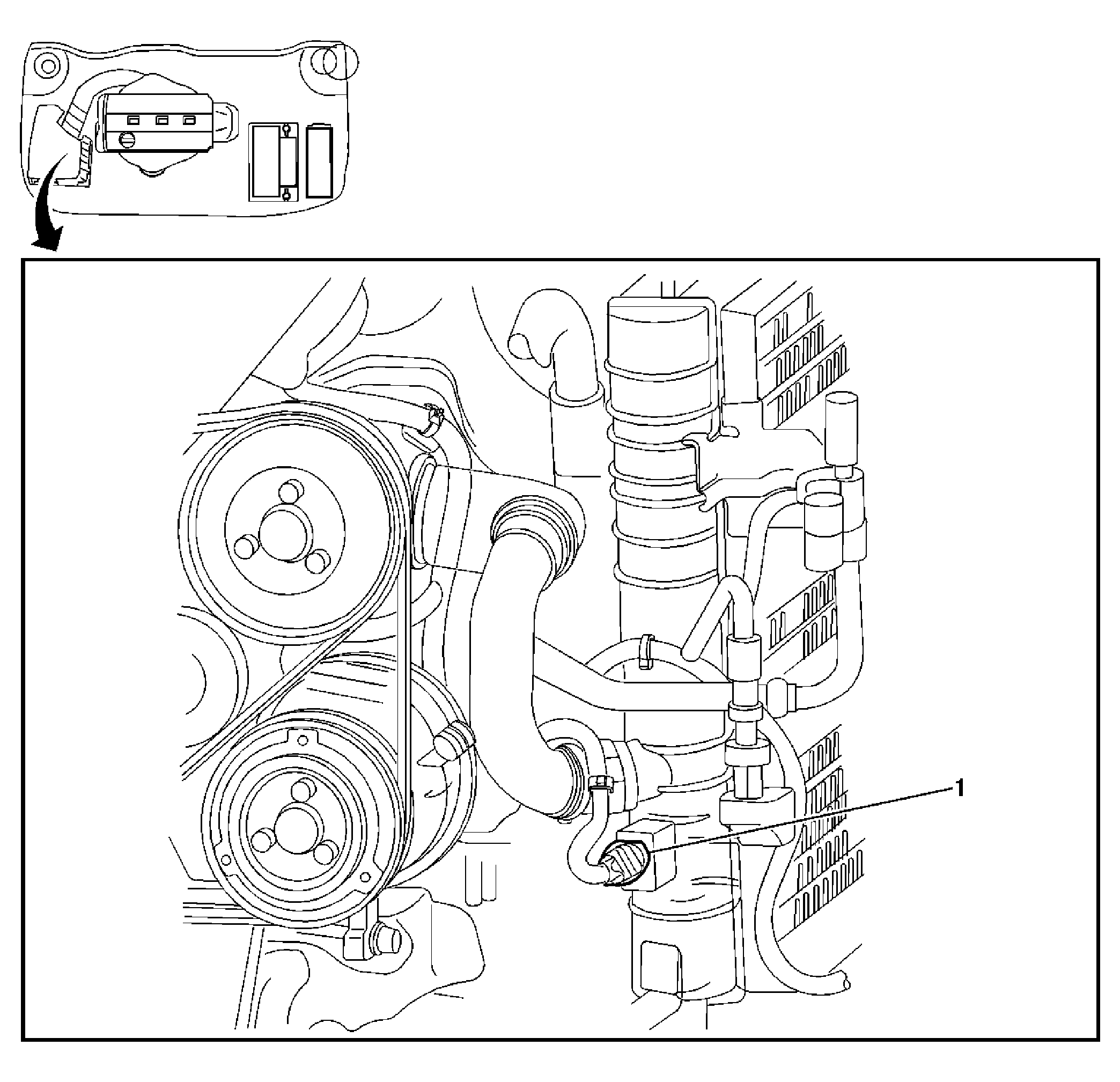

| Callout | Component Name |
|---|---|
| 1 | Coolant Temperature Sensor |

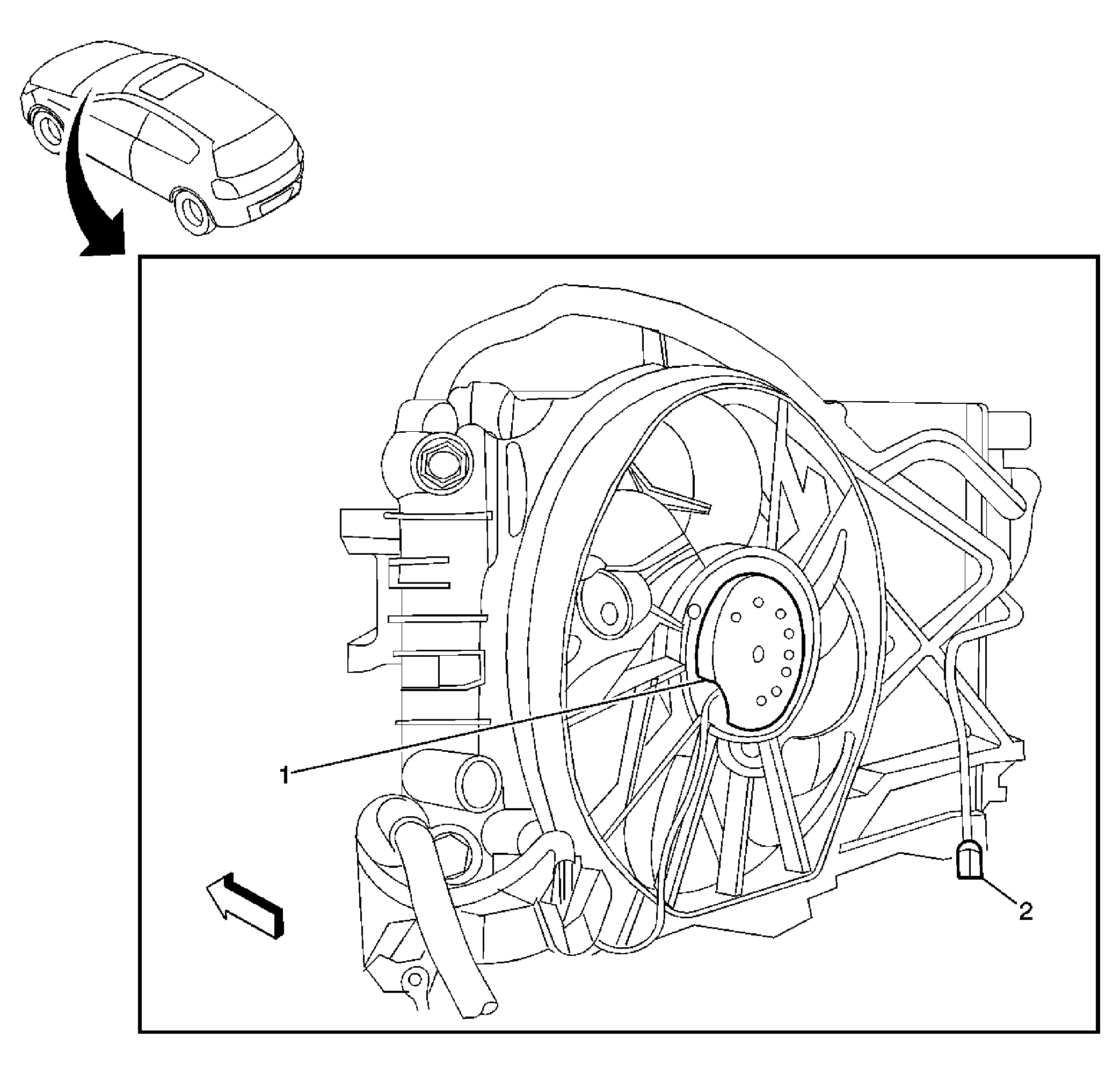

| Callout | Component Name |
|---|---|
| 1 | Cooling Fan Motor Connector |
| 2 | A/C Compressor Clutch Connector |

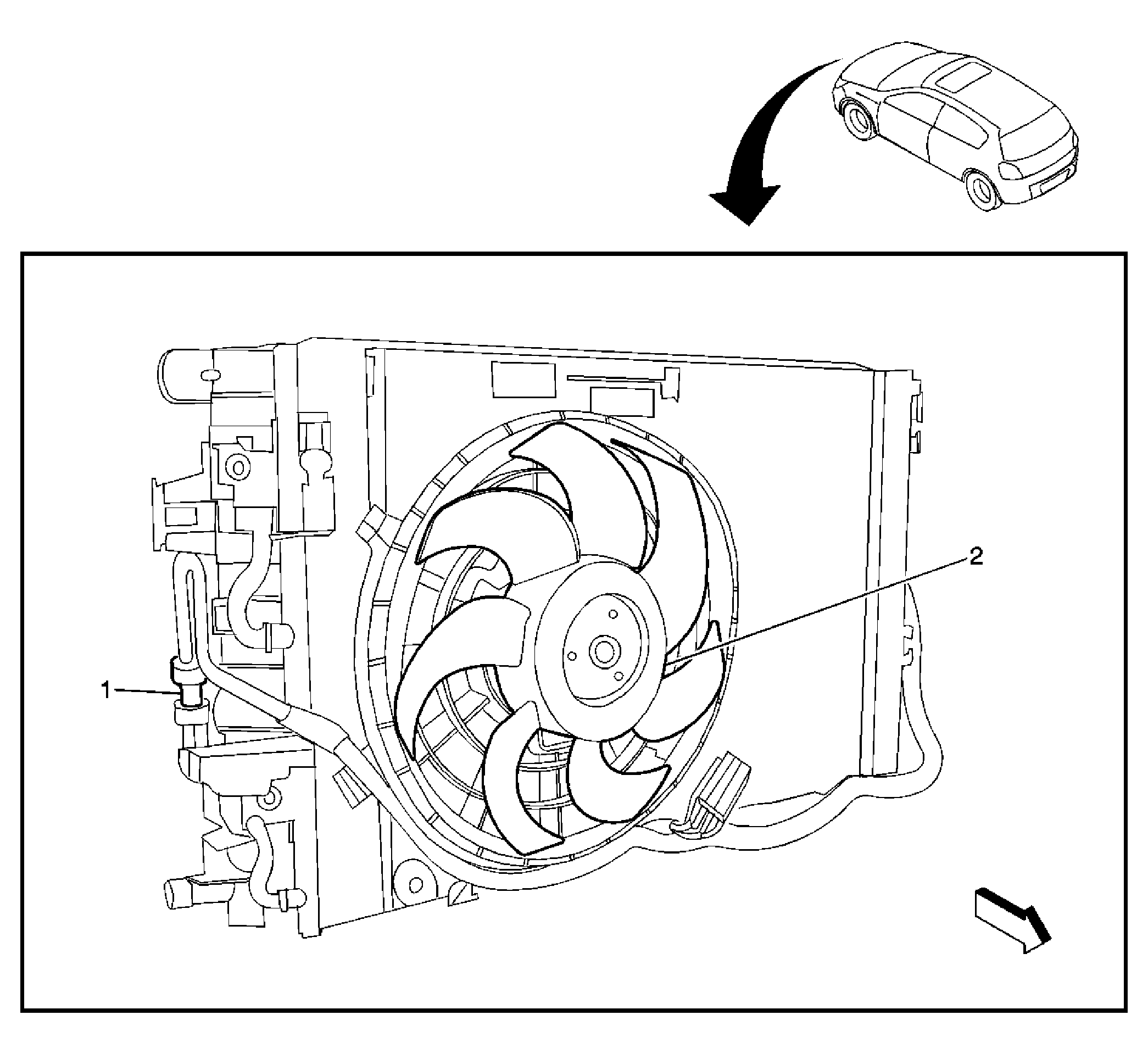

| Callout | Component Name |
|---|---|
| 1 | Fan Control Module (Relay) |
| 2 | Fan Control Module (Relay) |
| 3 | Cooling Fan Motor Connector |
| 4 | A/C Refrigerant Pressure Switch |

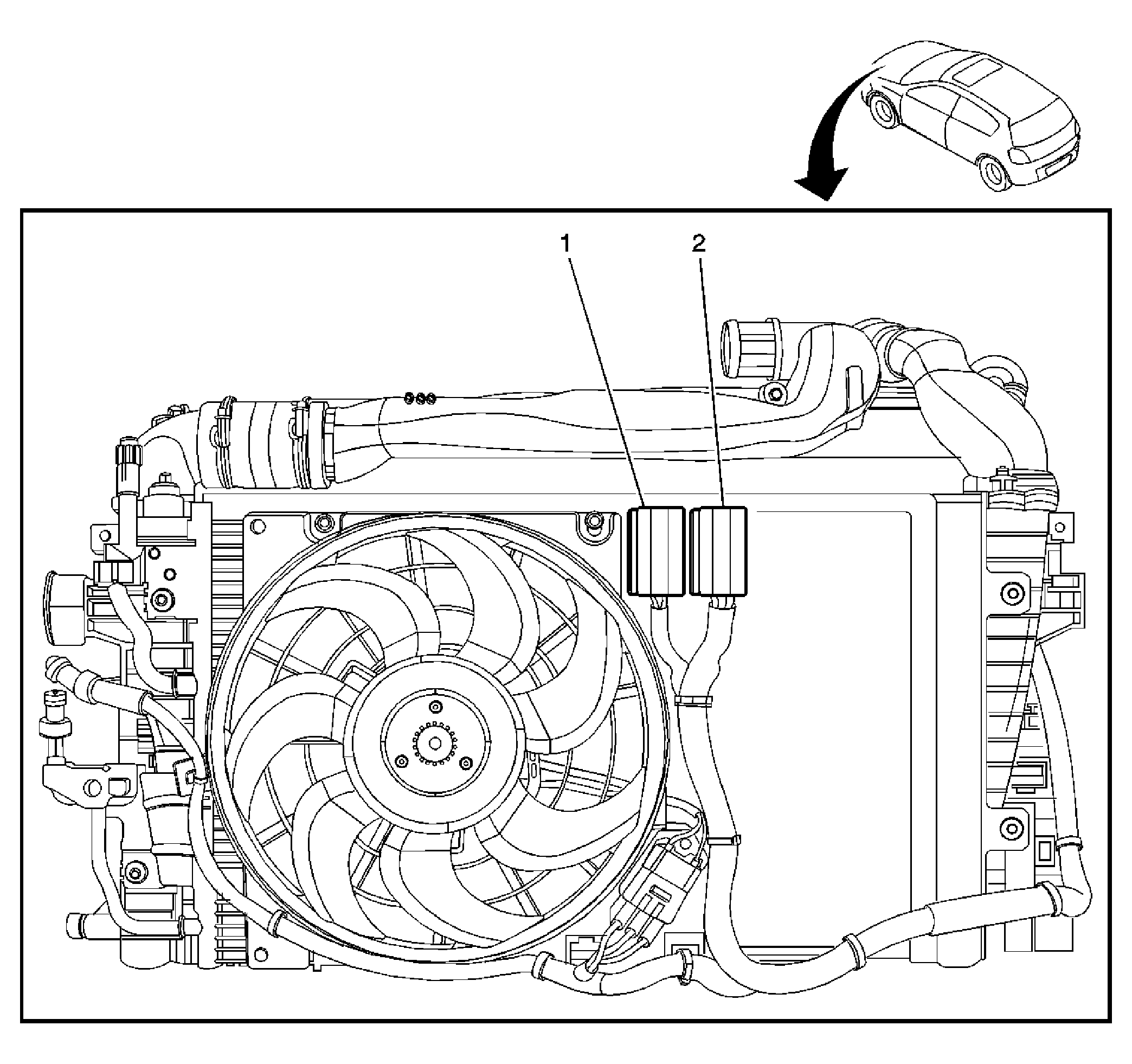

| Callout | Component Name |
|---|---|
| 1 | Fan Control Module (Relay) |
| 2 | Fan Control Module (Relay) |

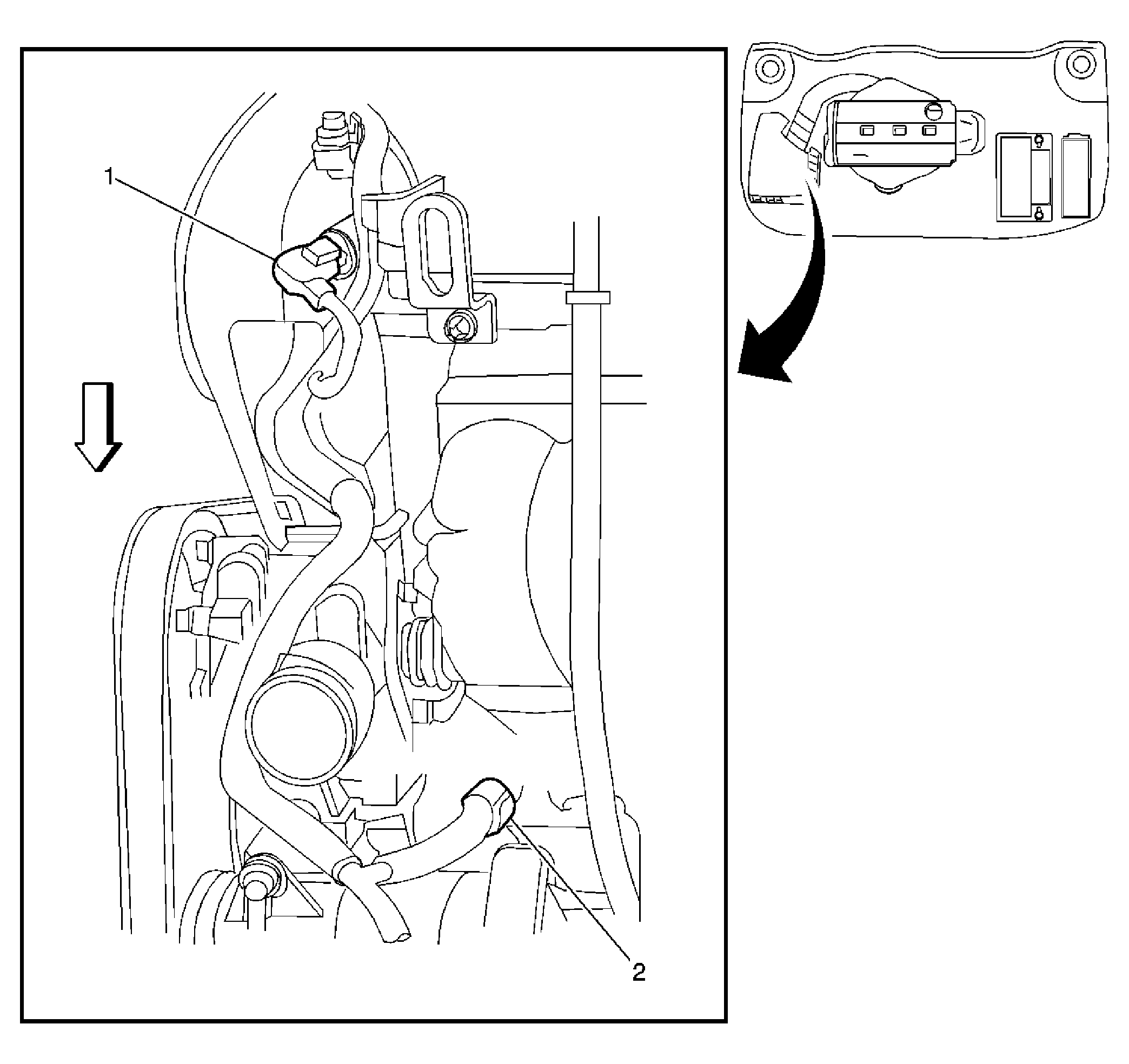

| Callout | Component Name |
|---|---|
| 1 | Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust |
| 2 | Engine Oil Pressure (EOP) Switch |

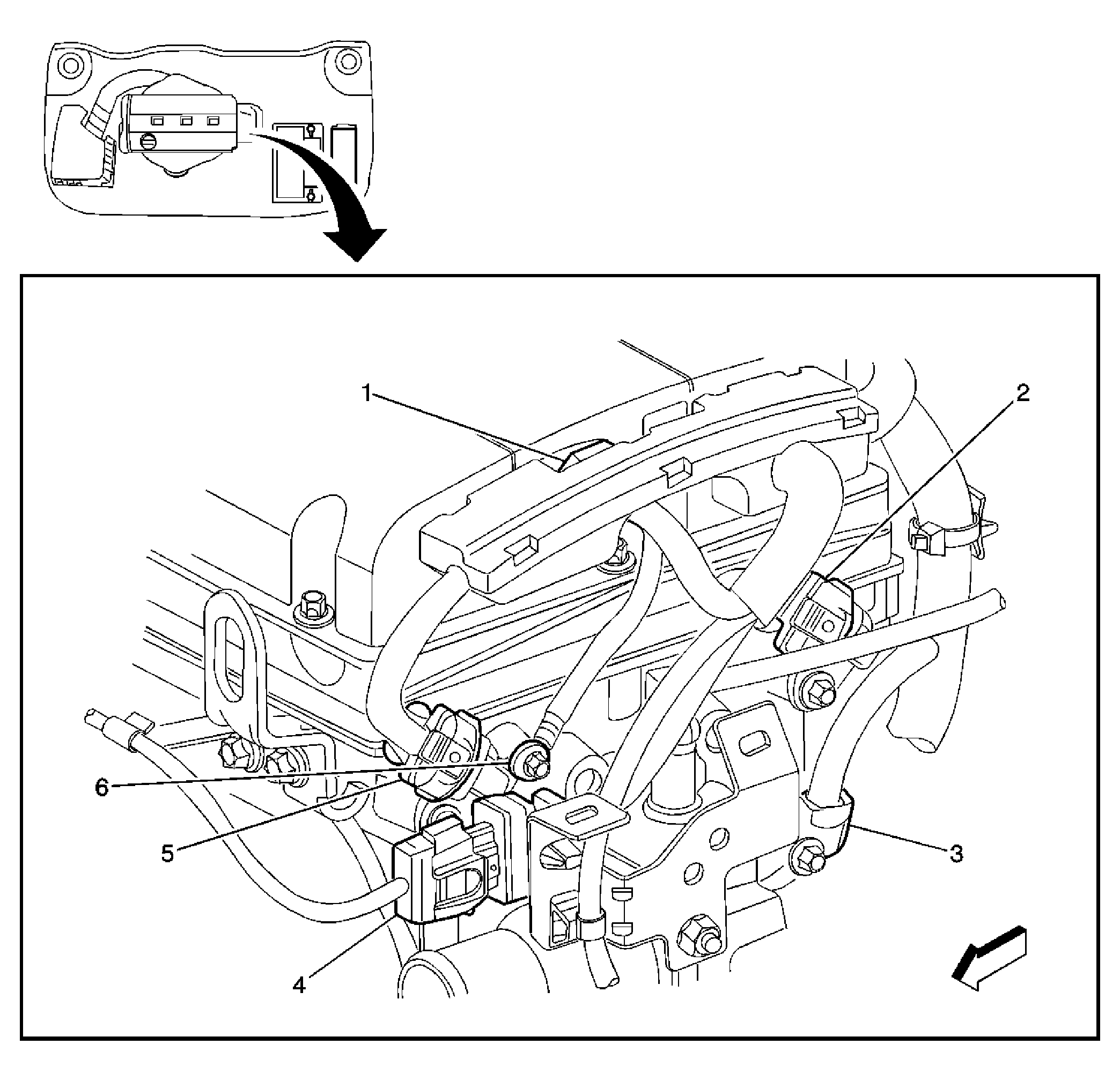

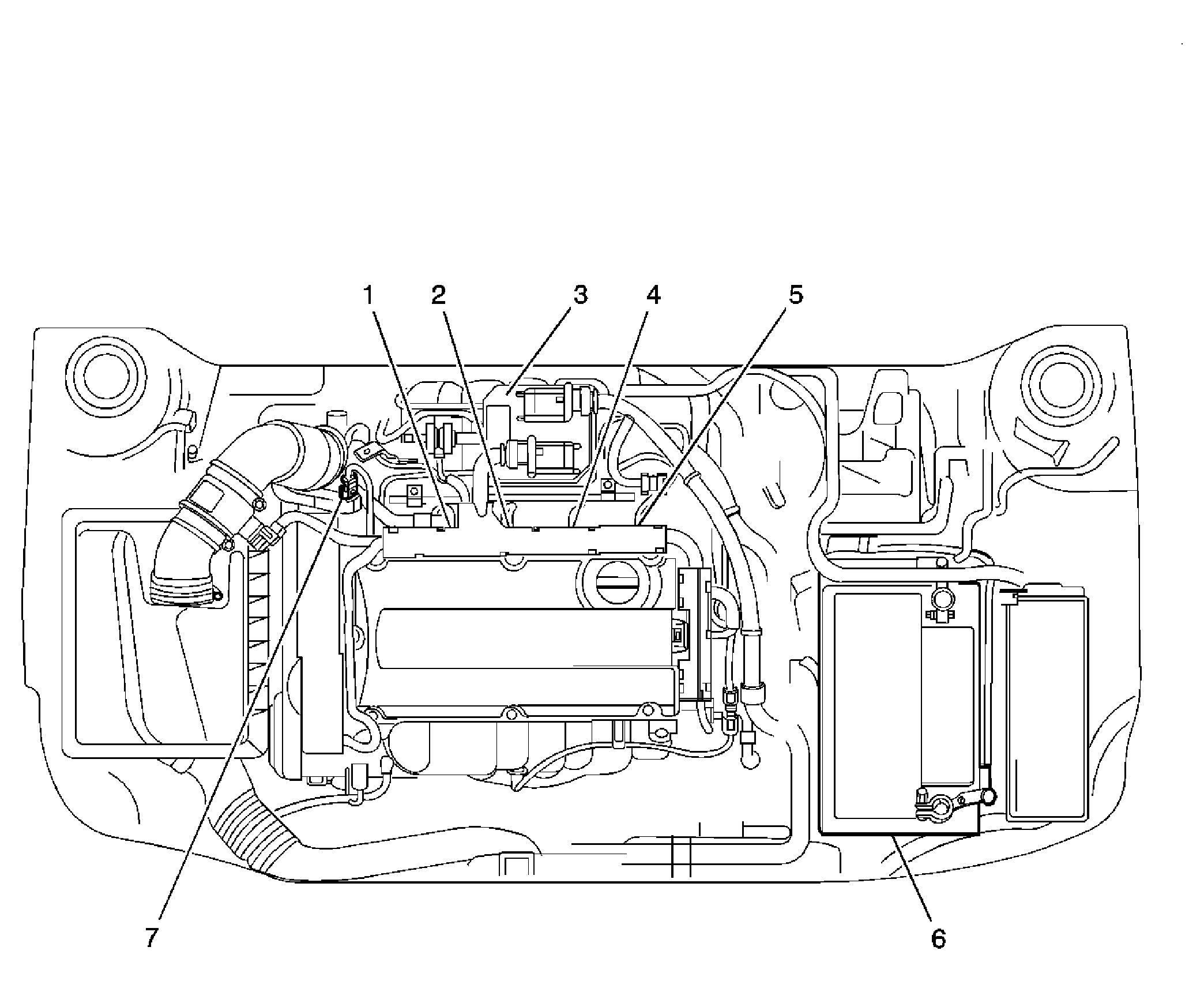

| Callout | Component Name |
|---|---|
| 1 | Fuel Injector 1 |
| 2 | Fuel Injector 2 |
| 3 | Fuel Injector 3 |
| 4 | Fuel Injector 4 |
| 5 | Battery |
| 6 | Mass Air Flow (MAF) / Intake Air Temperature (IAT) sensor |
| Callout | Component Name |
|---|---|
| 1 | Ignition Control Module (ICM) |
| 2 | Camshaft Position (CMP) Sensor - Intake |
| 3 | Engine Coolant Temperature (ECT) Sensor |
| 4 | Heated Oxygen Sensor (HO2S) 1 |
| 5 | Camshaft Position (CMP) Sensor - Exhaust |

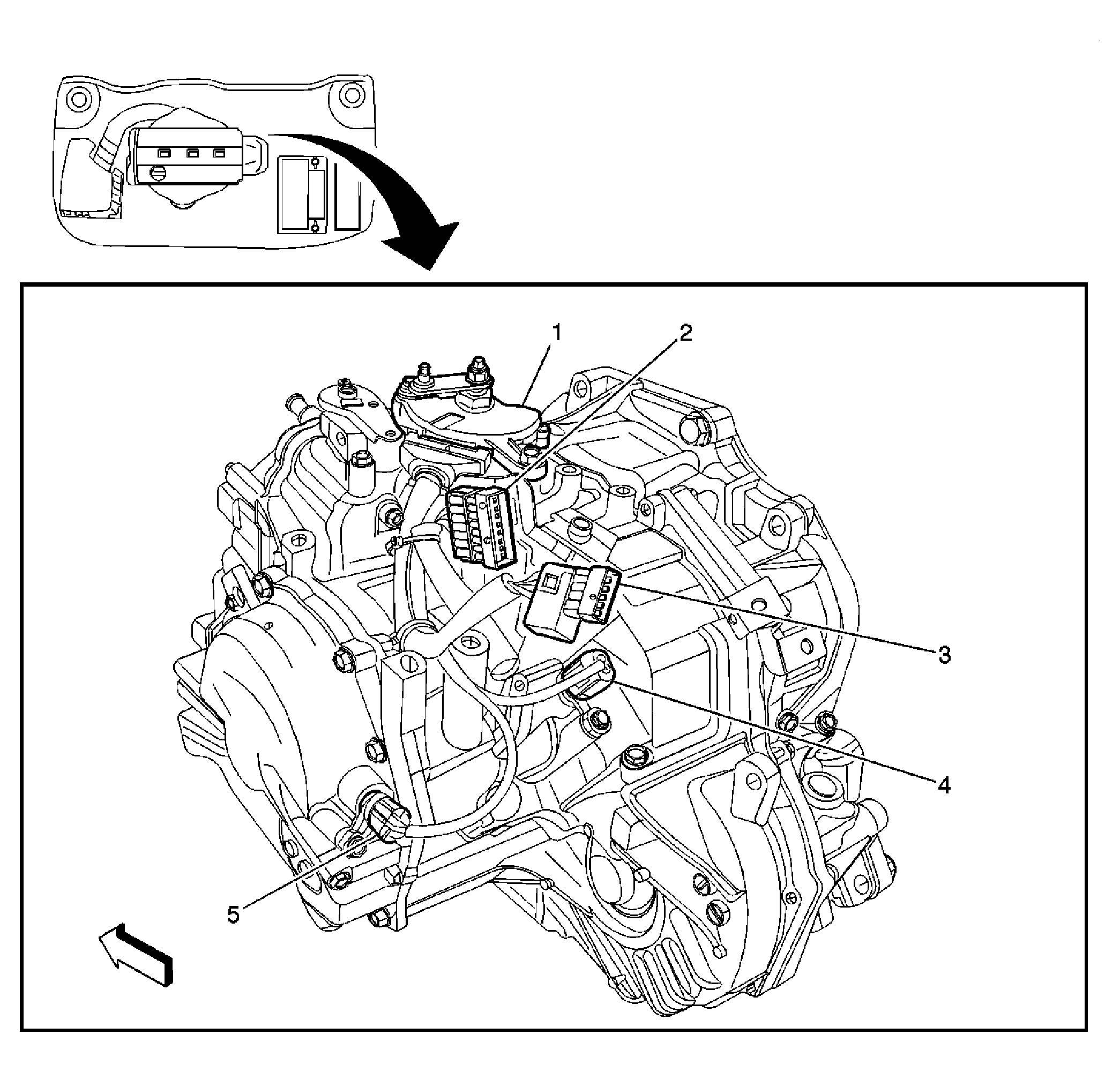

| Callout | Component Name |
|---|---|
| 1 | Park/Neutral Position (PNP) Switch |
| 2 | X121 |
| 3 | Output Speed Sensor |
| 4 | Input Speed Sensor |

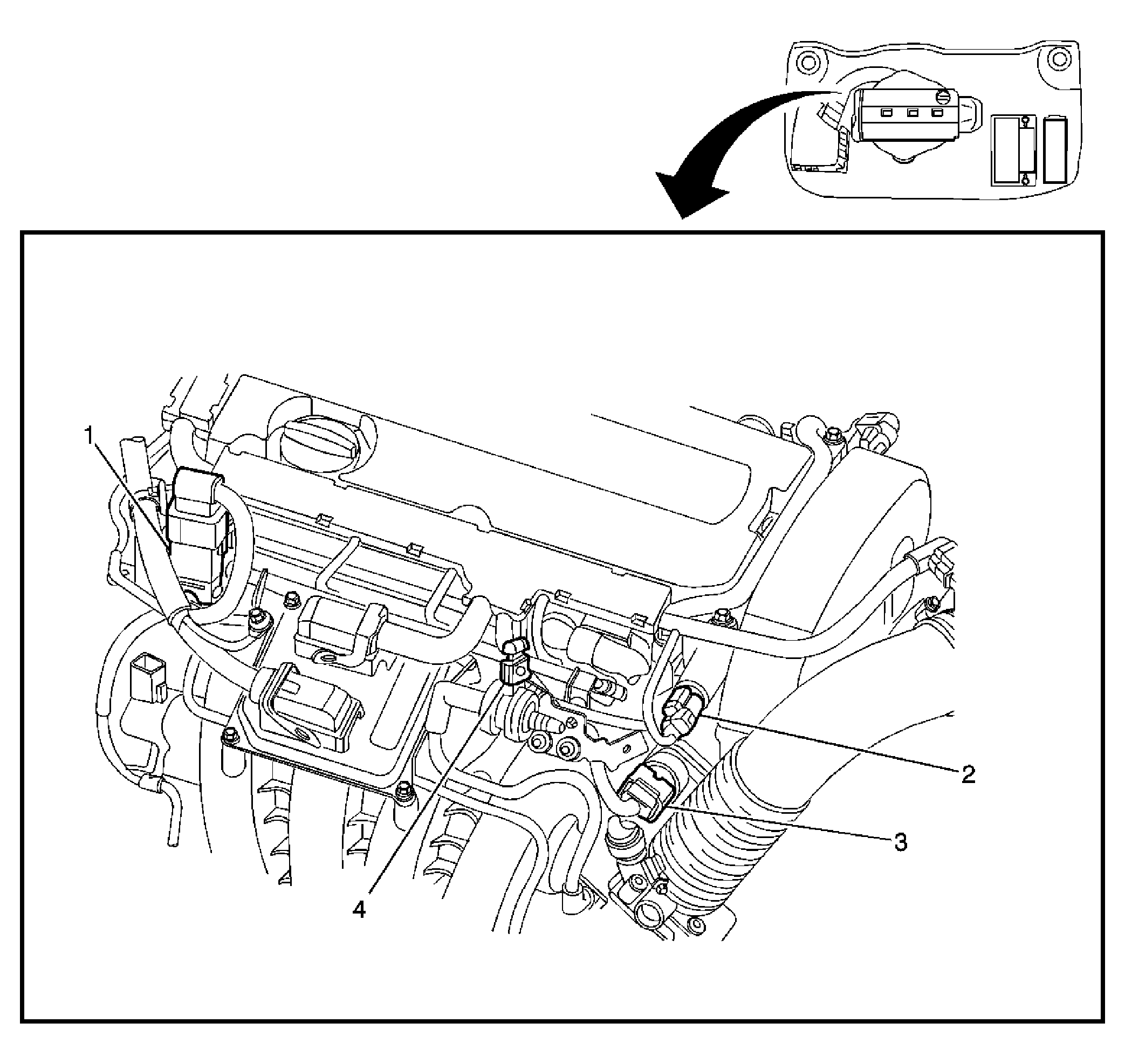

| Callout | Component Name |
|---|---|
| 1 | X110 |
| 2 | Camshaft Position (CMP) Actuator Solenoid Valve - Intake |
| 3 | Throttle Actuator Control (TAC) Module |
| 4 | Evaporative Emission (EVAP) Canister Purge Solenoid Valve |

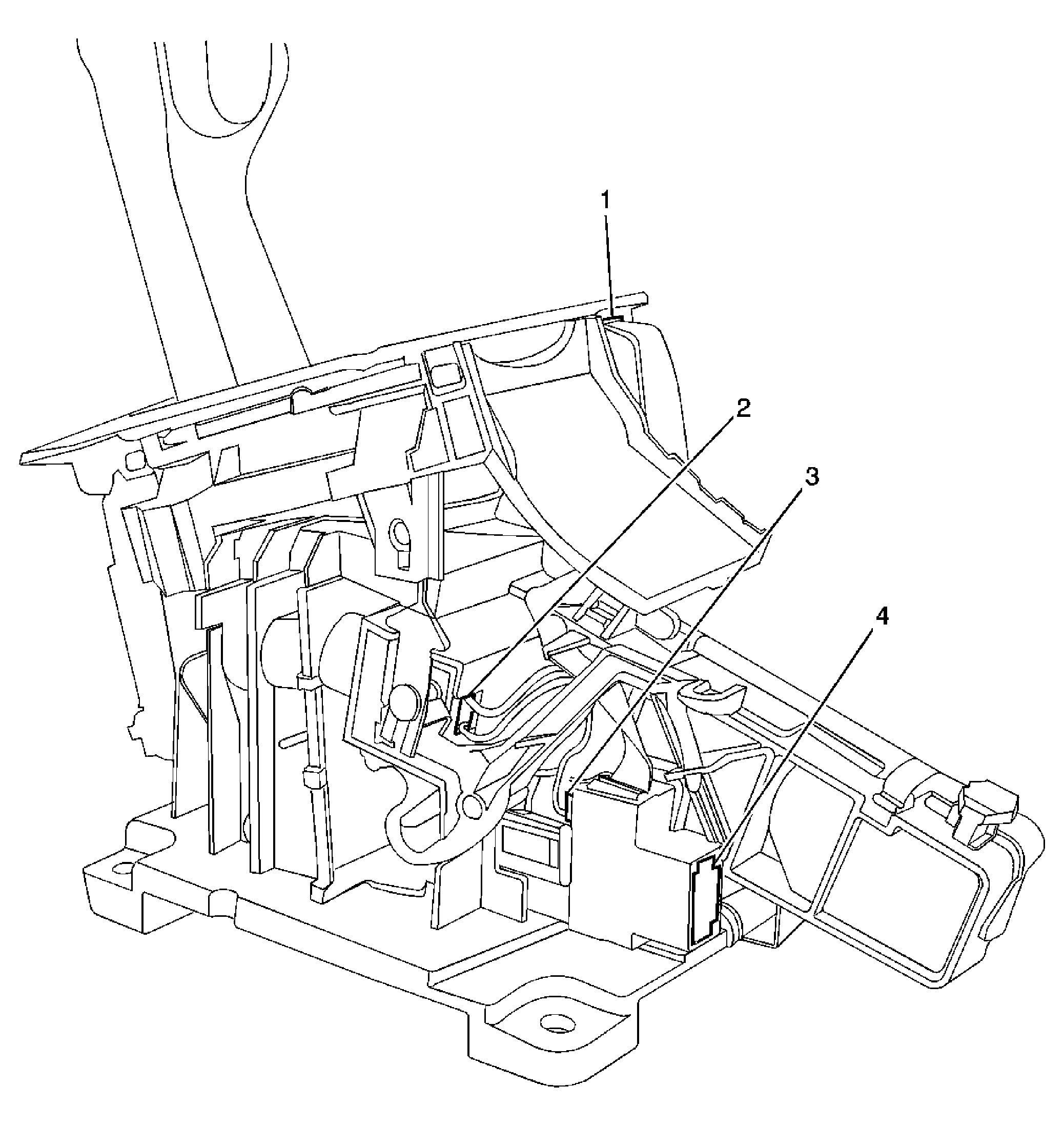

| Callout | Component Name |
|---|---|
| 1 | (PRNDL) Display |
| 2 | Shift Lock Control Solenoid |
| 3 | Floor Shifter Assembly |
| 4 | Floor Shift Position Sensor |
