Control Valve Body Assembly Installation

    Fig 1: View Of Transmission Case Fluid Passage Seals
    GM2002524Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW 2 transmission case fluid passage seals (84).
  2. Fig 2: View Of Valve Body Assembly, Manual Valve Connecting Rod And Manual Valve Lever
    GM2002523Courtesy of GENERAL MOTORS CORP.
  3. While holding the transmission control valve body assembly (39), connect the manual valve link (336) to the manual shift shaft detent assembly (710) and install the transmission control valve body assembly (39).
  4. Fig 3: View Of Bolts
    GM2002521Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  5. Install the 8 control valve body bolts (281, 282, 283, 284).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  6. Fig 4: View Of Fluid Passage Cover And Bolts
    GM2002518Courtesy of GENERAL MOTORS CORP.
  7. Install a NEW control valve body fluid passage cover gasket and the control valve body fluid passage cover.
  8. Install the 2 control valve body fluid passage bolts (33, 34).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  9. Fig 5: View Of Wiring Harness Assembly
    GM2002516Courtesy of GENERAL MOTORS CORP.
  10. Clamp the wiring harness assembly (78).

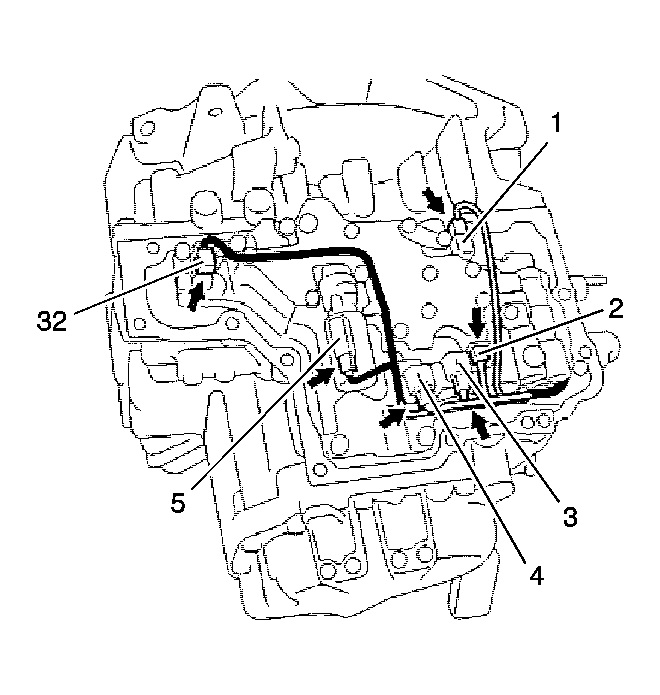

  11. Fig 6: View Of Transmission Fluid Temperature Sensor And Solenoid Wire Connectors
    GM2002515Courtesy of GENERAL MOTORS CORP.
  12. Connect the 5 solenoid wire connectors.
  13. Clamp the transmission fluid temperature sensor (32).
