Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

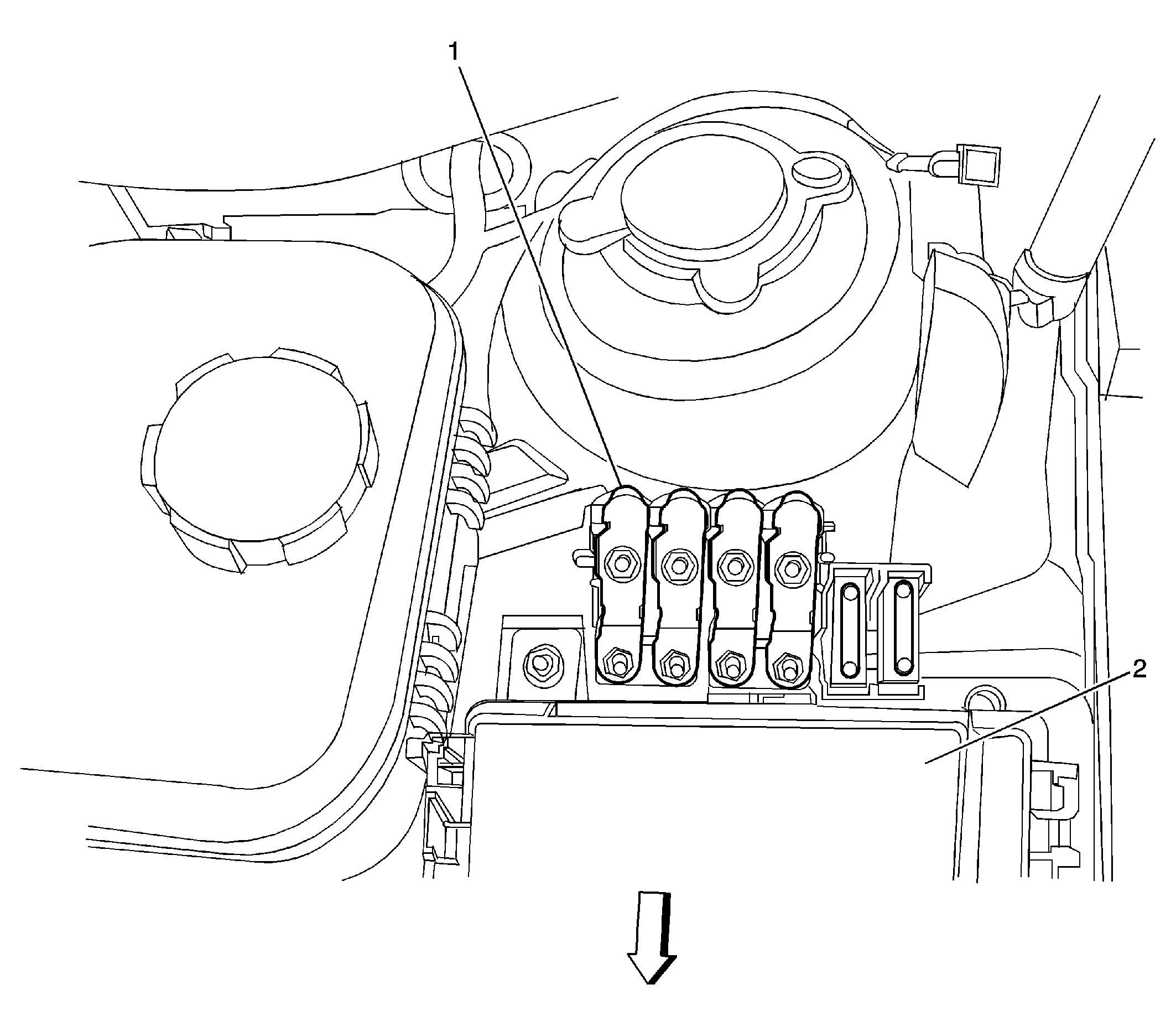

| Fuse Block (Auxiliary) (1) |
Left rear of engine compartment. See Figure. |

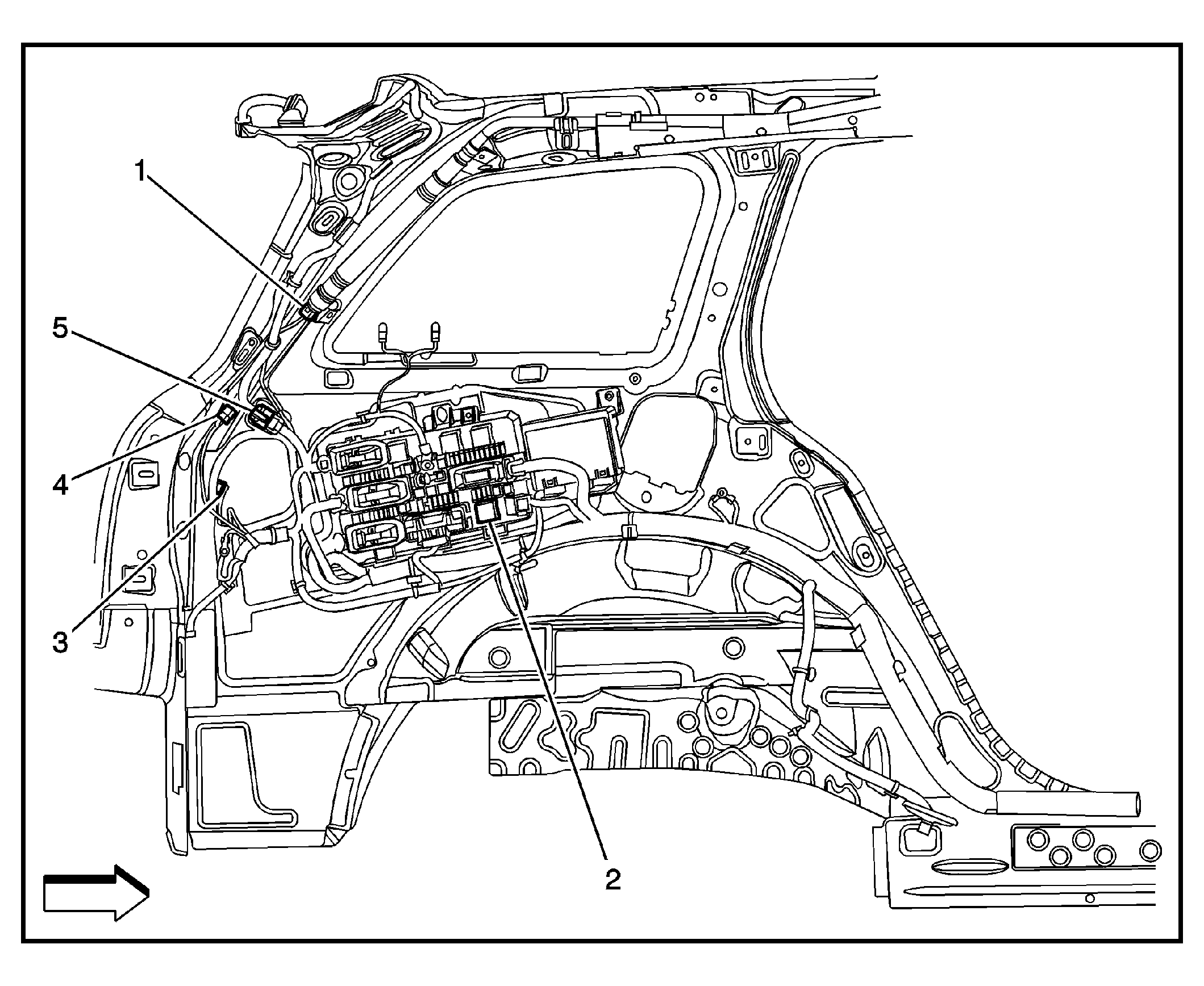

| Fuse Block (Rear) (2) |
Behind left rear quarterpanel. See Figure. |
| Fuse Block (Underhood) (2) |
Left rear of engine compartment. See Figure. |
