Instrument Panel/Center Console Component Views

Fig 1: View Of Front Of I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Speaker - Left Front Tweeter
3	Instrument Panel Cluster (IPC)
4	Radio
5	Hazard Switch
6	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator
7	Ambient Light Sensor (C60) Sunload Sensor (C68)
8	Speaker - Right Front Tweeter
9	HVAC Control Module
10	Ignition Switch
11	Windshield Wiper/Washer Switch
12	Inflatable Restraint Steering Wheel Module Coil
13	Fog Lamp Switch (T96)
14	I/P Dimmer Switch
15	Adjustable Pedal Position Switch (JF4)

Fig 2: View Behind I/P Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Trim
2	Vehicle Communications Interface Module (VCIM) (UE1)

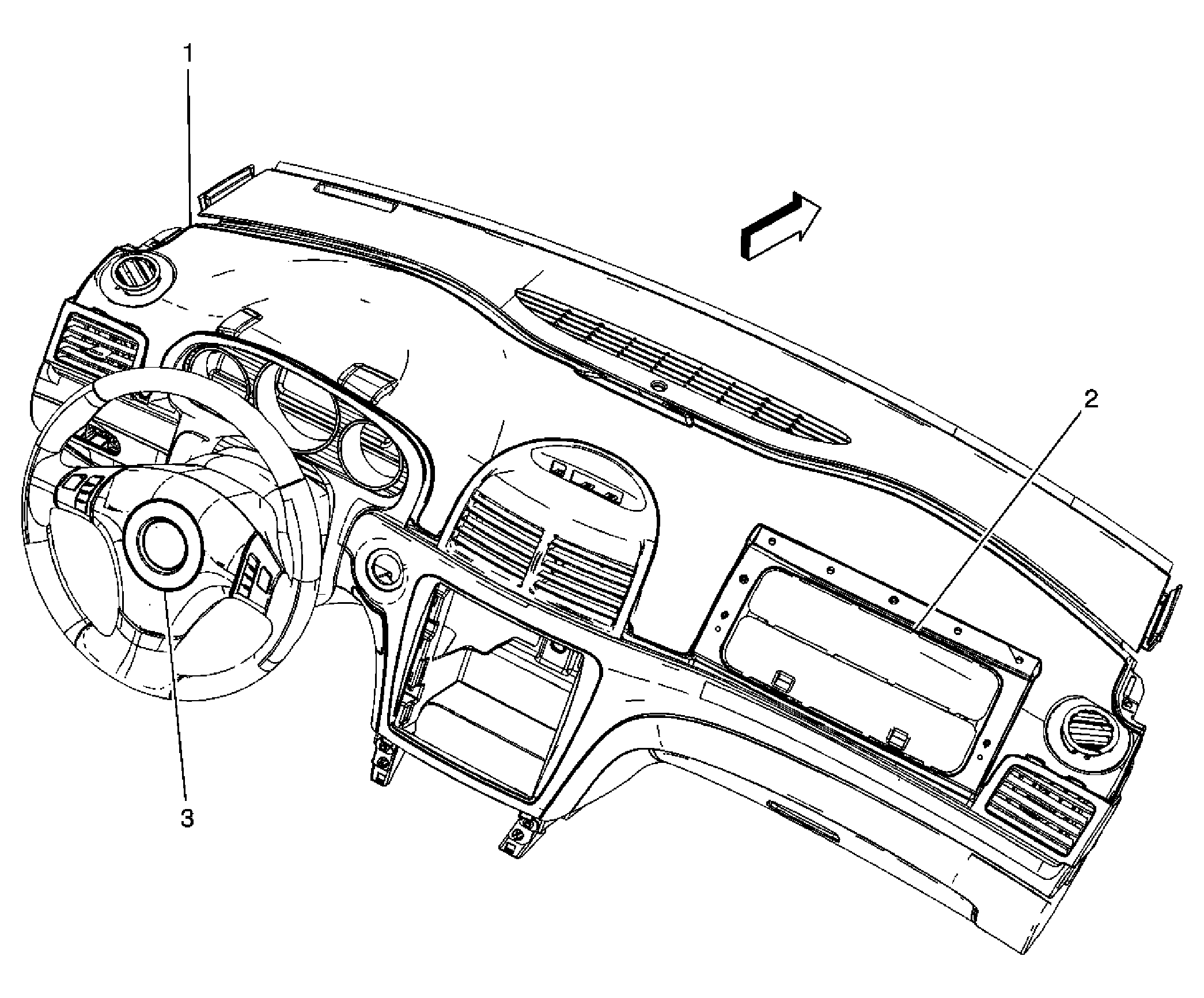

Fig 3: Identifying Front Air Bags Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Trim
2	Inflatable Restraint Instrument Panel Module
3	Inflatable Restraint Steering Wheel Module

Fig 4: Identifying Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet (- DT4), Cigar Lighter (DT4)
2	Auxiliary Power Outlet
3	Traction Control Switch
4	Rear Seat Audio (RSA) Controller (UK6)
5	Console Trim

Fig 5: View Of Shifter Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Lever
2	X303
3	Transmission Range Indicator Lamp
4	A/T Shift Lock Control Solenoid

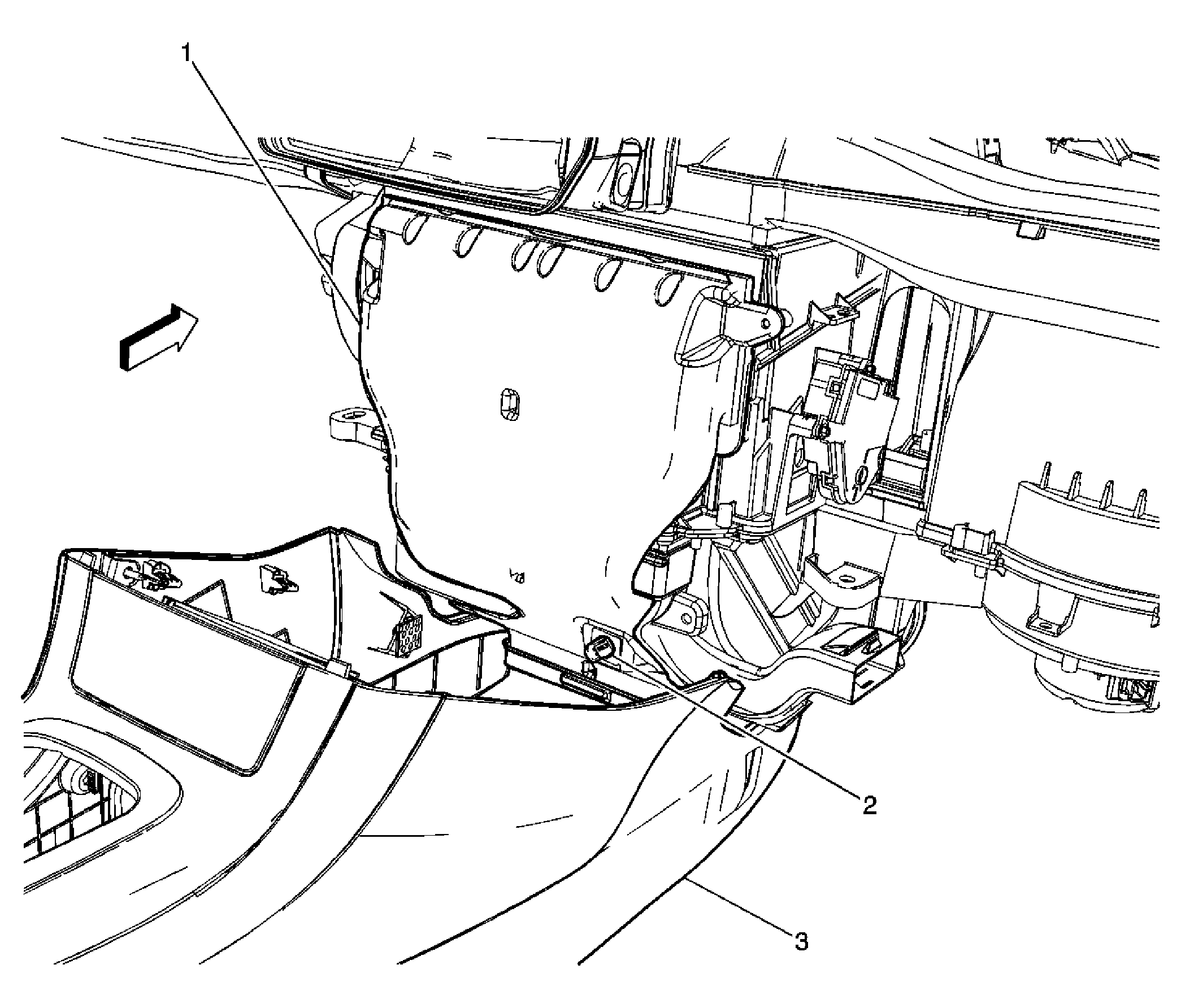

Fig 6: View Of Lower HVAC Duct Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Floor Duct
2	Air Temperature Sensor - Lower (C68)
3	Console

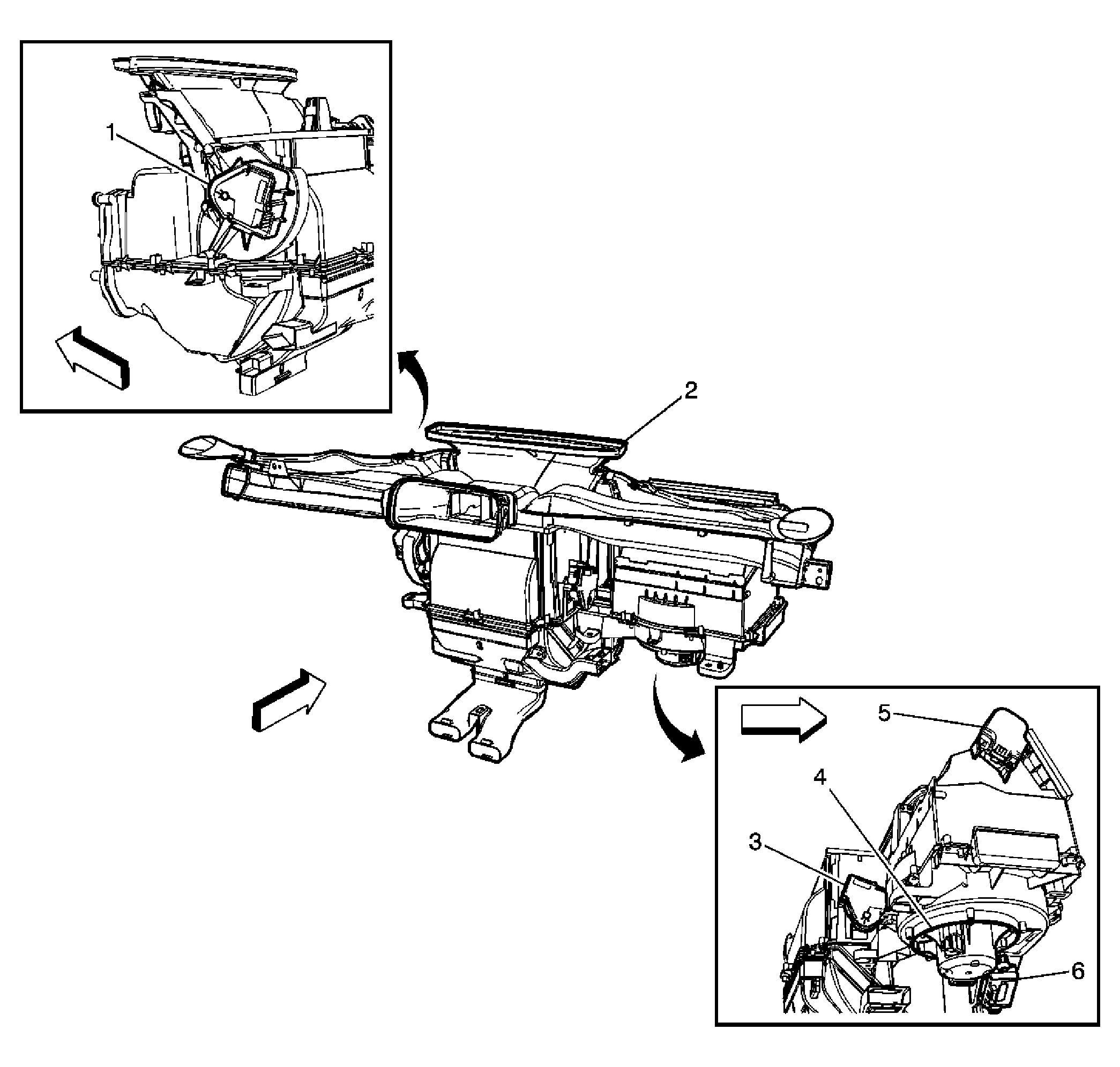

Fig 7: View Of Interior HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	HVAC Module Assembly
3	Air Temperature Actuator
4	Blower Motor
5	Recirculation Actuator
6	Blower Motor Control Module (C68)

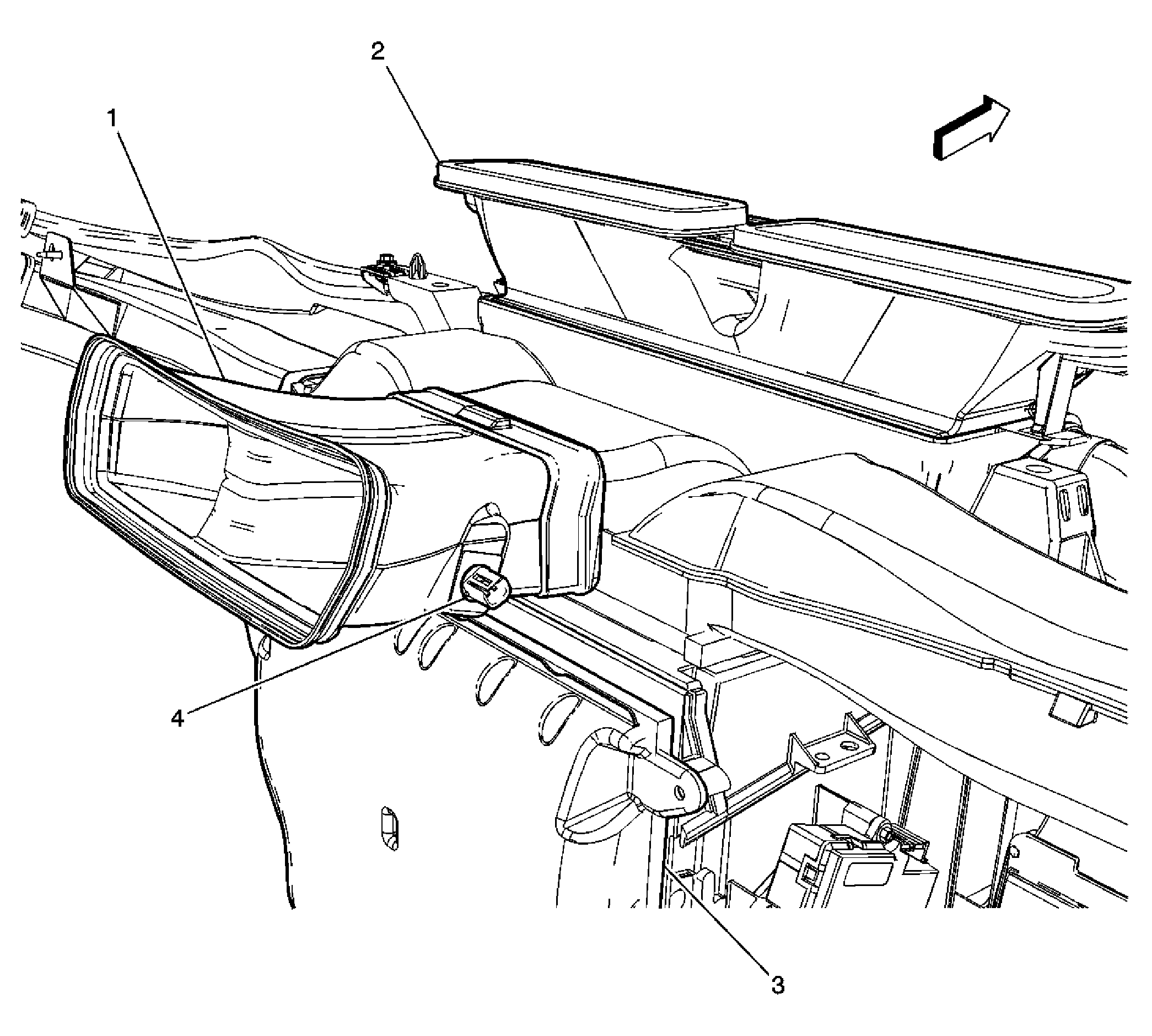

Fig 8: View Of Upper HVAC Duct Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center Duct
2	Defrost Duct
3	Rear Floor Duct
4	Air Temperature Sensor - Upper (C68)

Fig 9: Park Brake and Pedal Assemblies Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Adjustable Pedal Module (JF4)
3	Brake Pedal Position Sensor
4	Adjustable Pedal Position Sensor (JF4)
5	Adjustable Accelerator Pedal Position Motor (JF4)
6	Accelerator Pedal Position (APP) Sensor
7	Floor Panel

Fig 10: View Of I/P Harness - Front of Carrier Components

Courtesy of GENERAL MOTORS CORP.

Fig 11: View Of Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tap Up/Tap Down Switch - Left (KB7)
2	Tap Up/Tap Down Switch - Right (KB7)
3	Steering Wheel Controls - Right (UK3)
4	Horn Switch
5	Steering Wheel Controls - Left (UK3)

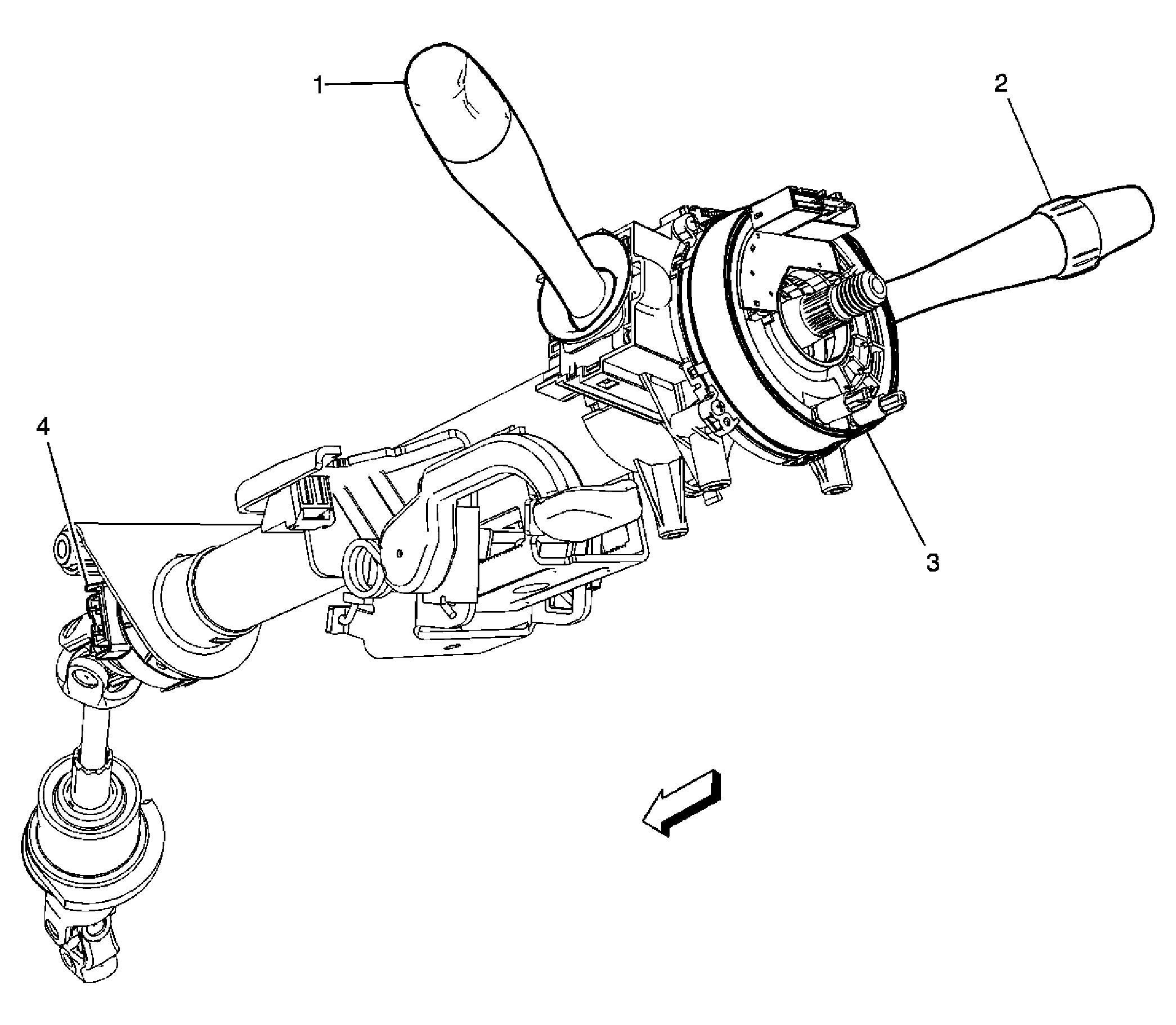

Fig 12: View Of Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Windshield Wiper/Washer Switch
3	Inflatable Restraint Steering Wheel Module Coil
4	Steering Wheel Position Sensor (FX3)

Fig 13: Steering Column Disassembled View (EPS) Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Intermediate Steering Shaft Lower Bolt
2	Intermediate Steering Shaft
3	Steering Column
4	Tilt Lever Spring
5	Tilt Lever Nut
6	Tilt Lever Bearing
7	Tilt Lever Spacer
8	Tilt Lever Retainer
9	Tilt Lever Retainer
10	Tilt Lever Cam
11	Tilt Lever Follower
12	Tilt Lever
13	Tilt Lever Spring
14	Power Steering Assist Motor Bolt
15	Power Steering Assist Motor

Fig 14: View Of Steering Column Components (HPS) Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Intermediate Steering Shaft
2	Intermediate Steering Shaft Bolt
3	Steering Wheel Position Sensor
4	Steering Column
5	Tilt Lever Spring
6	Tilt Lever Nut
7	Tilt Lever Bearing
8	Tilt Lever Spacer
9	Tilt Lever Retainer
10	Tilt Lever Retainer
11	Tilt Lever Cam
12	Tilt Lever Follower
13	Tilt Lever
14	Tilt Lever Spring
15	Intermediate Steering Shaft Nut

Fig 15: View Of Power Steering Harness - NV7 Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Booster Bracket
2	Power Steering Control Module
3	G103
4	Fuse Block - Underhood Terminal
