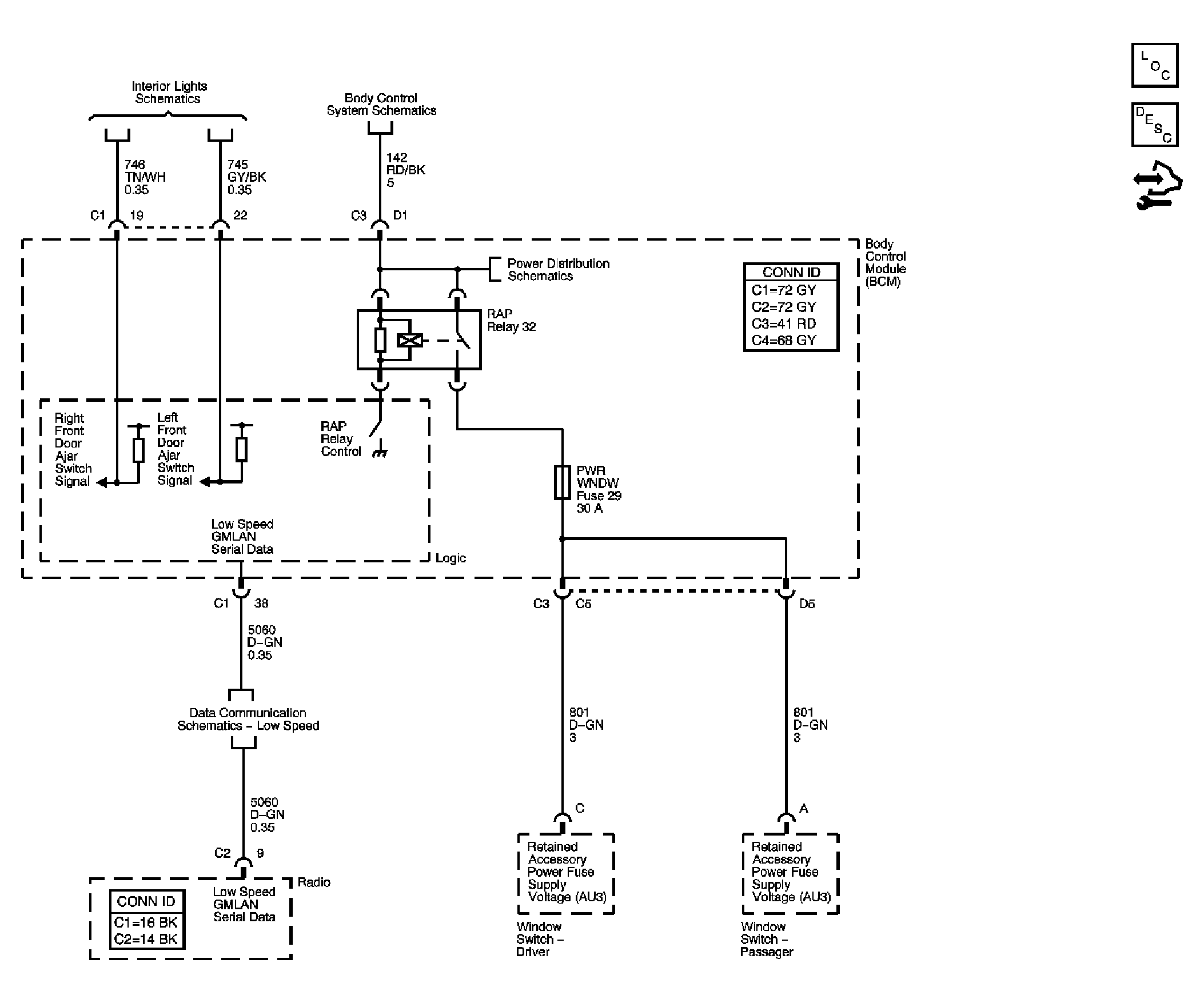

Home › Saturn › 2008 › Sky Base, Automatic › Repair and Diagnosis › Body & Frame › Ignition Switch/Steering Lock › Wiring Systems And Power Management - Introduction › Schematic & Routing Diagrams › Power Moding Schematics
