Door Window Regulator Motor Replacement

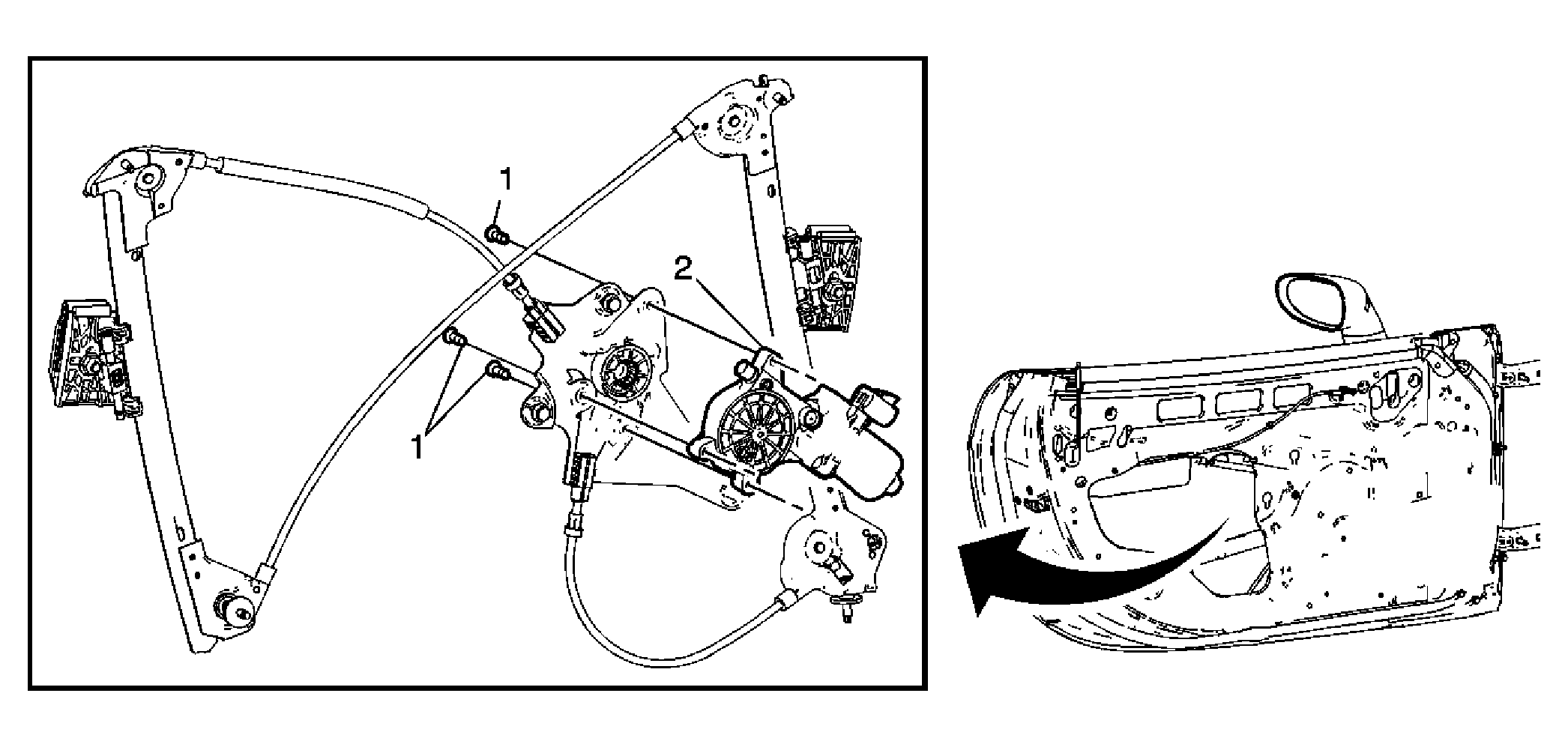

Fig 1: View Of Door Window Regulator Motor & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Door Trim Panel Replacement . Remove the water deflector. Refer to Door Water Deflector Replacement . Remove the front side door window. Refer to Front Side Door Window Replacement . Remove the power window regulator. Refer to Front Side Door Window Regulator Replacement (Manual) or Front Side Door Window Regulator Replacement (Power) .
1	Bolt, Power Window Motor (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Motor, Power Window Regulator

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Bolt, Power Window Motor (Qty: 3)

Tighten: 10 N.m (89 lb in)

Motor, Power Window Regulator
