Antilock Brake System Schematics

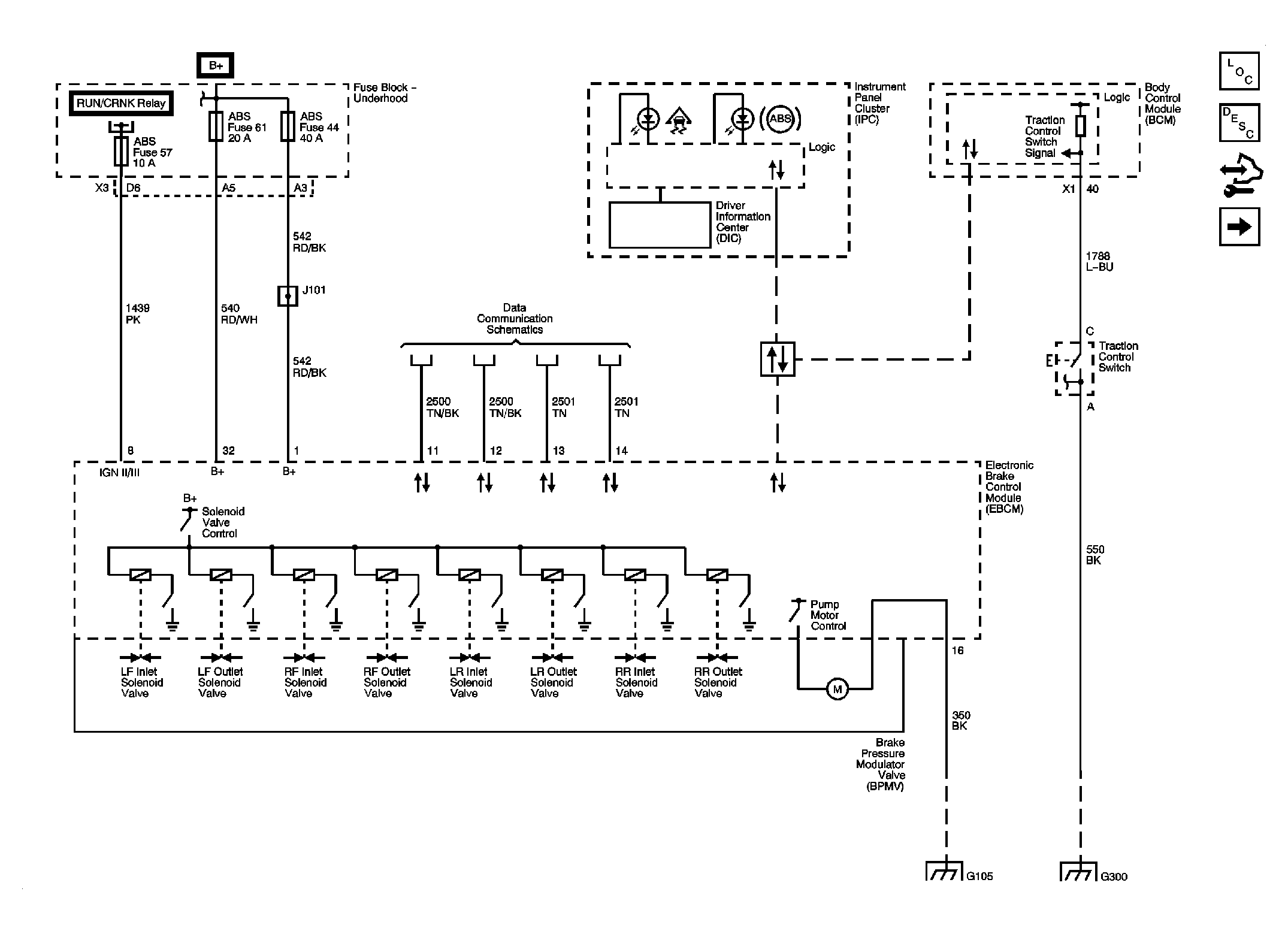

Fig 1: Power, Ground & Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Brake Pedal Sensor, Indicator & Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.

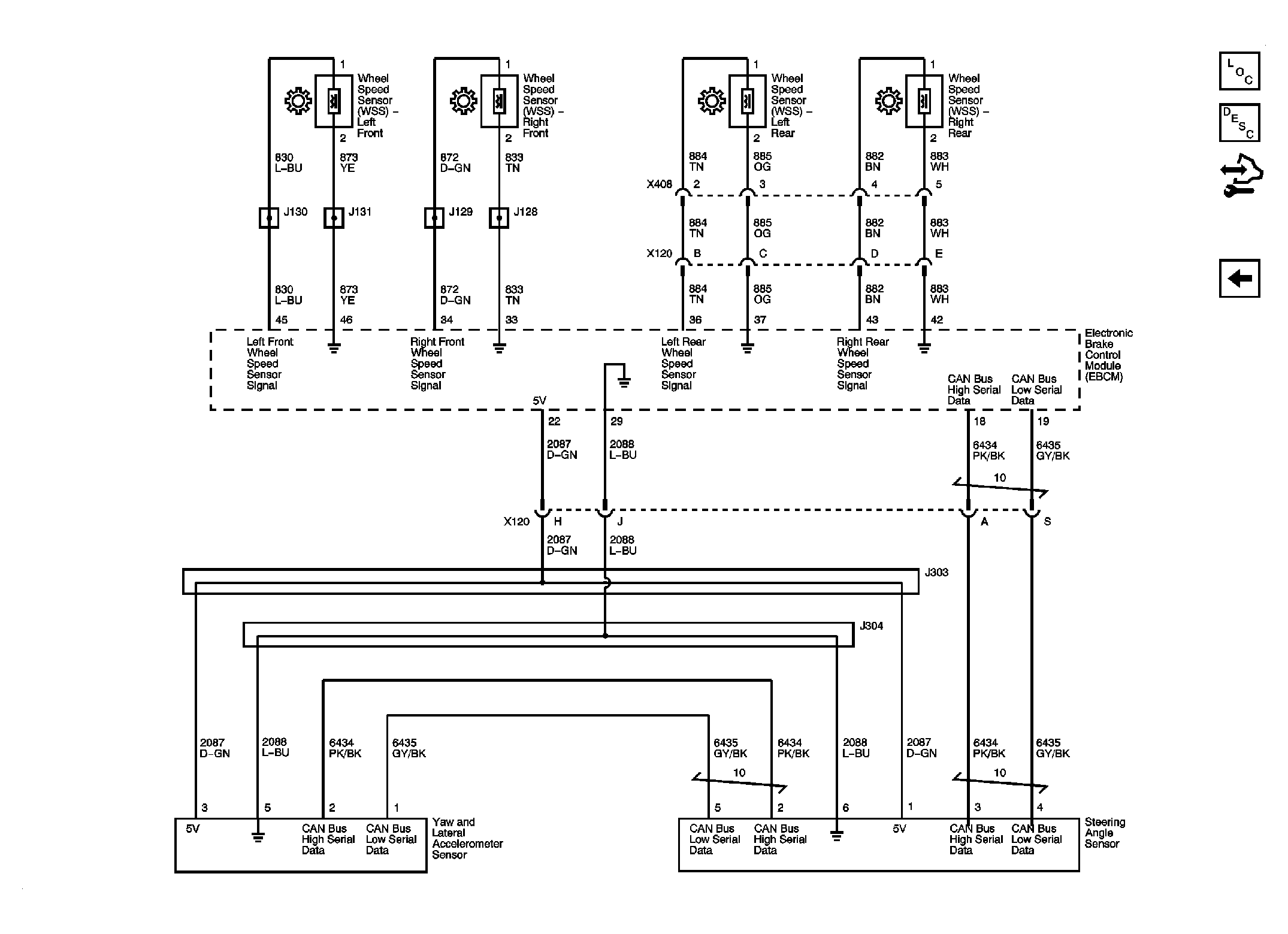

Fig 3: Stability Control Sensors Schematic (JL4)

Courtesy of GENERAL MOTORS CORP.
