Antilock Brake System Schematics
Antilock Brake System Schematics

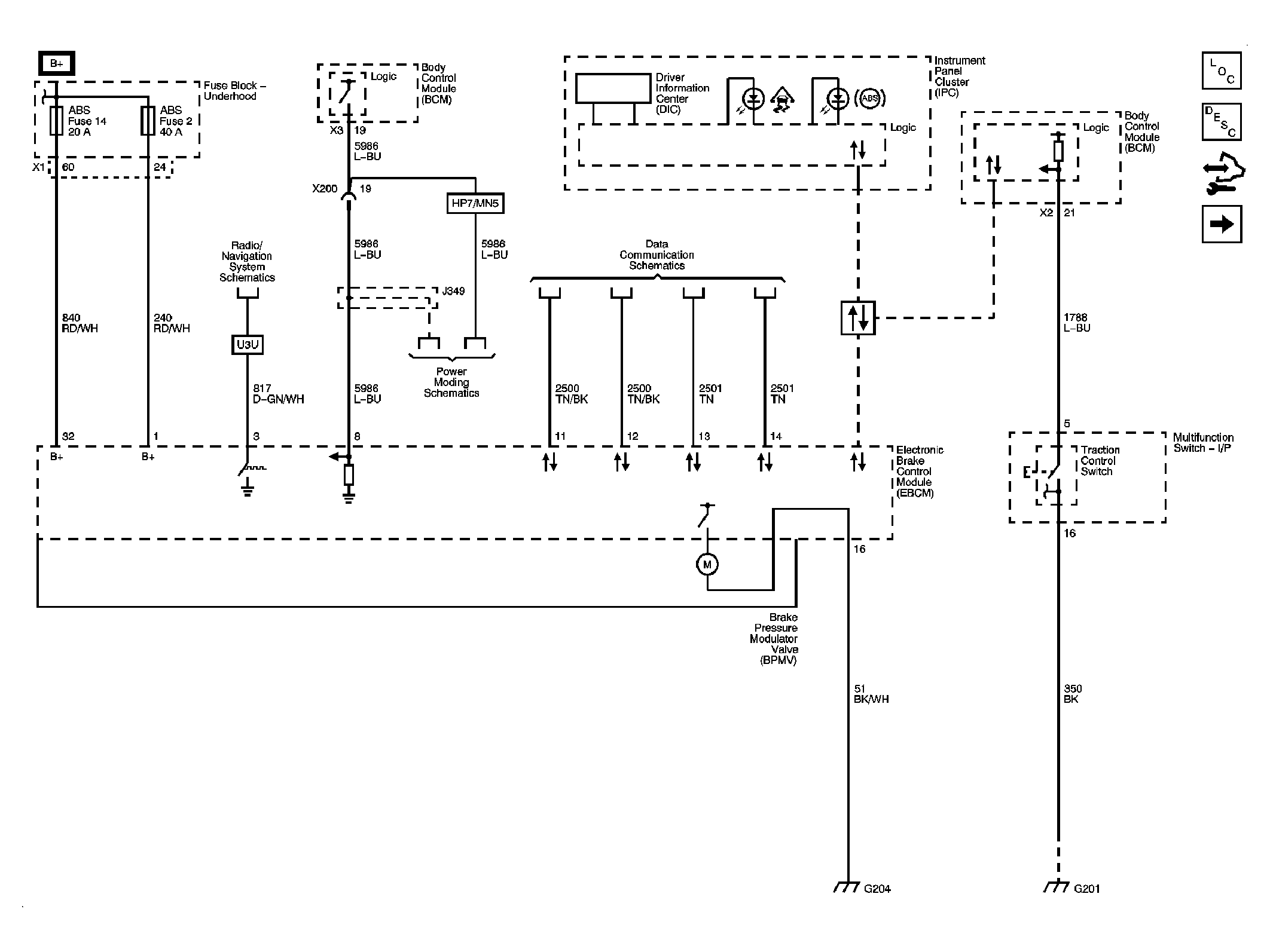

Fig 1: ABS-Control Module, Instrument Panel Display And Serial Data - Schematic
Courtesy of GENERAL MOTORS CORP.

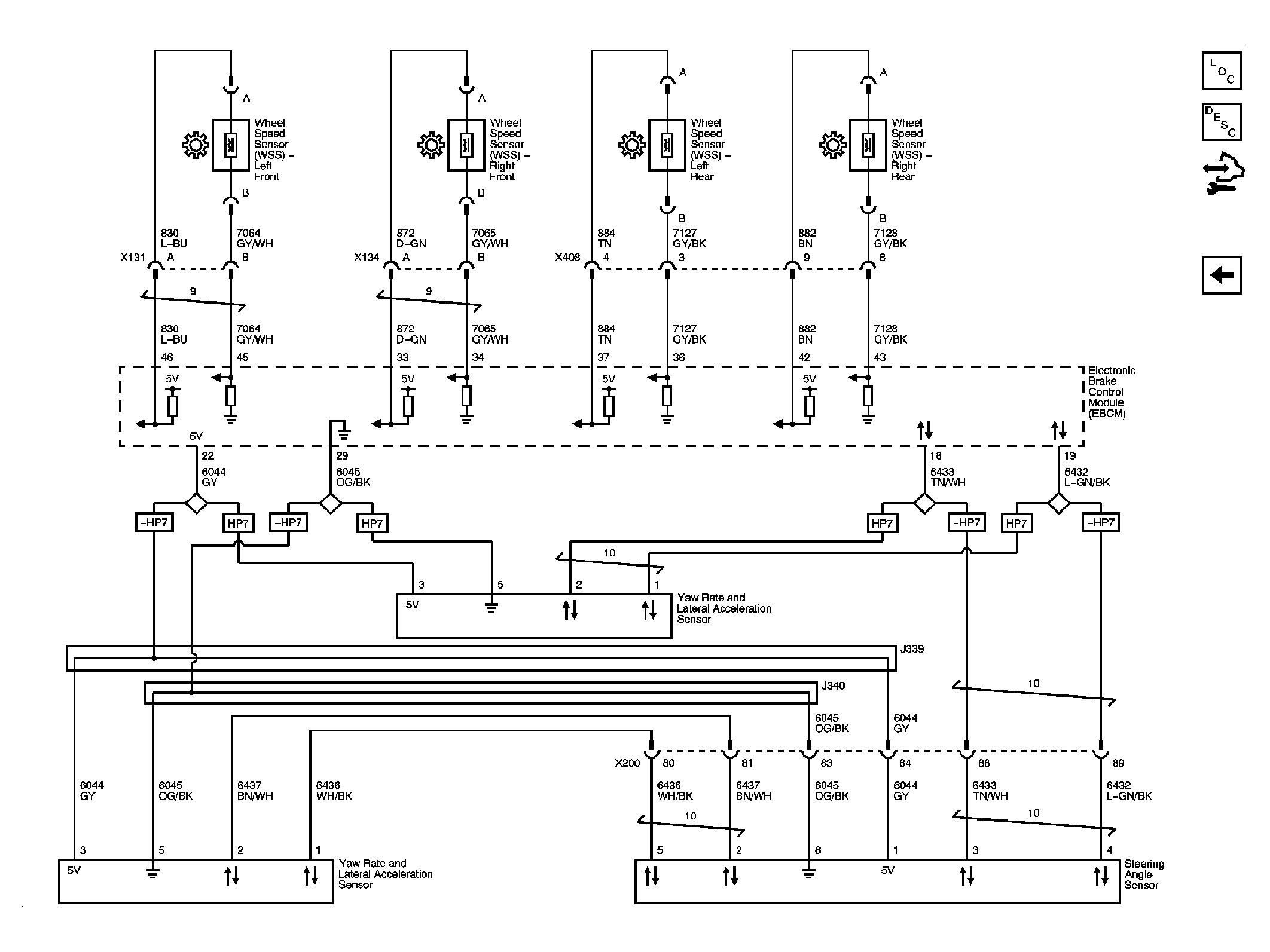

Fig 2: ABS-Wheel Speed And YAW/Lateral Speed Sensors - Schematic
Courtesy of GENERAL MOTORS CORP.
