Mass Airflow Sensor/Intake Air Temperature Sensor Replacement

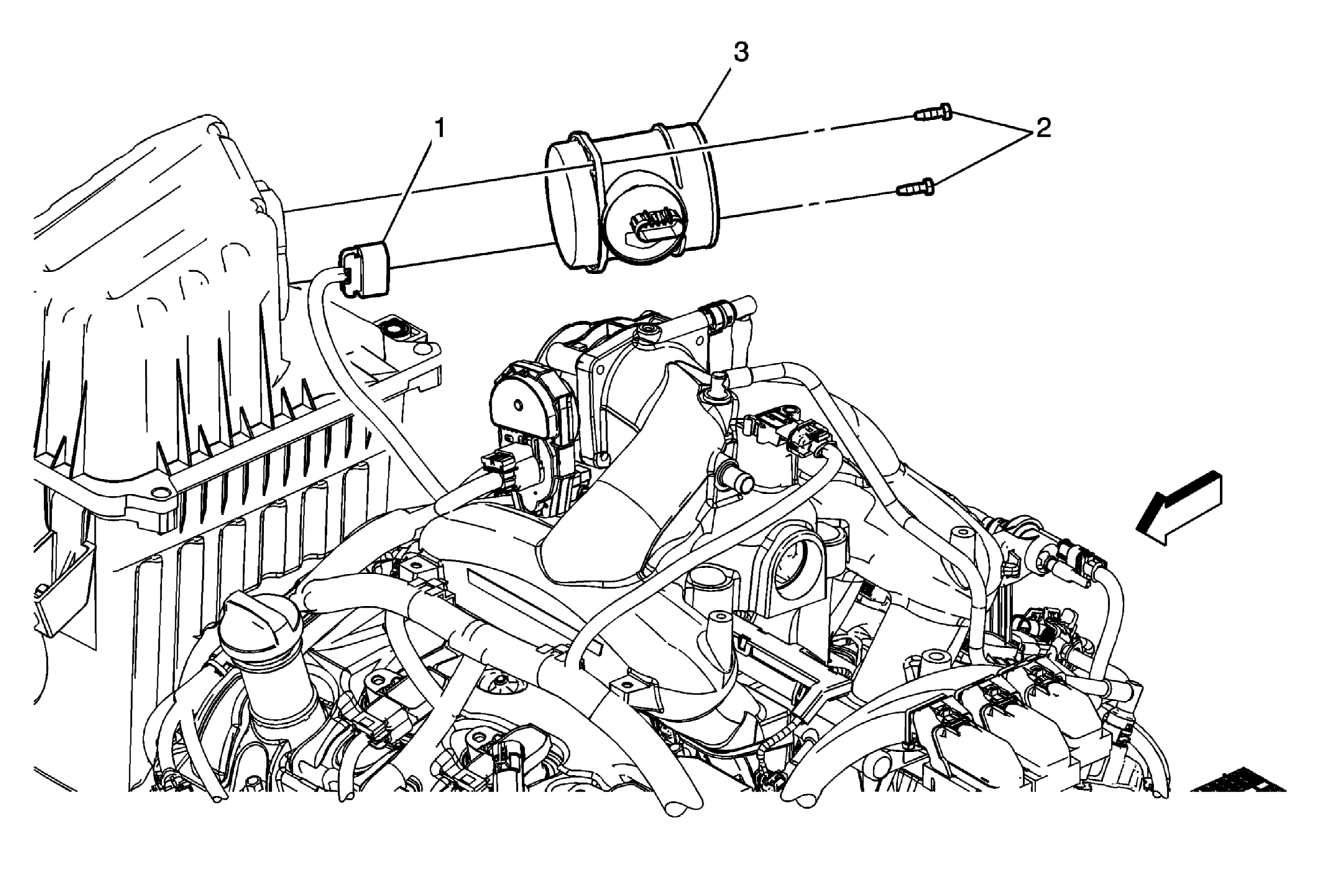

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . |
|
| 1 | Mass Airflow Sensor/Intake Air Temperature Sensor Electrical Connector |
| 2 | Mass Airflow Sensor/Intake Air Temperature Sensor Bolt (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 4 N.m (34 lb in) |
| 3 | Mass Airflow Sensor/Intake Air Temperature Sensor |
