Moveable Window Schematics

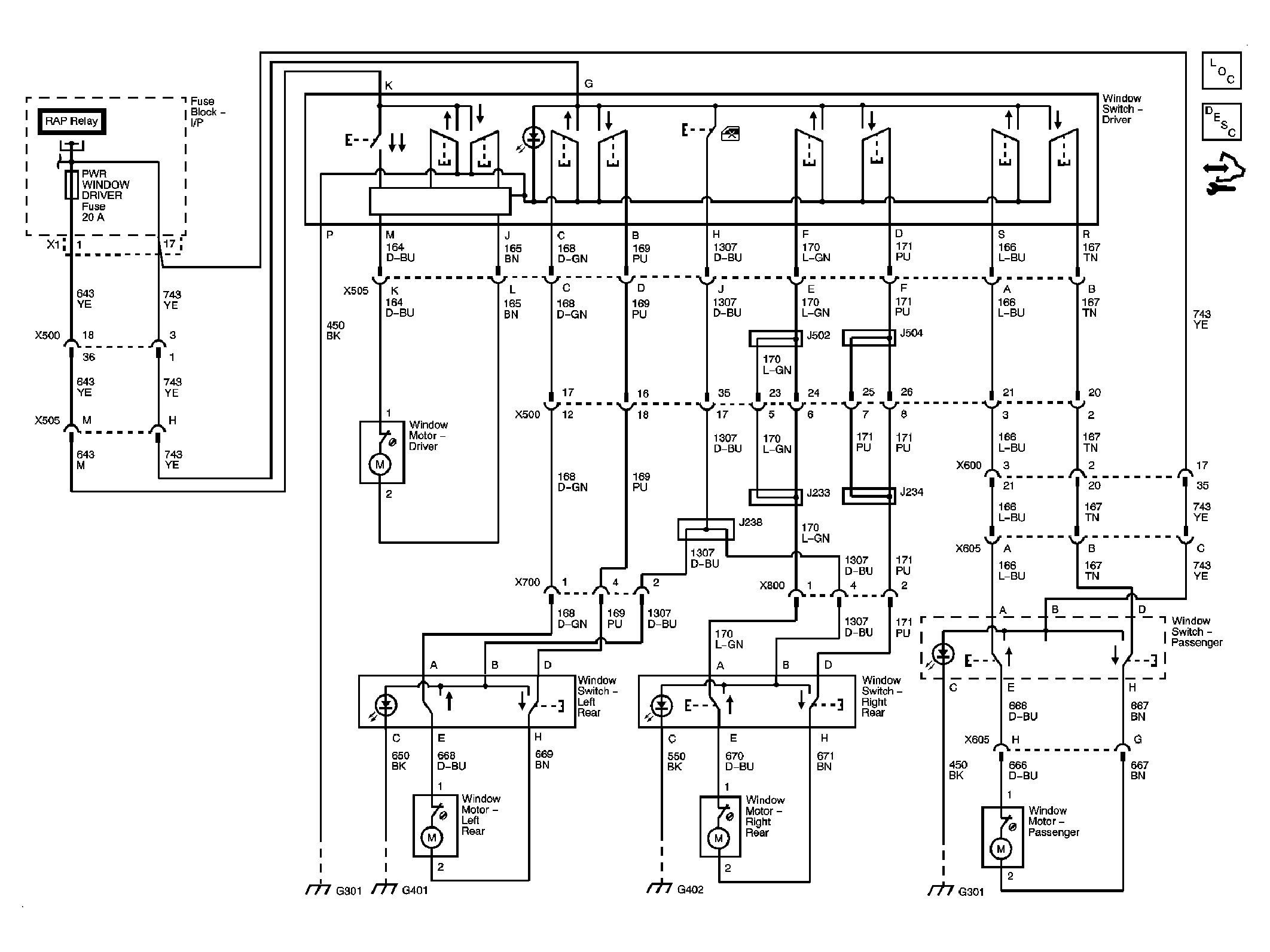

Fig 1: Moveable Window - Schematic
GM1902683Courtesy of GENERAL MOTORS CORP.
