Data Communication Schematics

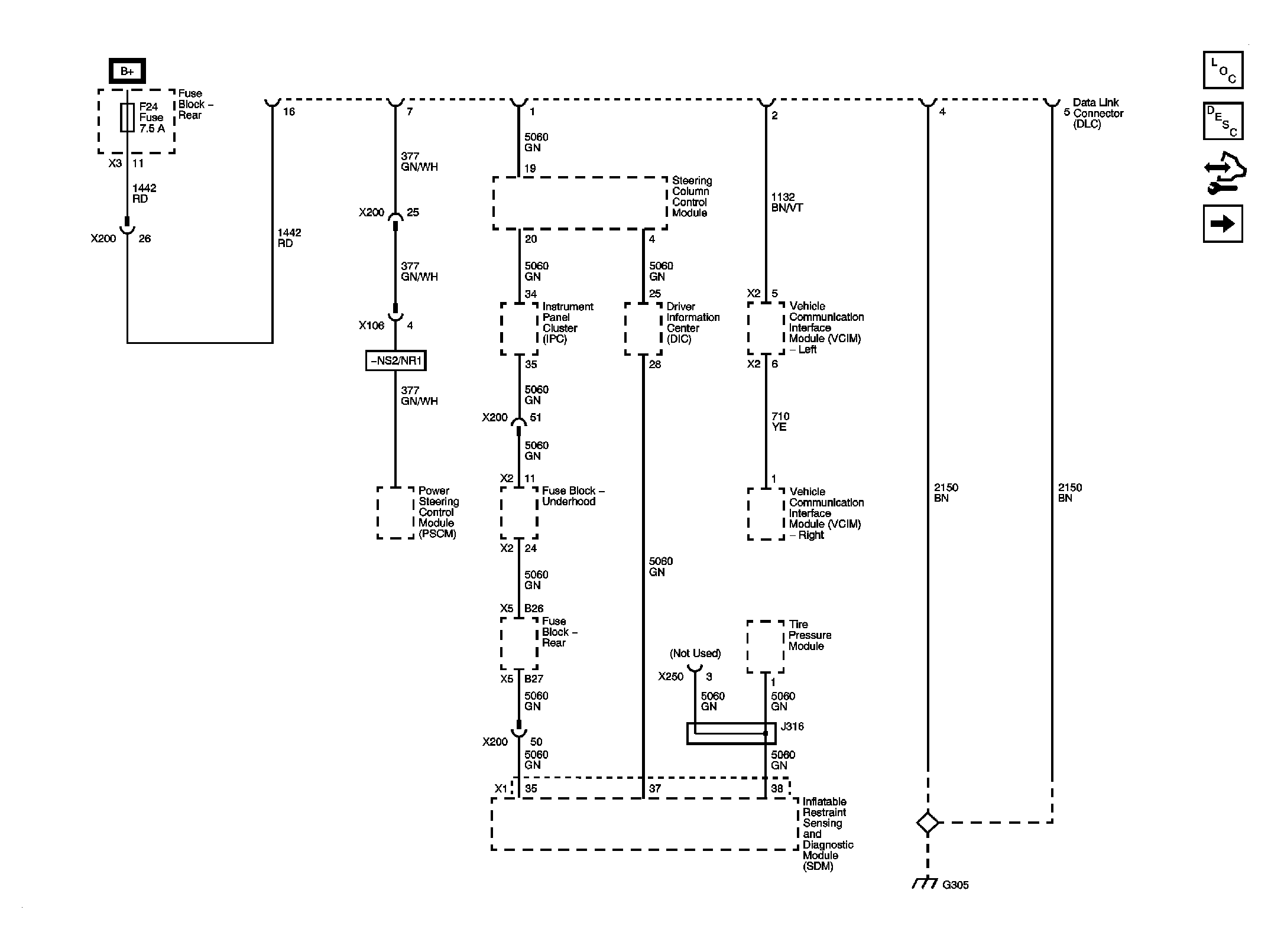

Fig 1: Power, Ground, Class 2, and GM Low Speed Serial Data (CAN A)

Courtesy of GENERAL MOTORS CORP.

Fig 2: GM Mid Speed Serial Data (CAN B)

Courtesy of GENERAL MOTORS CORP.

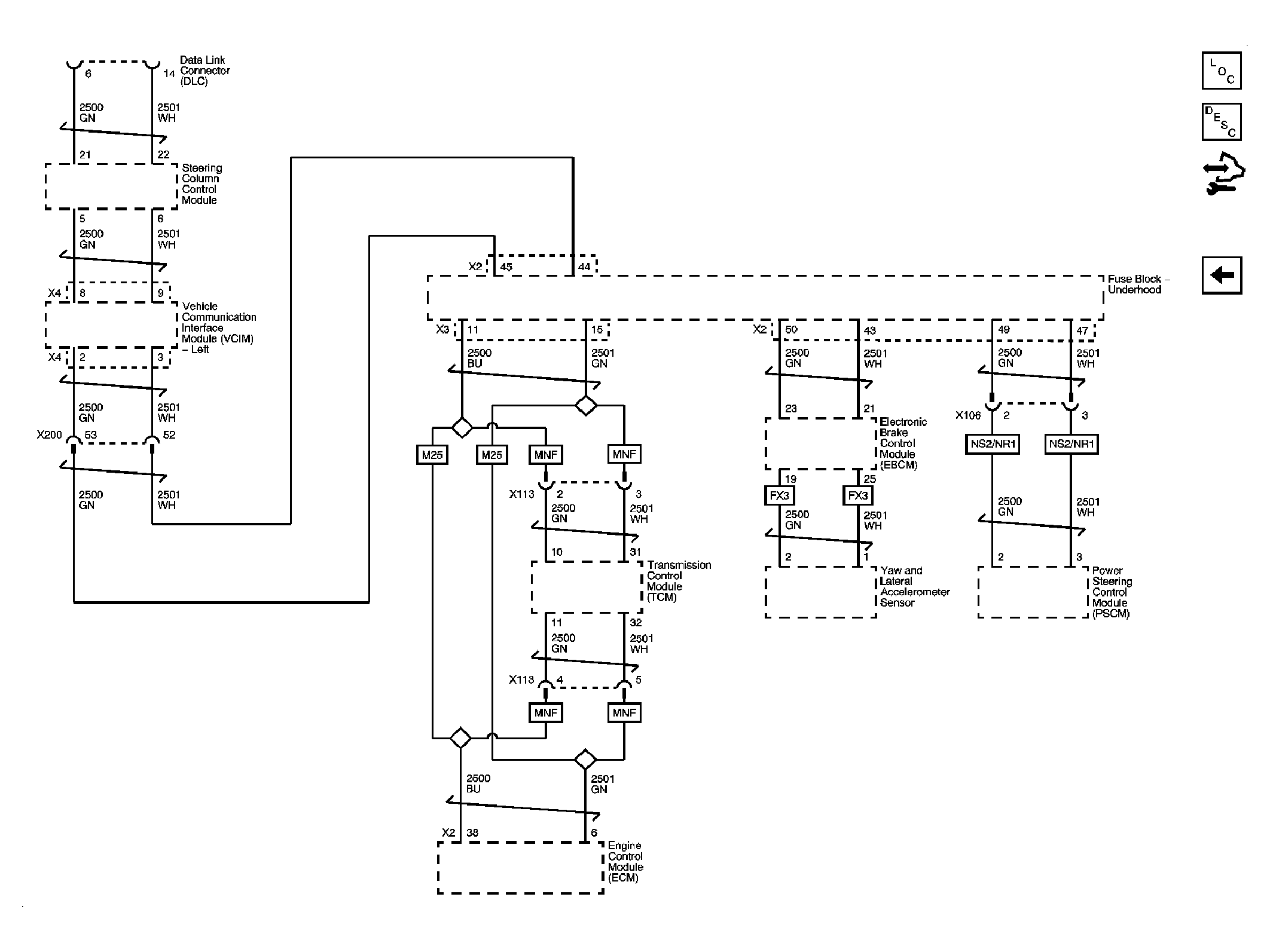

Fig 3: GM High Speed Serial Data (CAN C)

Courtesy of GENERAL MOTORS CORP.
