Body Control System Schematics

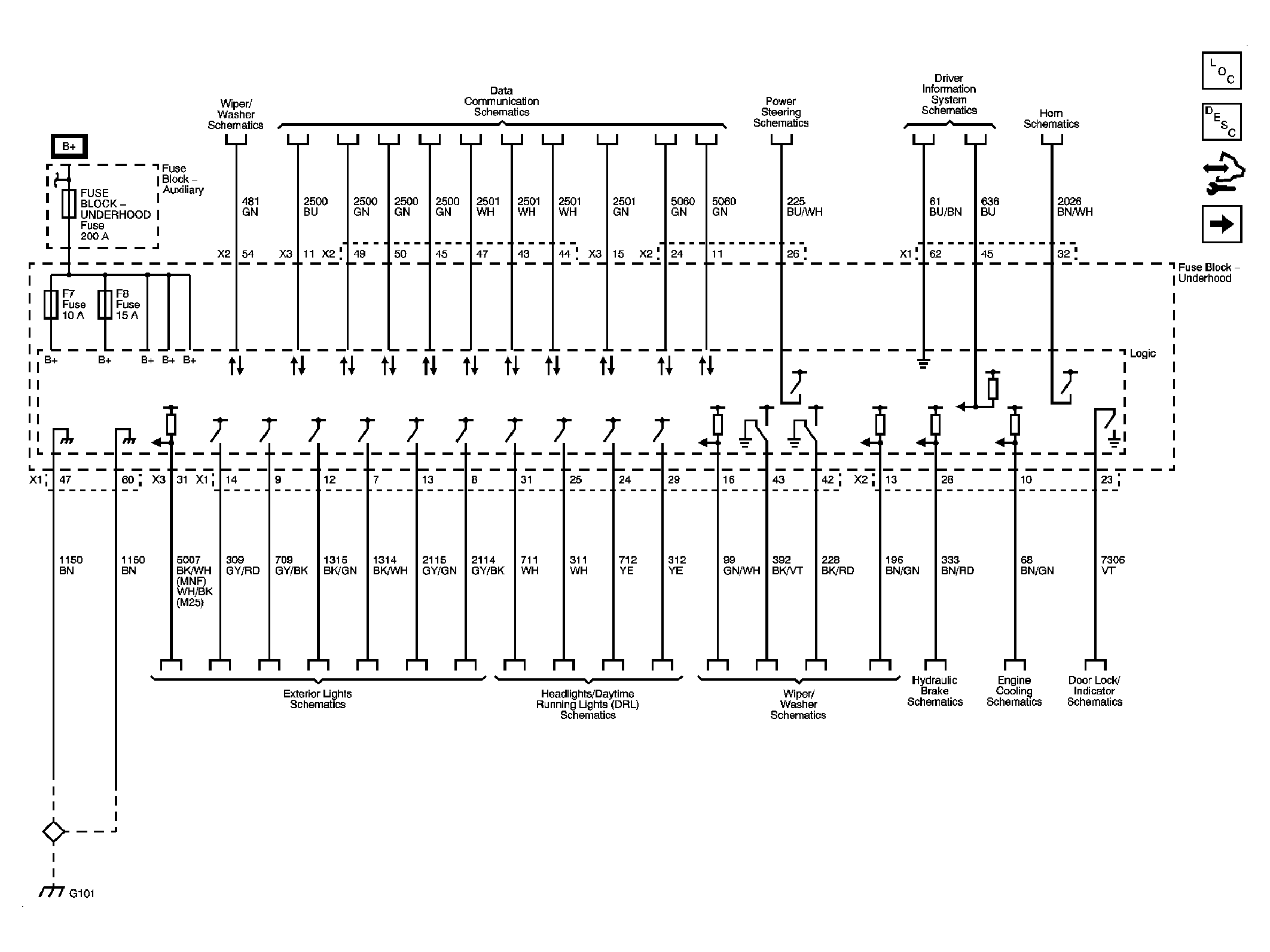

Fig 1: Fuse Block - Underhood

Courtesy of GENERAL MOTORS CORP.

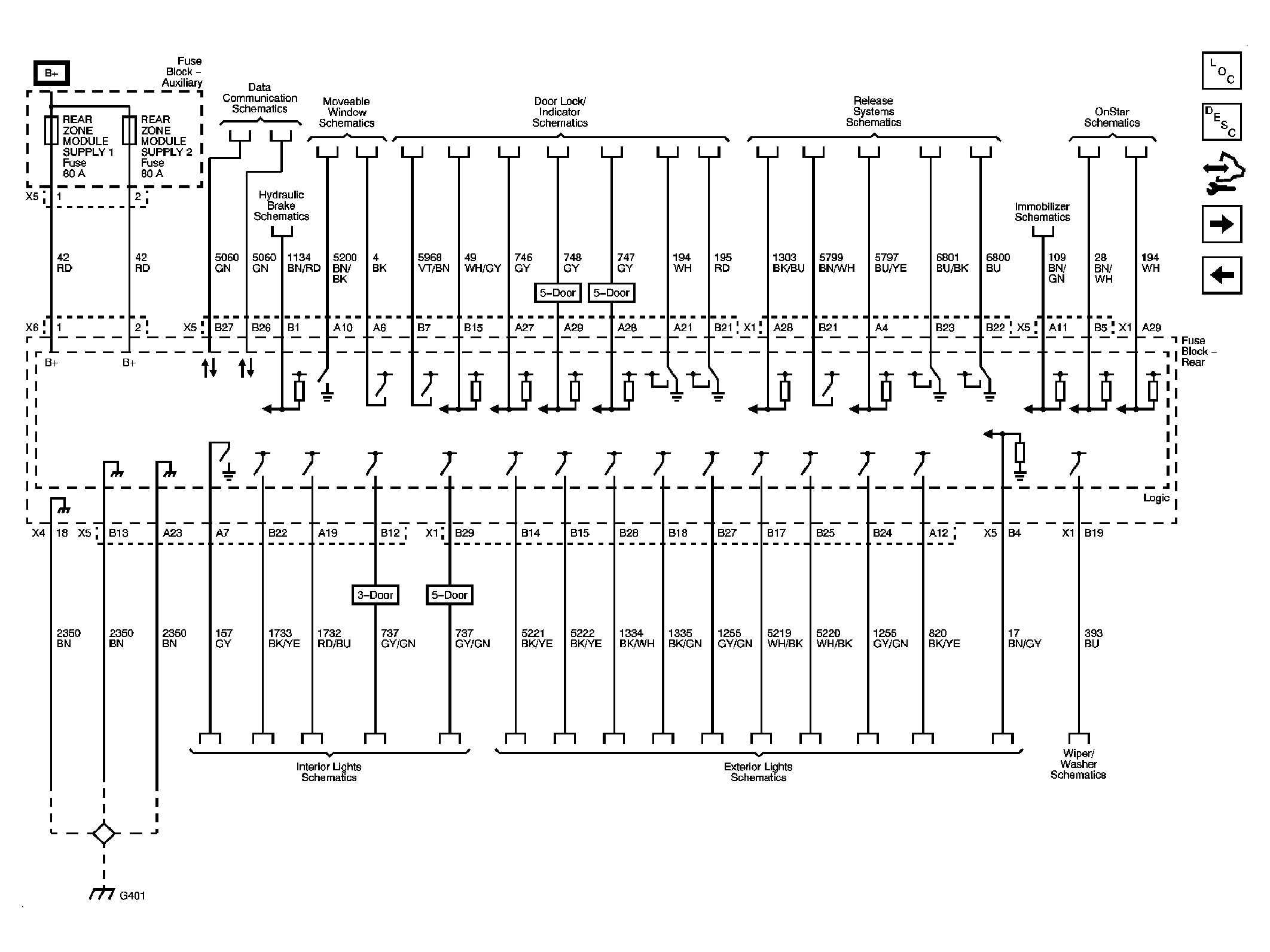

Fig 2: Fuse Block - Rear

Courtesy of GENERAL MOTORS CORP.

Fig 3: Steering Column Control Module

Courtesy of GENERAL MOTORS CORP.
