Body Control System Schematics

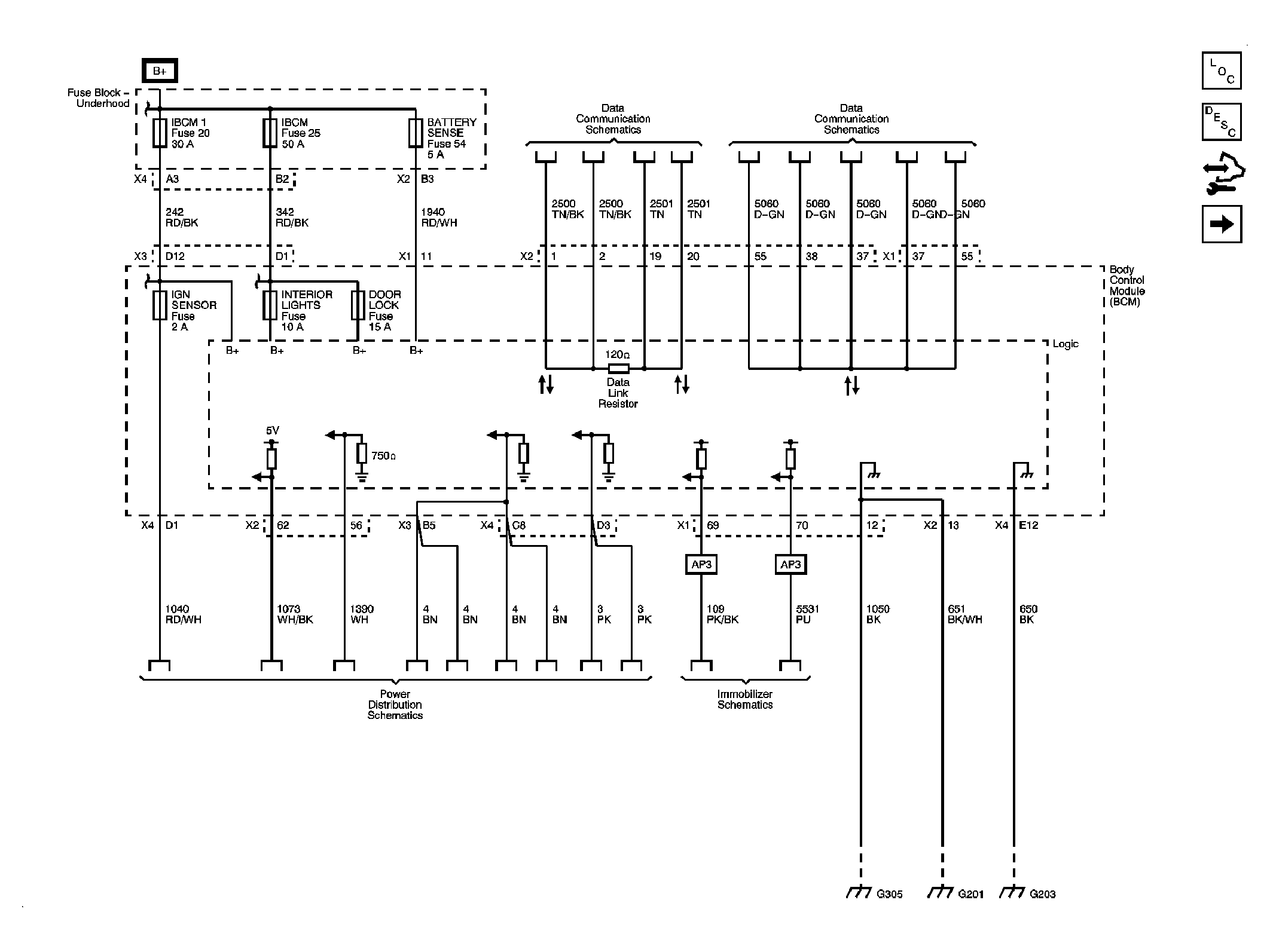

Fig 1: Power, Ground & Serial Data

Courtesy of GENERAL MOTORS CORP.

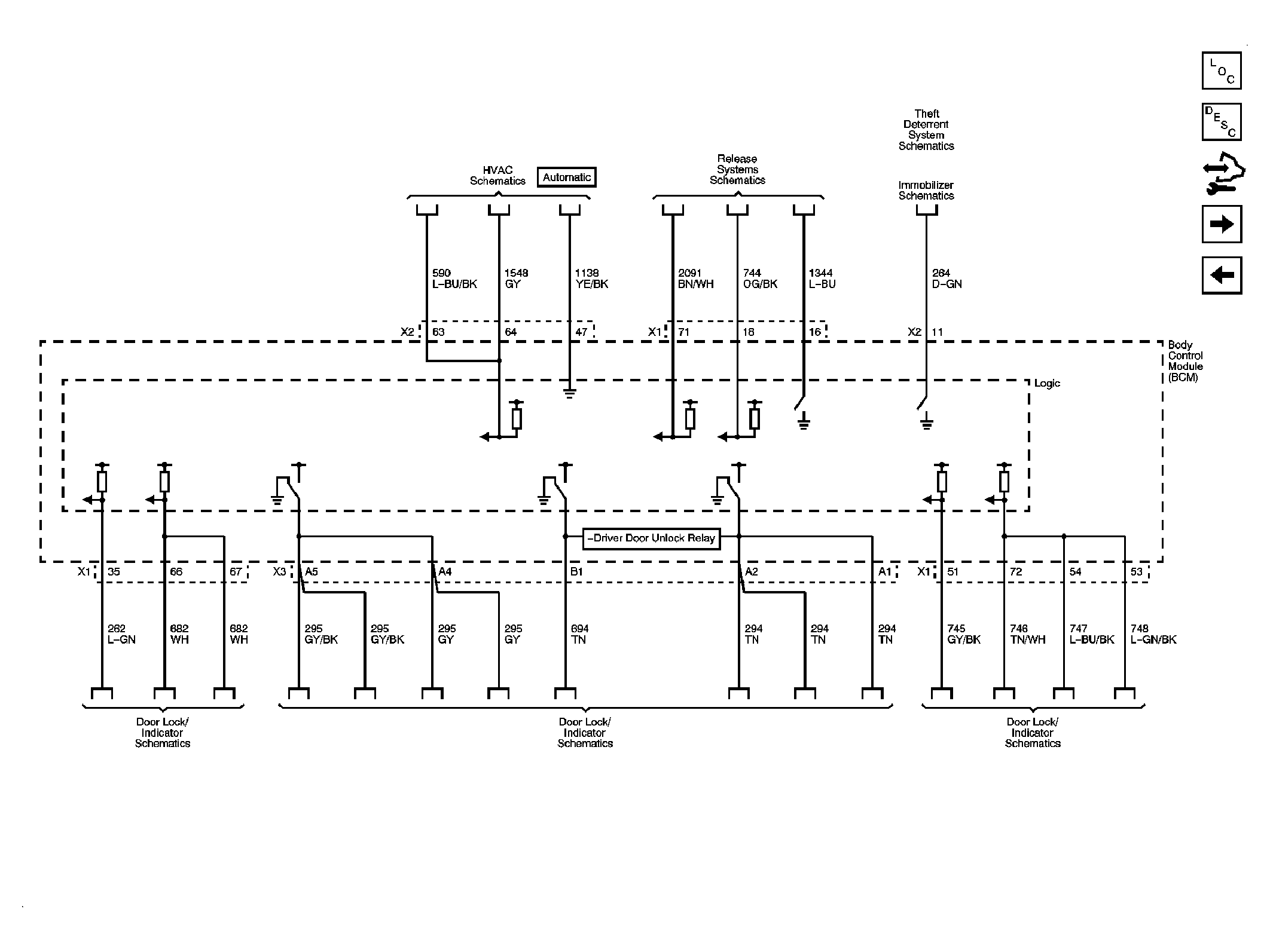

Fig 2: Controlled/Monitored Subsystem References (1 of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Controlled/Monitored Subsystem References (2 of 4)

Courtesy of GENERAL MOTORS CORP.

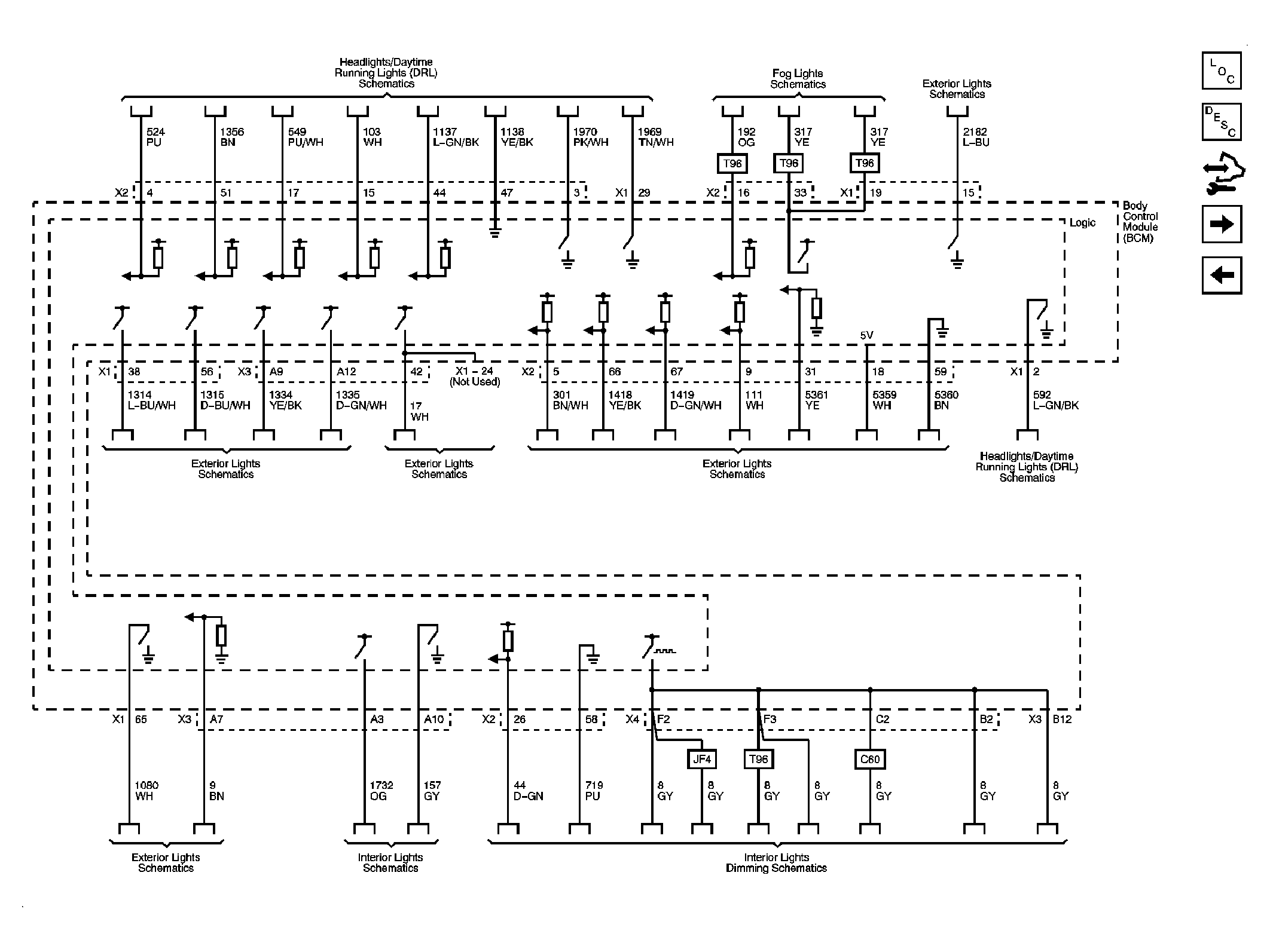

Fig 4: Controlled/Monitored Subsystem References (3 of 4)

Courtesy of GENERAL MOTORS CORP.

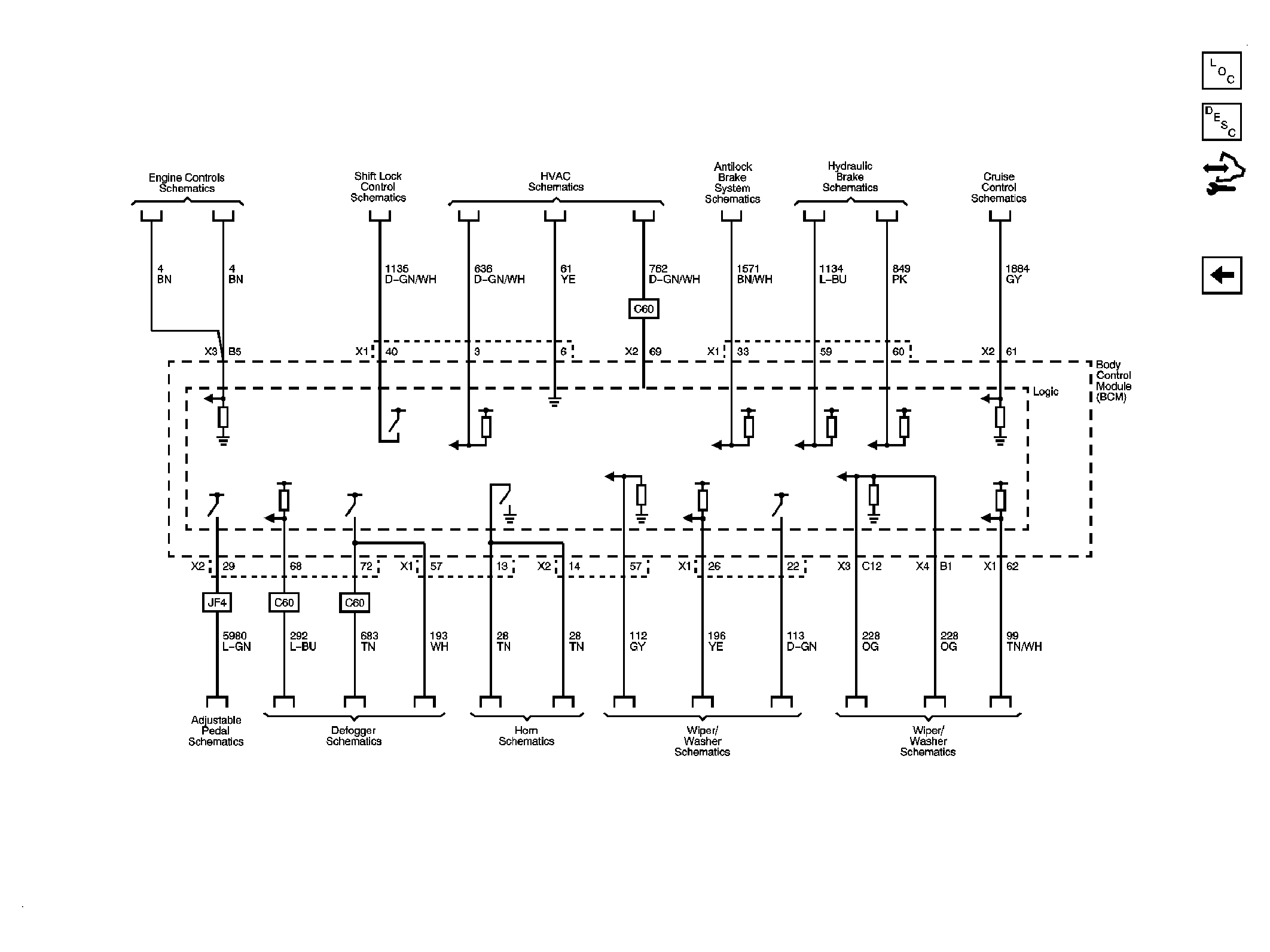

Fig 5: Controlled/Monitored Subsystem References (4 of 4)

Courtesy of GENERAL MOTORS CORP.
