Moveable Window Schematics

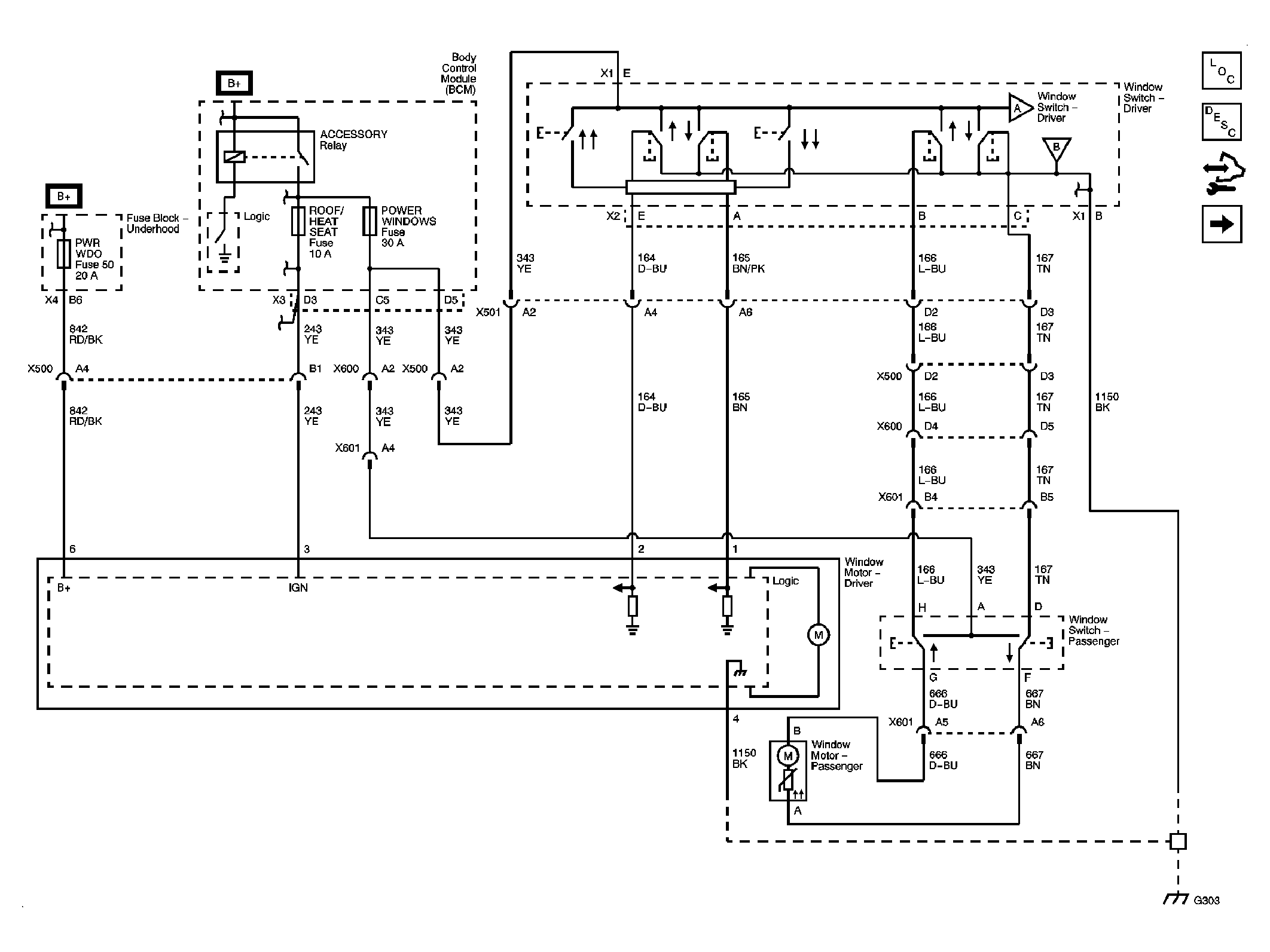

Fig 1: Power & Ground Front Windows
GM2083863Courtesy of GENERAL MOTORS CORP.

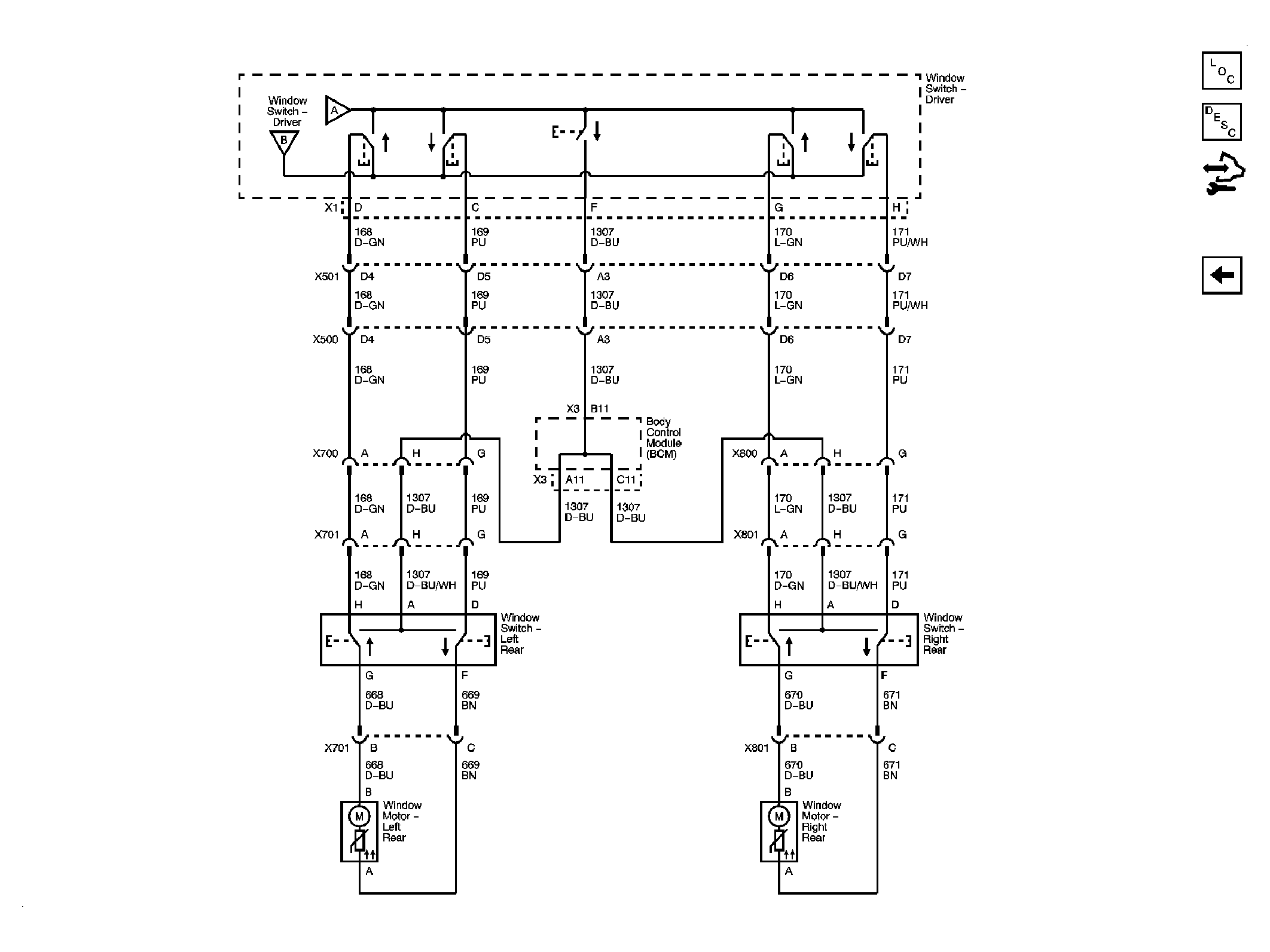

Fig 2: Rear Windows
GM2083864Courtesy of GENERAL MOTORS CORP.
