Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

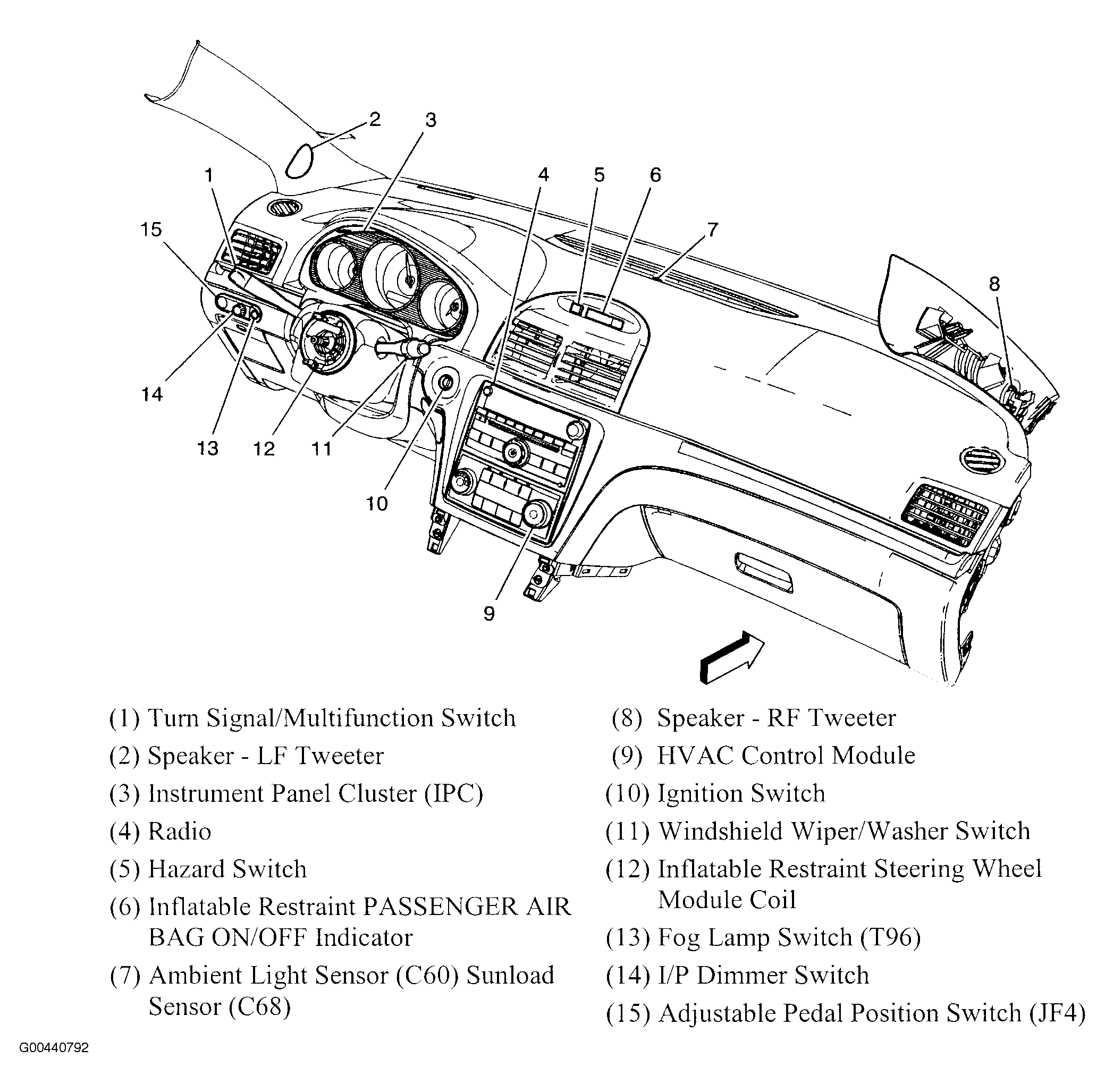

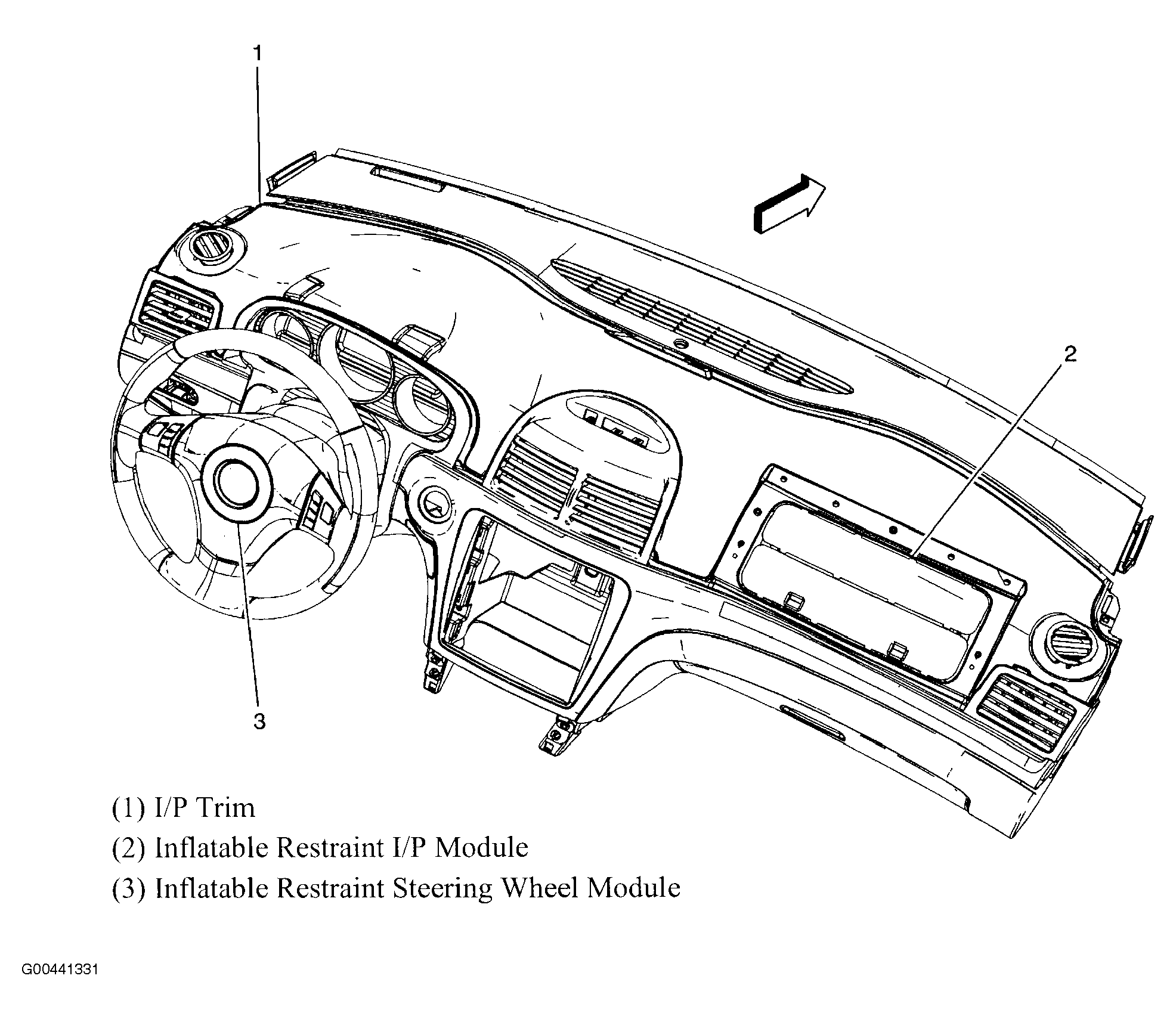

Fig 1: Front Of Dash
Courtesy of GENERAL MOTORS CORP.

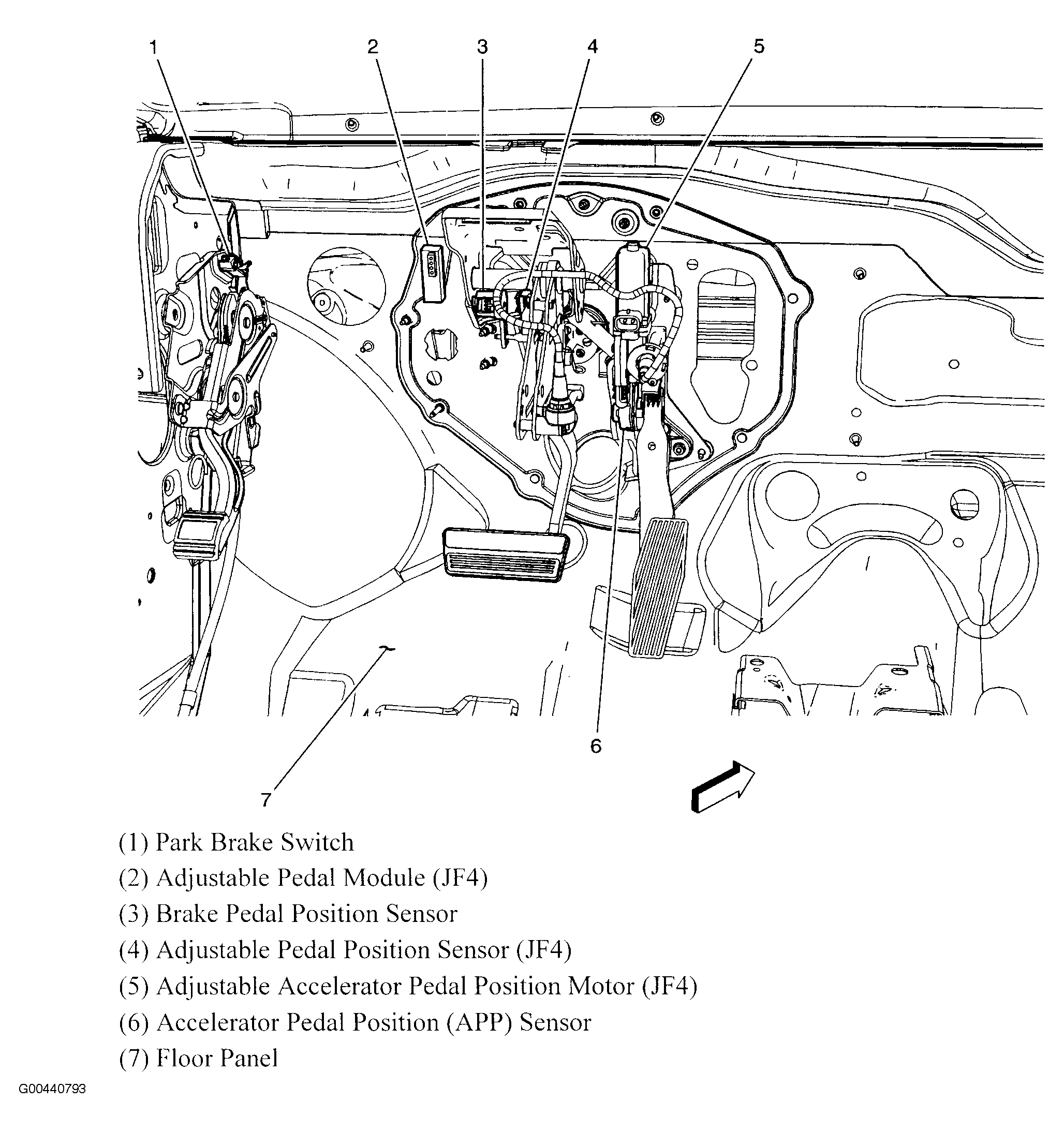

Fig 2: Park Brake & Pedal Assemblies
Courtesy of GENERAL MOTORS CORP.

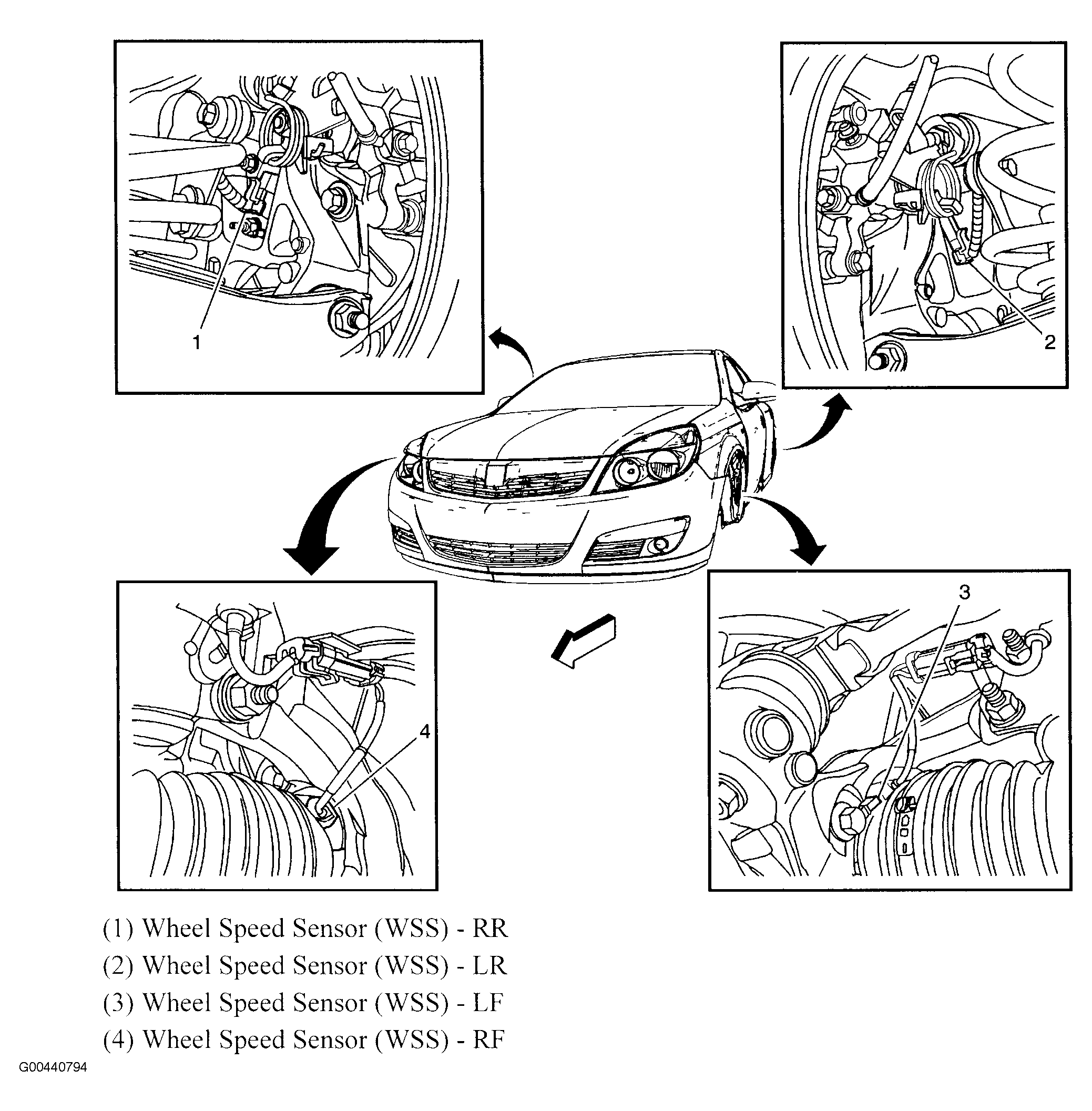

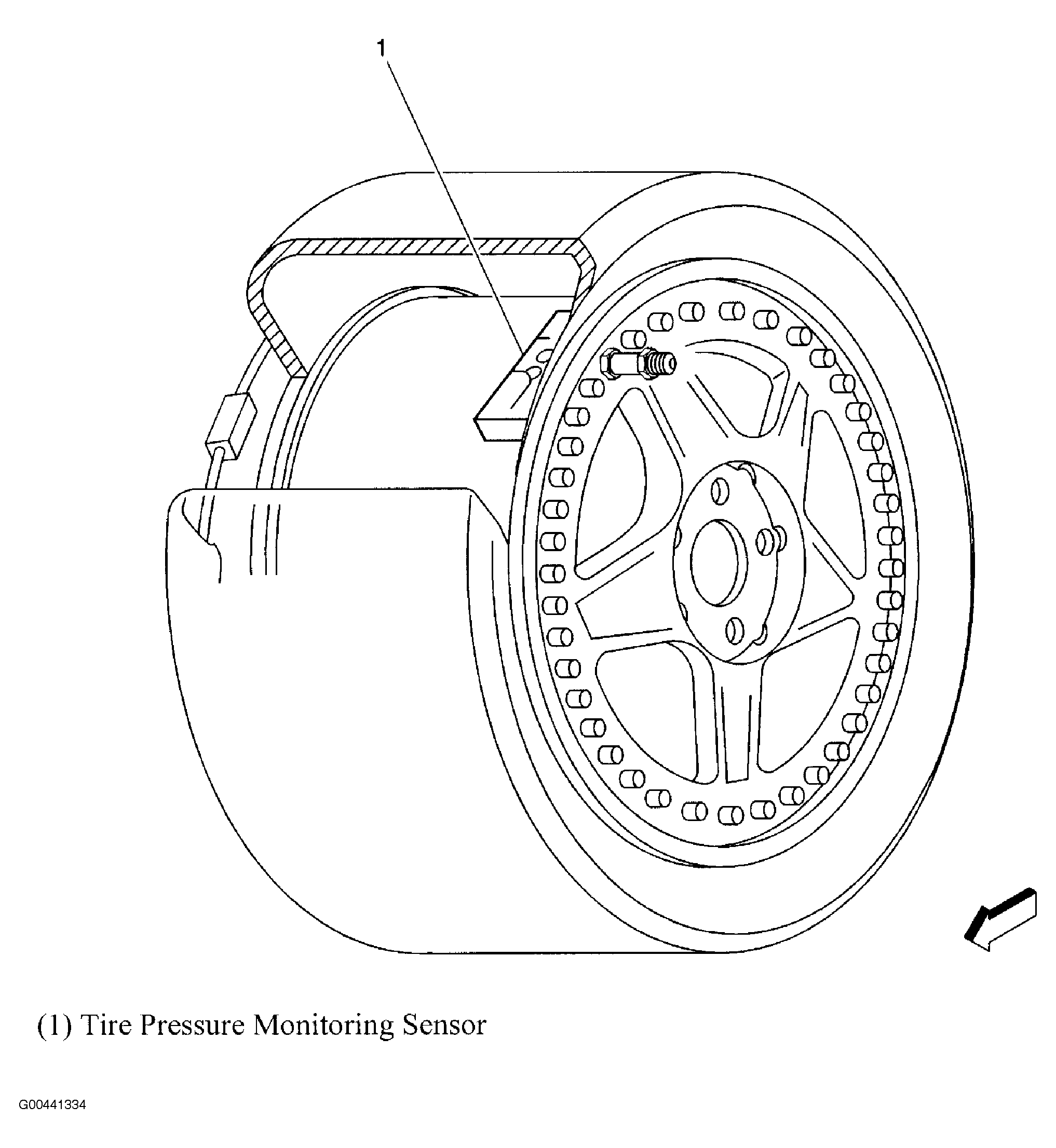

Fig 3: Wheel Assemblies
Courtesy of GENERAL MOTORS CORP.

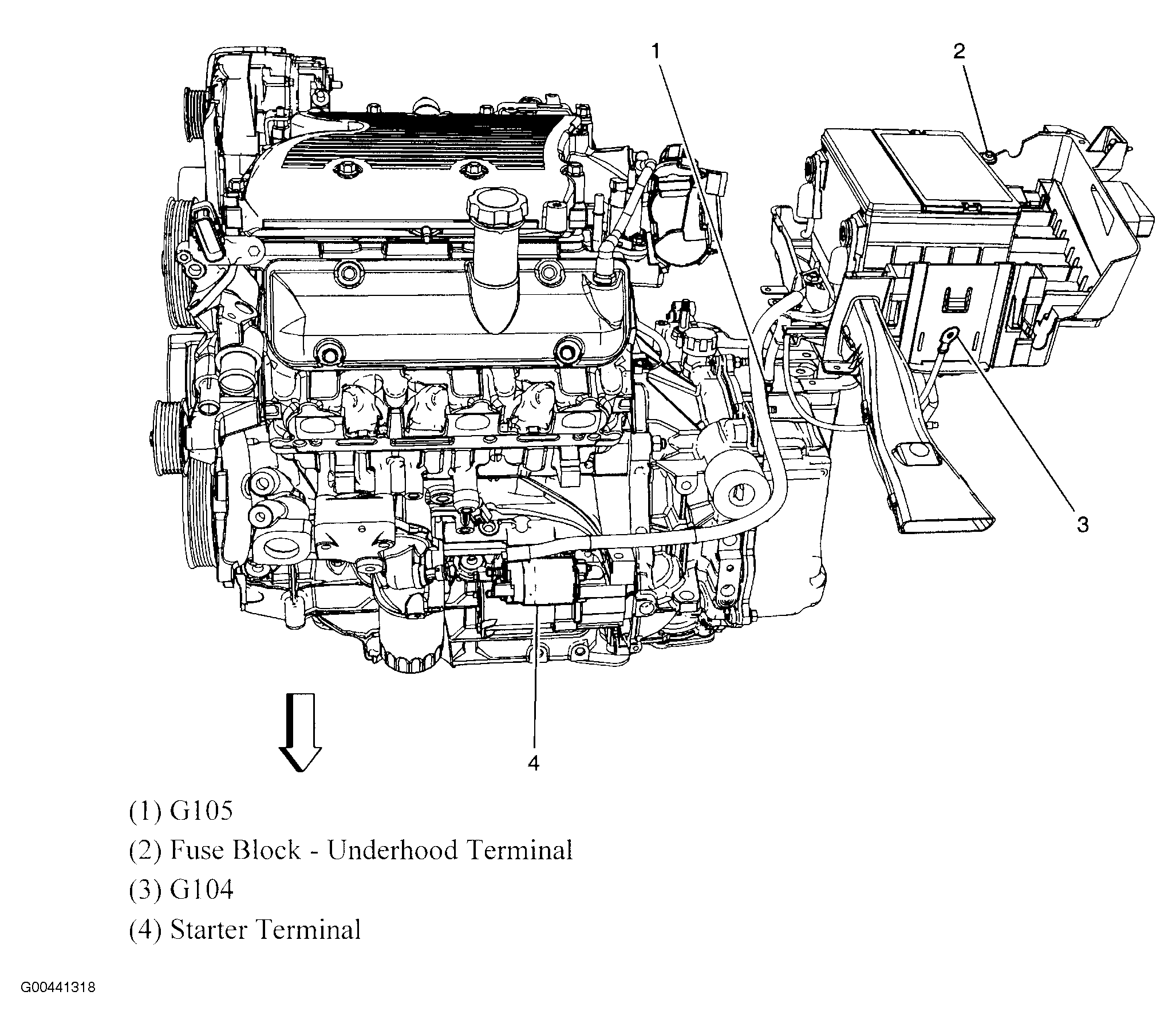

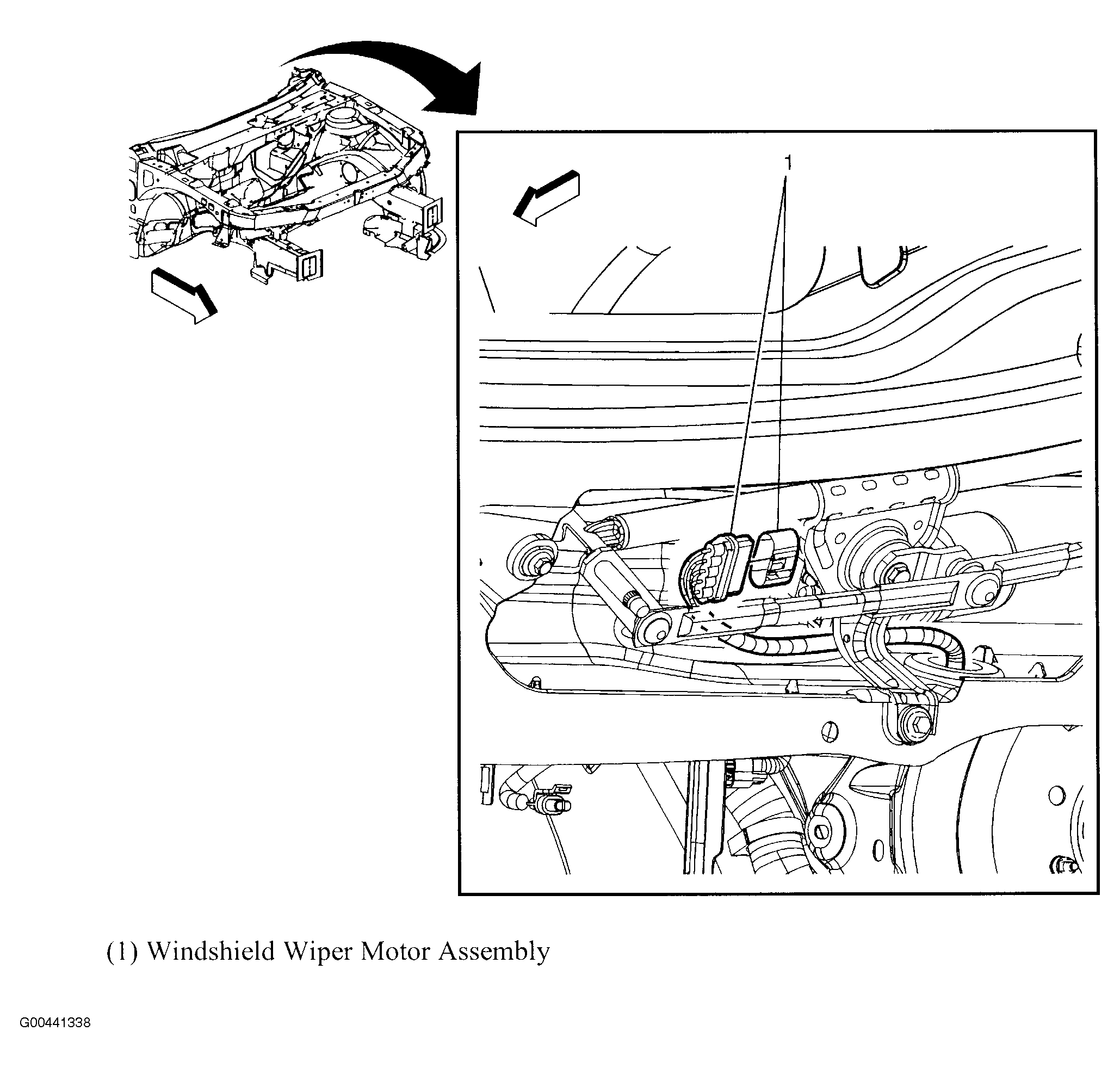

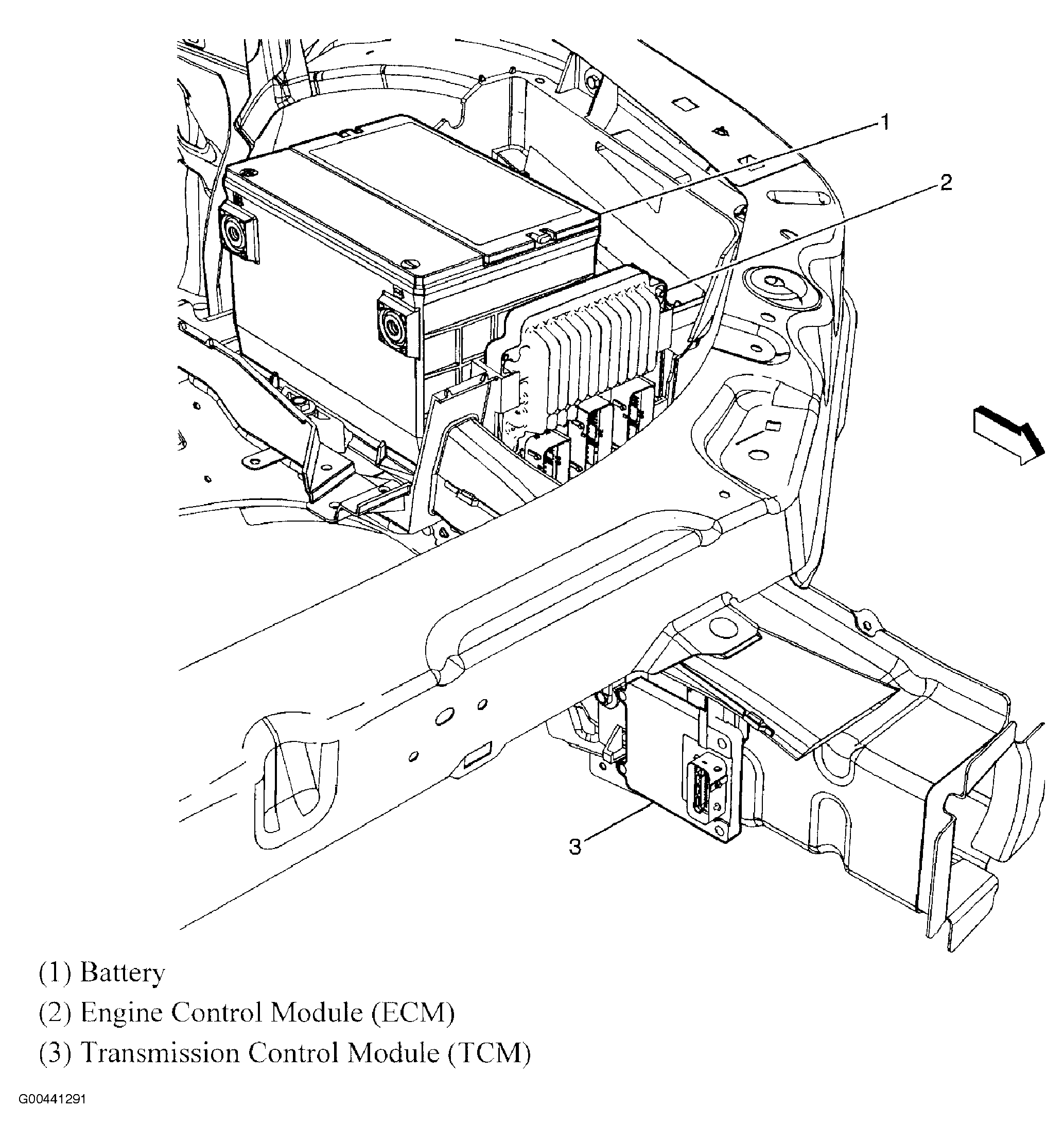

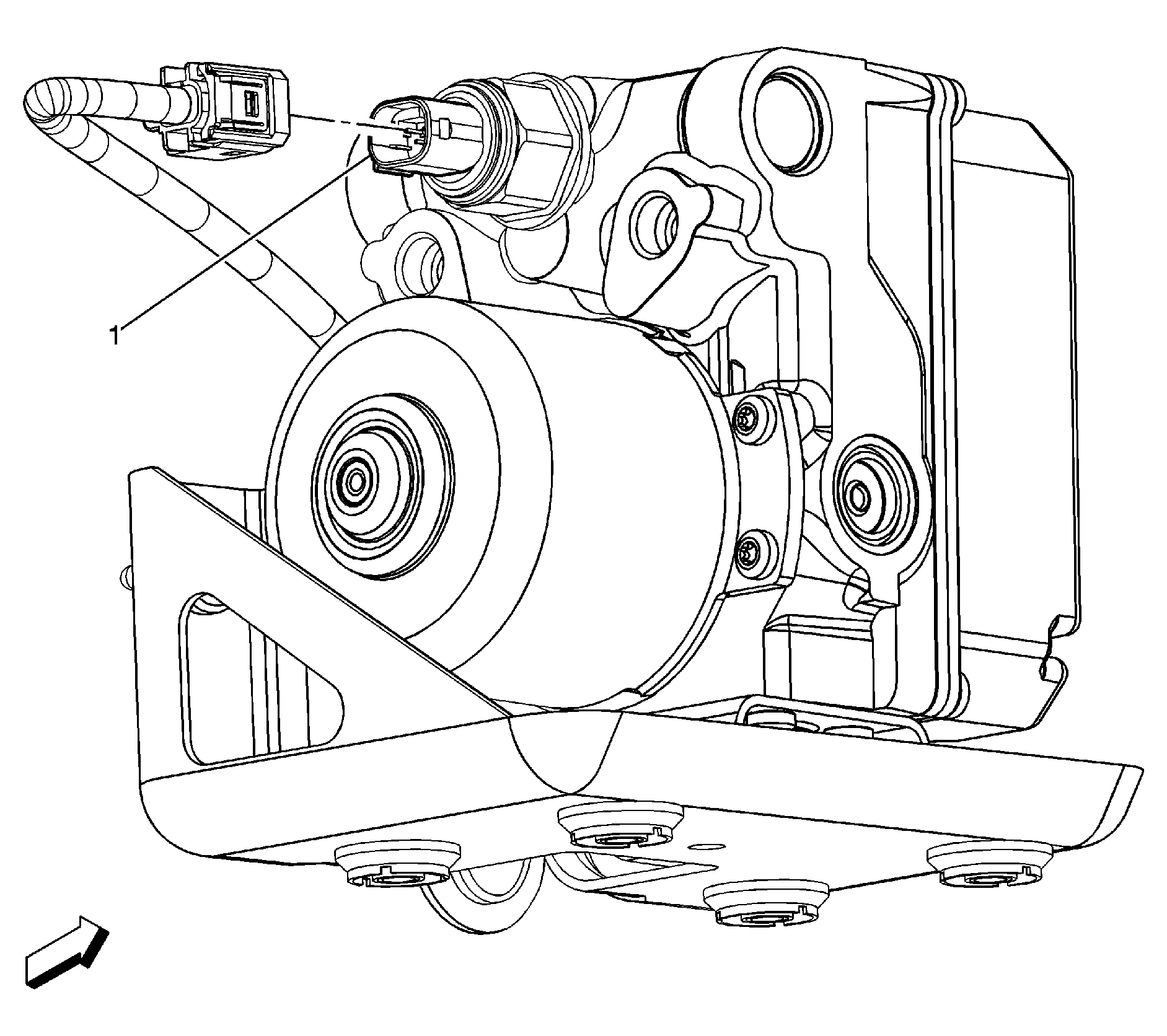

Fig 4: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

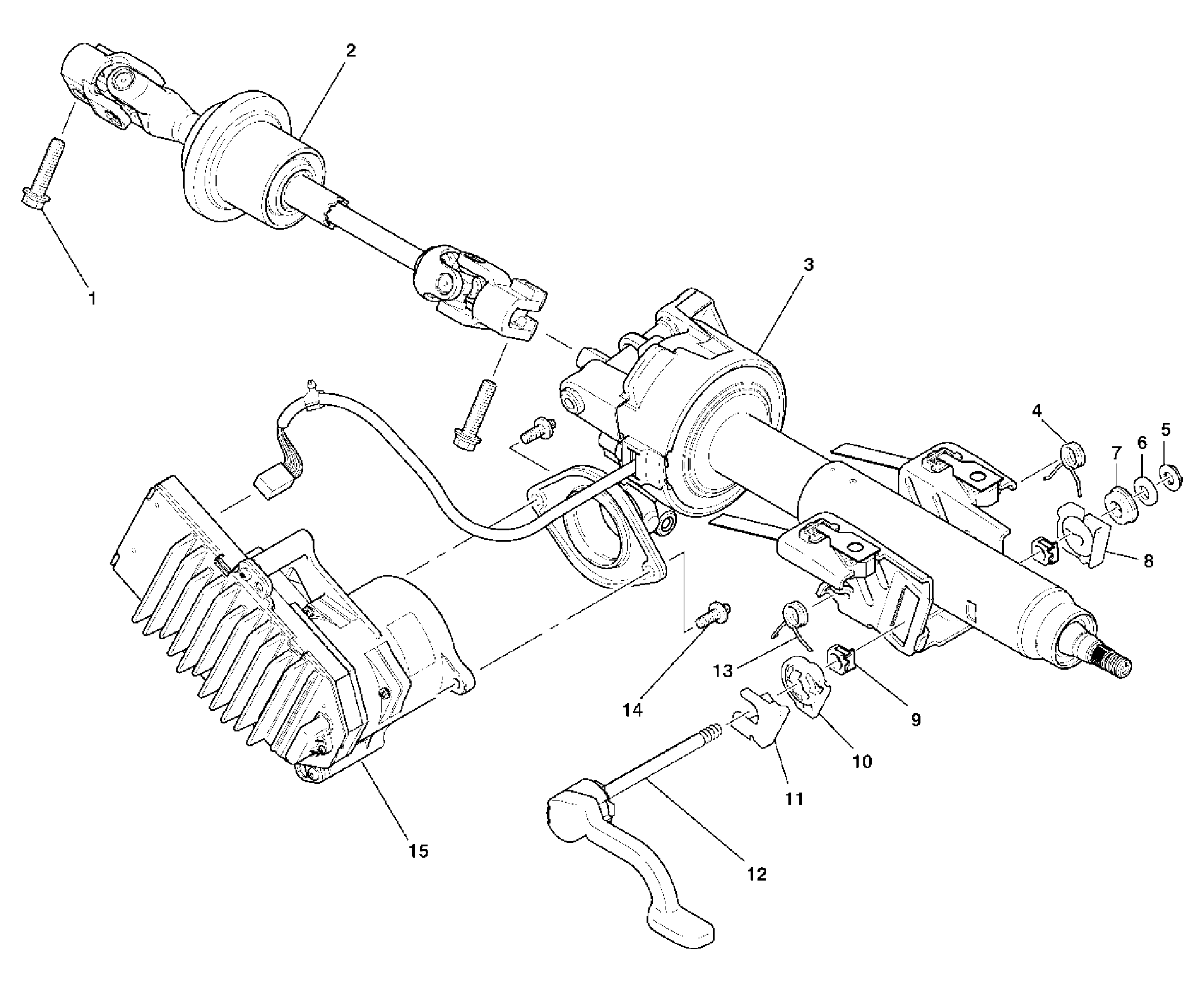

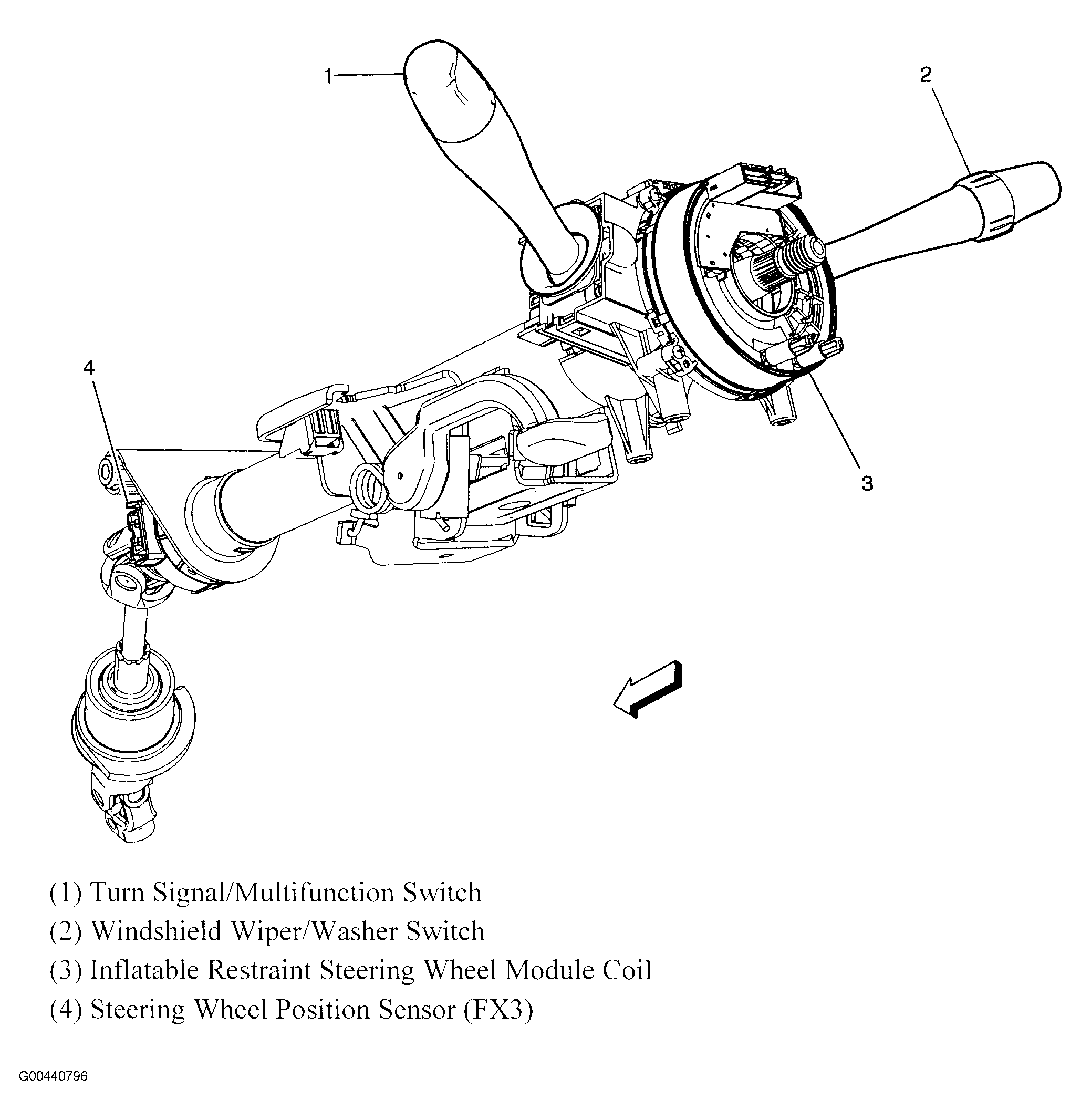

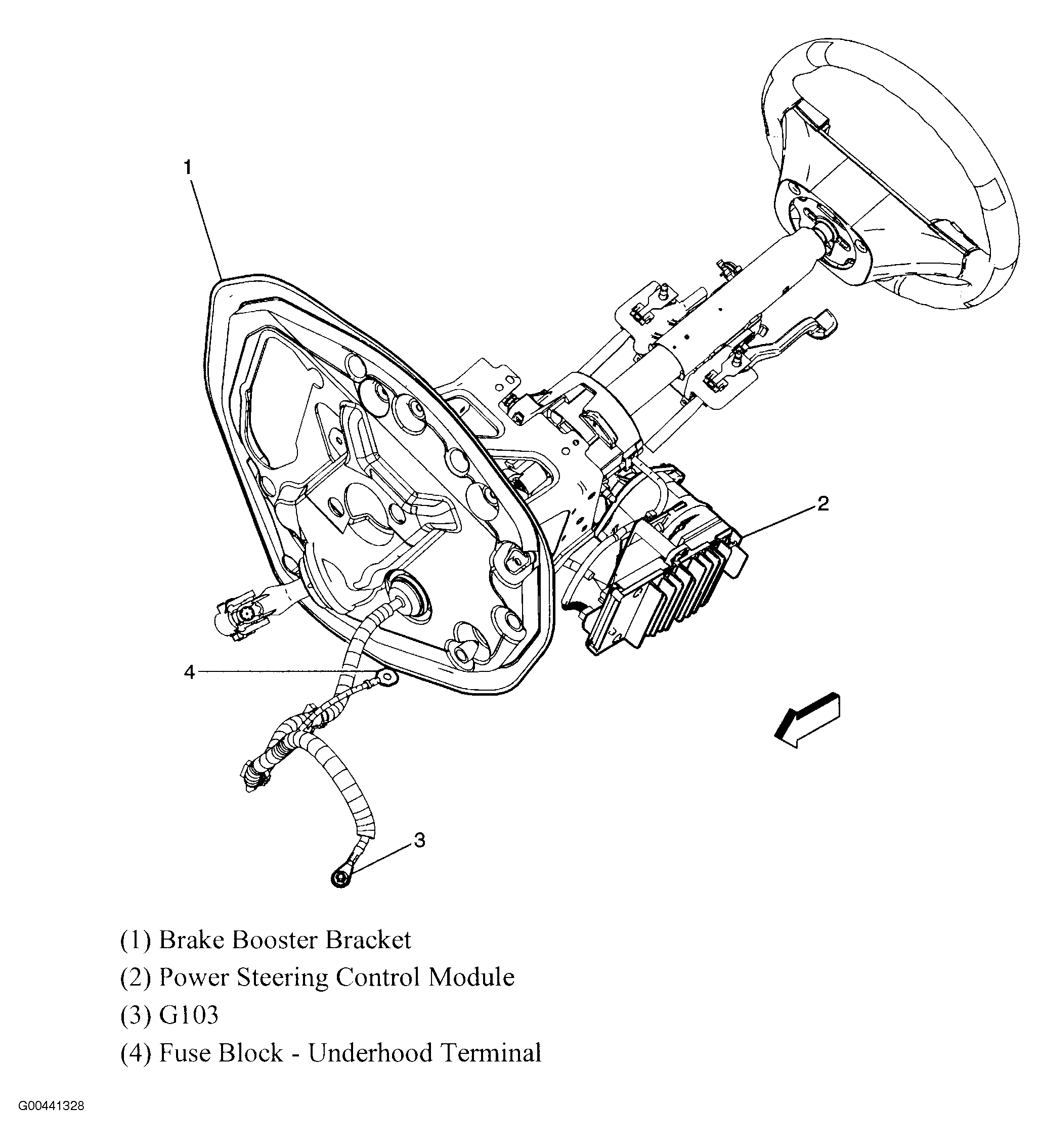

Fig 5: Steering Column
Courtesy of GENERAL MOTORS CORP.

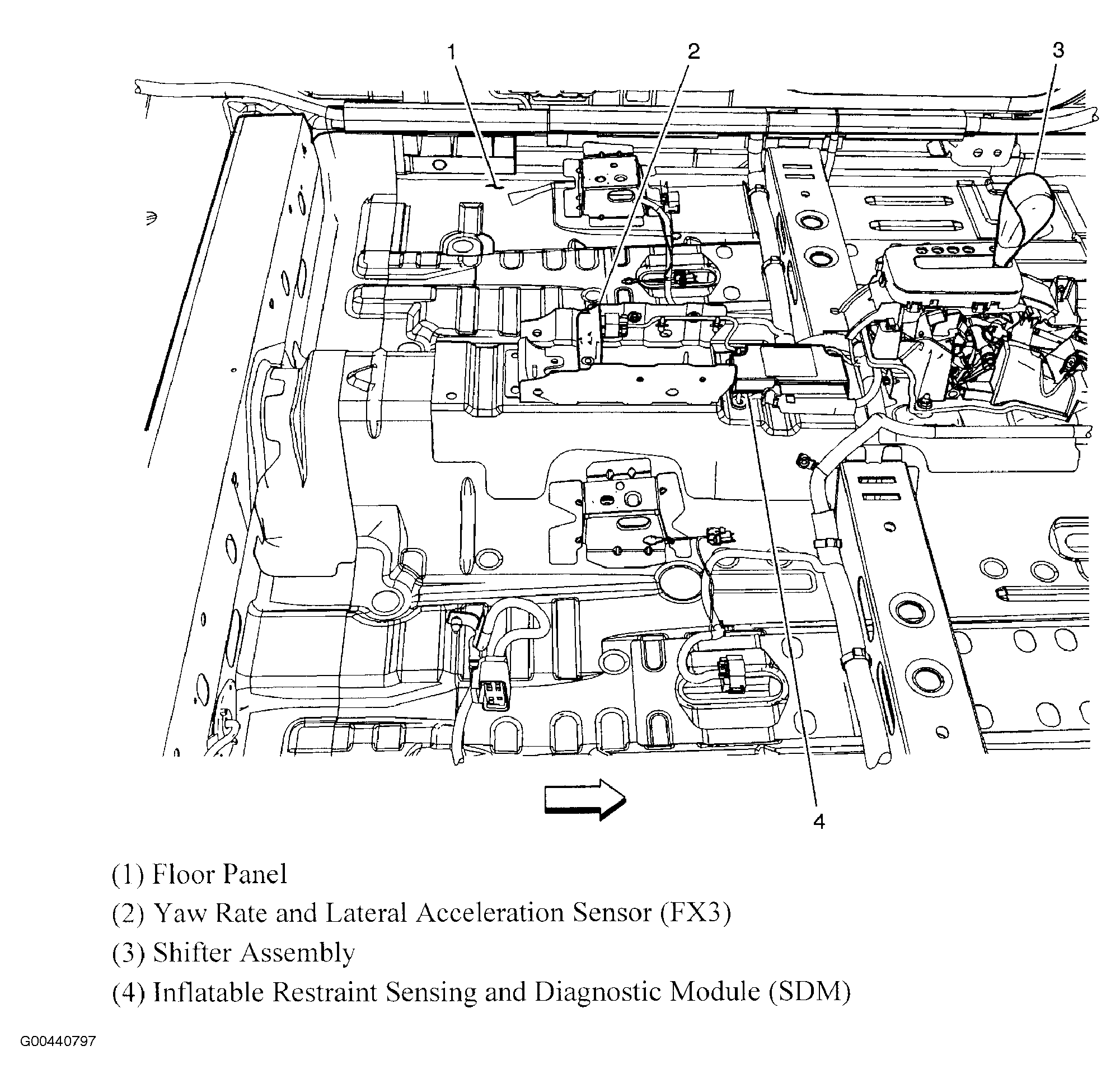

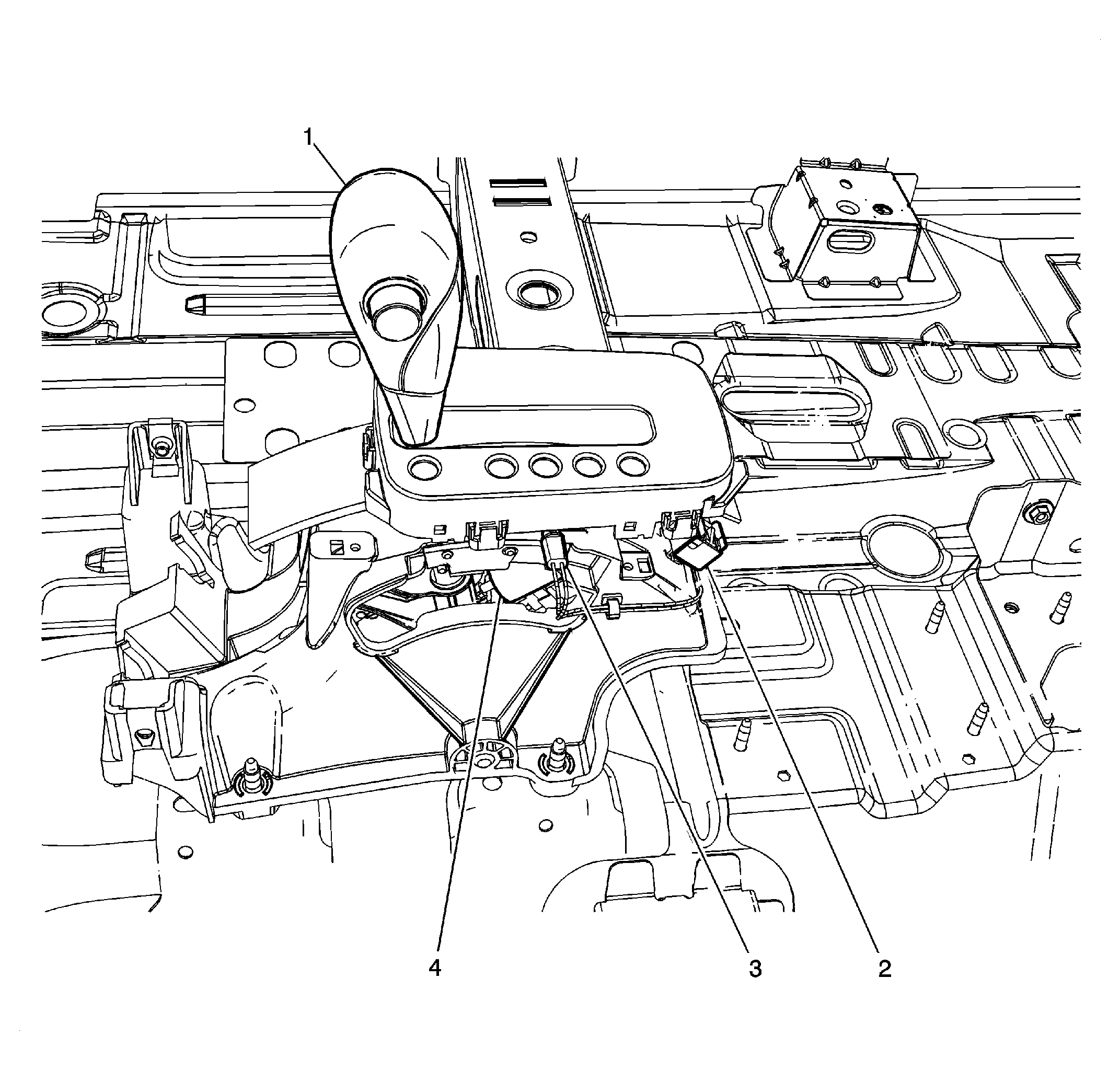

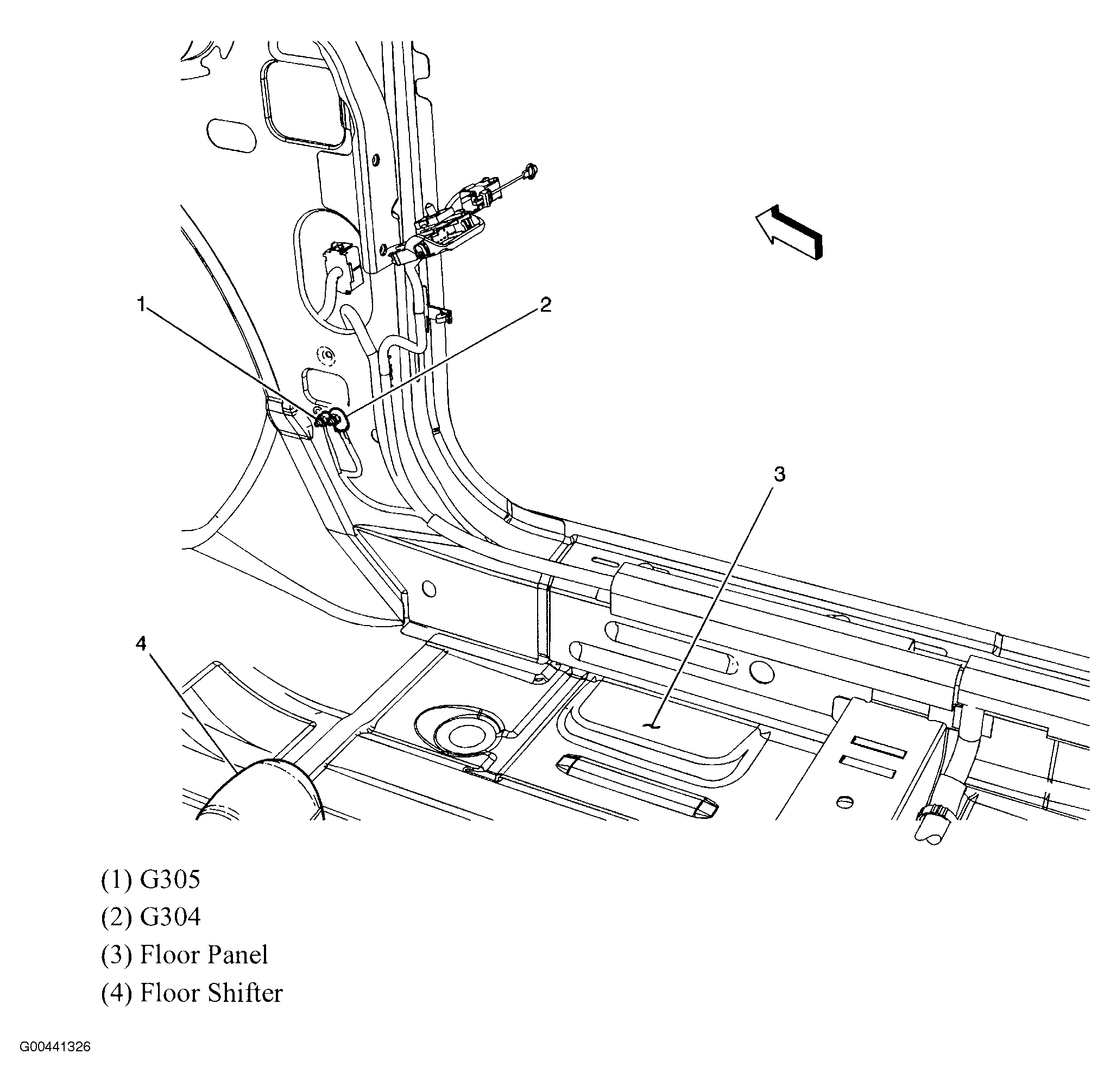

Fig 6: Behind Shifter Assembly
Courtesy of GENERAL MOTORS CORP.

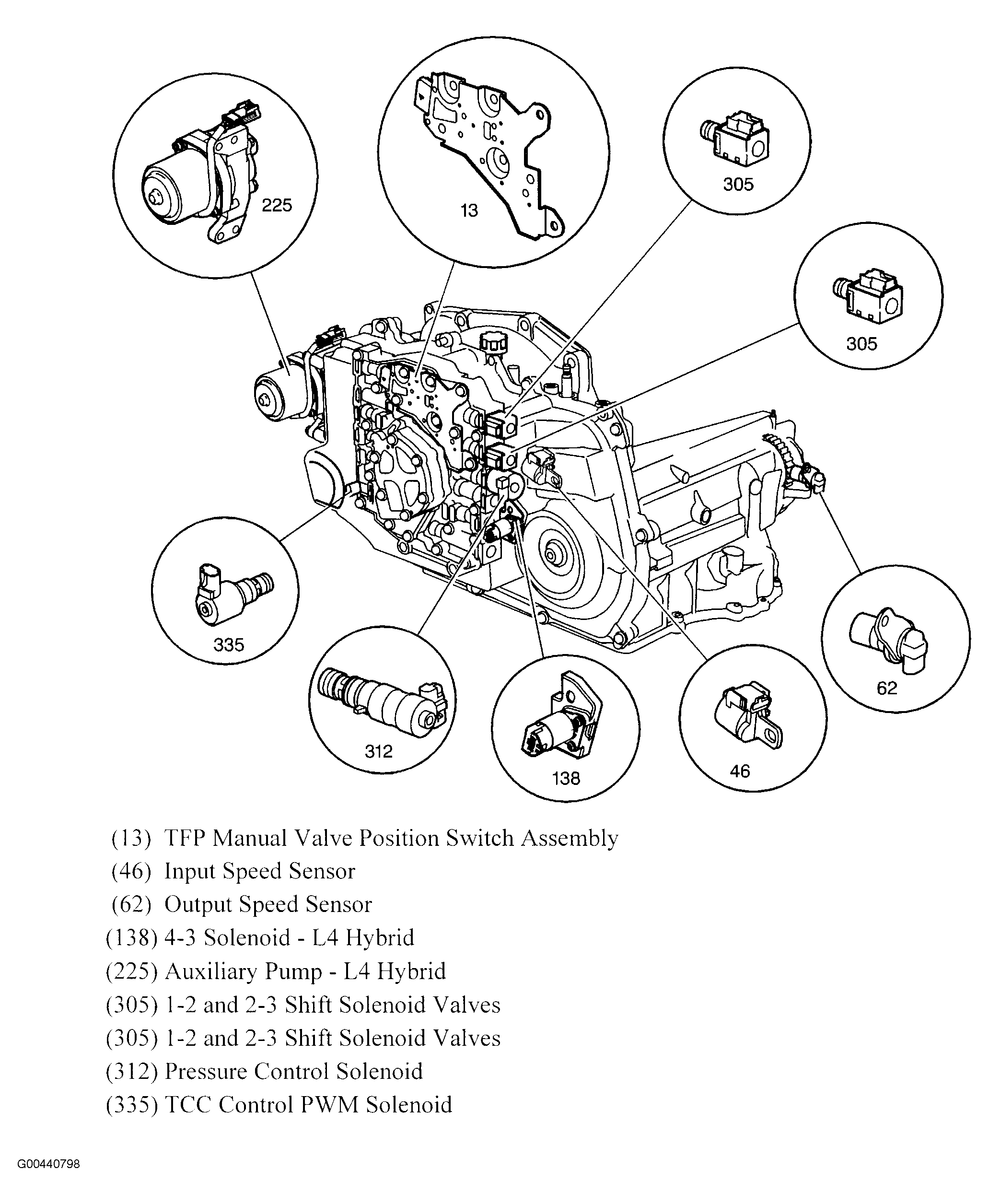

Fig 7: Automatic Transmission Electronic Components (Hybrid)
Courtesy of GENERAL MOTORS CORP.

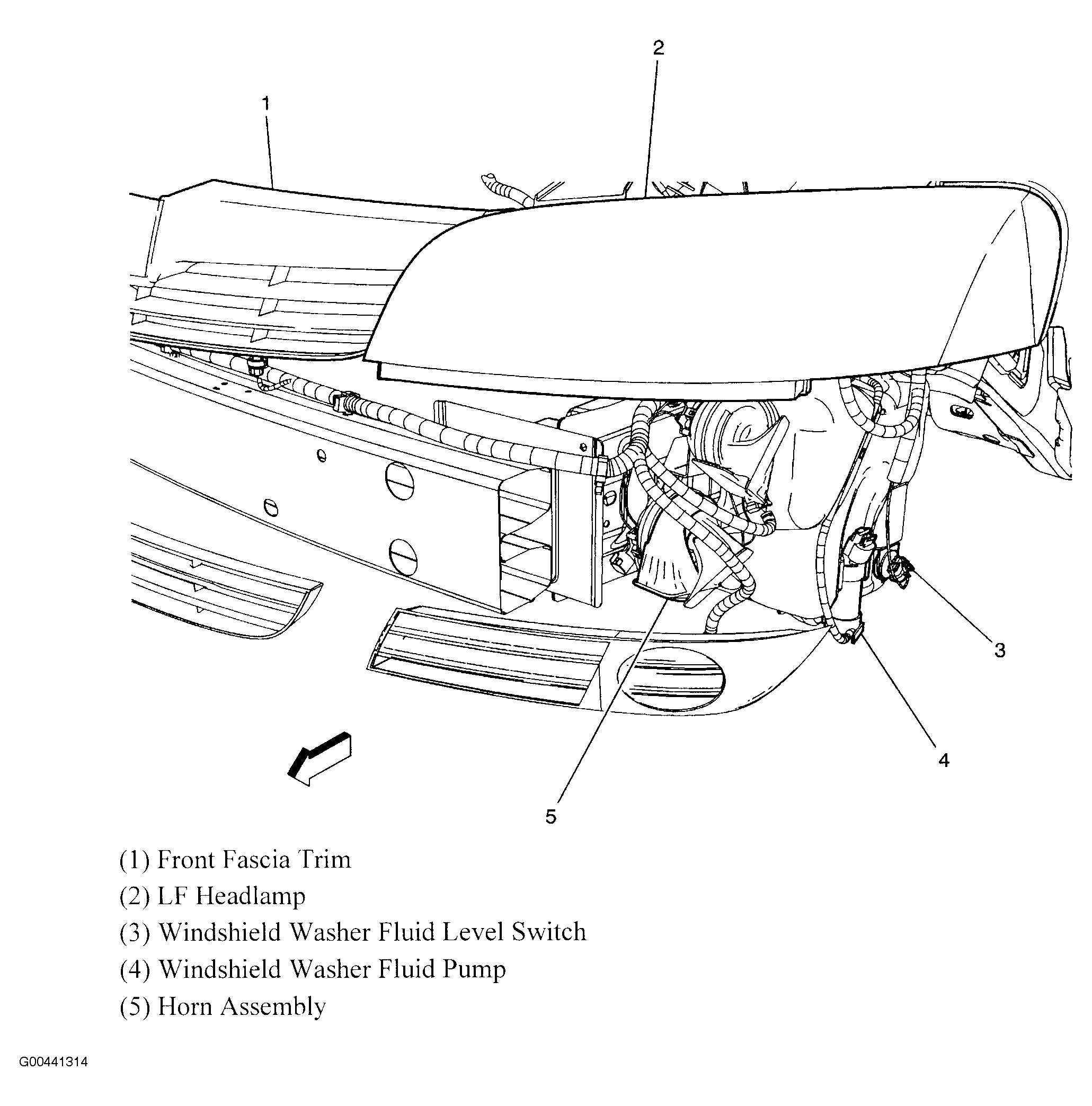

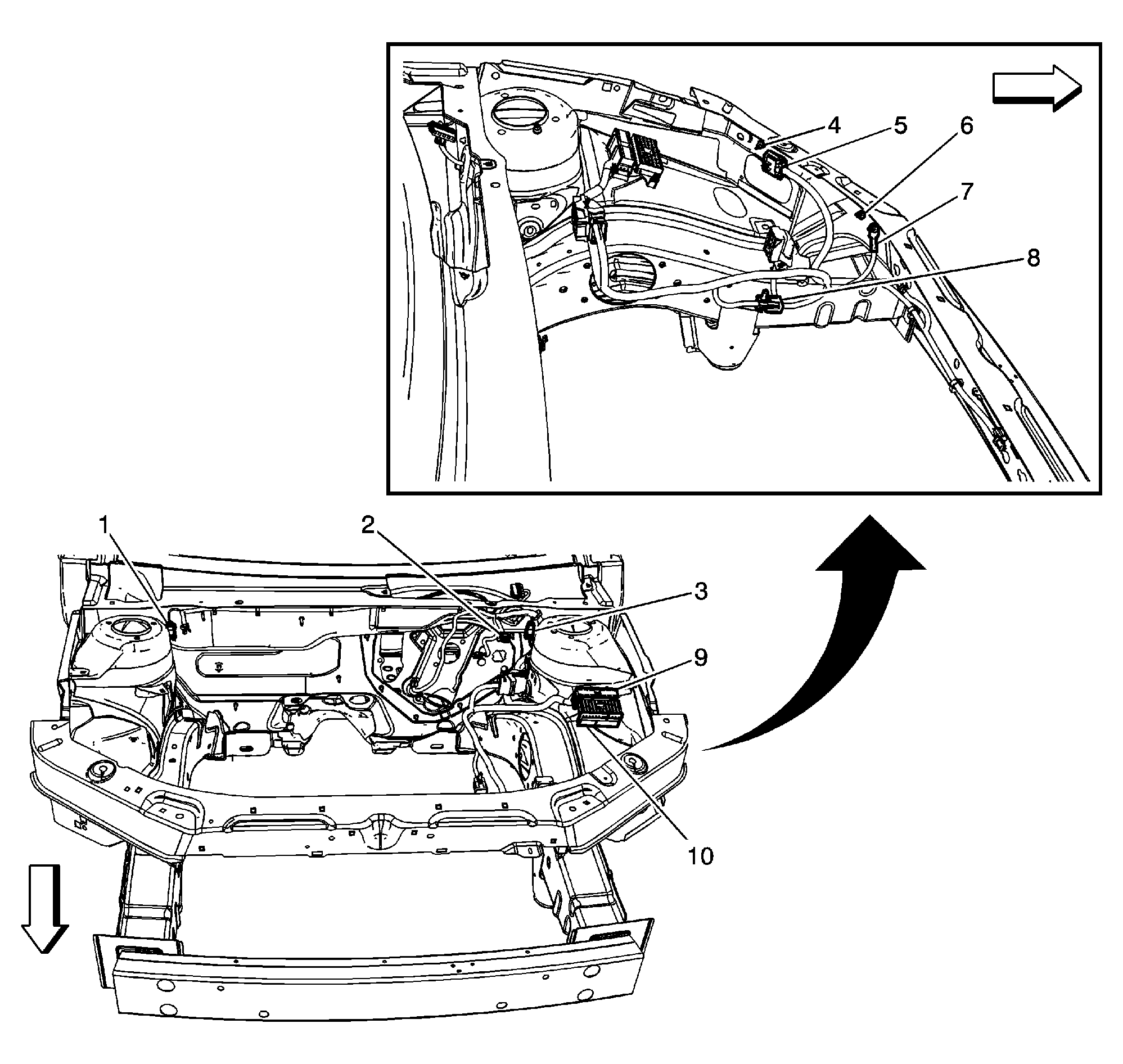

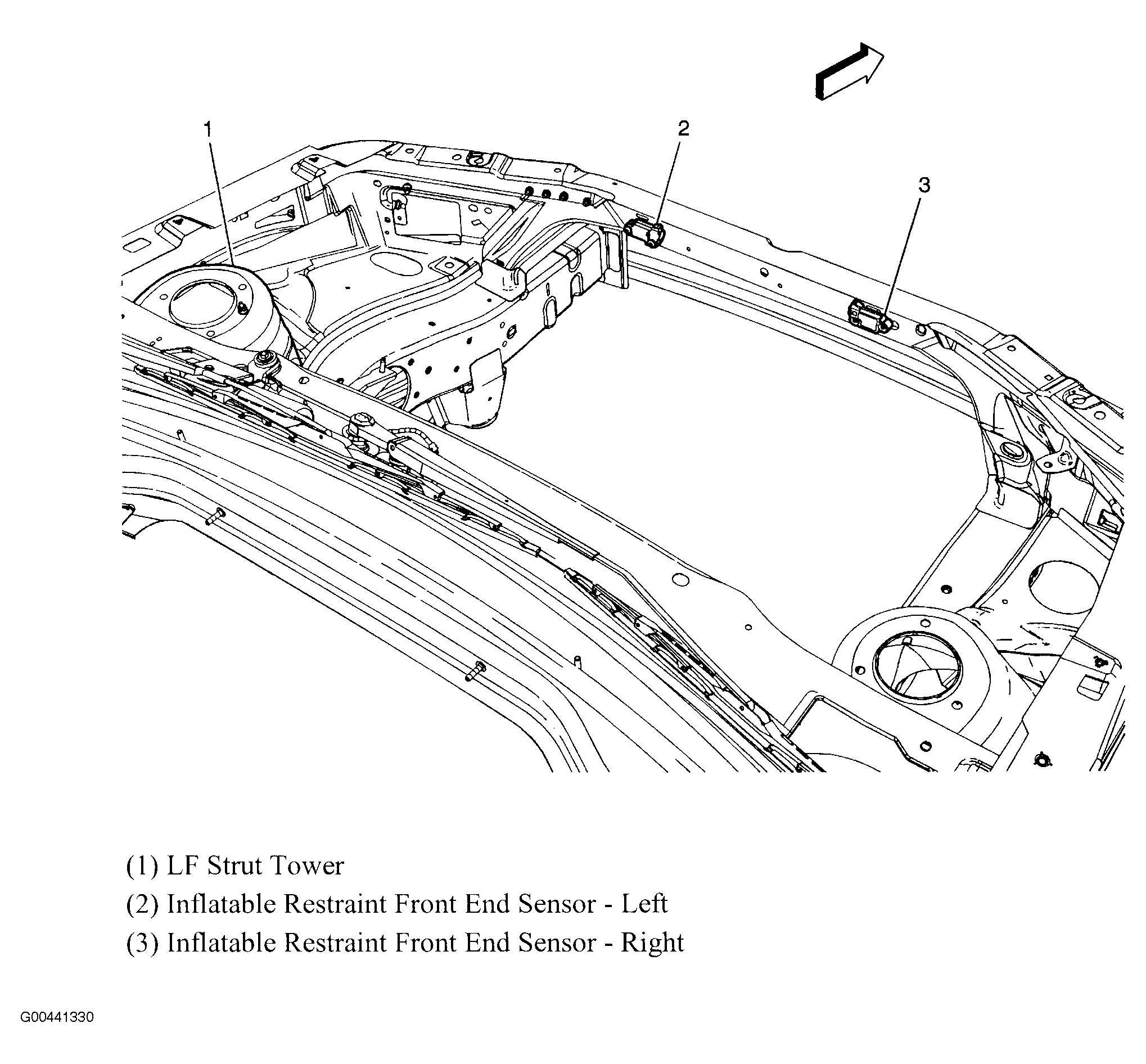

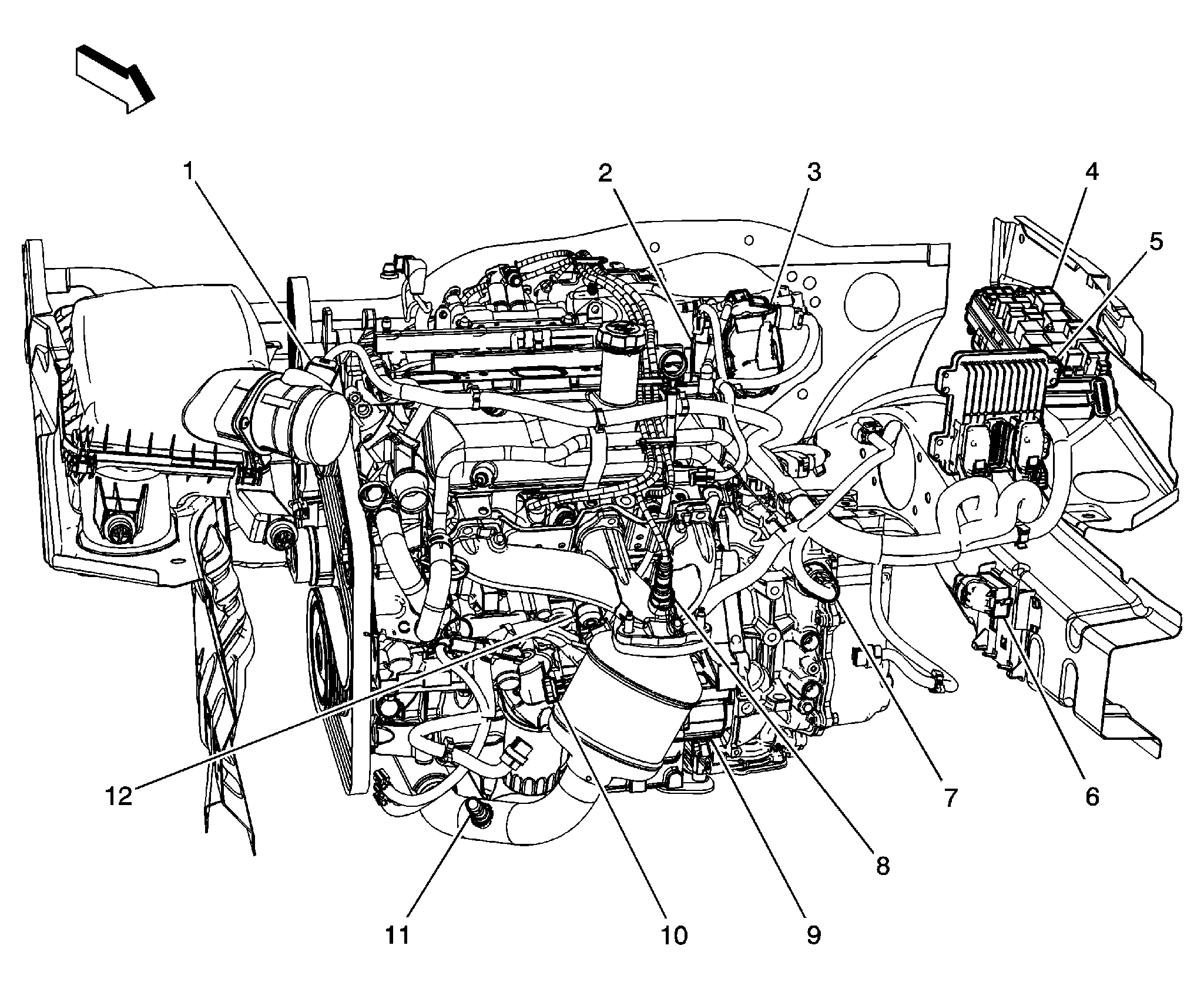

Fig 8: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

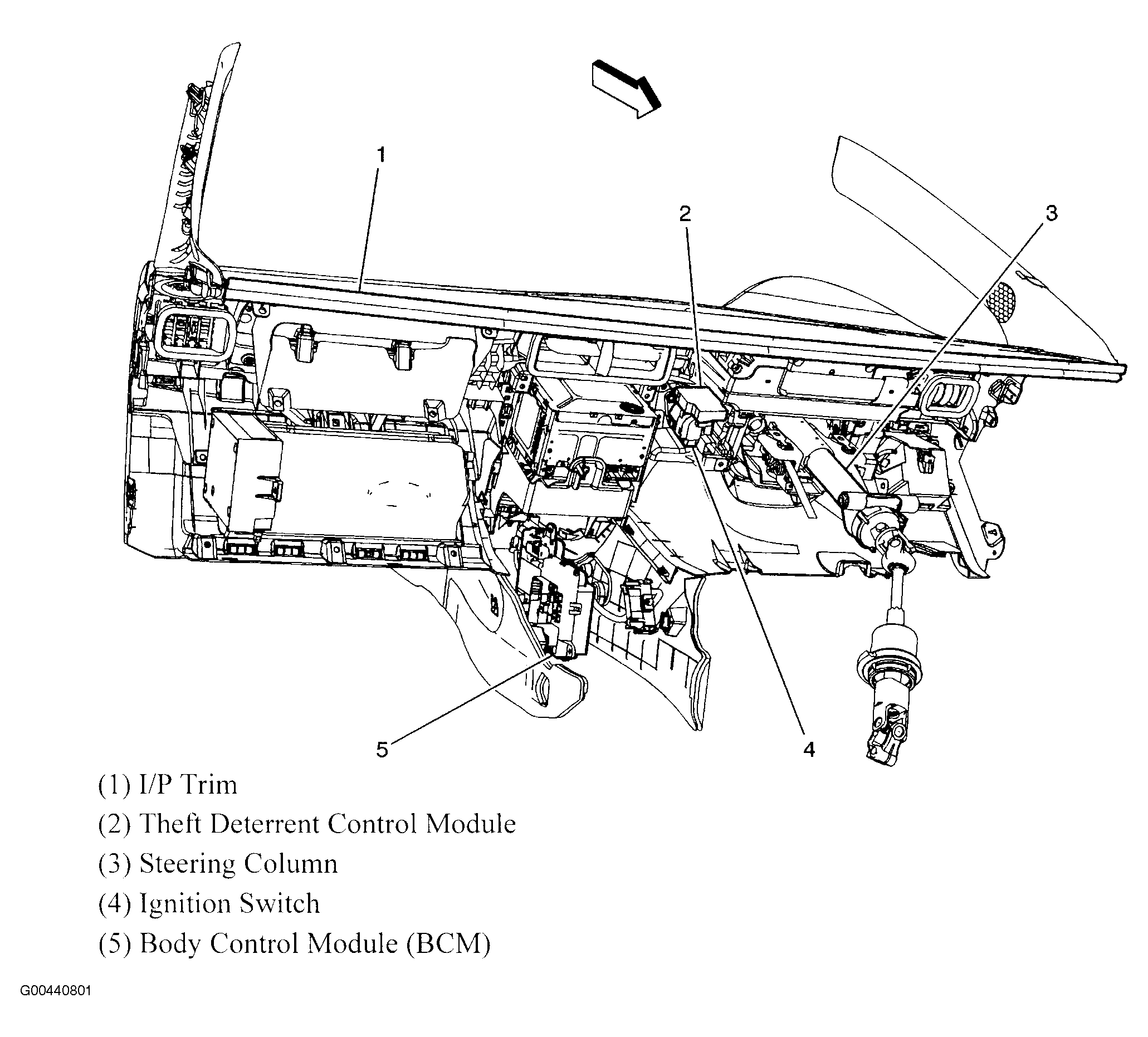

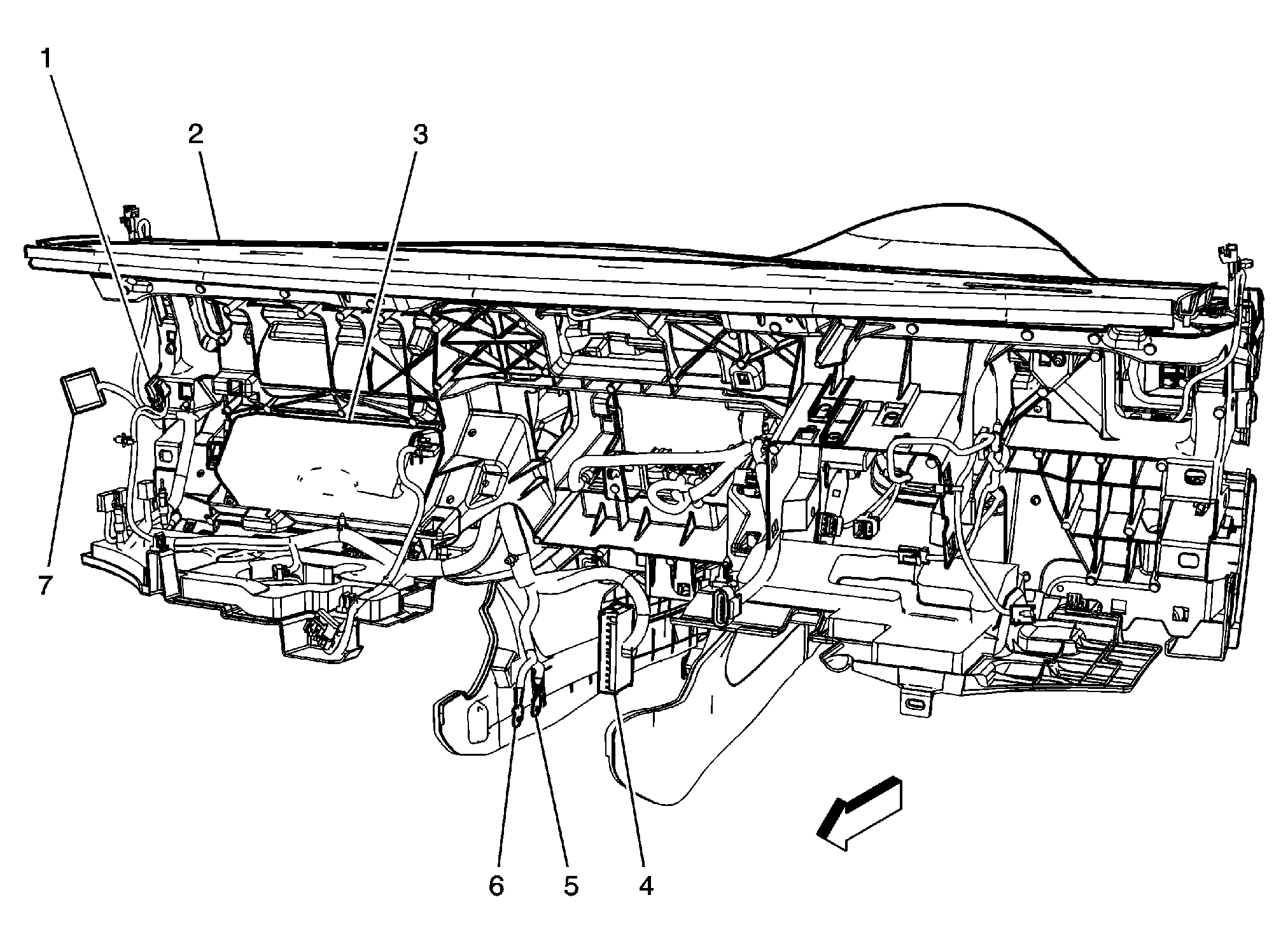

Fig 9: Behind Dash
Courtesy of GENERAL MOTORS CORP.
Fig 10: Behind Dash
Courtesy of GENERAL MOTORS CORP.
Fig 11: Left Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

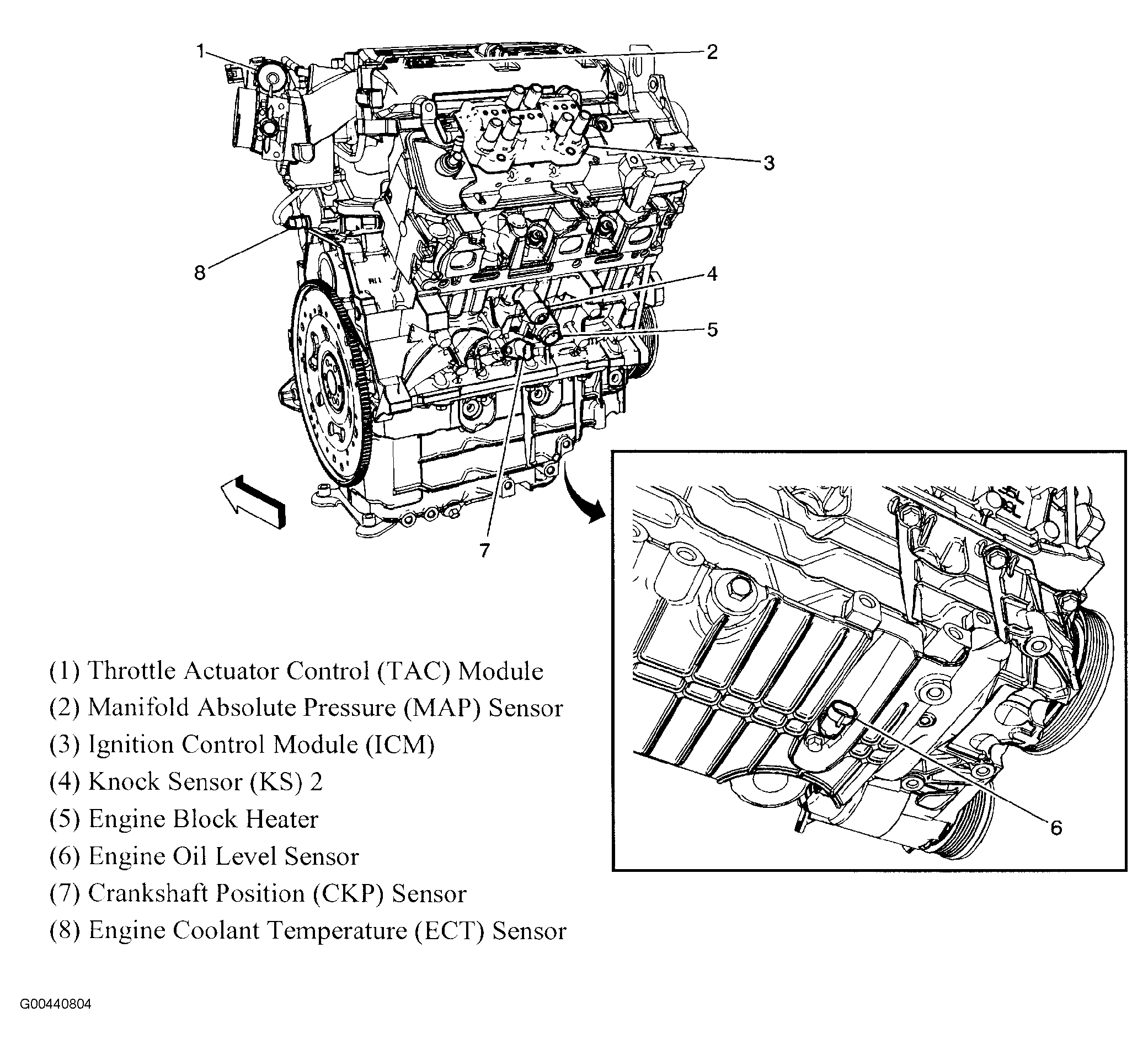

Fig 12: Left Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

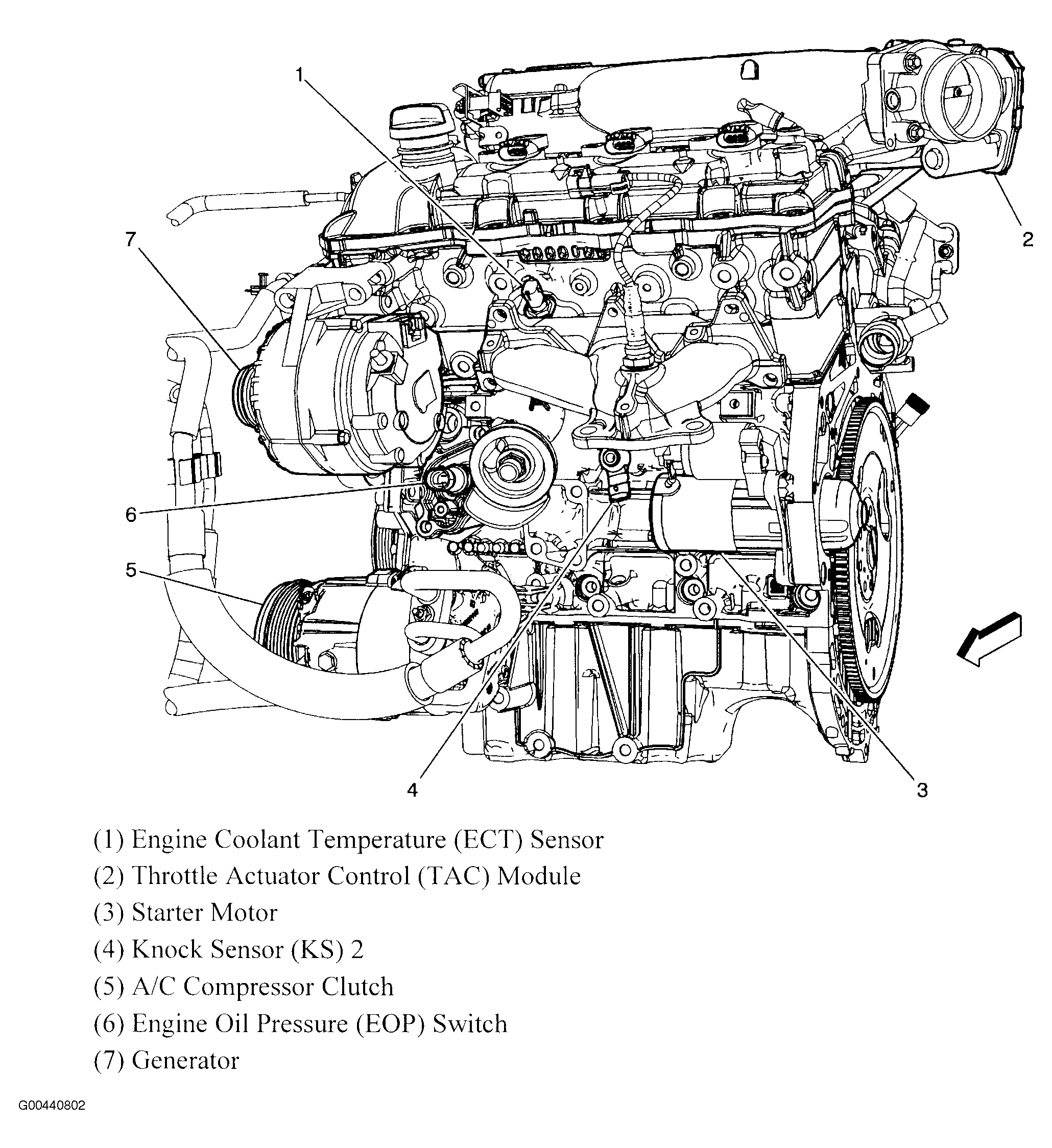

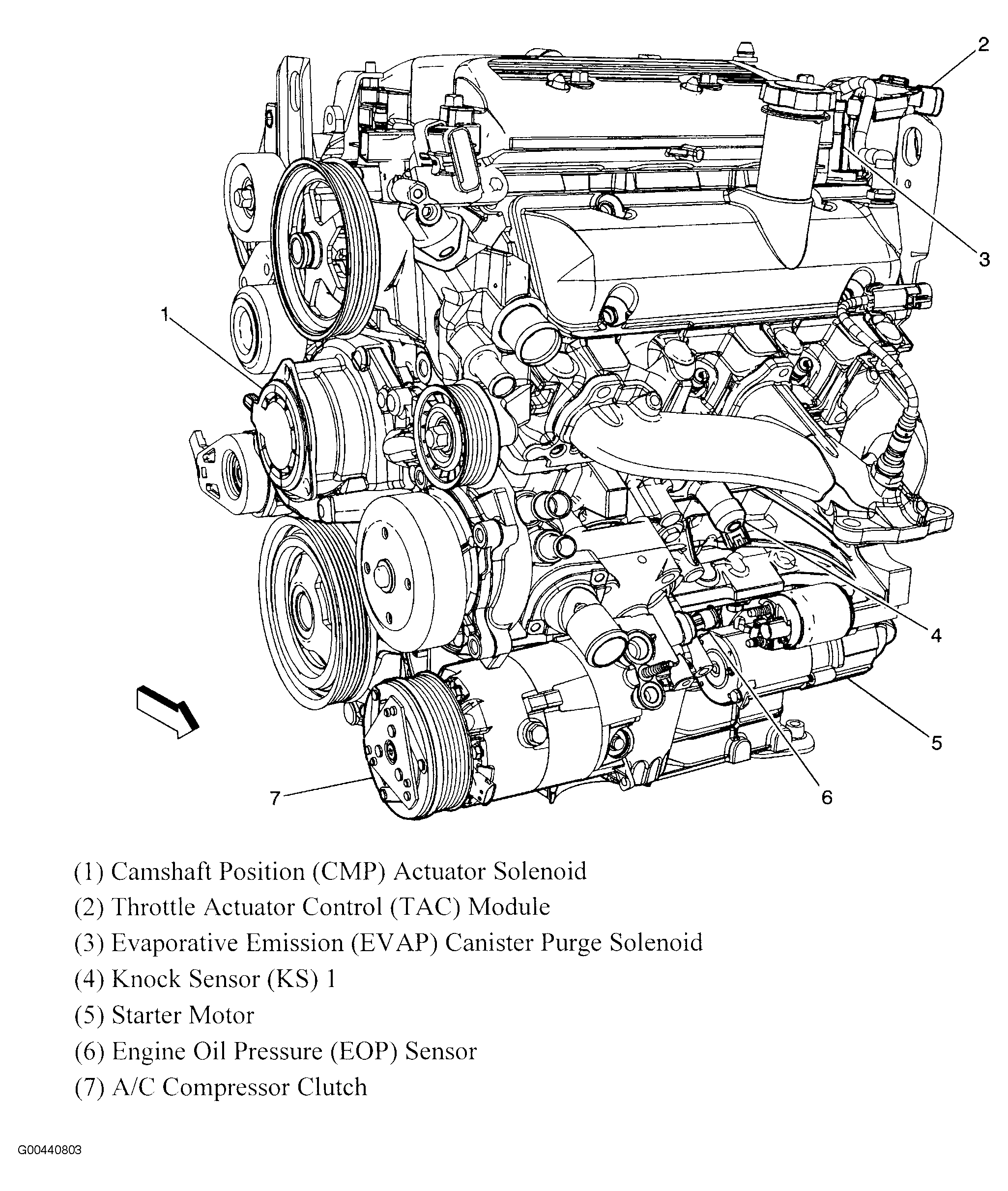

Fig 13: Right Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

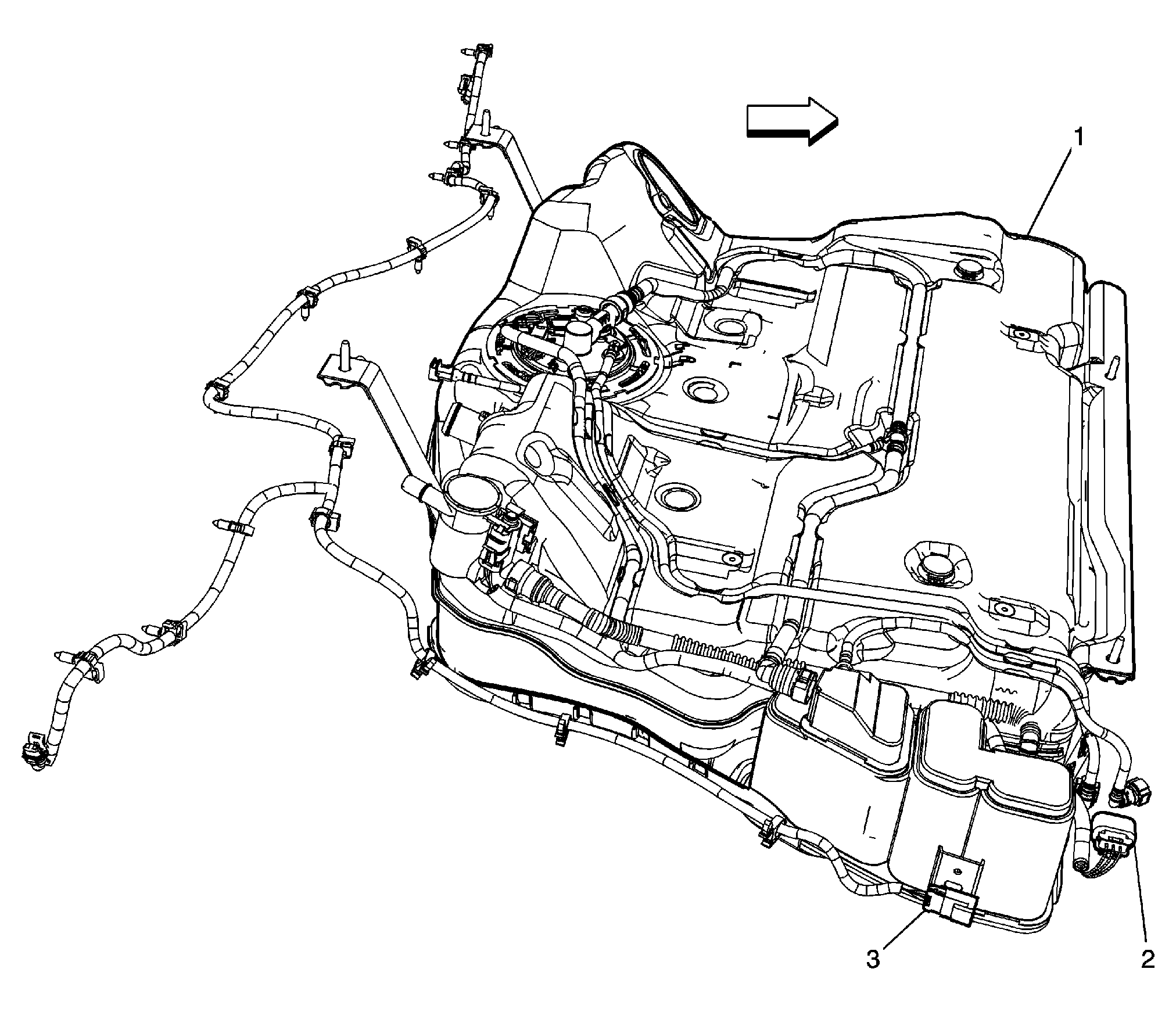

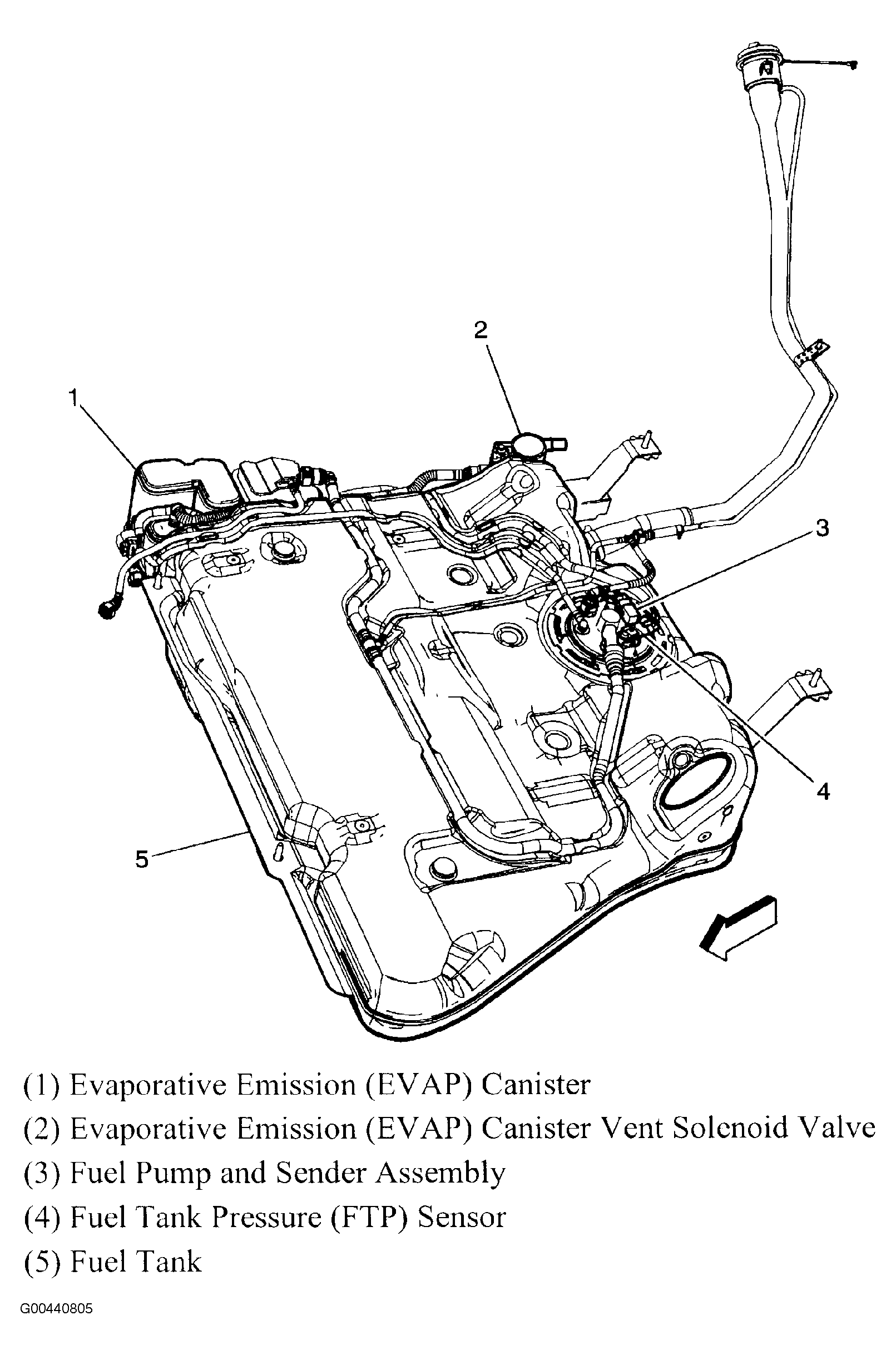

Fig 14: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

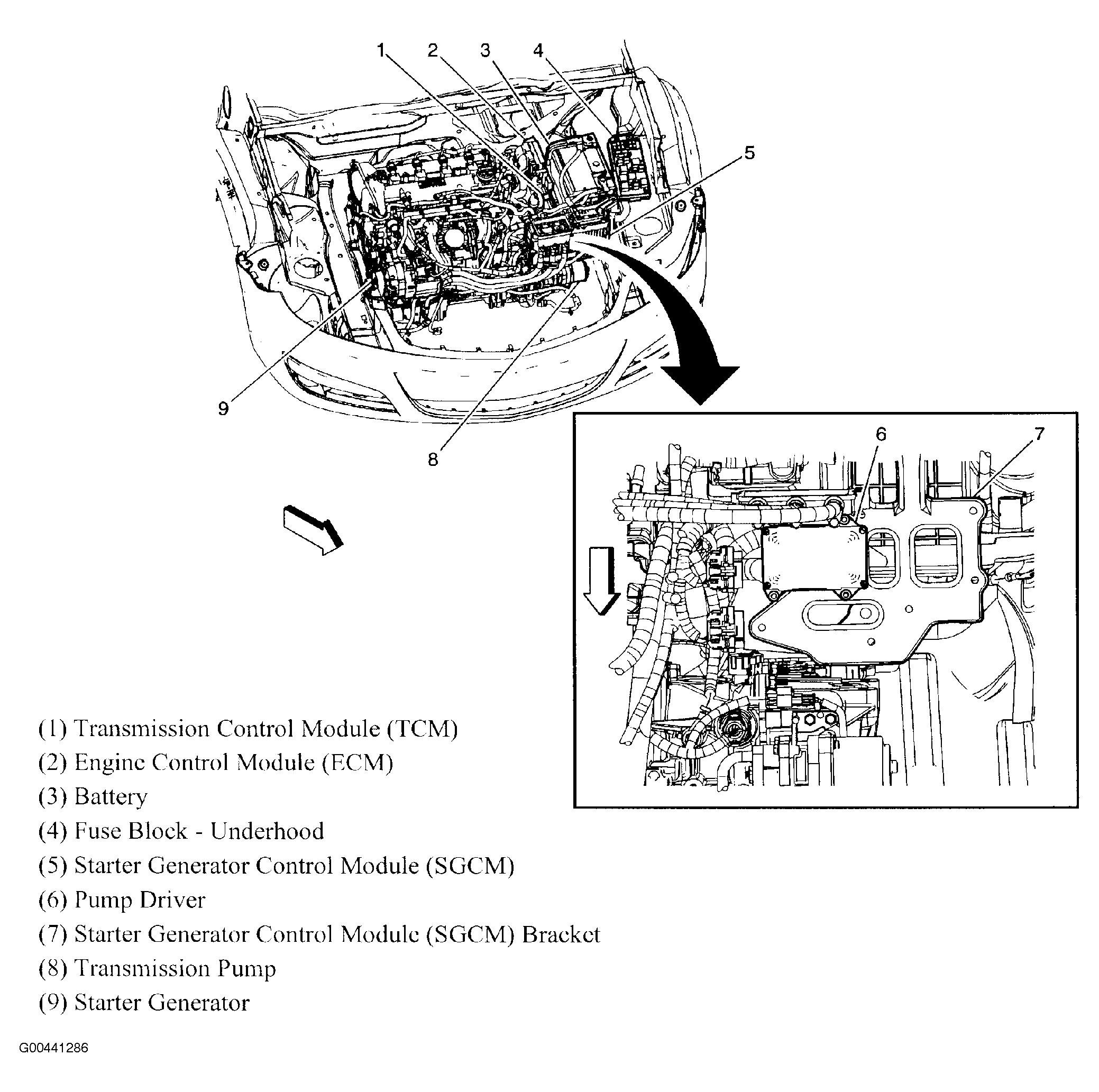

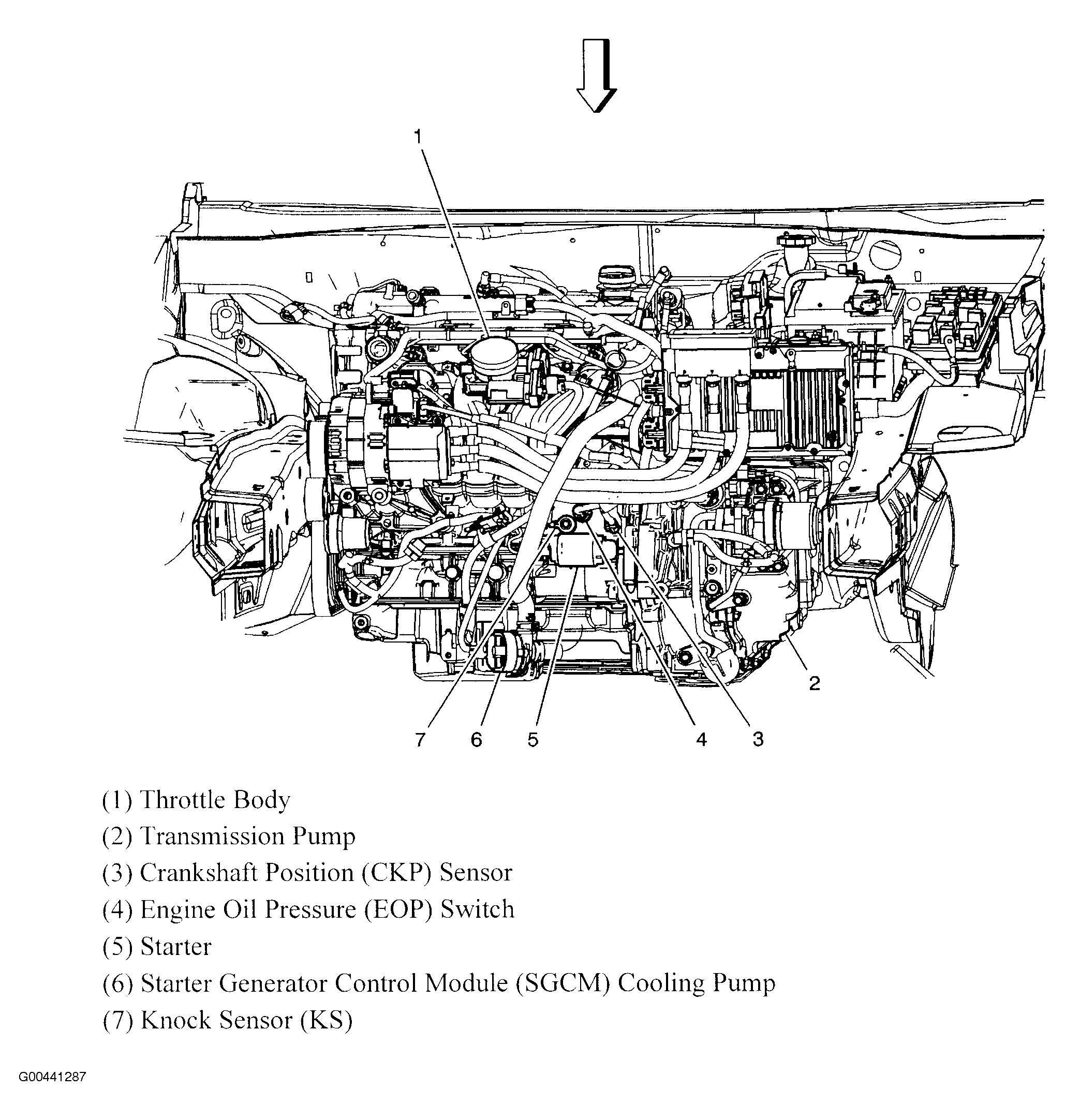

Fig 15: Front Of Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Side Of Engine (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Top Of Engine (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Top Of Engine (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

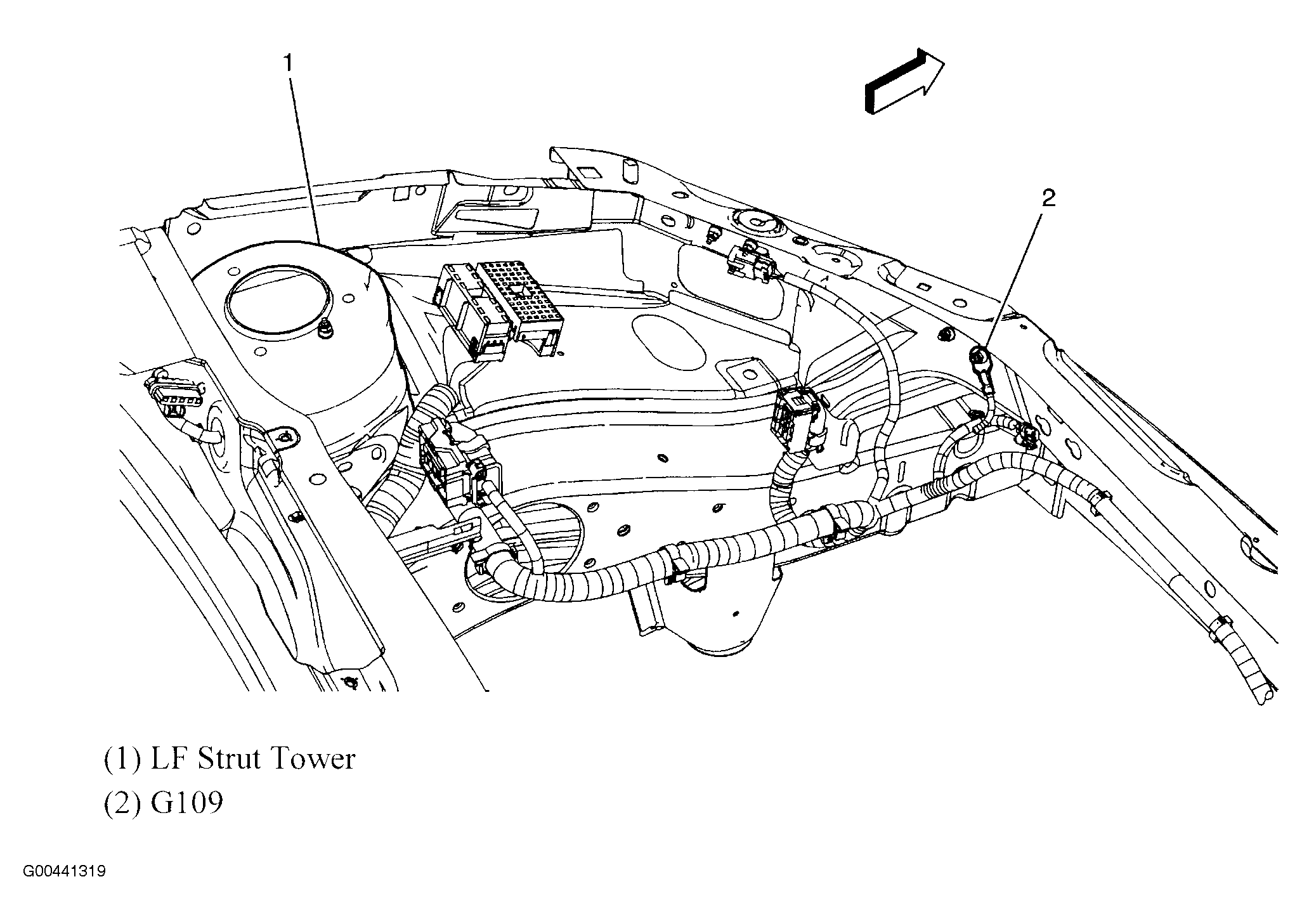

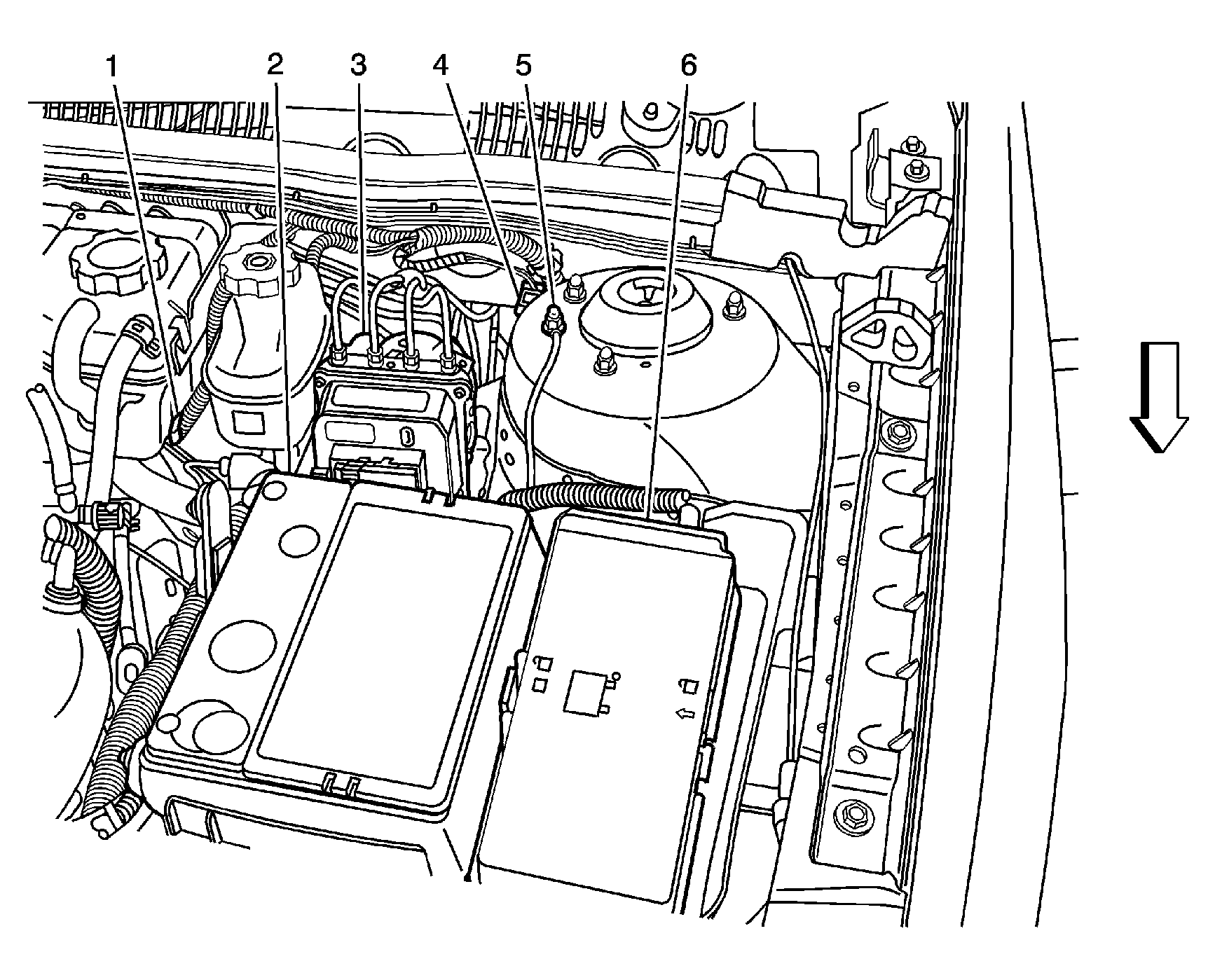

Fig 20: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

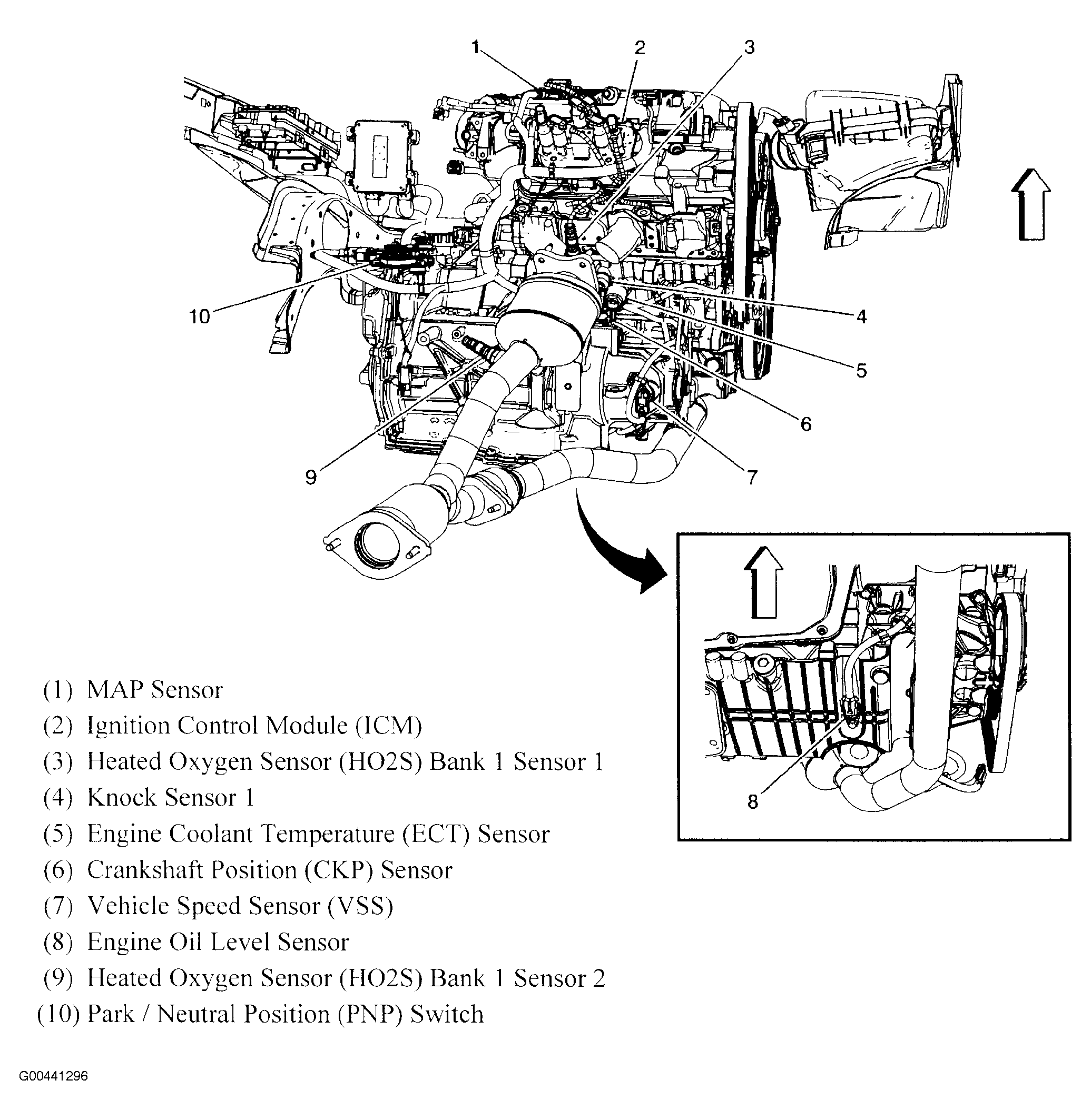

Fig 21: Left Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

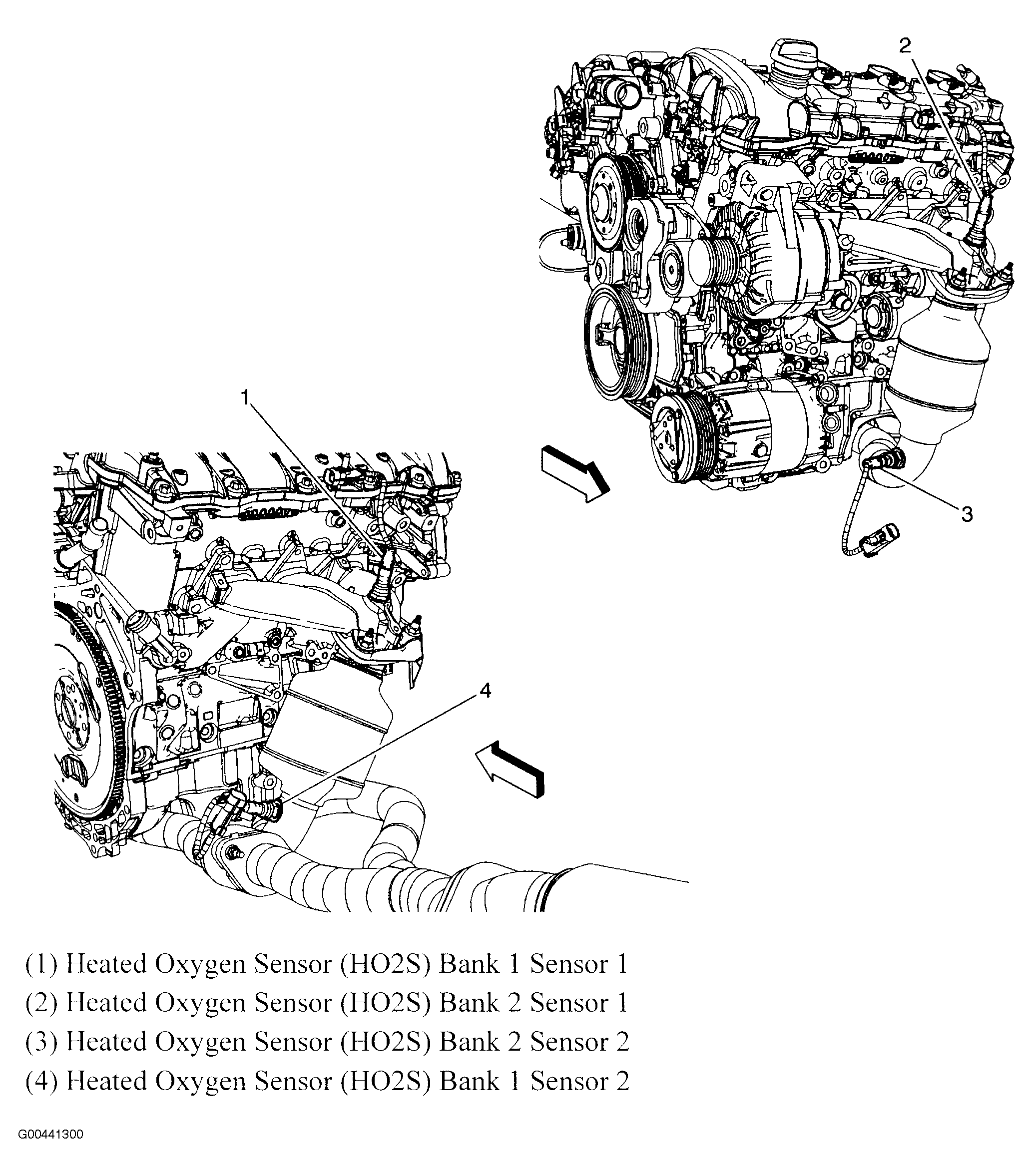

Fig 22: Lower Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

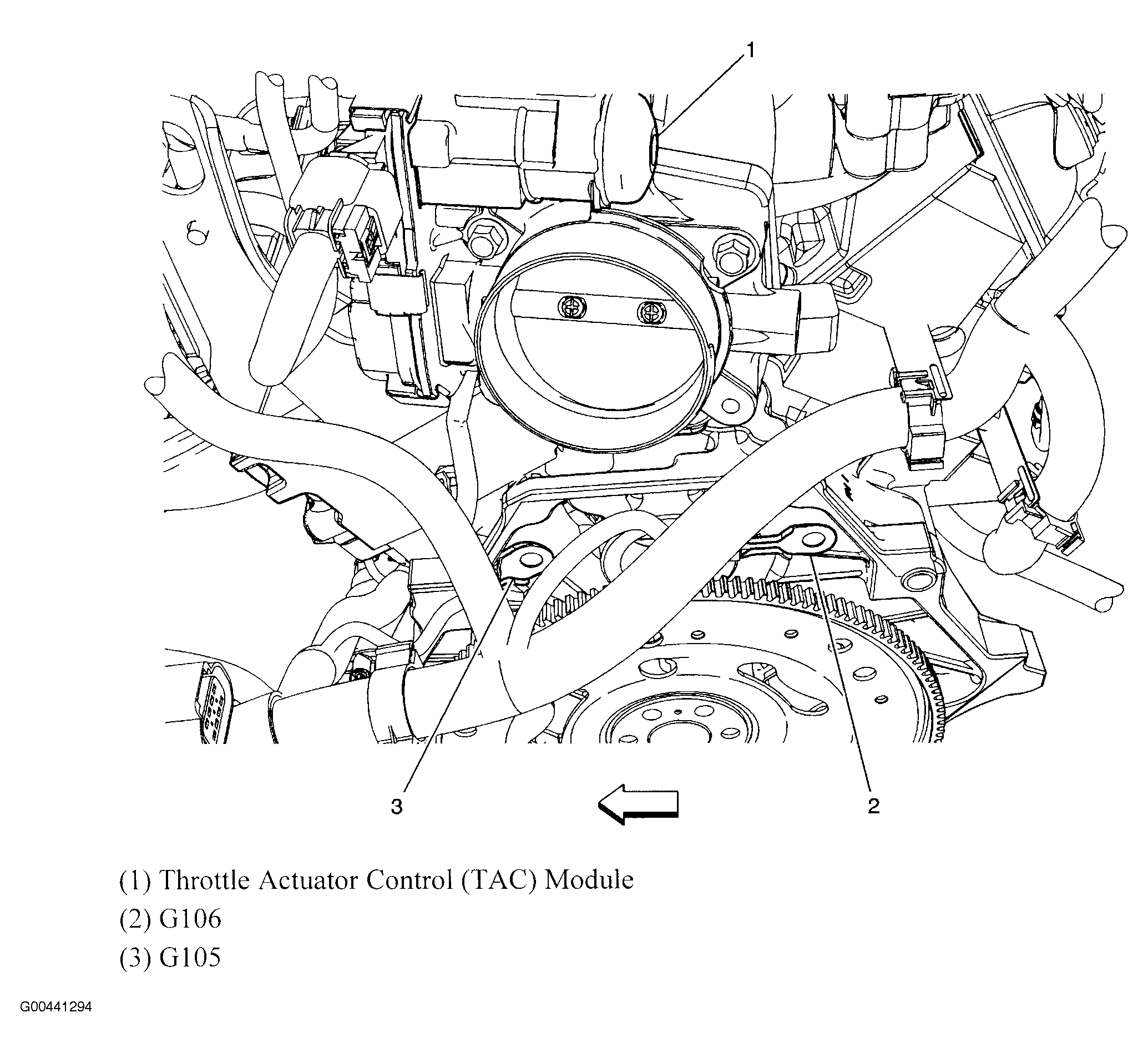

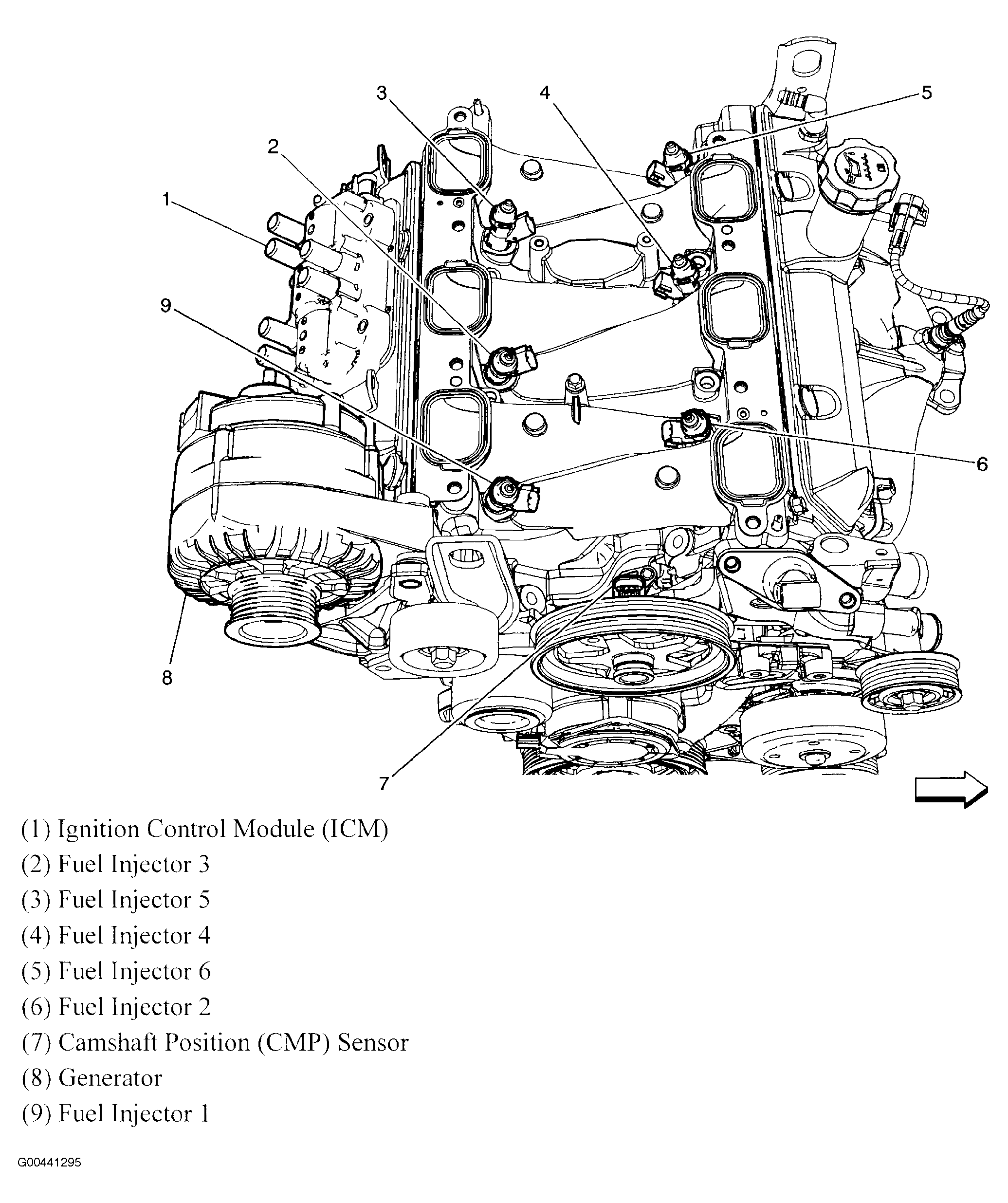

Fig 23: Top Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Top Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Right Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

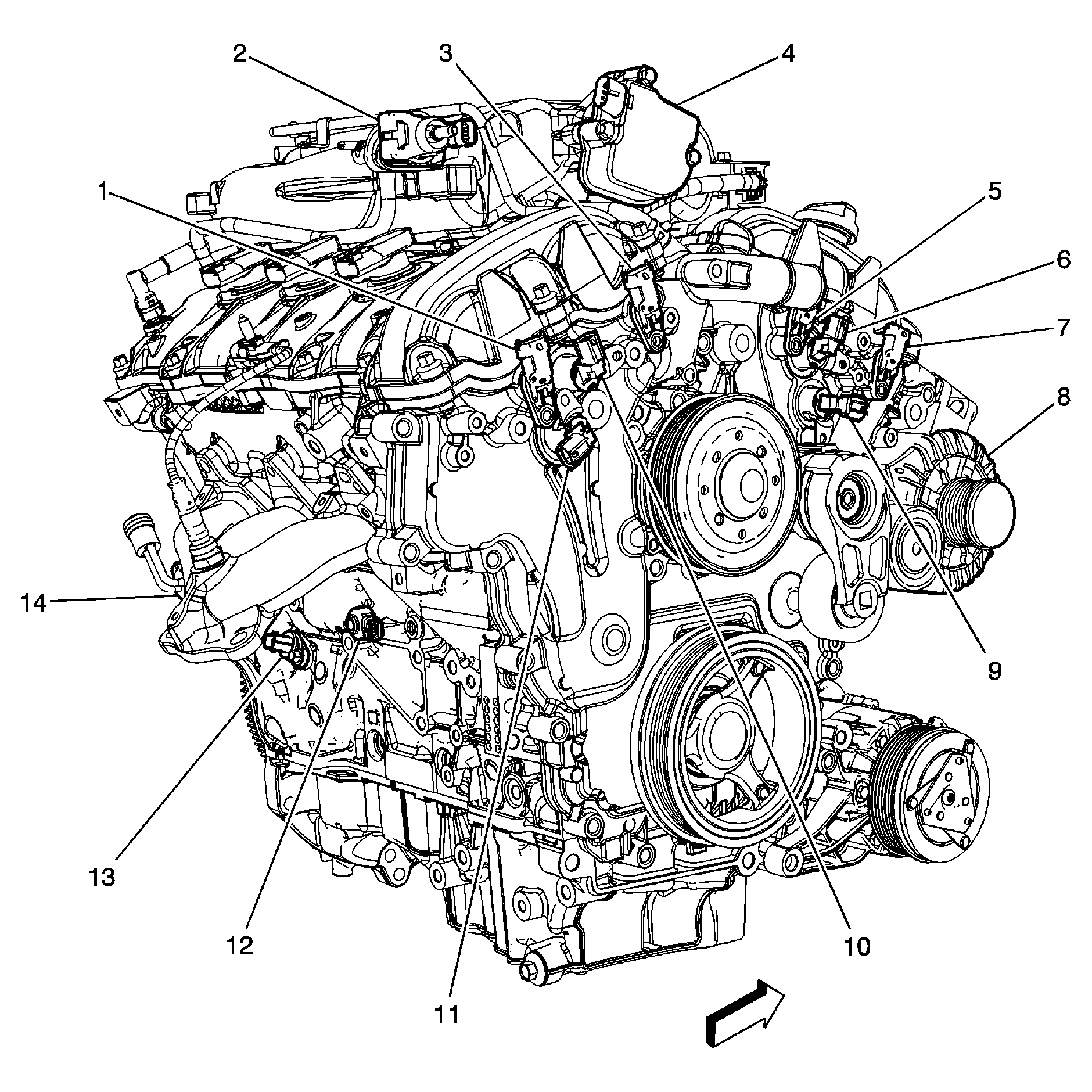

Fig 26: Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

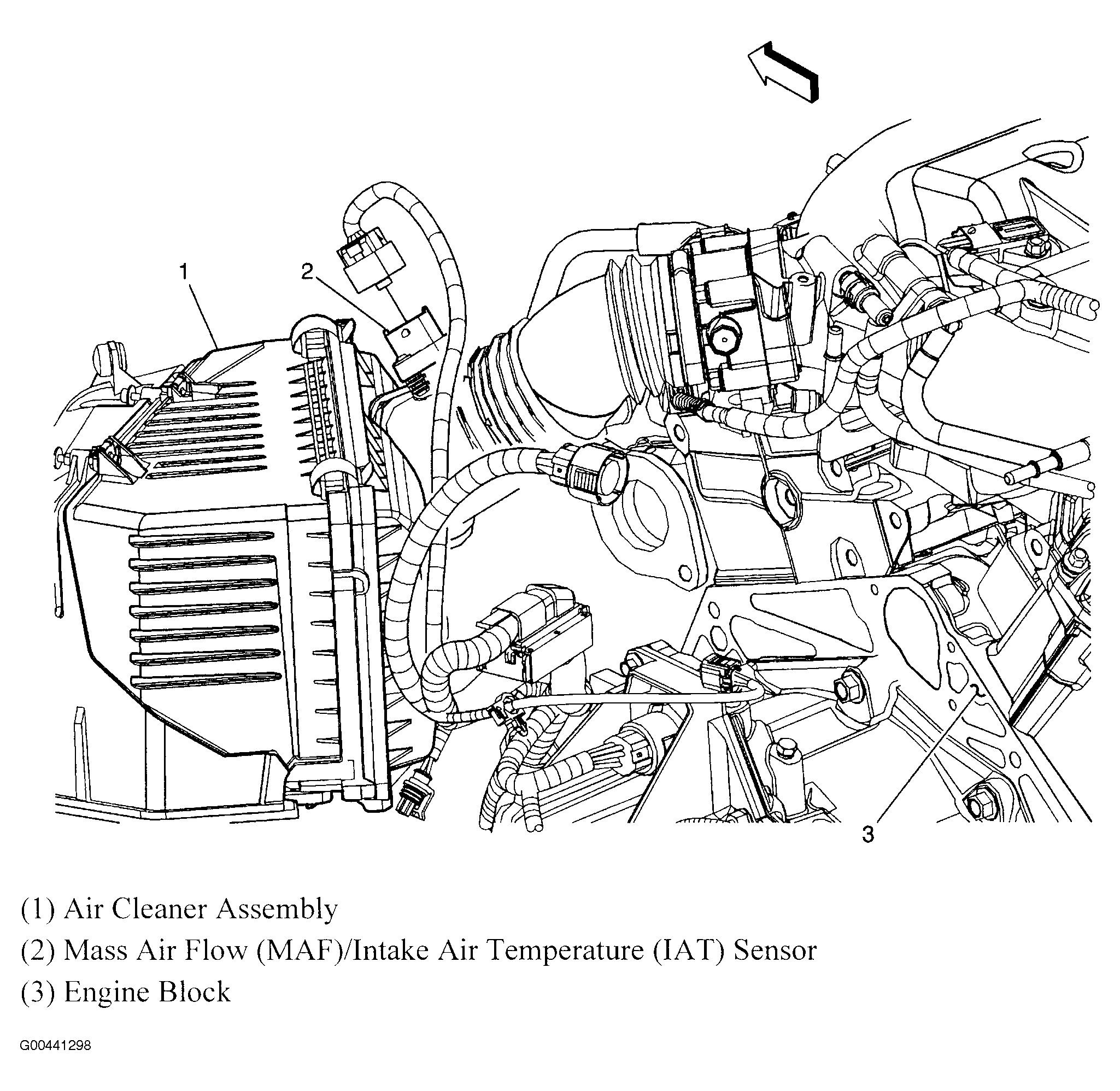

Fig 27: Air Cleaner/MAF/IAT (3.6L)
Courtesy of GENERAL MOTORS CORP.

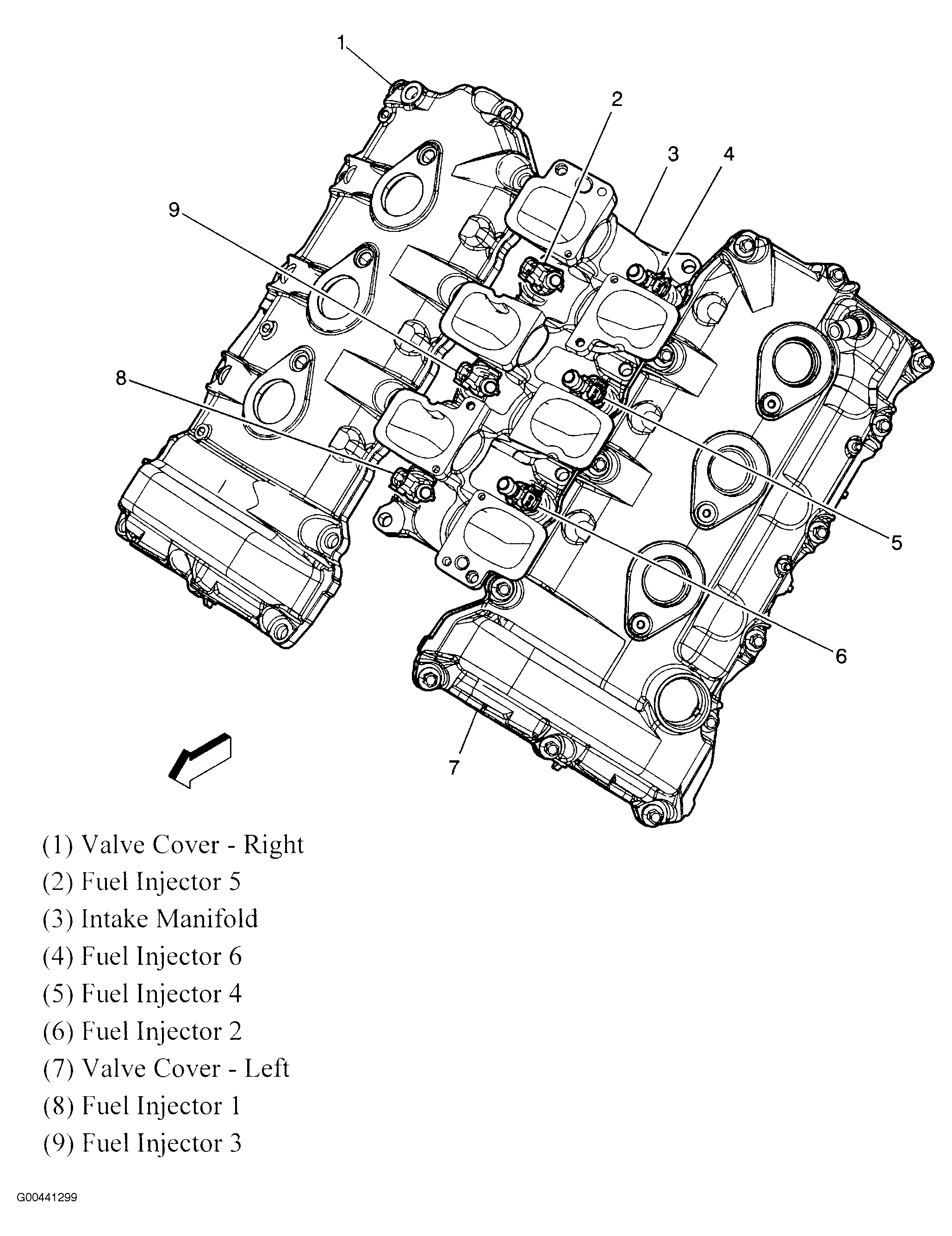

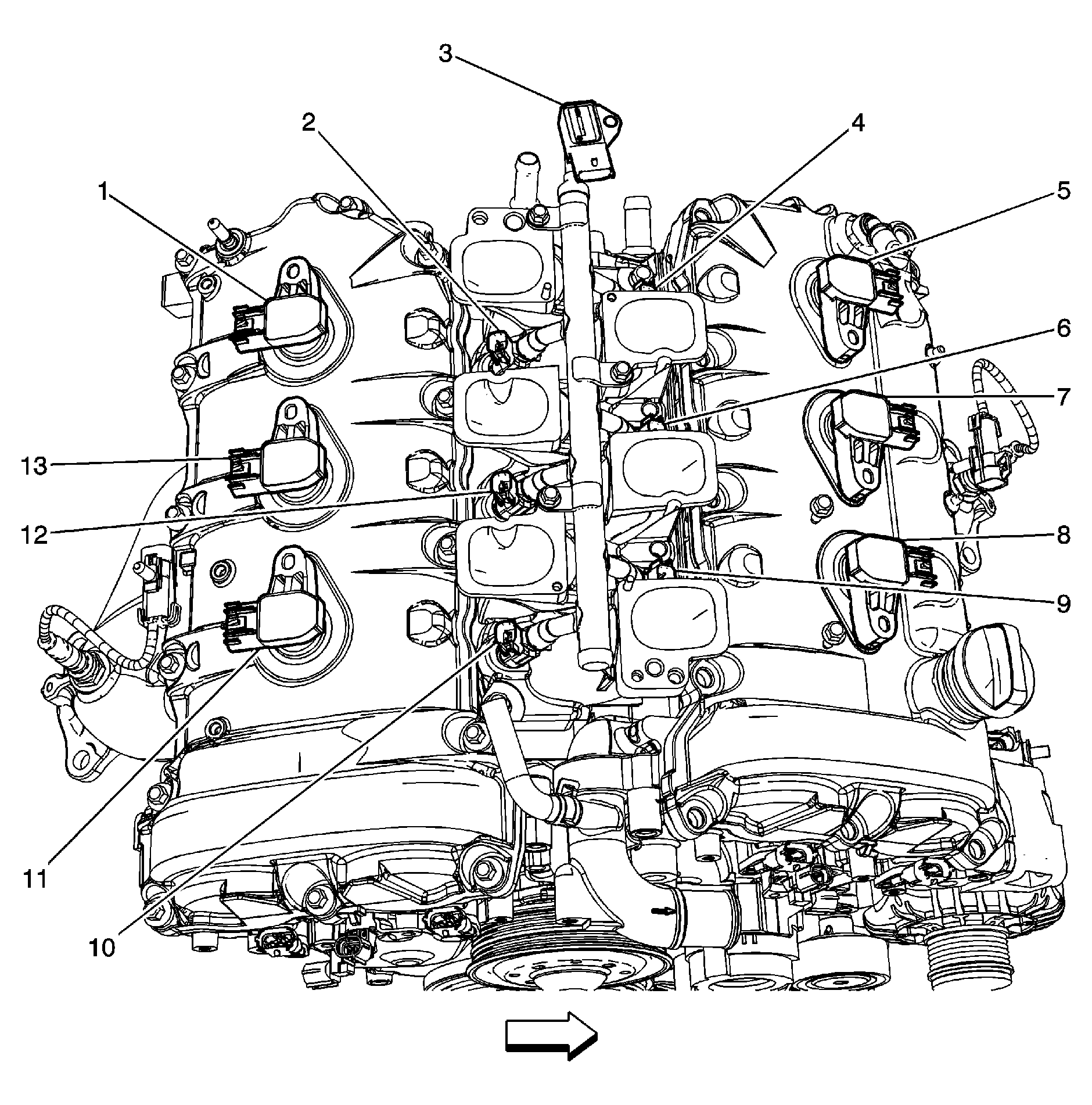

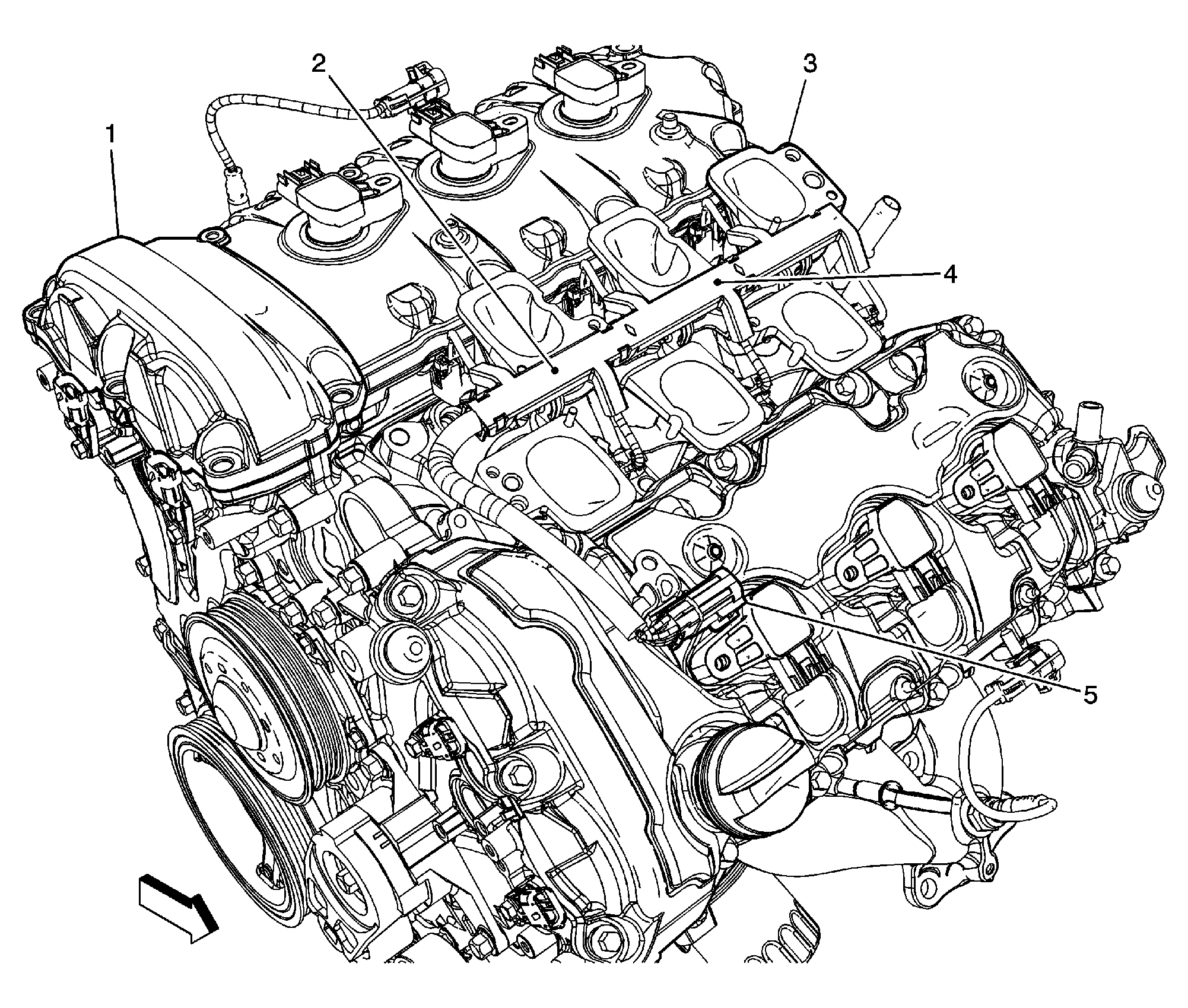

Fig 28: Top Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

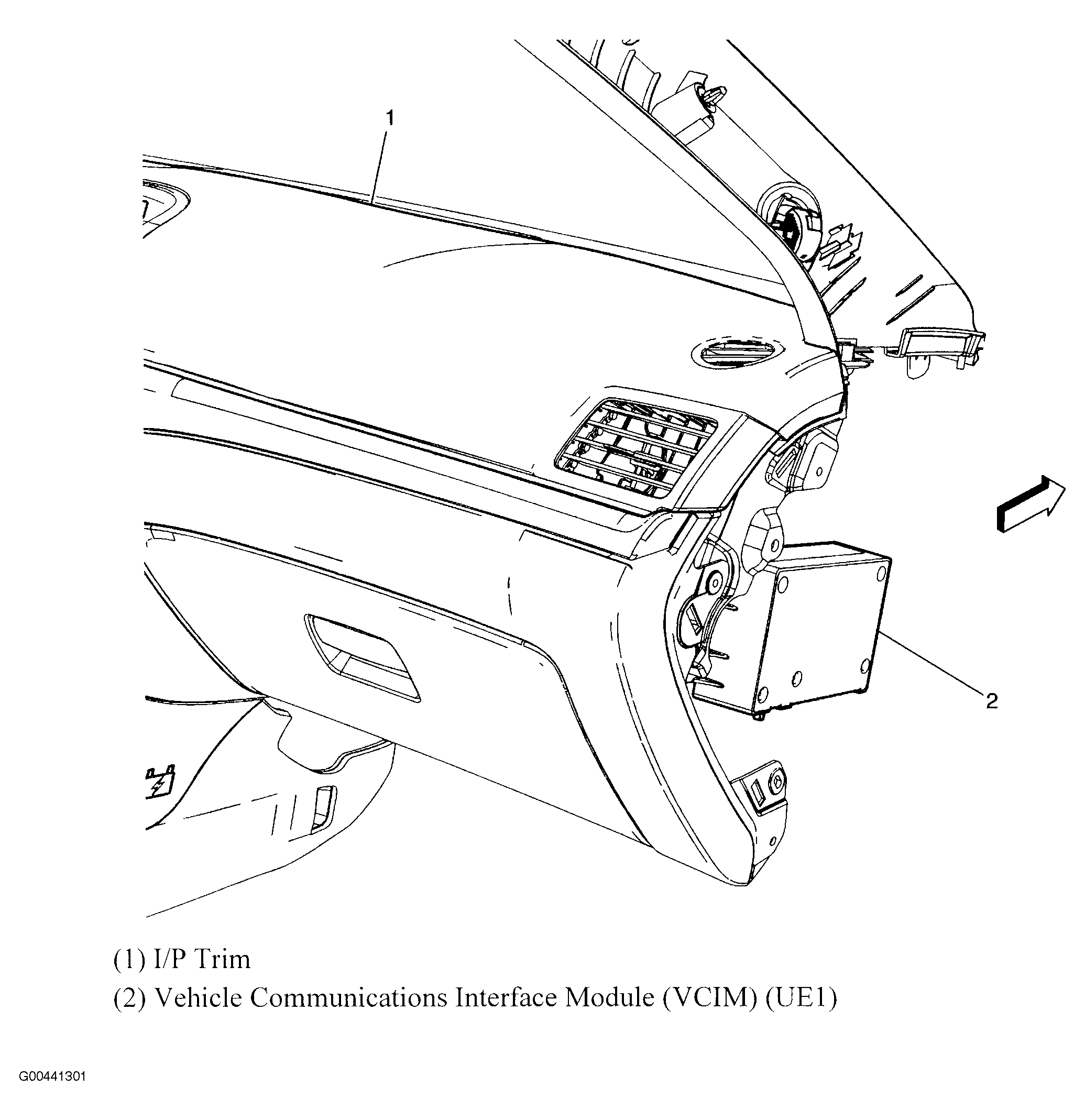

Fig 30: Behind Glove Box
Courtesy of GENERAL MOTORS CORP.
Fig 31: Above Headliner
Courtesy of GENERAL MOTORS CORP.

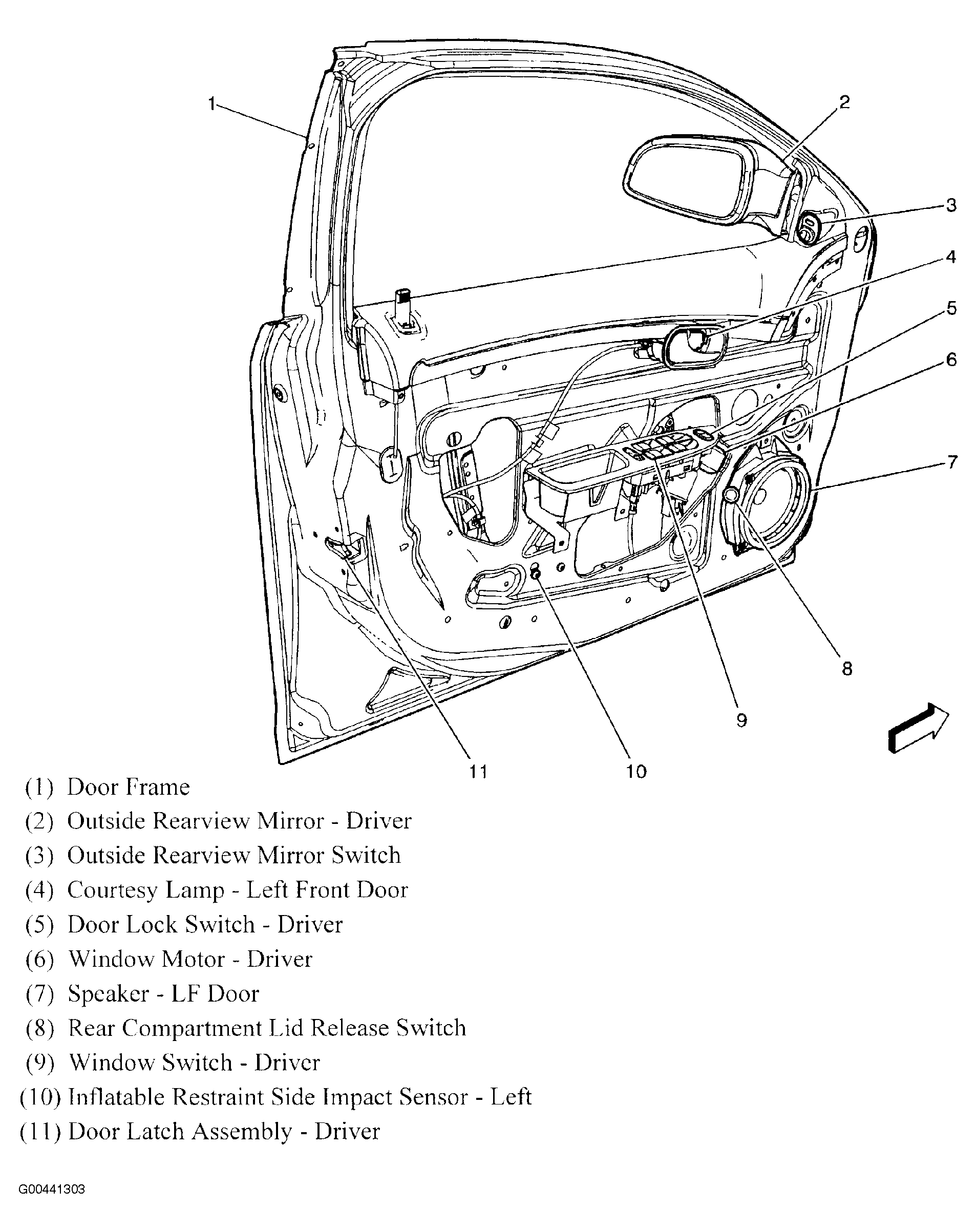

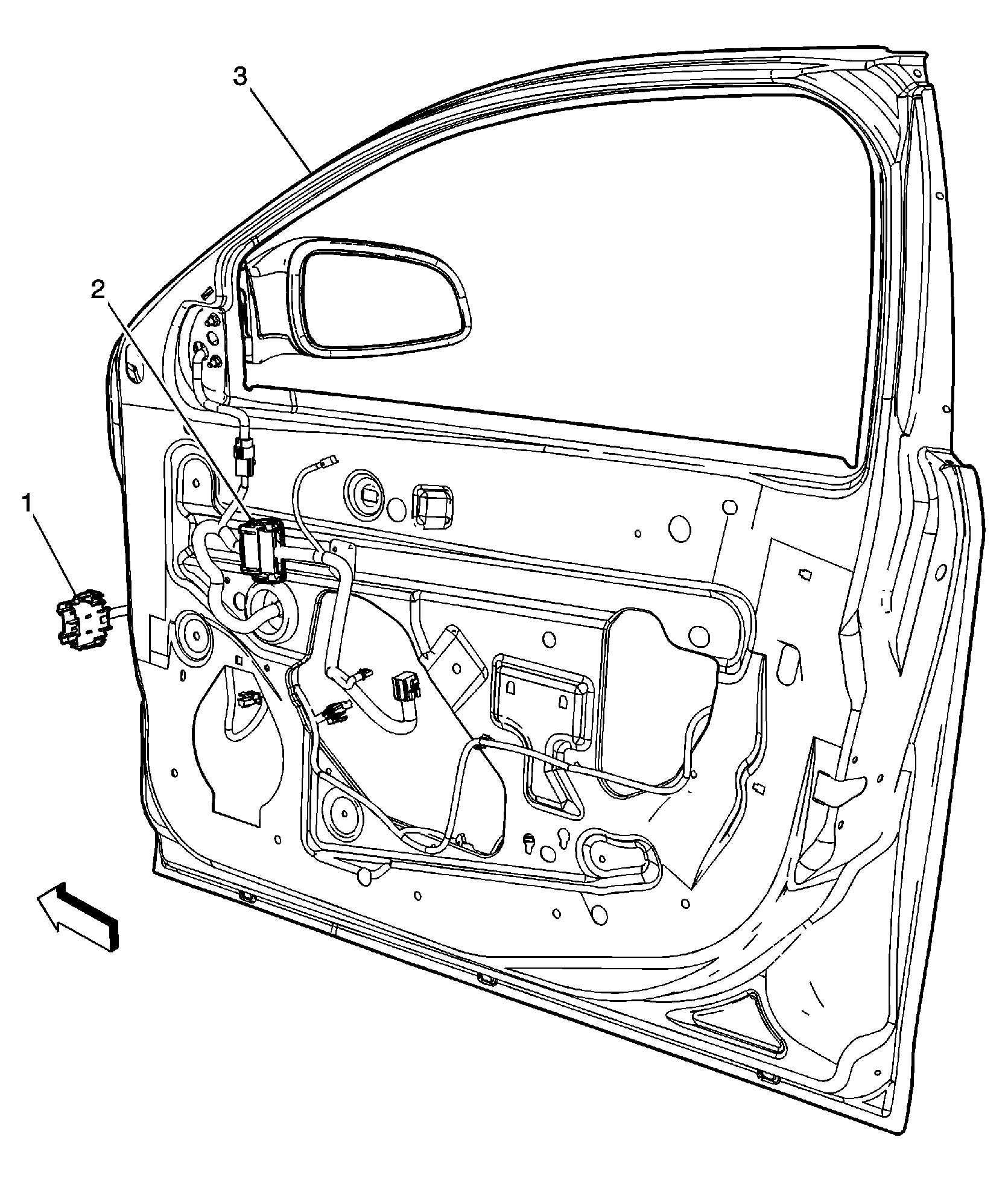

Fig 32: Driver's Door
Courtesy of GENERAL MOTORS CORP.

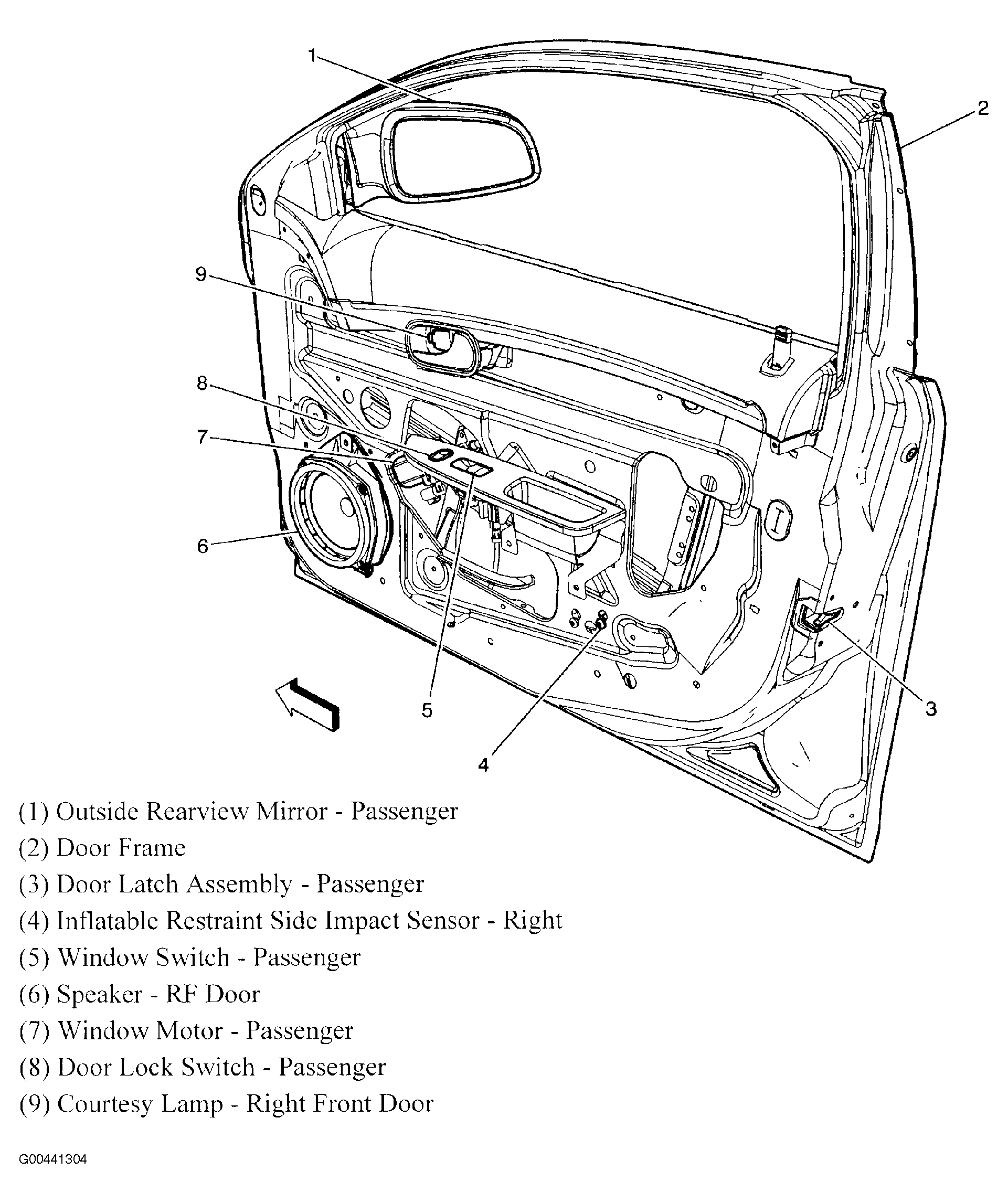

Fig 33: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

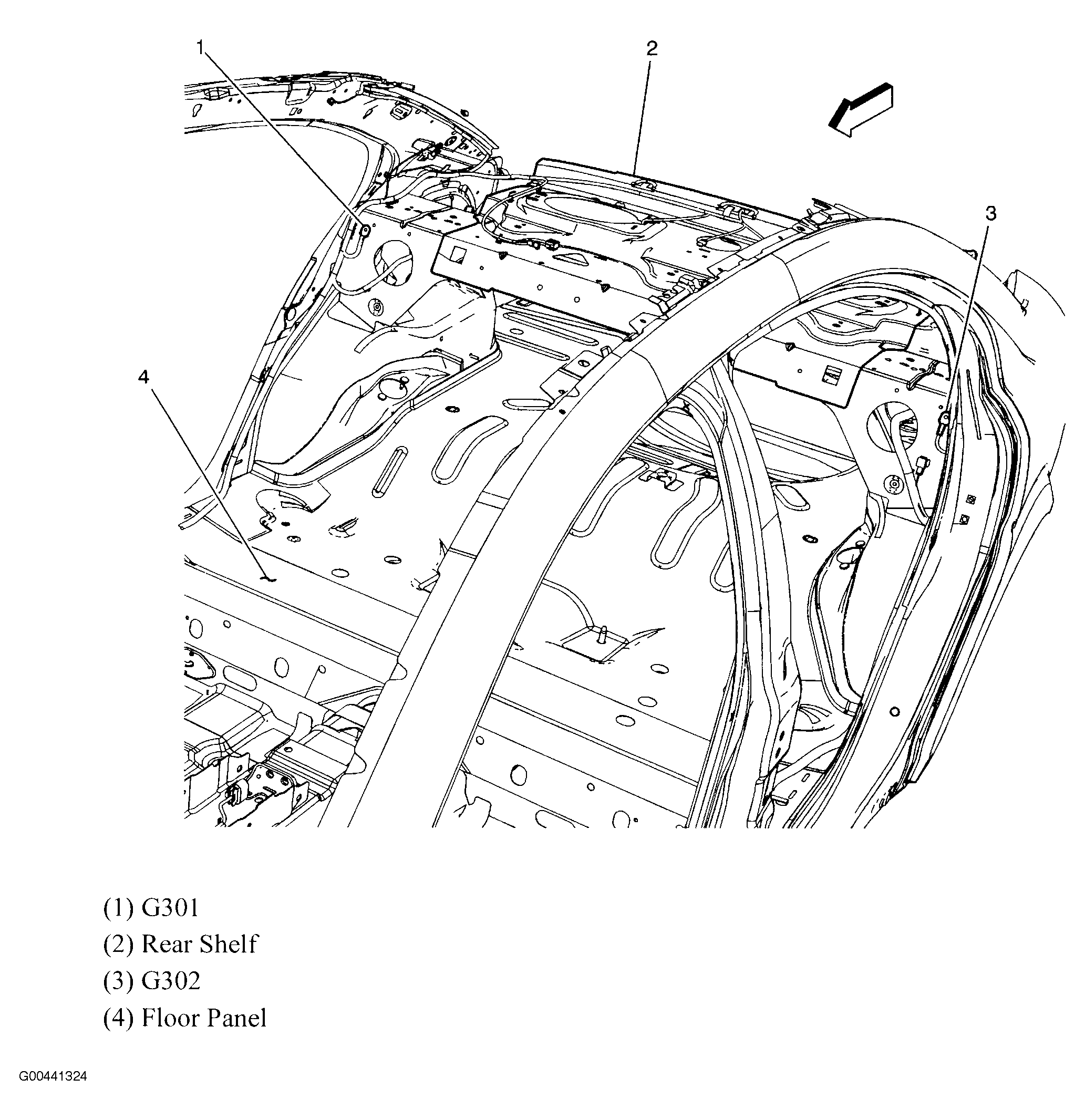

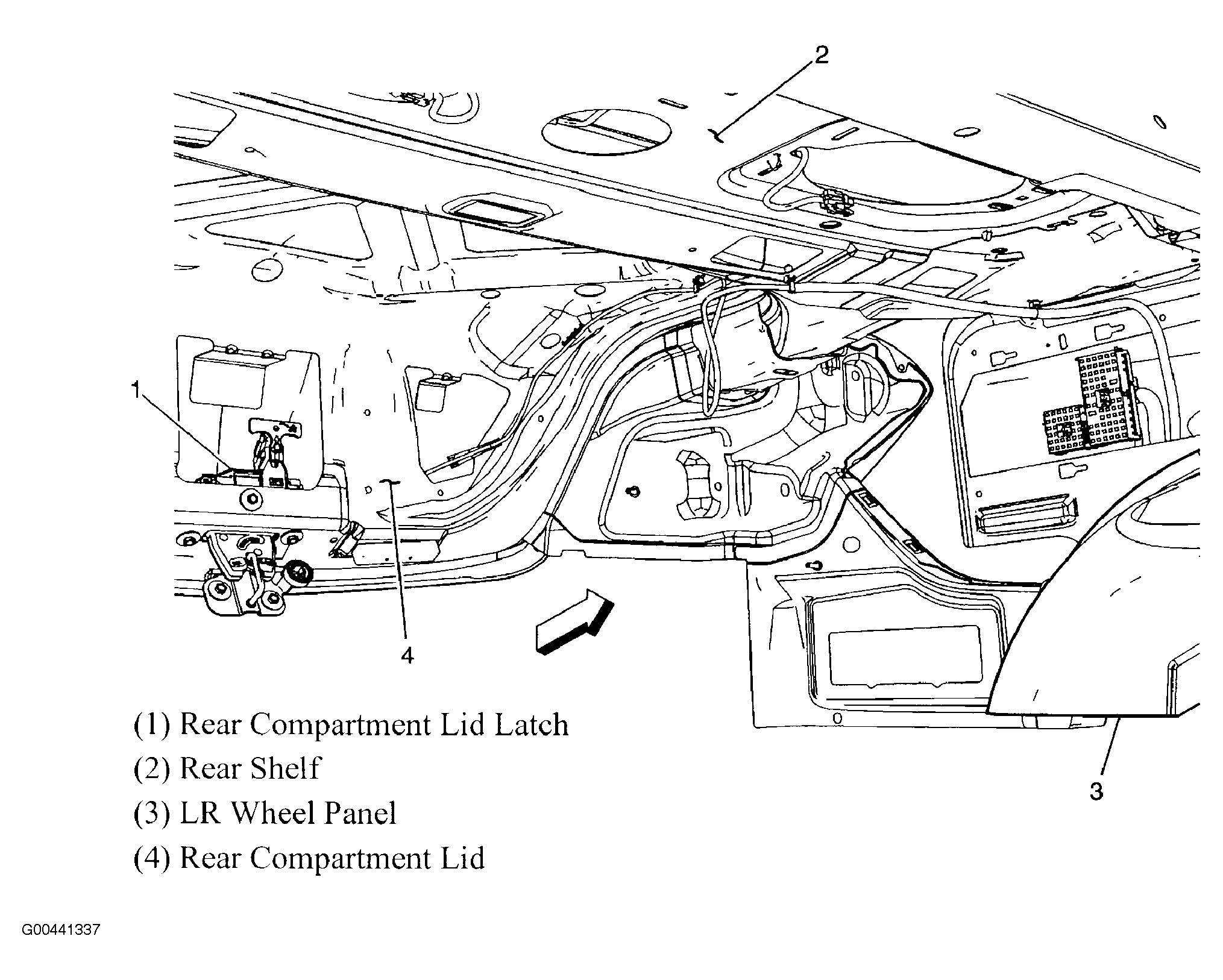

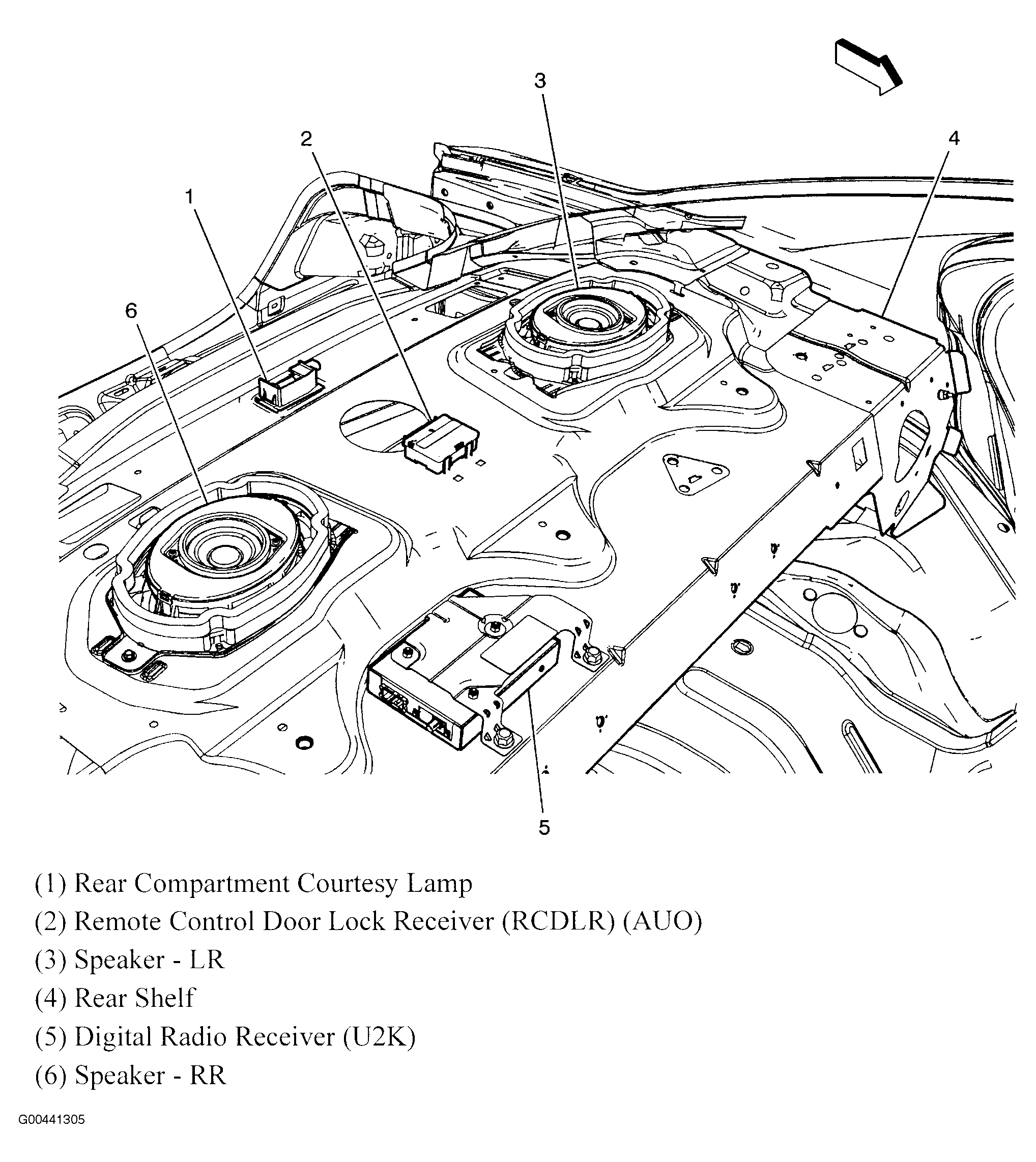

Fig 34: Rear Shelf
Courtesy of GENERAL MOTORS CORP.

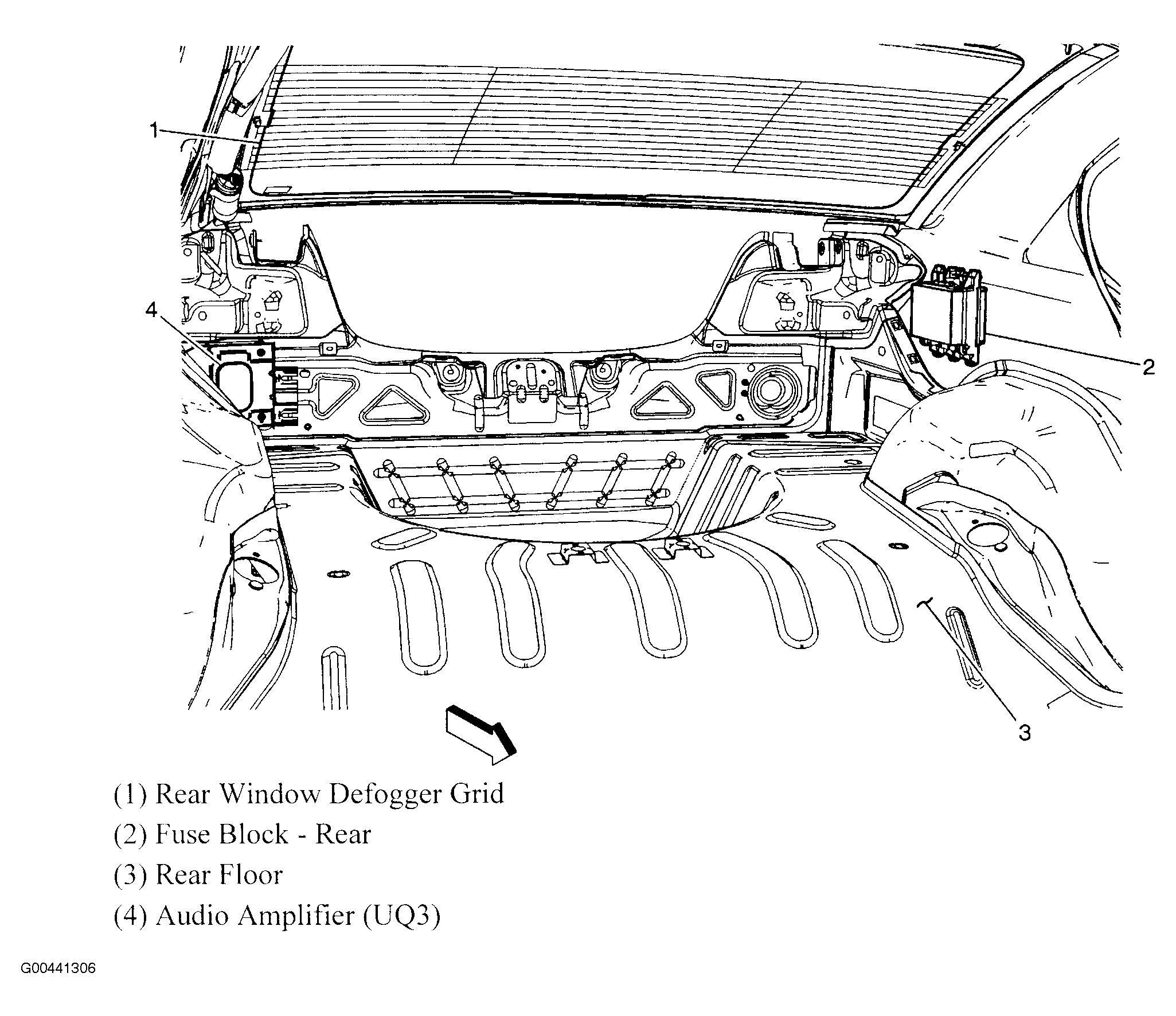

Fig 35: Rear Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

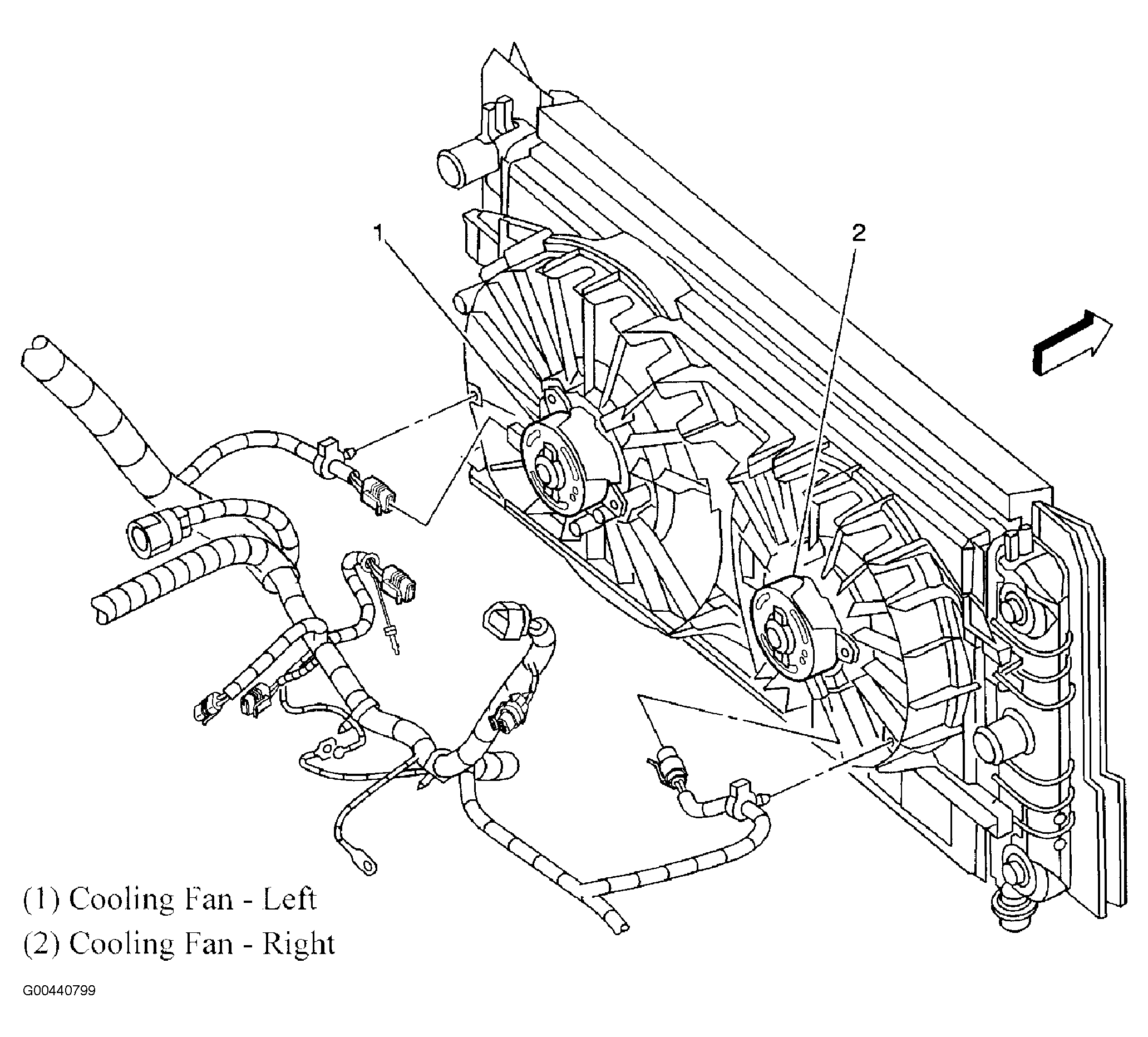

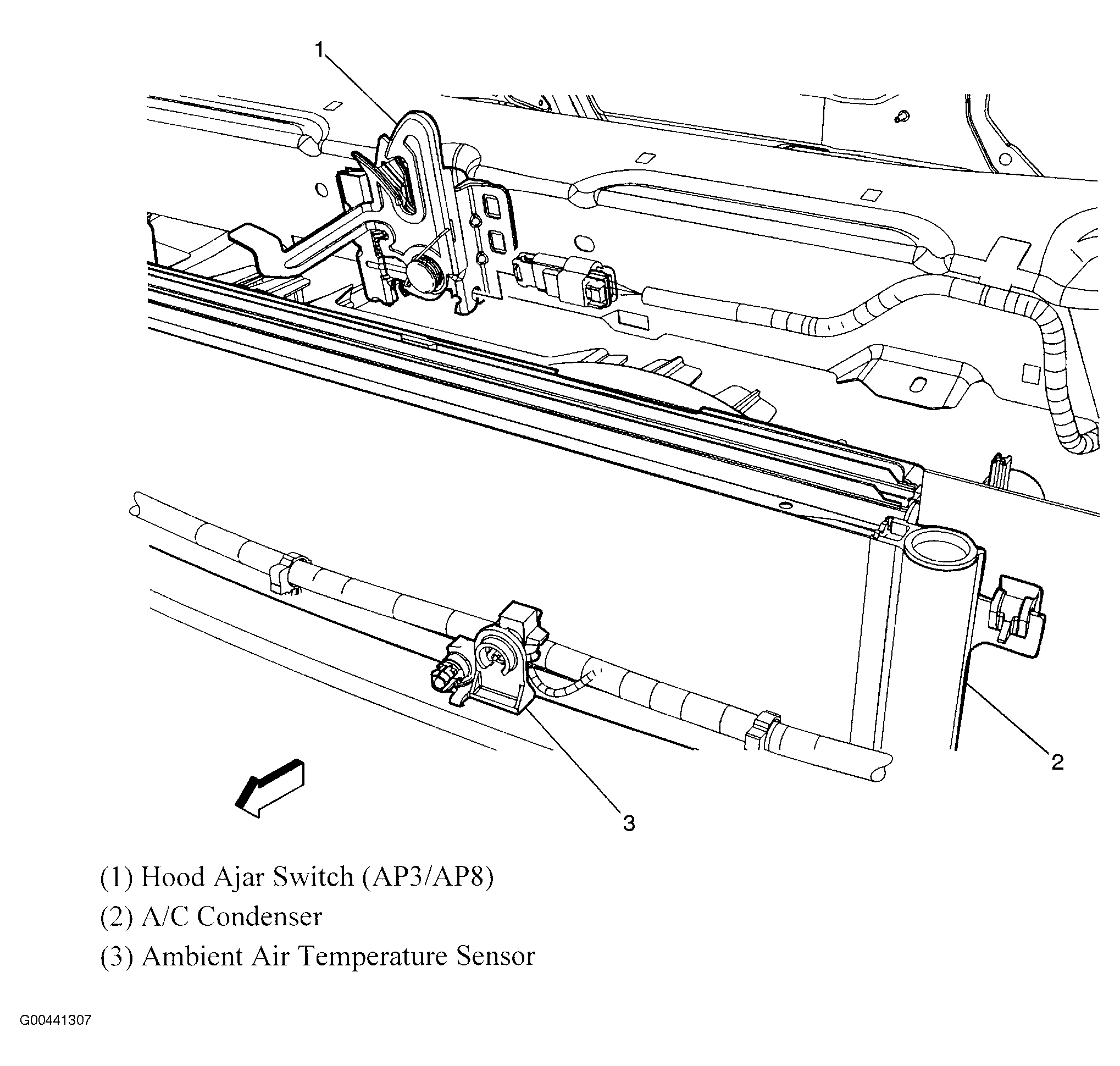

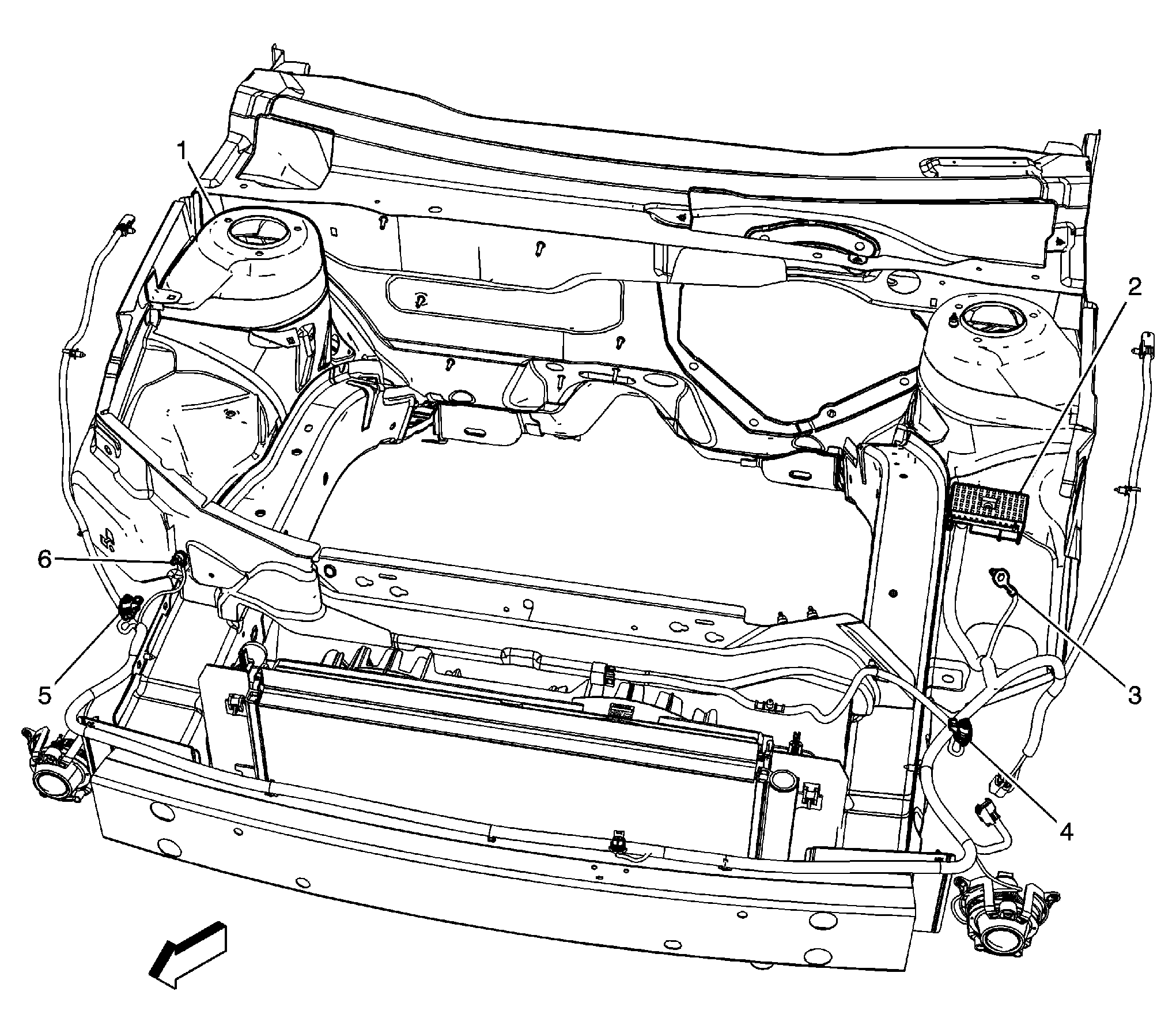

Fig 36: Front Of Radiator
Courtesy of GENERAL MOTORS CORP.

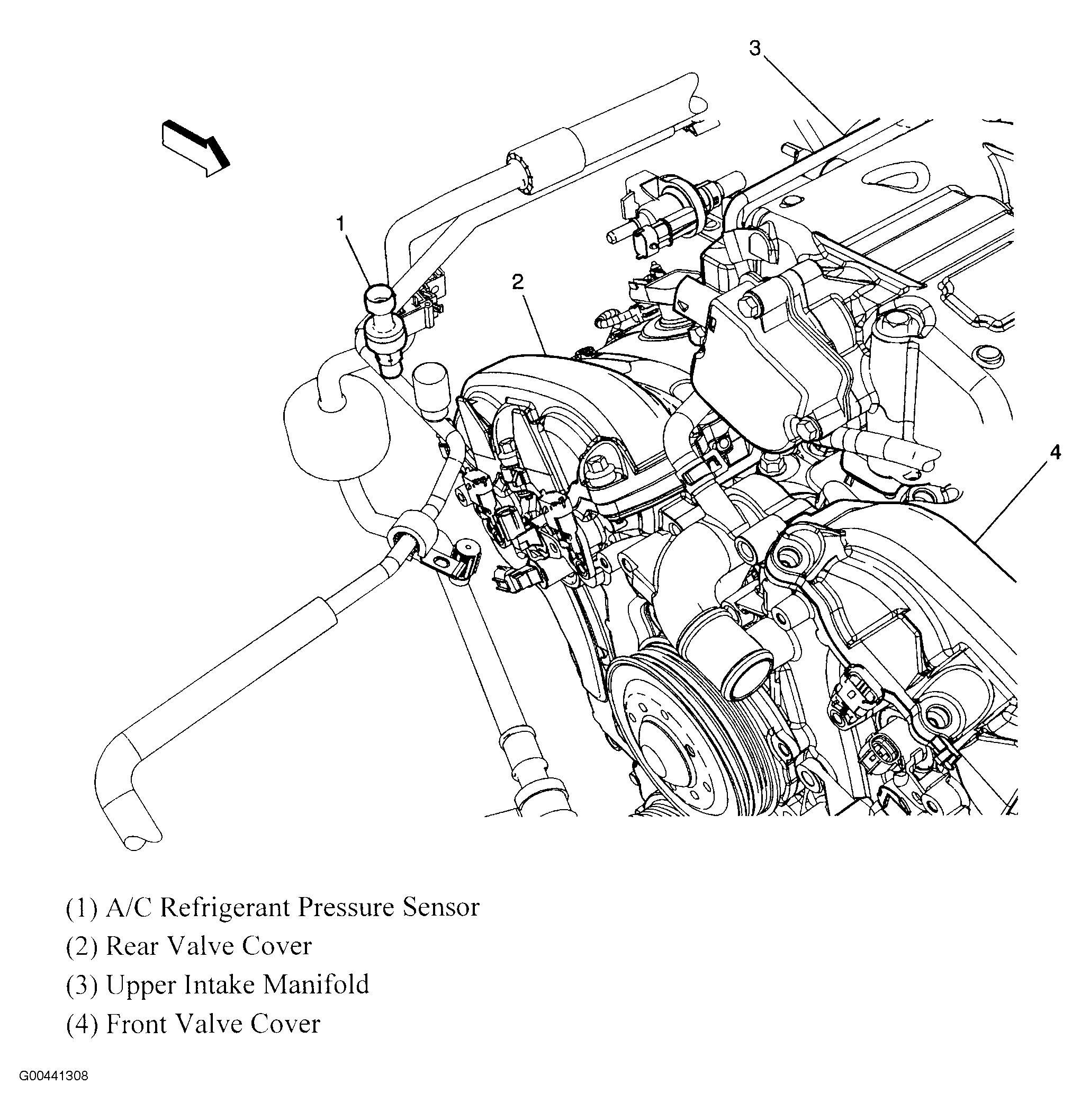

Fig 37: Near A/C Fitting
Courtesy of GENERAL MOTORS CORP.

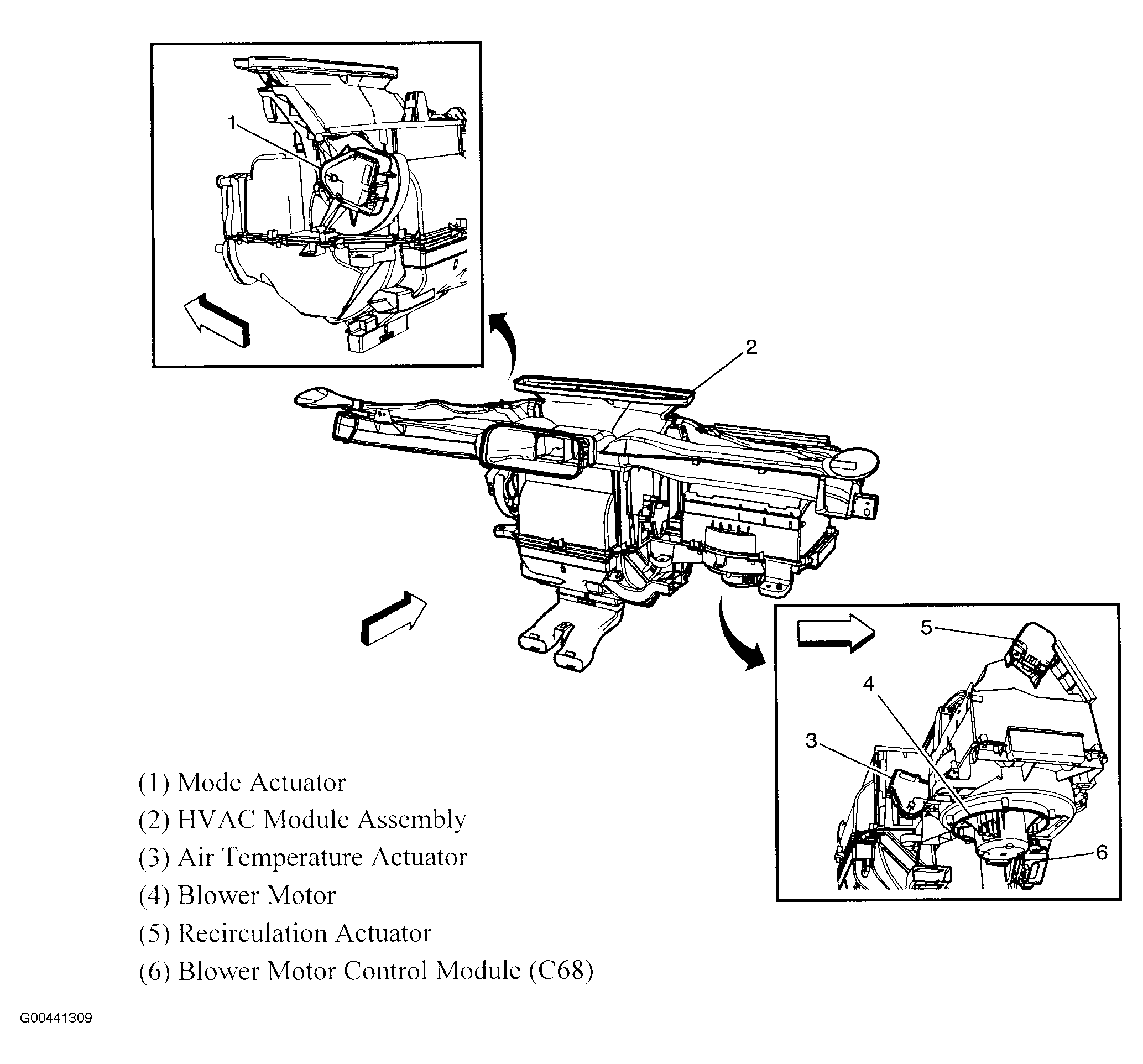

Fig 38: Interior HVAC Module
Courtesy of GENERAL MOTORS CORP.

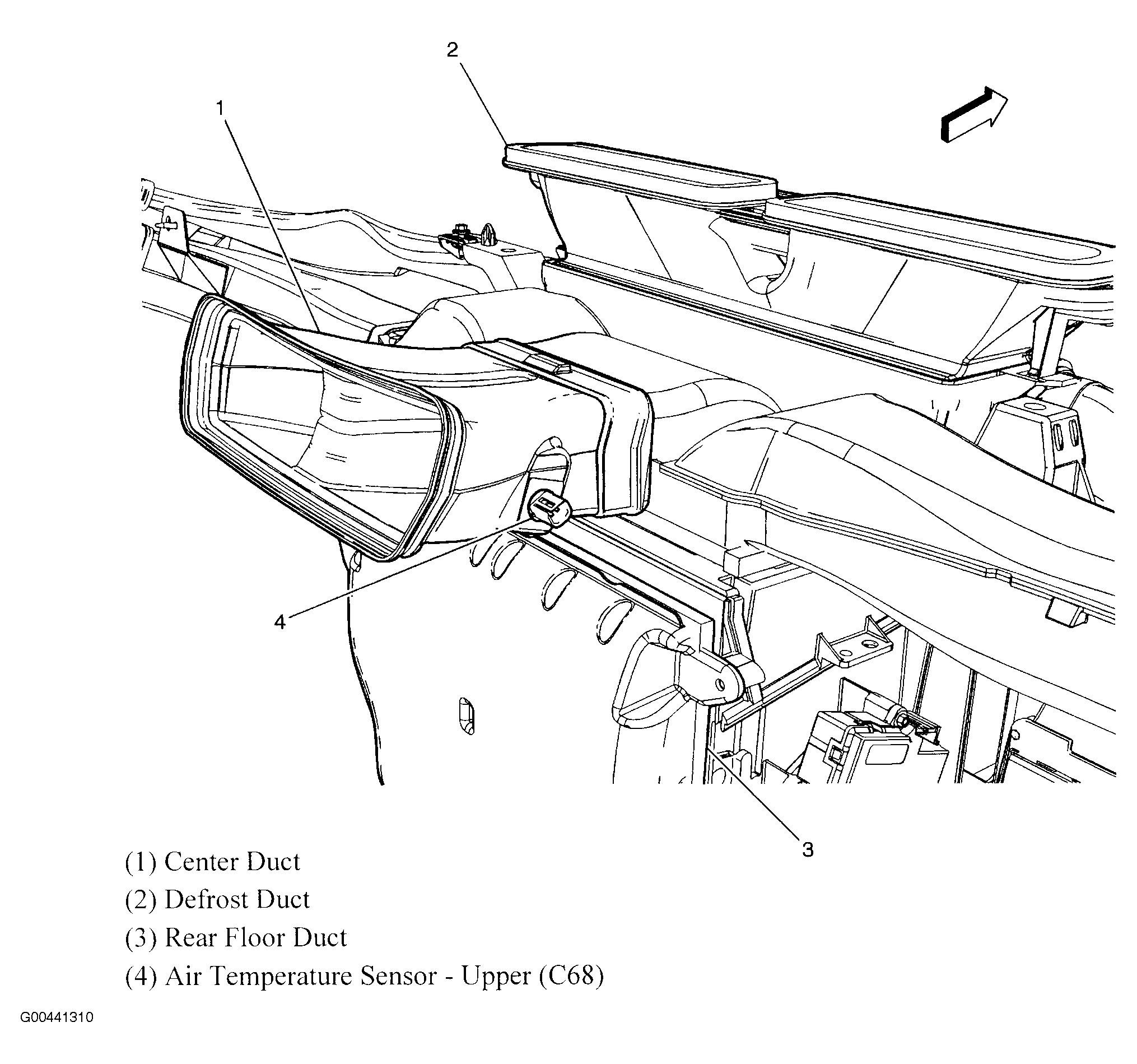

Fig 39: Upper HVAC Duct
Courtesy of GENERAL MOTORS CORP.

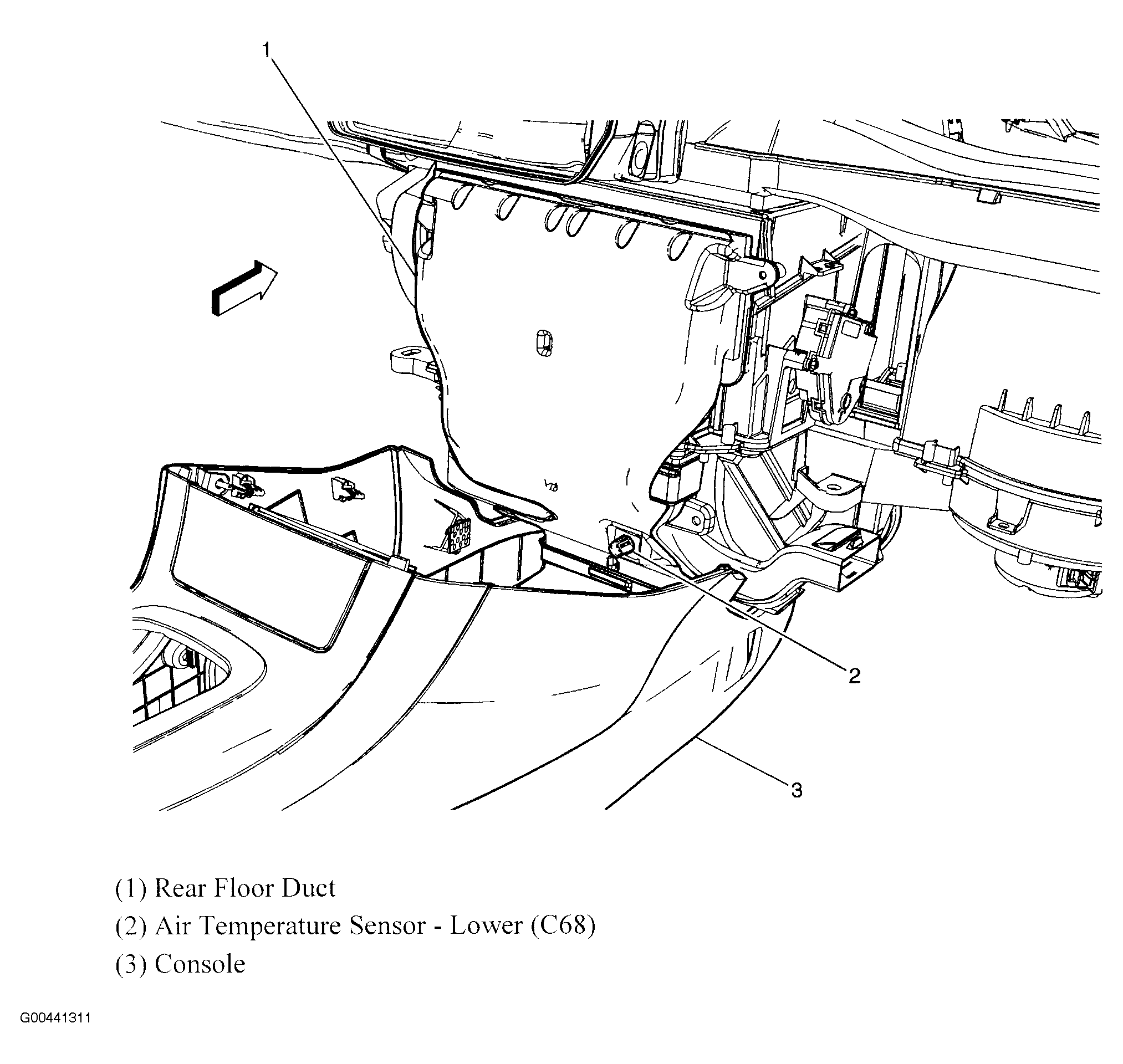

Fig 40: Lower HVAC Duct
Courtesy of GENERAL MOTORS CORP.

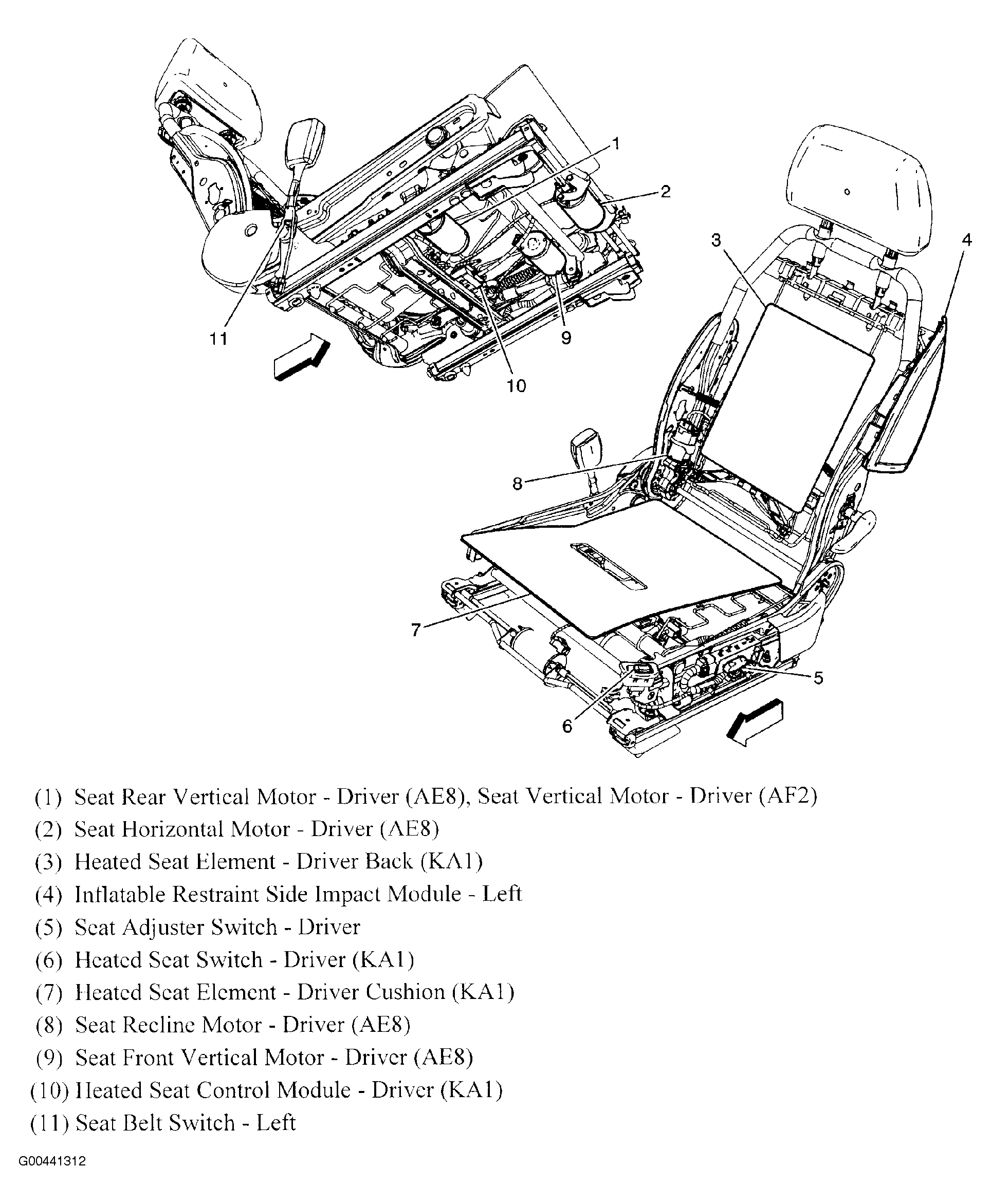

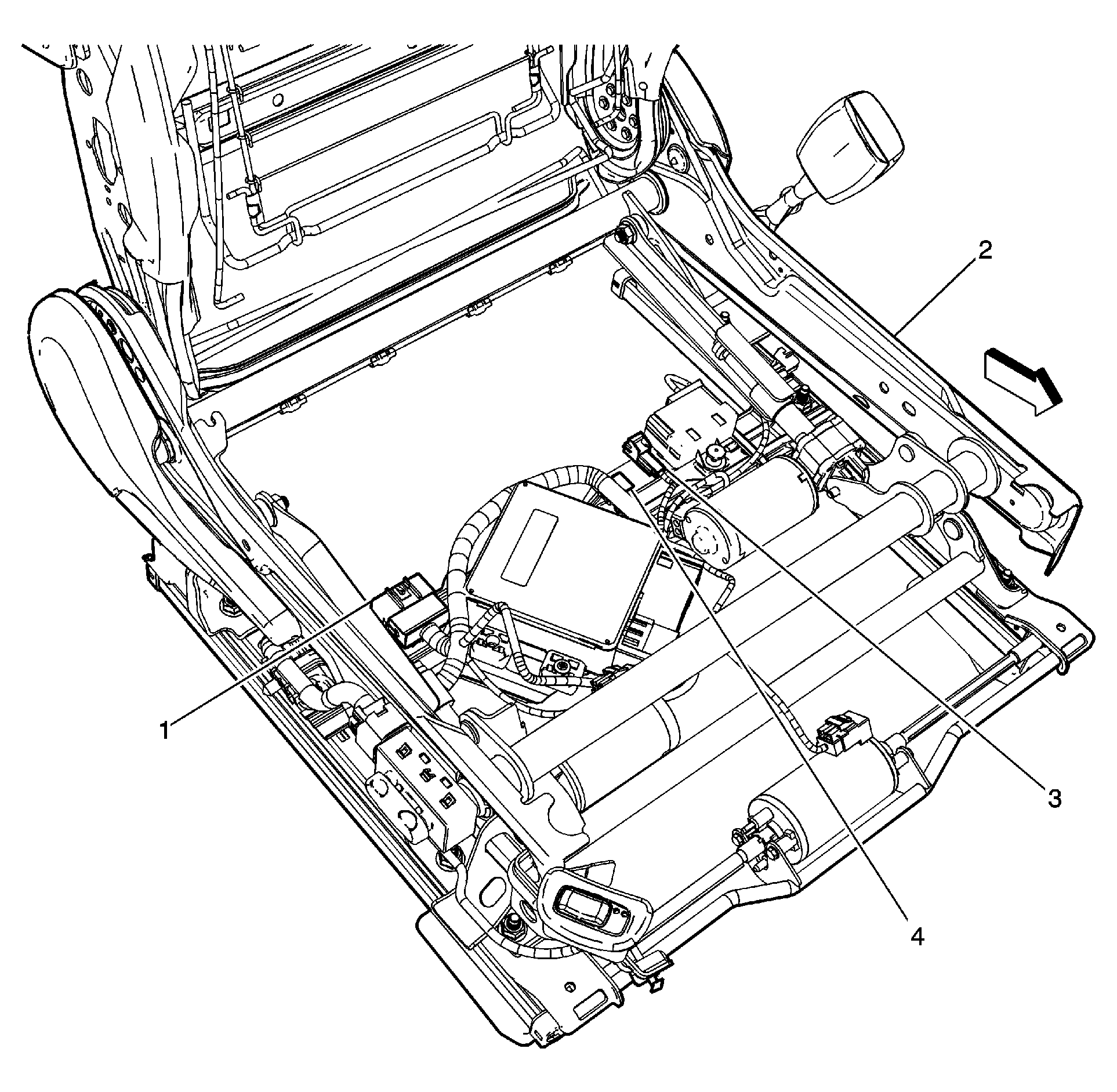

Fig 41: Driver's Seat
Courtesy of GENERAL MOTORS CORP.

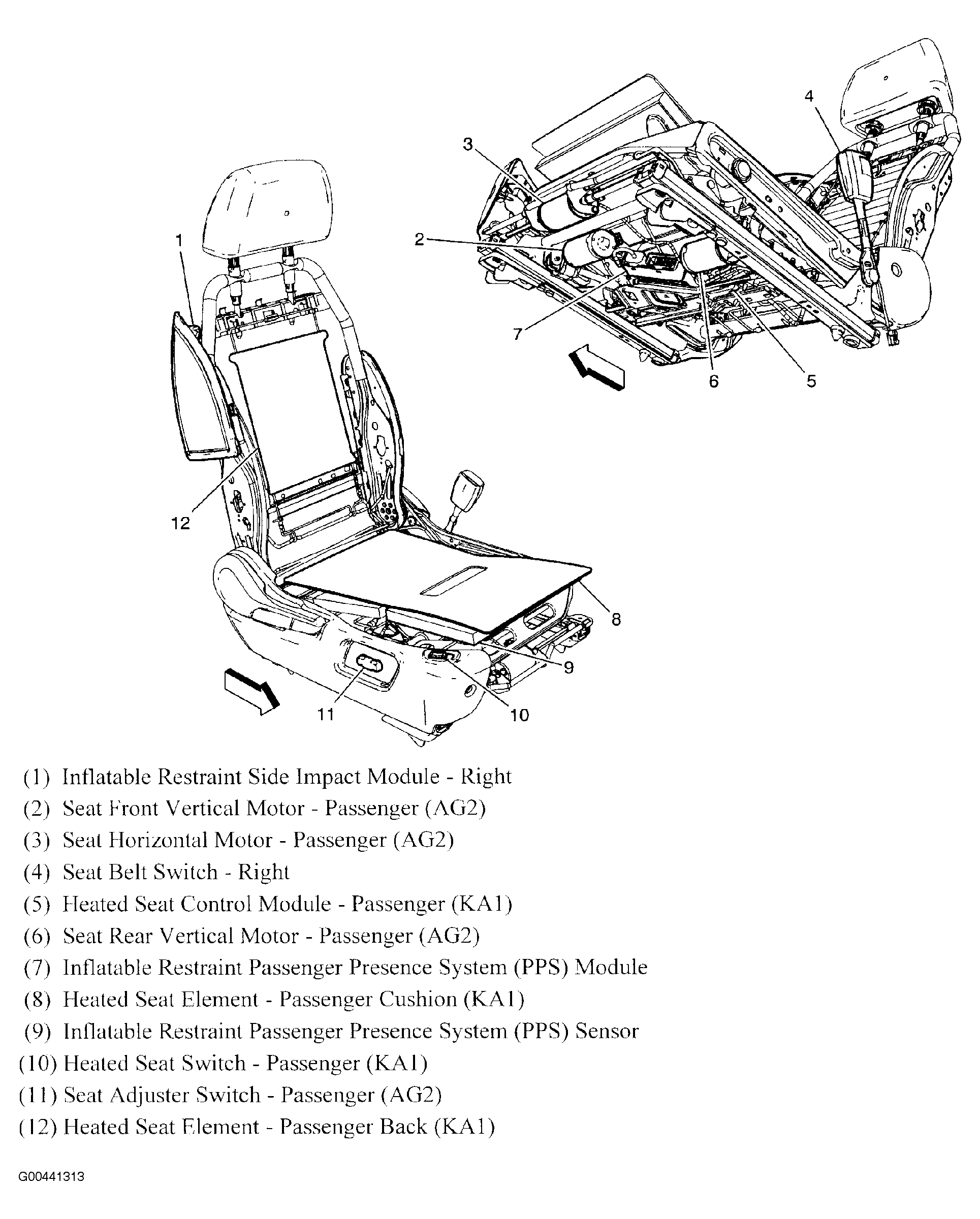

Fig 42: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 43: Behind Left Headlight
Courtesy of GENERAL MOTORS CORP.

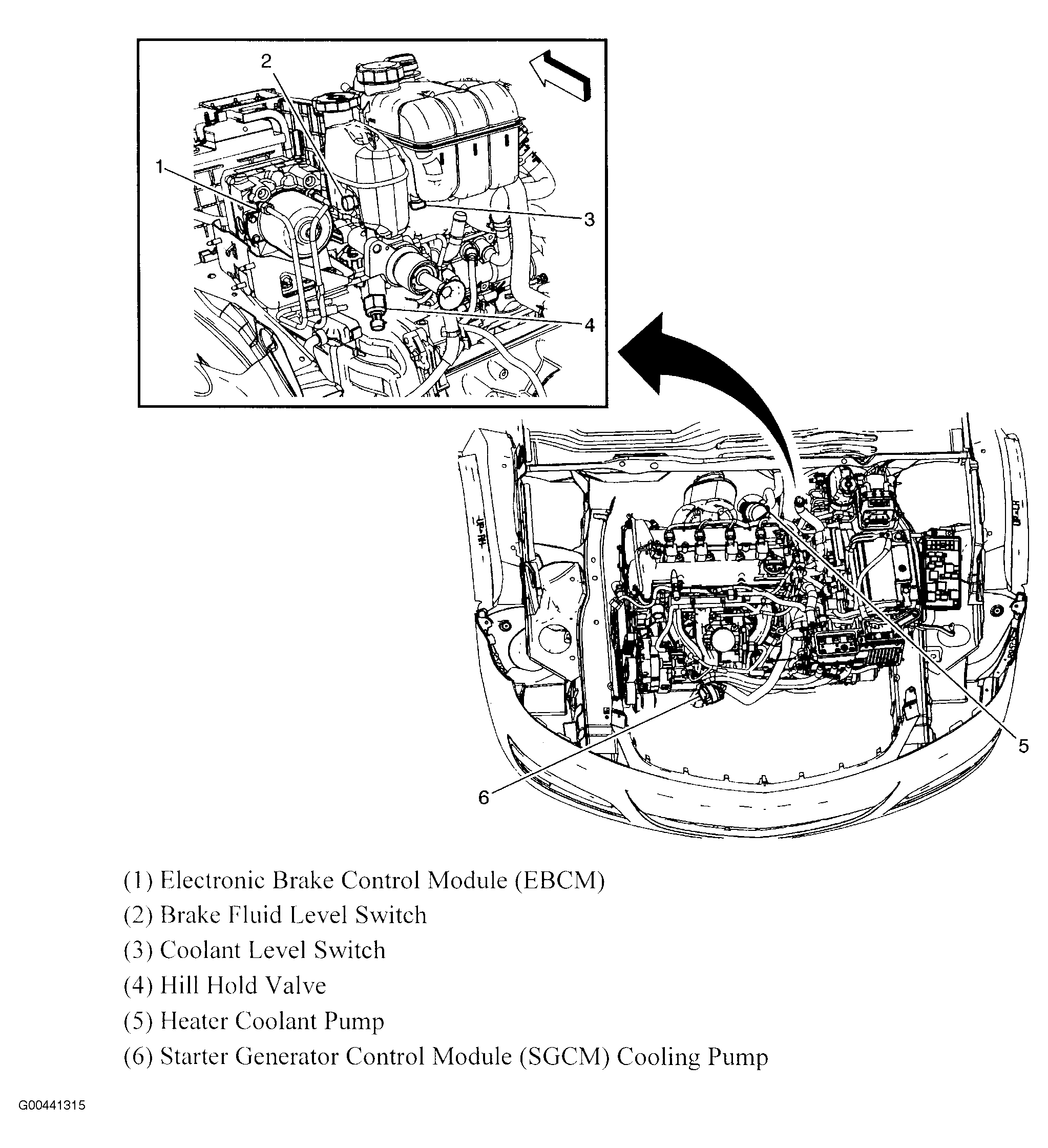

Fig 44: Hybrid Engine Compartment
Courtesy of GENERAL MOTORS CORP.

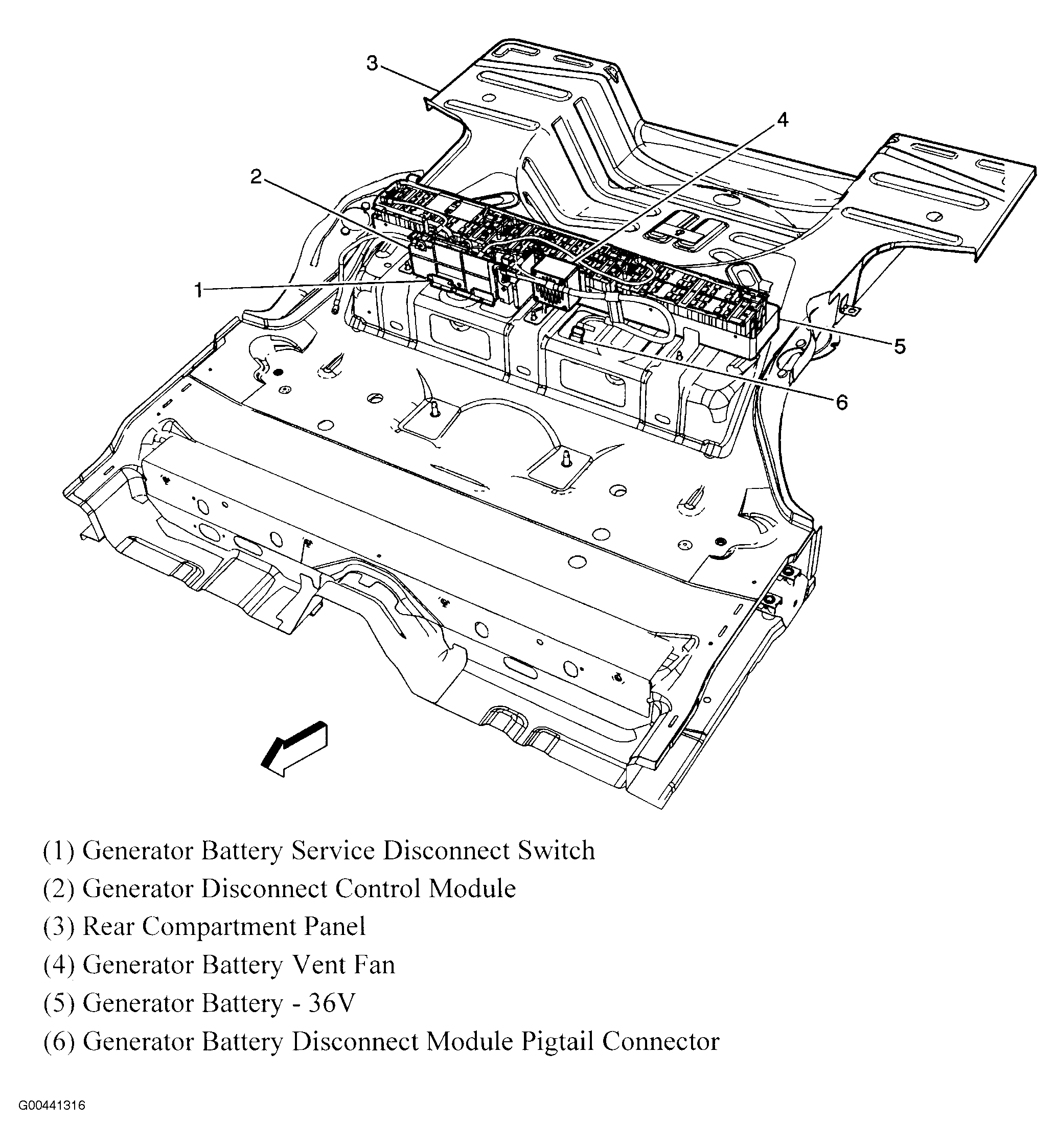

Fig 45: Hybrid Energy Storage
Courtesy of GENERAL MOTORS CORP.
Fig 46: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 48: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

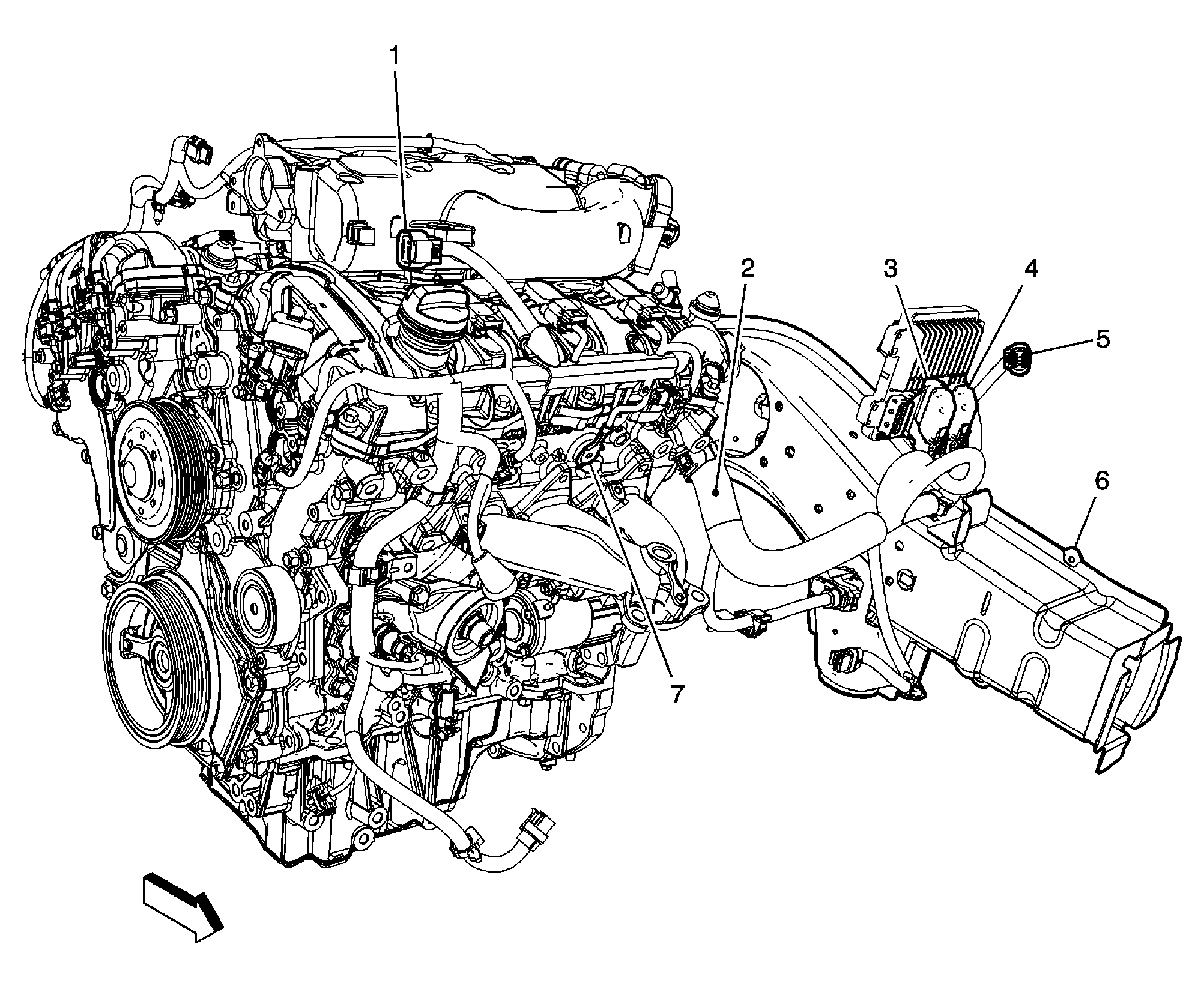

Fig 49: Left Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Right Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

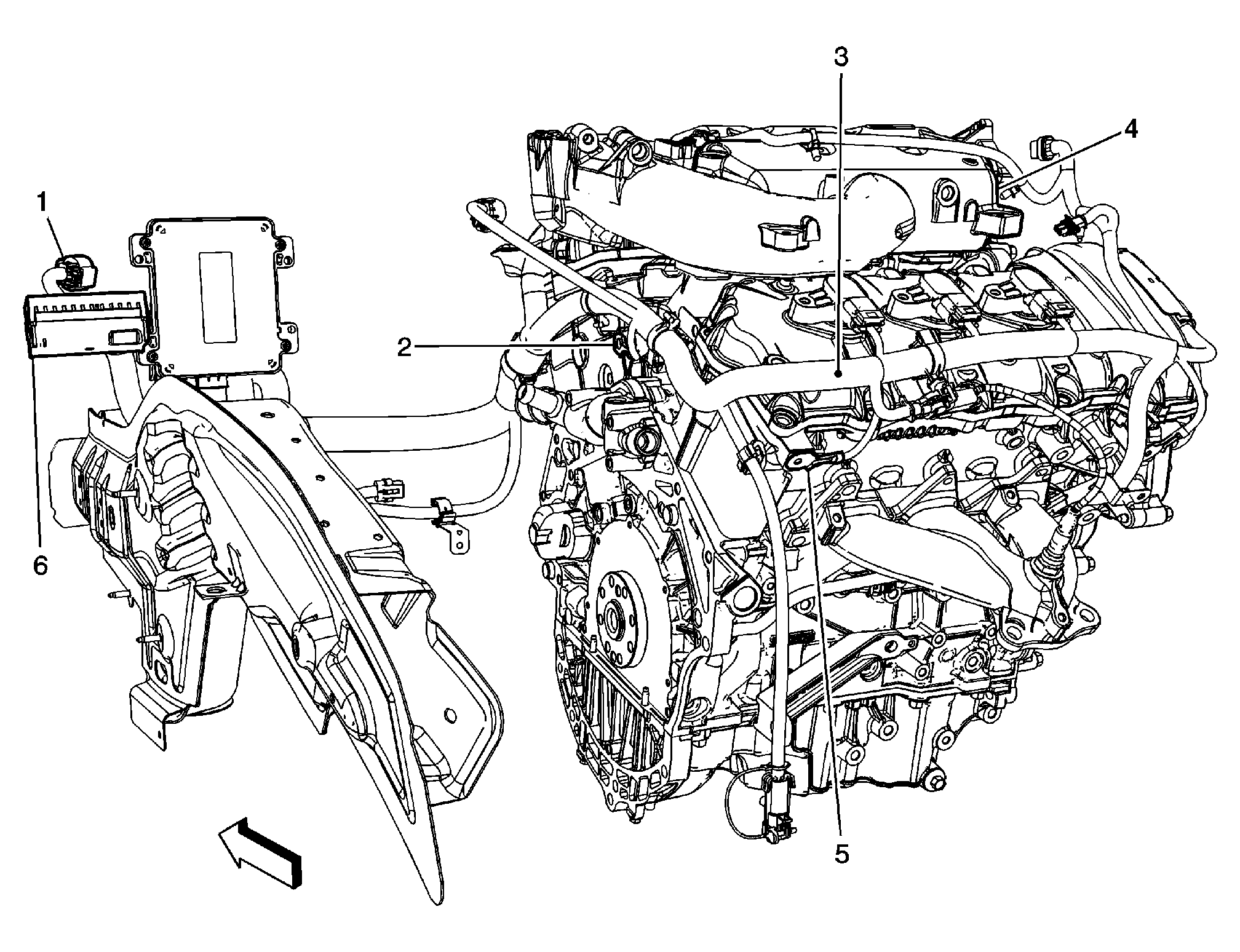

Fig 51: Right Rear Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Behind Dash
Courtesy of GENERAL MOTORS CORP.
Fig 53: Rear Interior Of Vehicle
Courtesy of GENERAL MOTORS CORP.

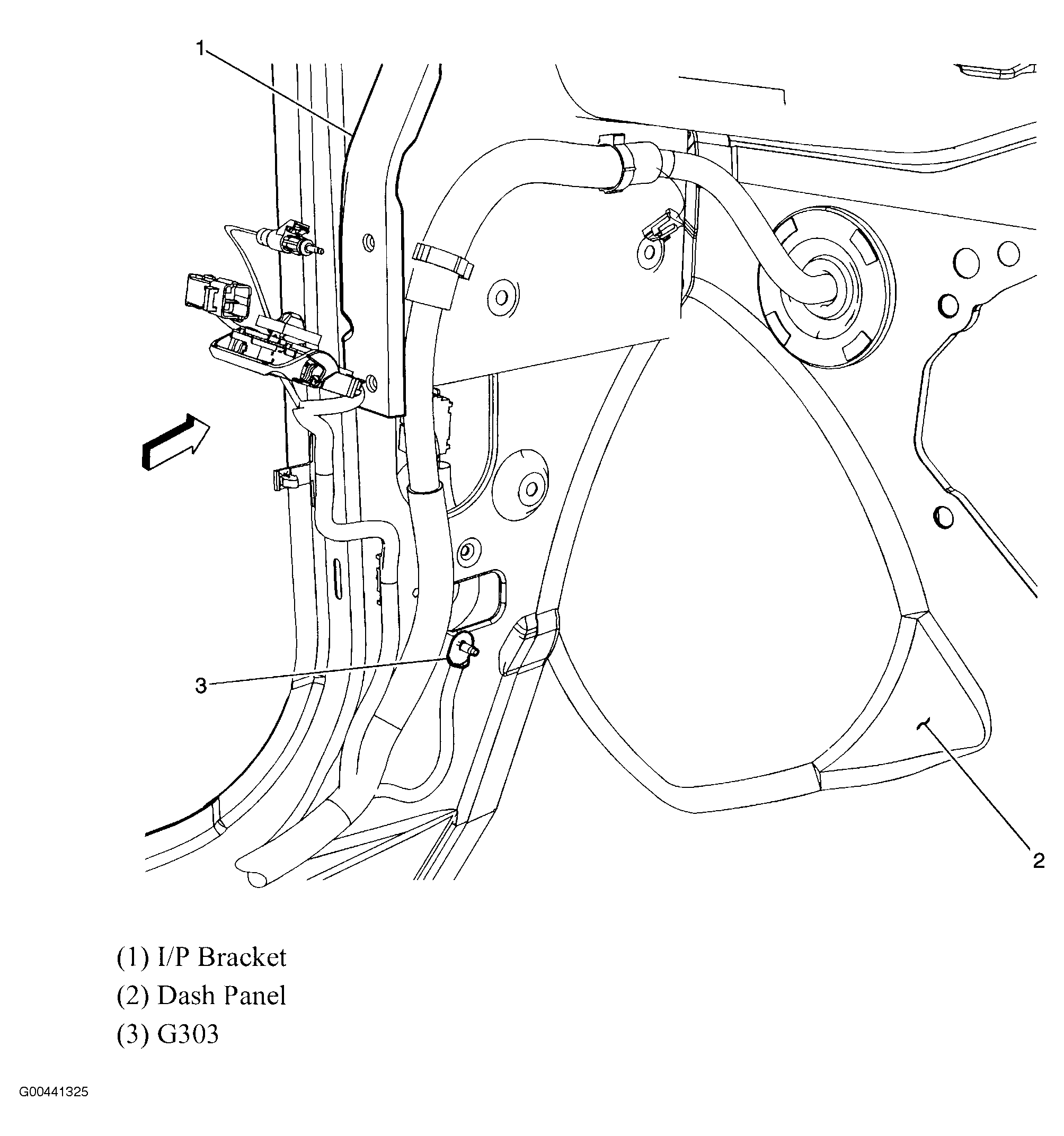

Fig 54: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 55: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.

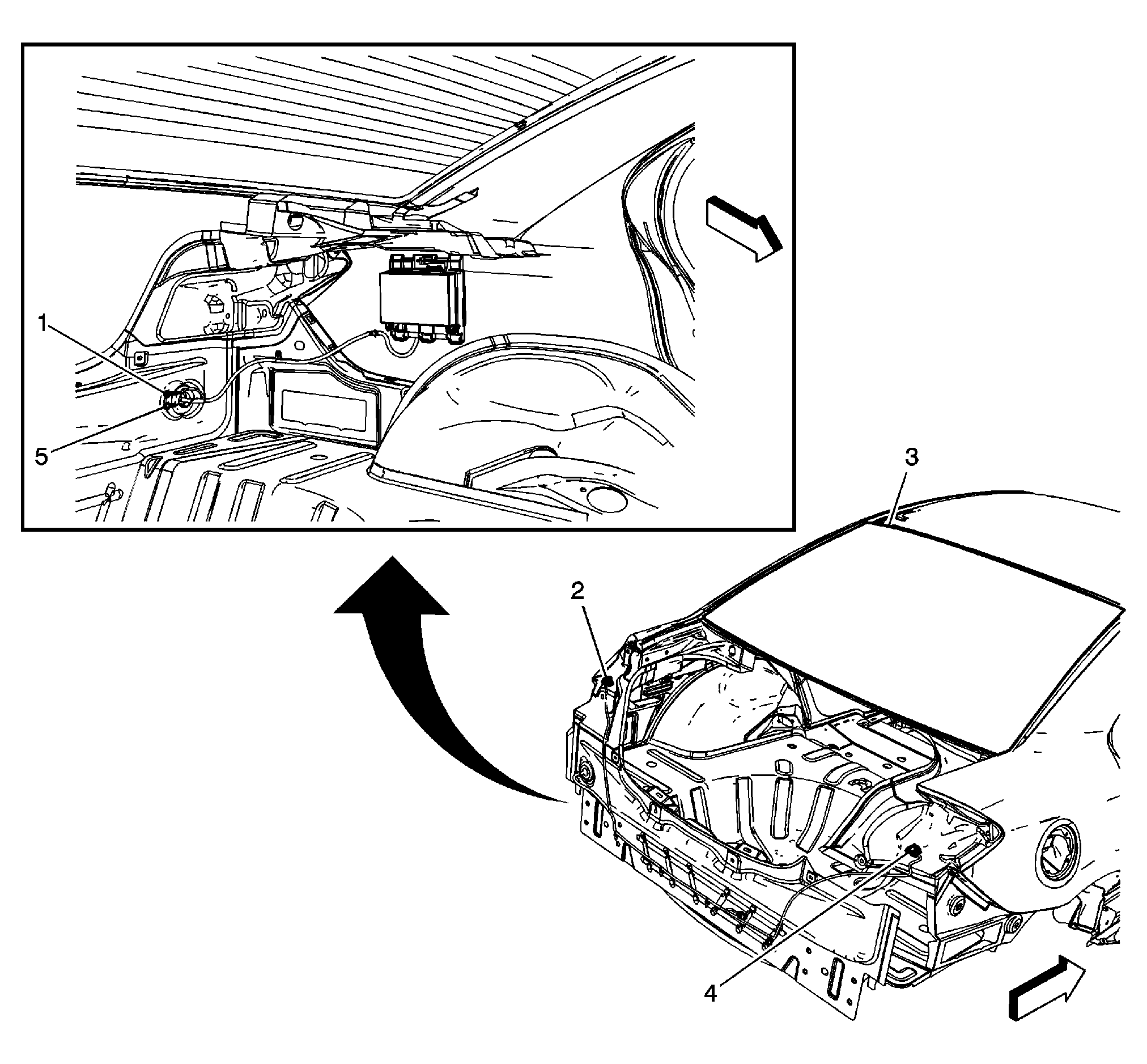

Fig 56: Left Rear Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Steering Column
Courtesy of GENERAL MOTORS CORP.

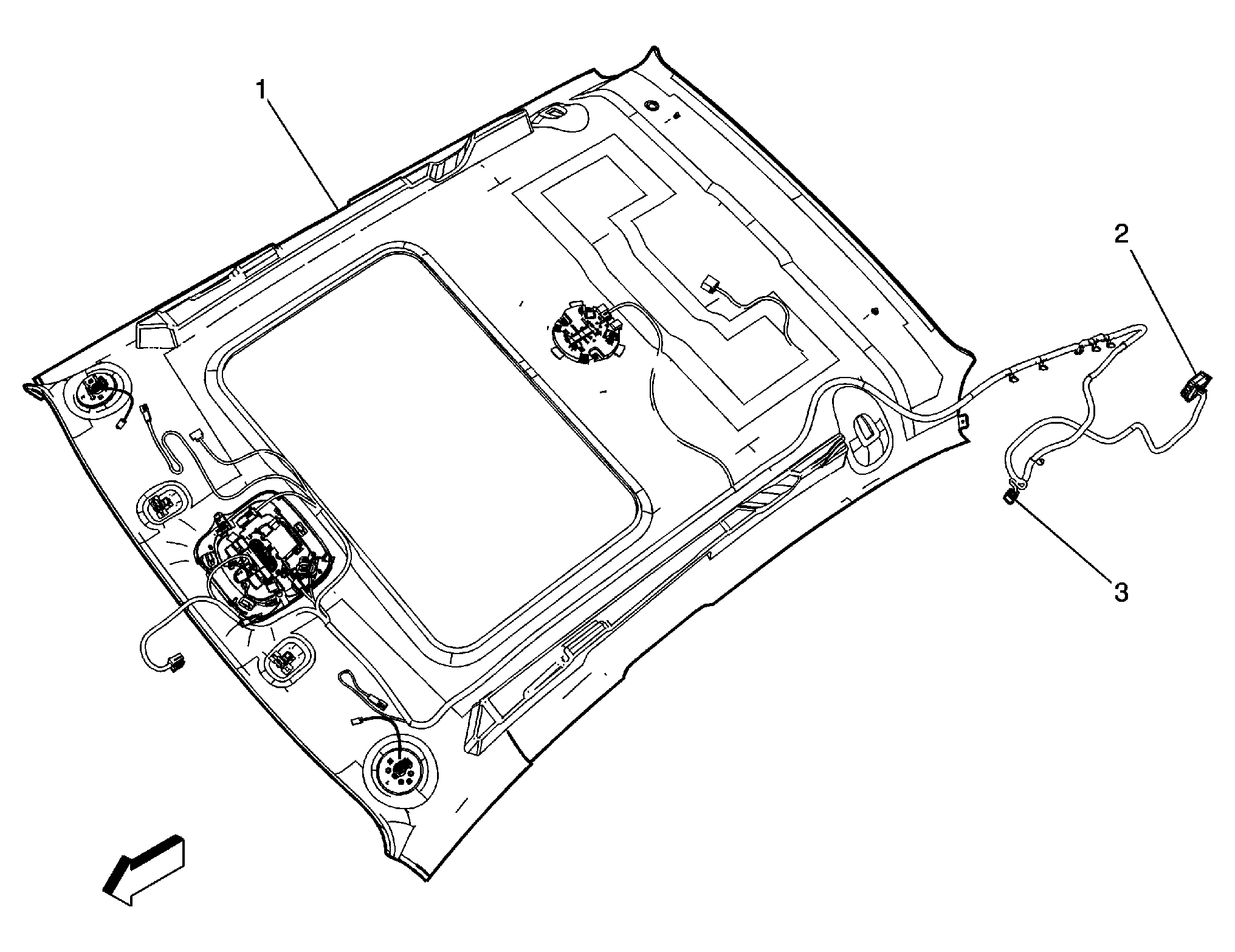

Fig 58: Above Headliner
Courtesy of GENERAL MOTORS CORP.

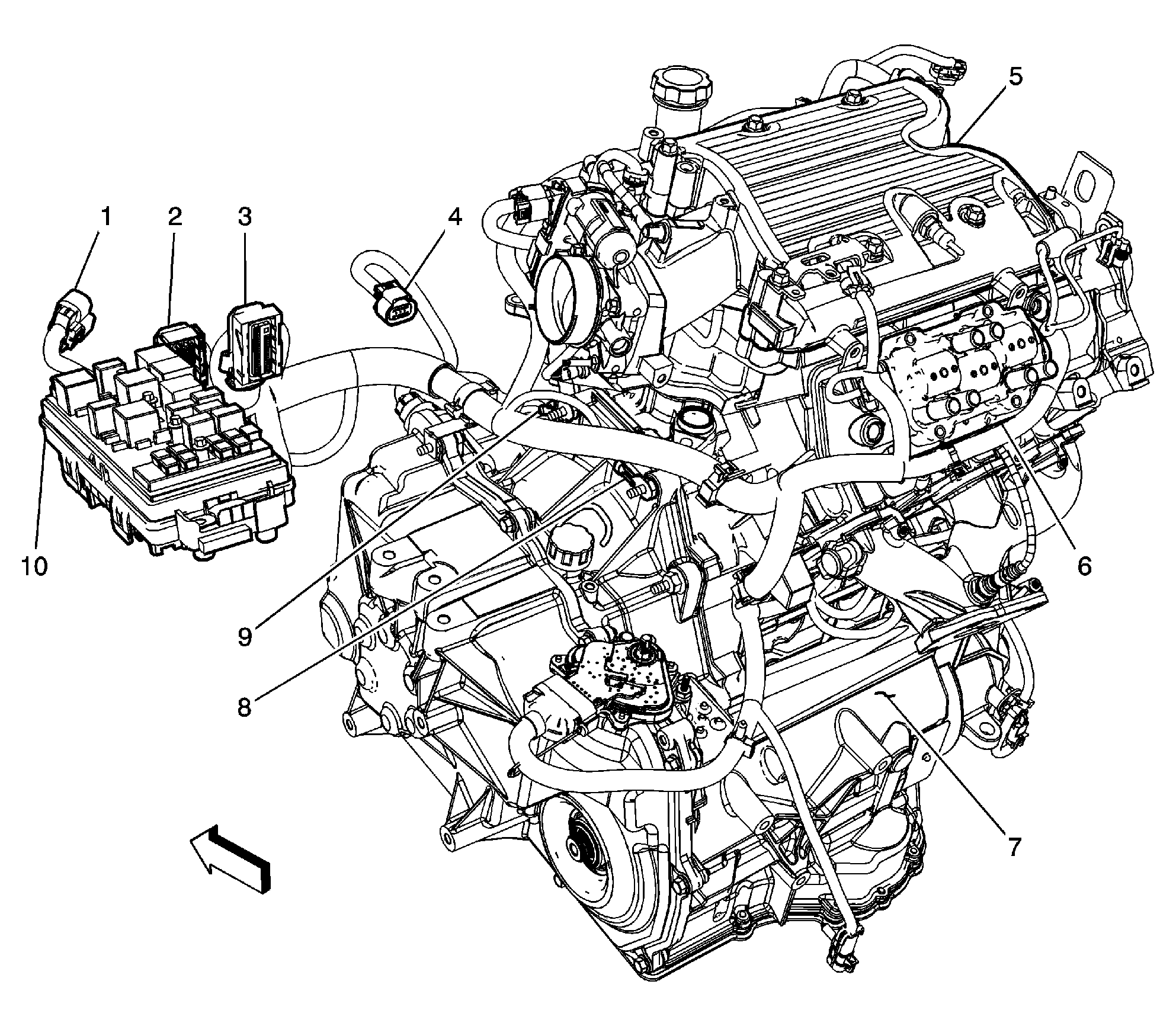

Fig 59: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

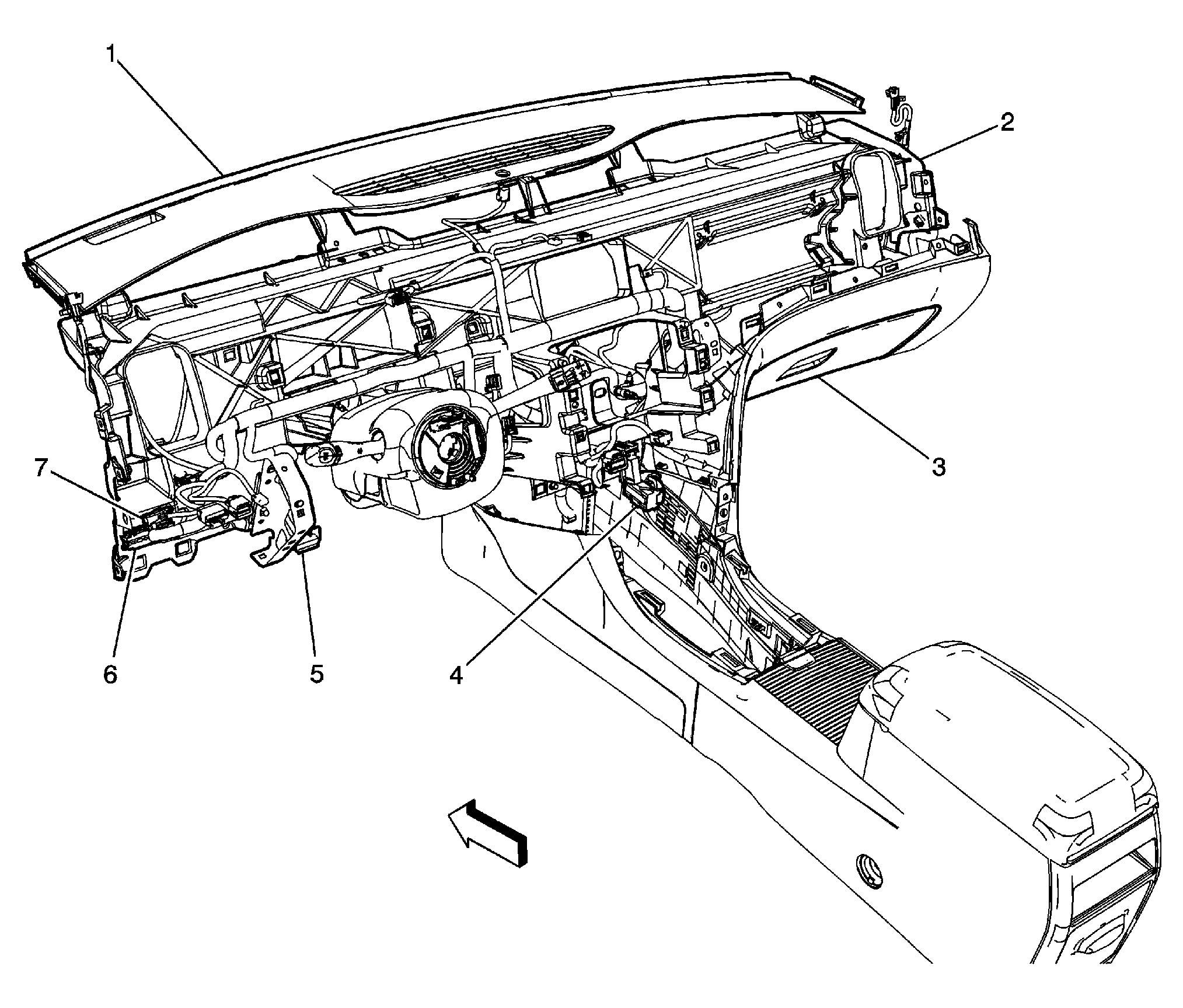

Fig 60: Dash
Courtesy of GENERAL MOTORS CORP.

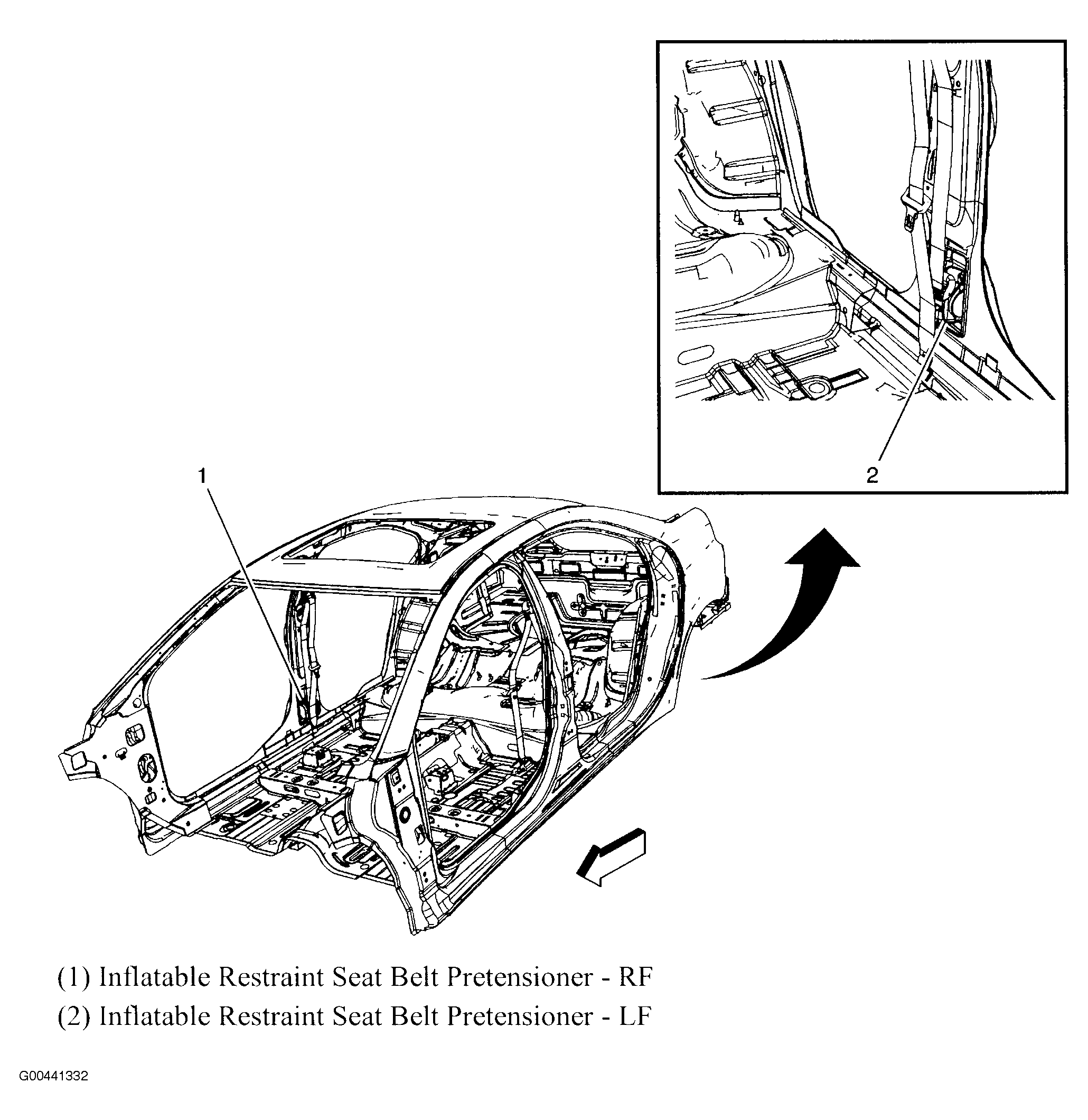

Fig 61: Left/Right "B" Pillars
Courtesy of GENERAL MOTORS CORP.

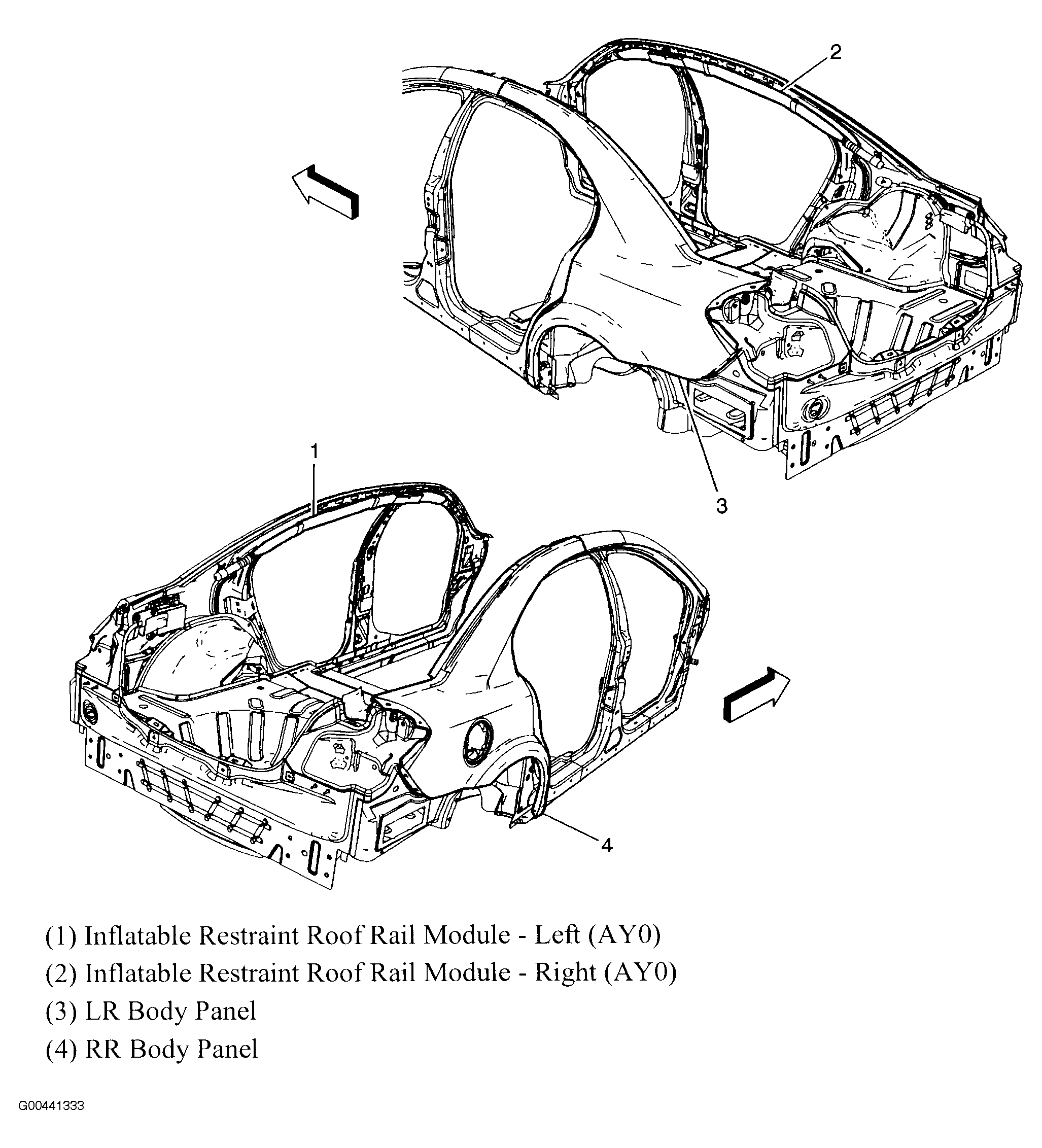

Fig 62: Above Left/Right Rear Doors
Courtesy of GENERAL MOTORS CORP.
Fig 63: Wheel Assemblies
Courtesy of GENERAL MOTORS CORP.

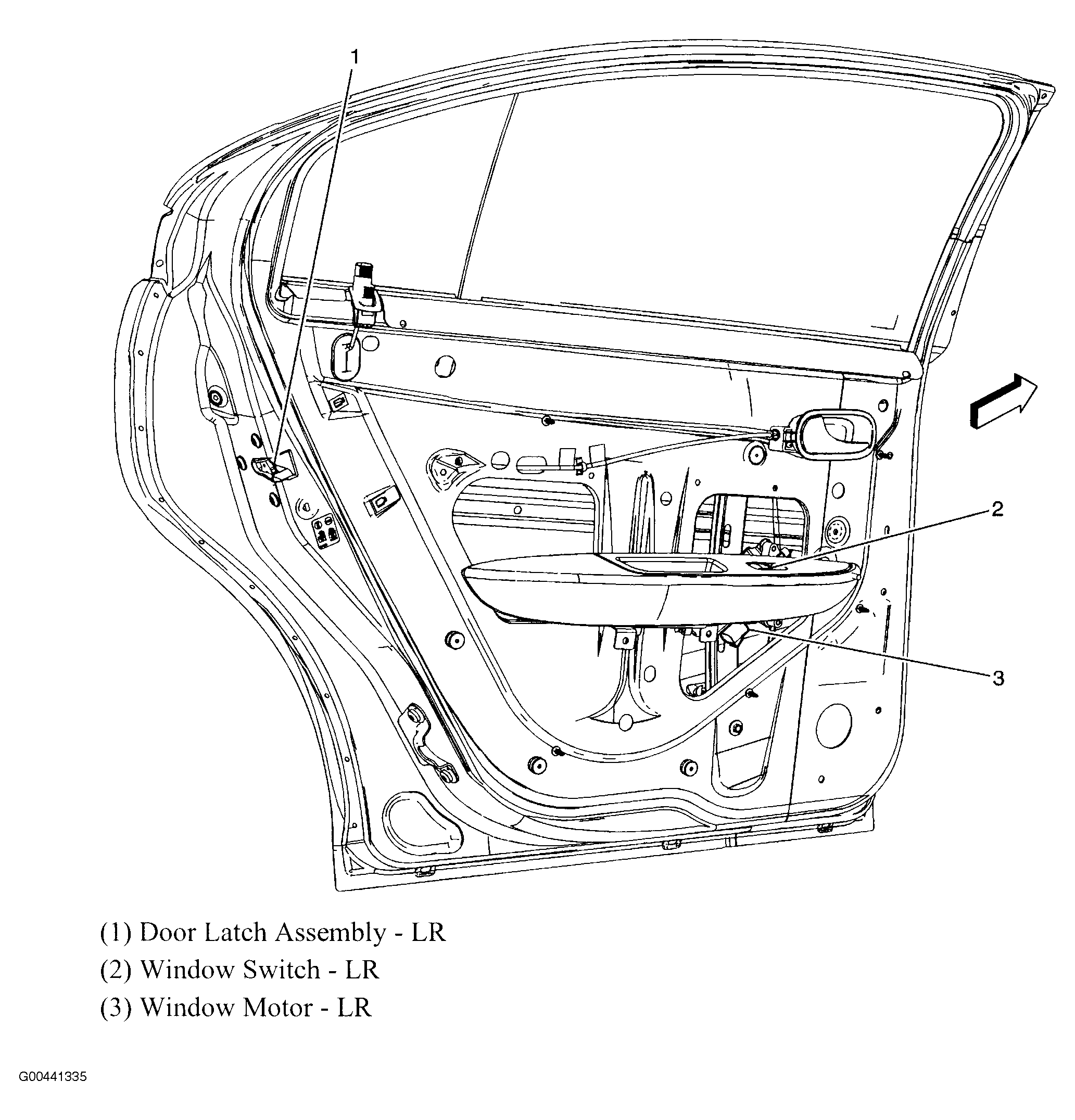

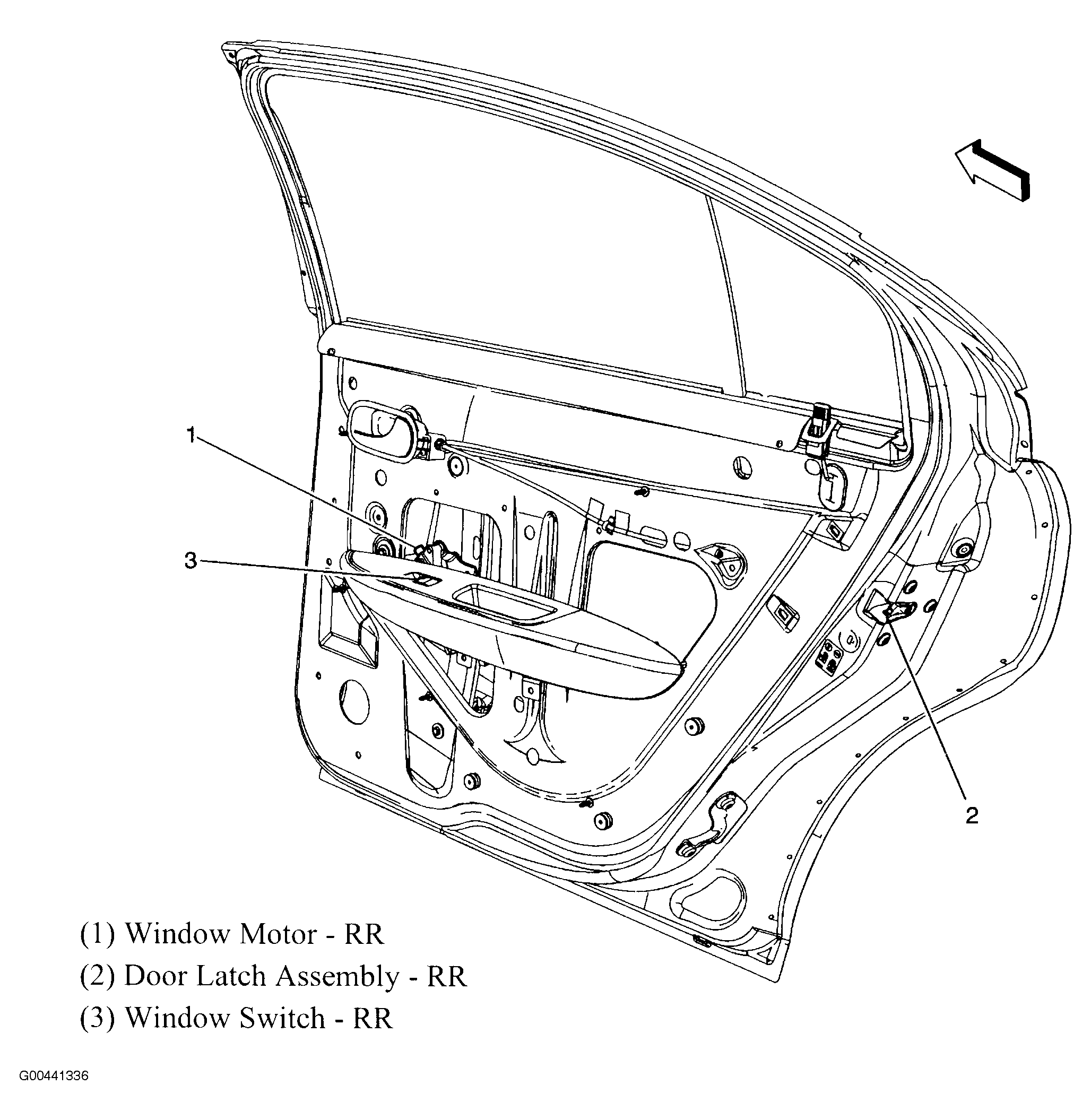

Fig 64: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 65: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 66: Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 67: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

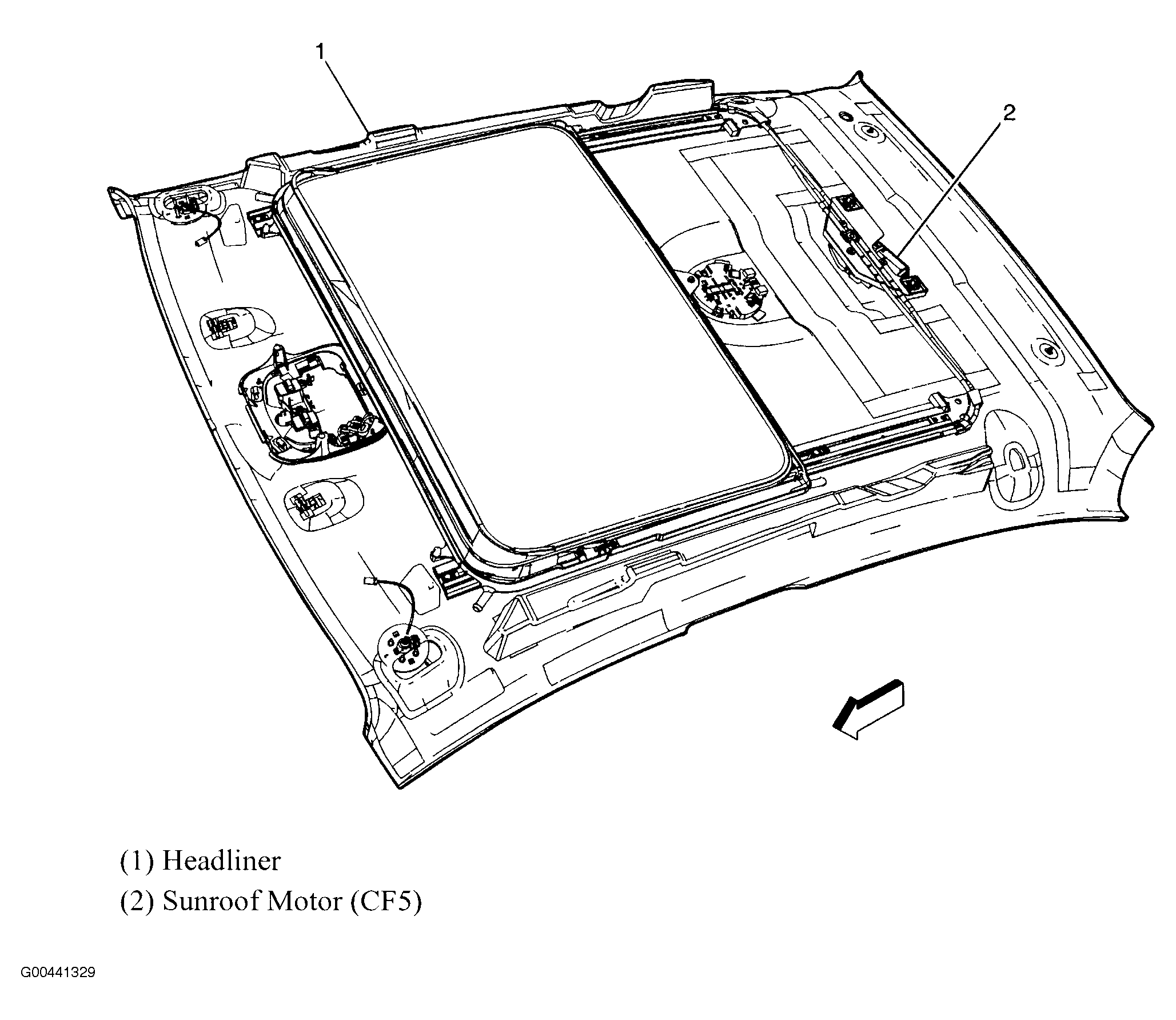

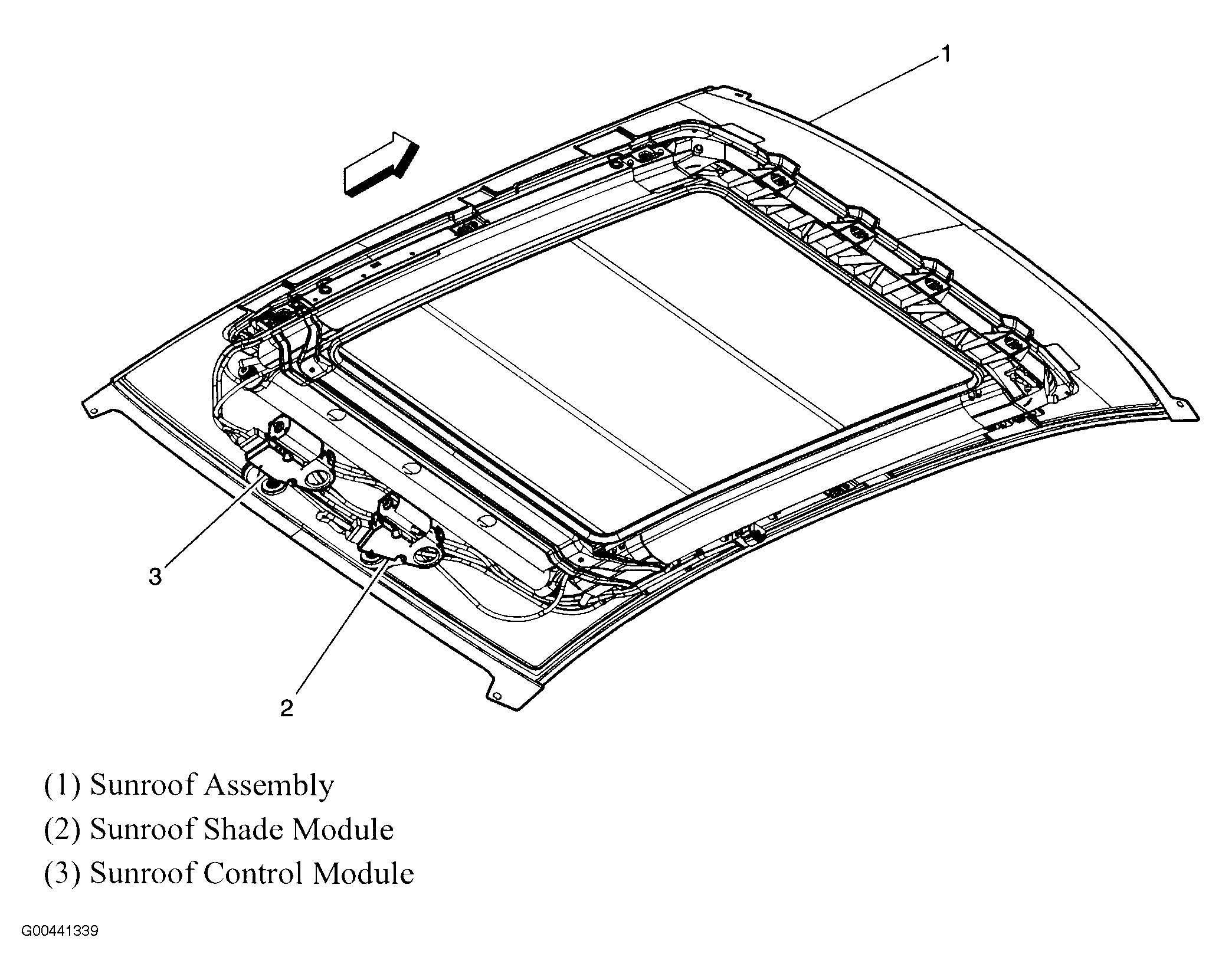

Fig 68: Sunroof Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 69: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 70: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

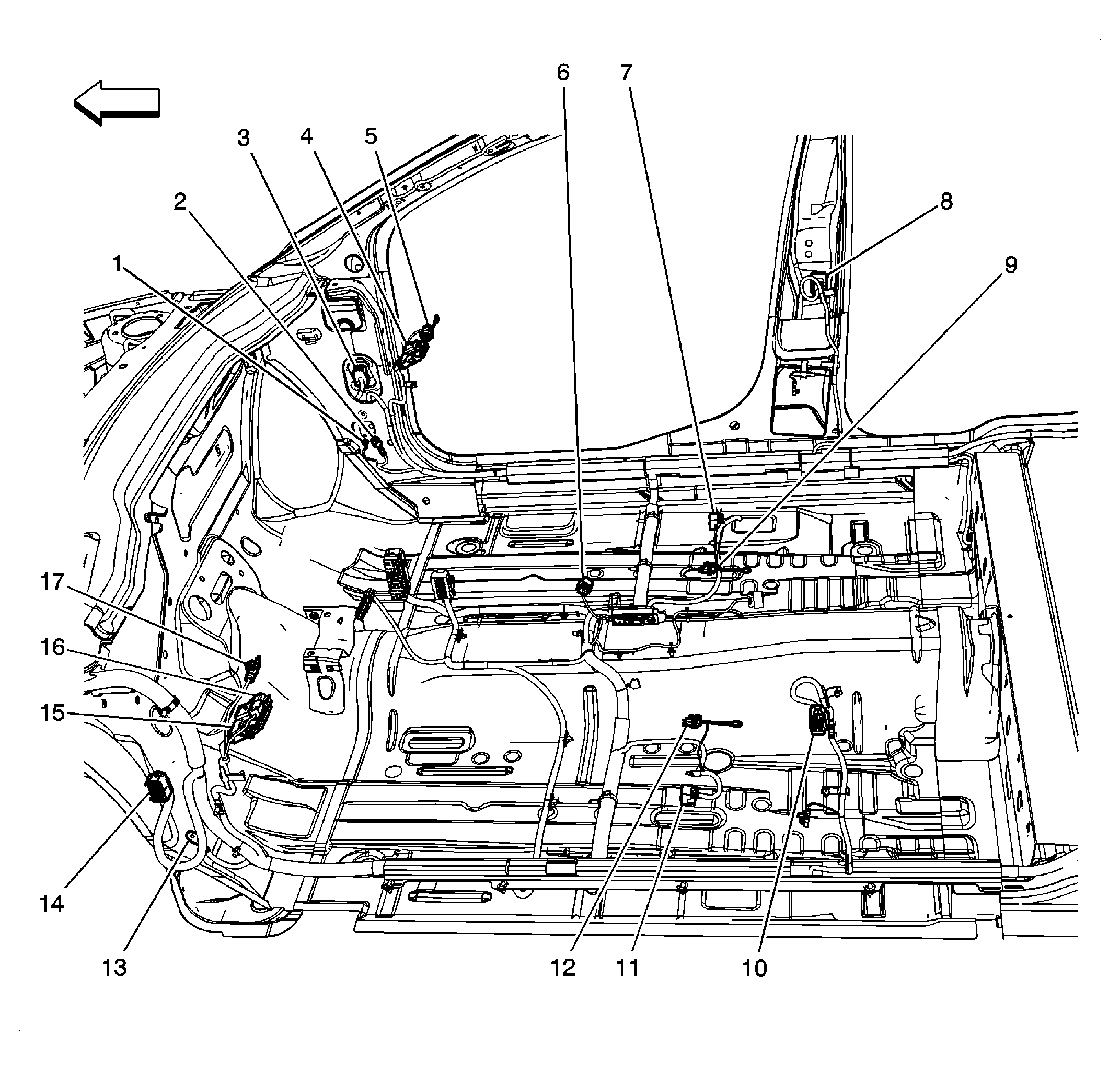

Fig 71: Passenger Compartment Overview (Front)
Courtesy of GENERAL MOTORS CORP.
Fig 72: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

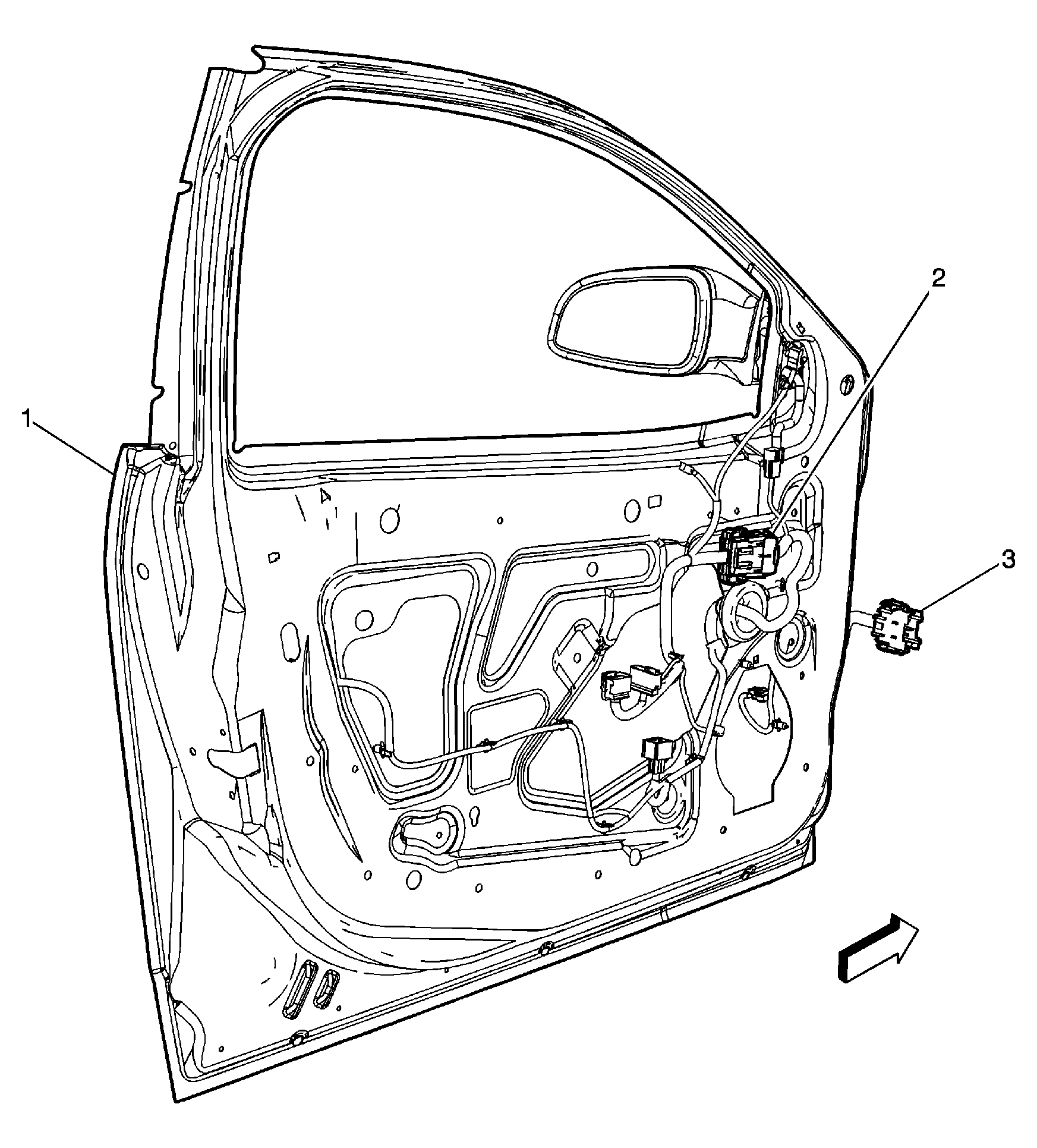

Fig 73: Driver's Door Harness
Courtesy of GENERAL MOTORS CORP.
Fig 74: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 75: Roof
Courtesy of GENERAL MOTORS CORP.

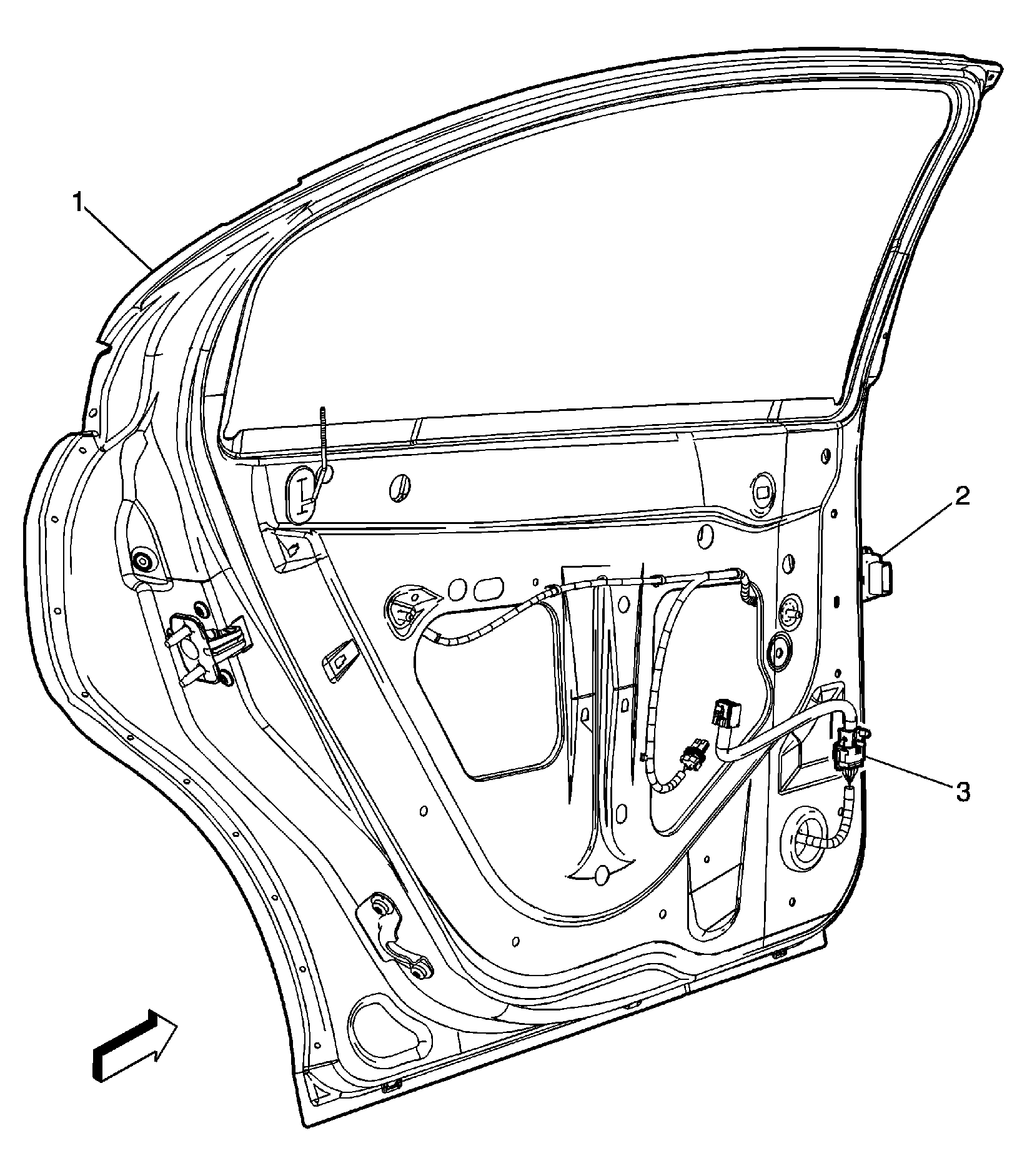

Fig 76: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

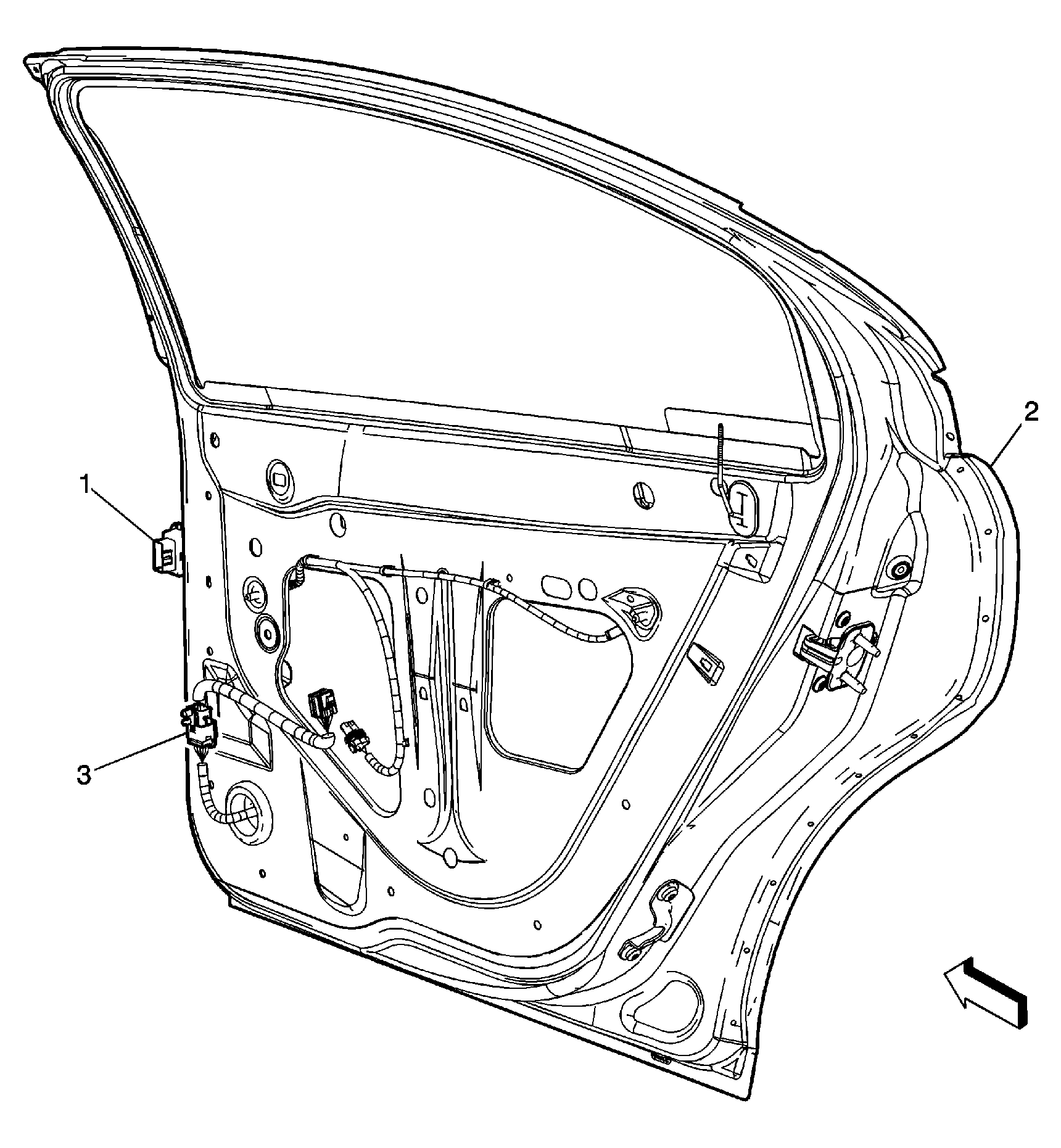

Fig 77: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 78: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

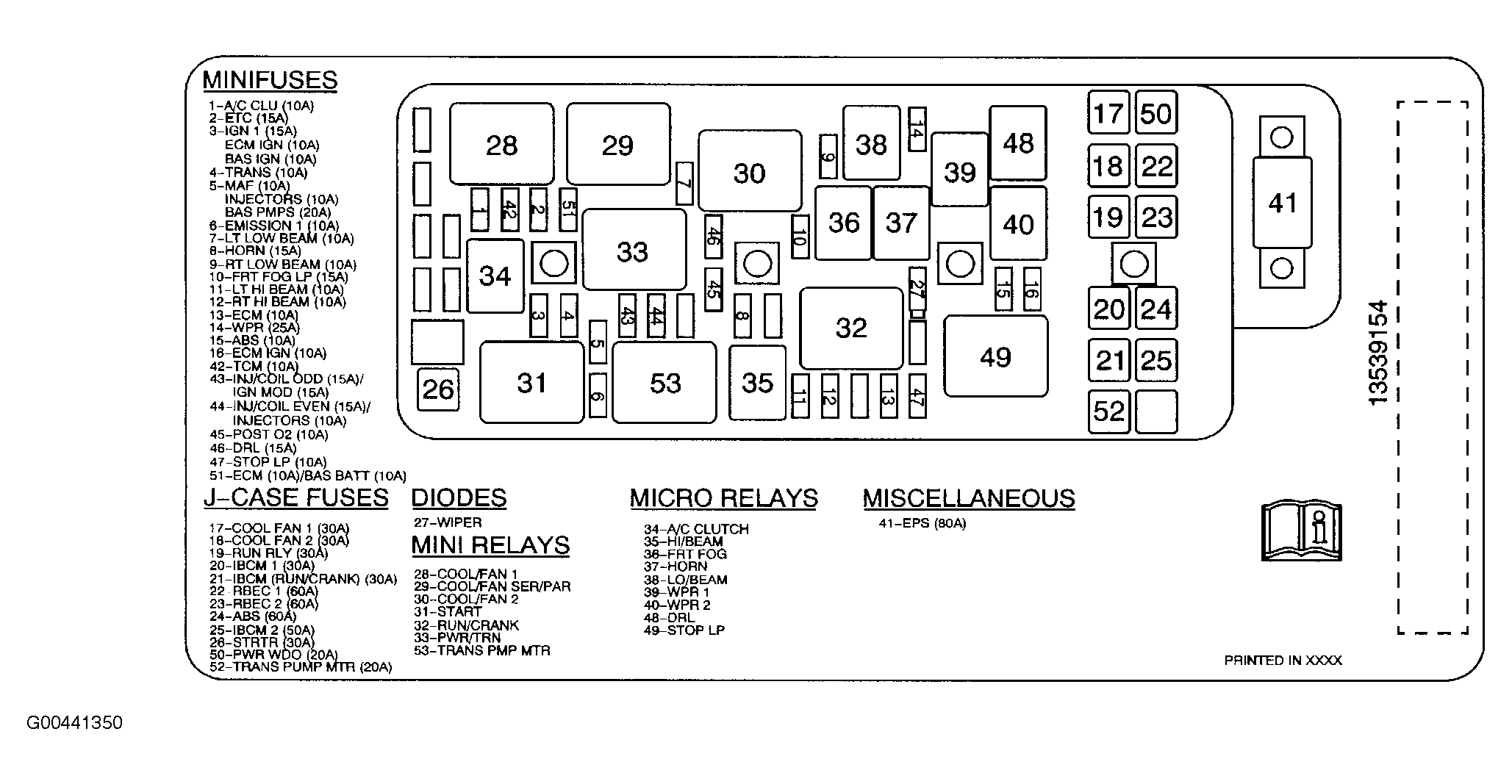

Fig 79: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 80: Body Control Module
Courtesy of GENERAL MOTORS CORP.
Fig 81: Top Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

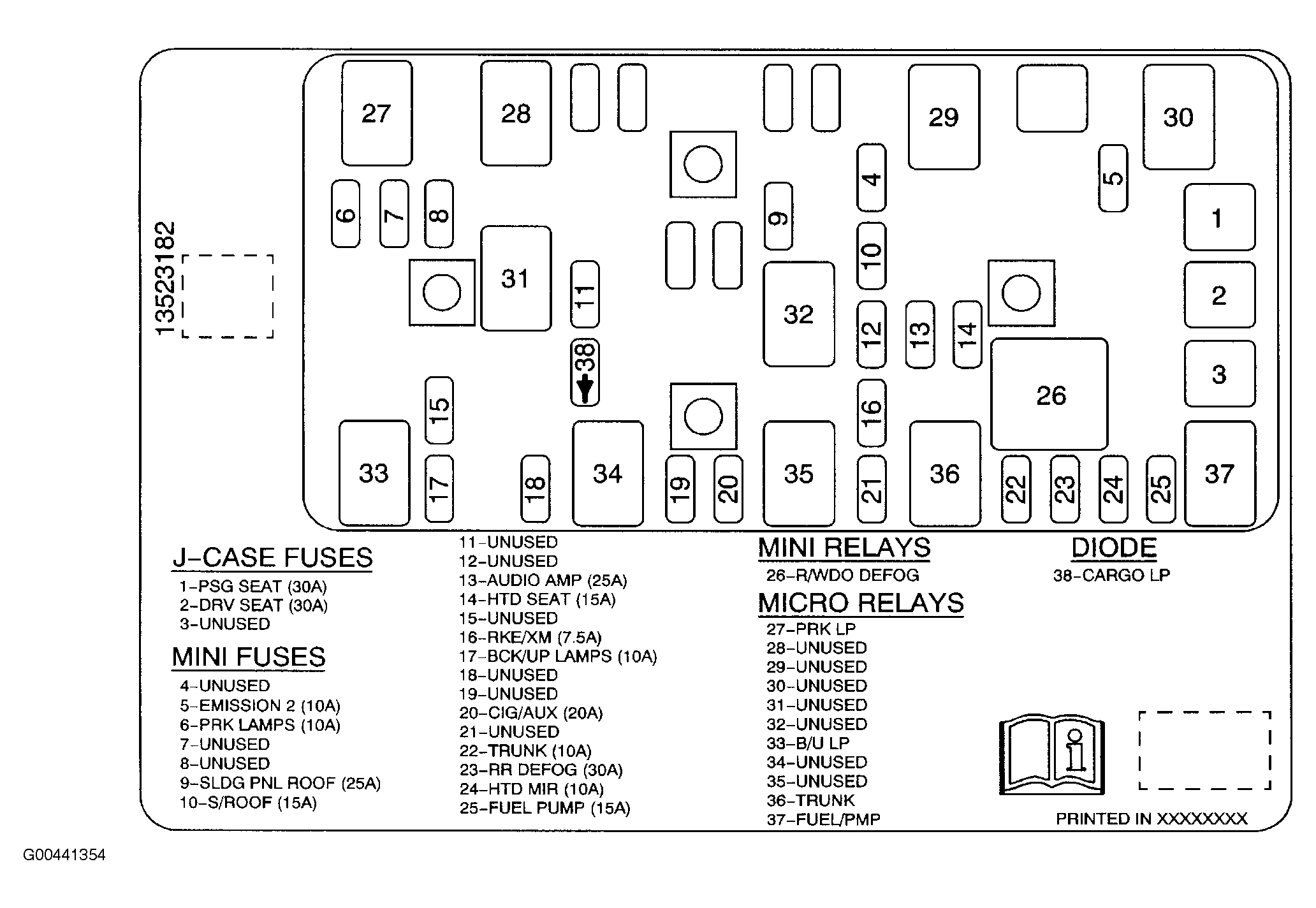

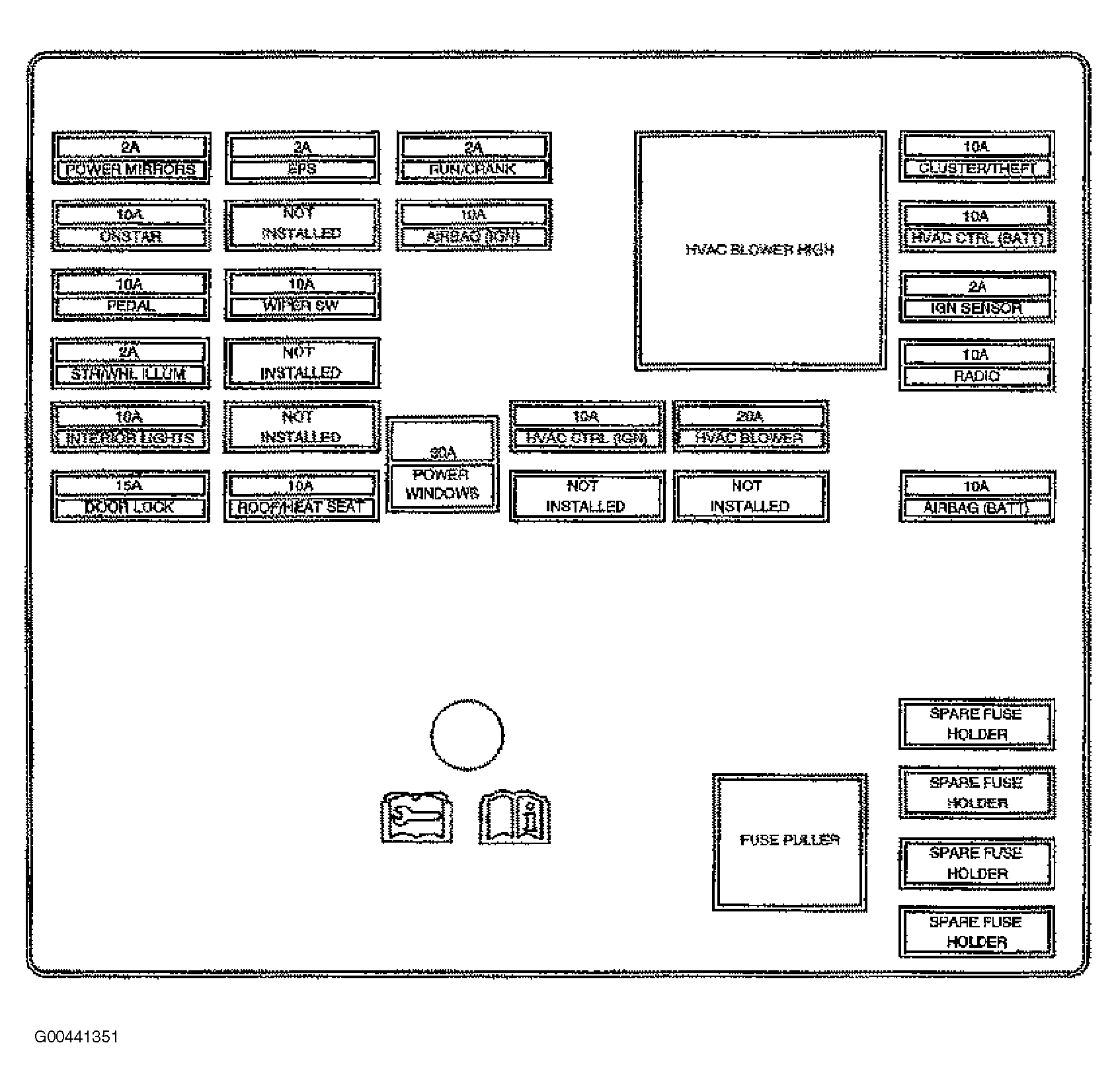

Fig 82: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

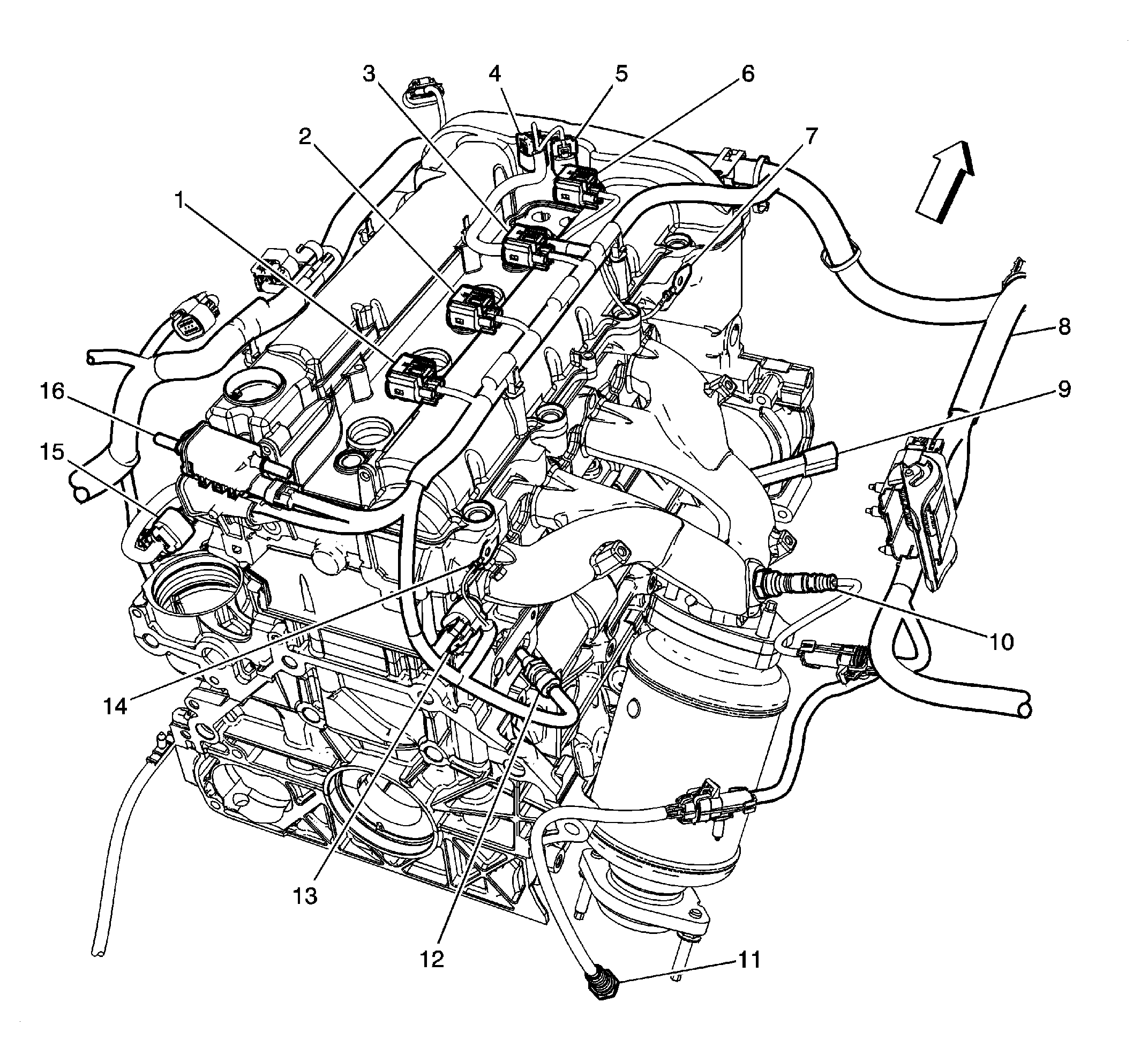

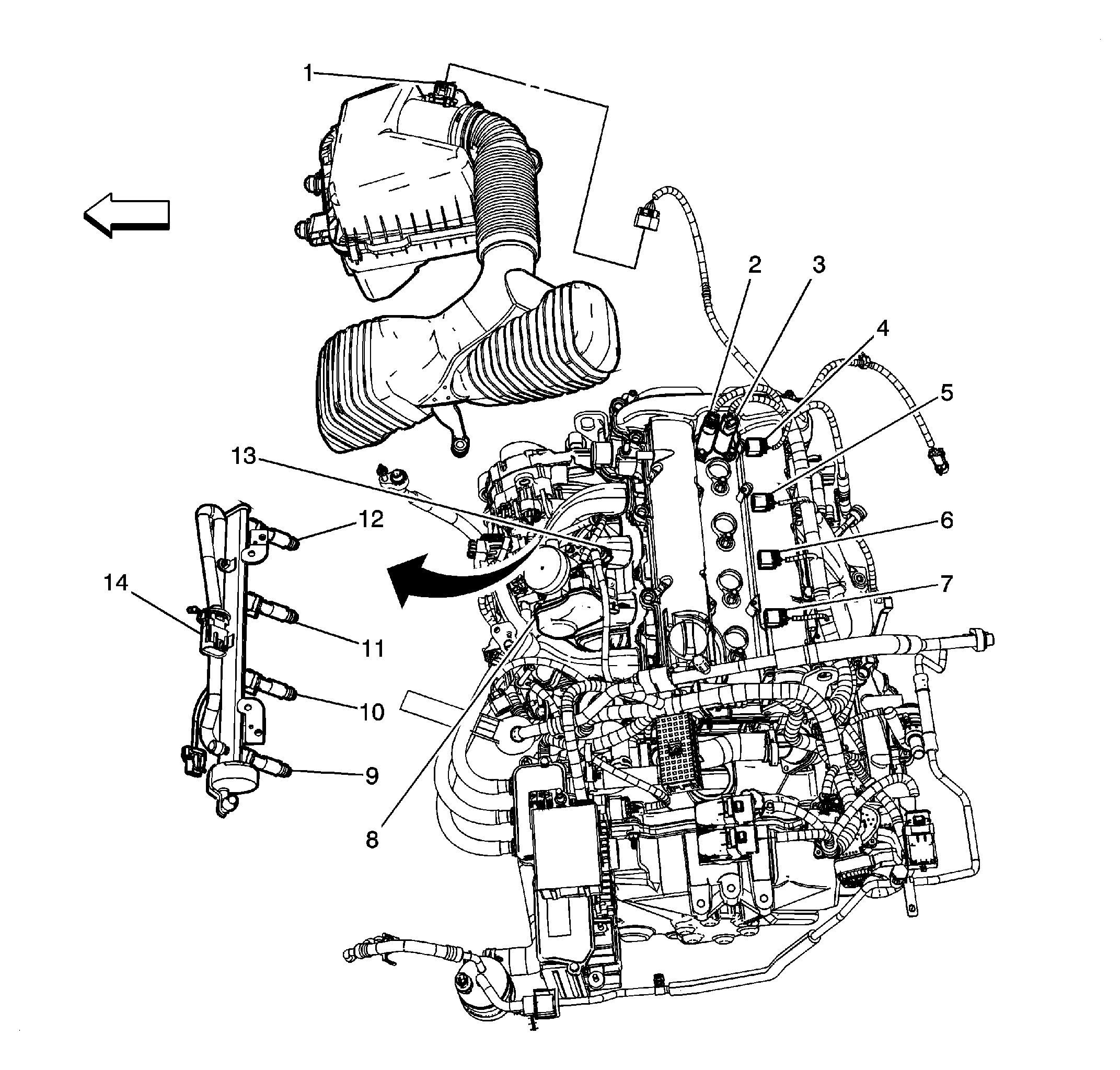

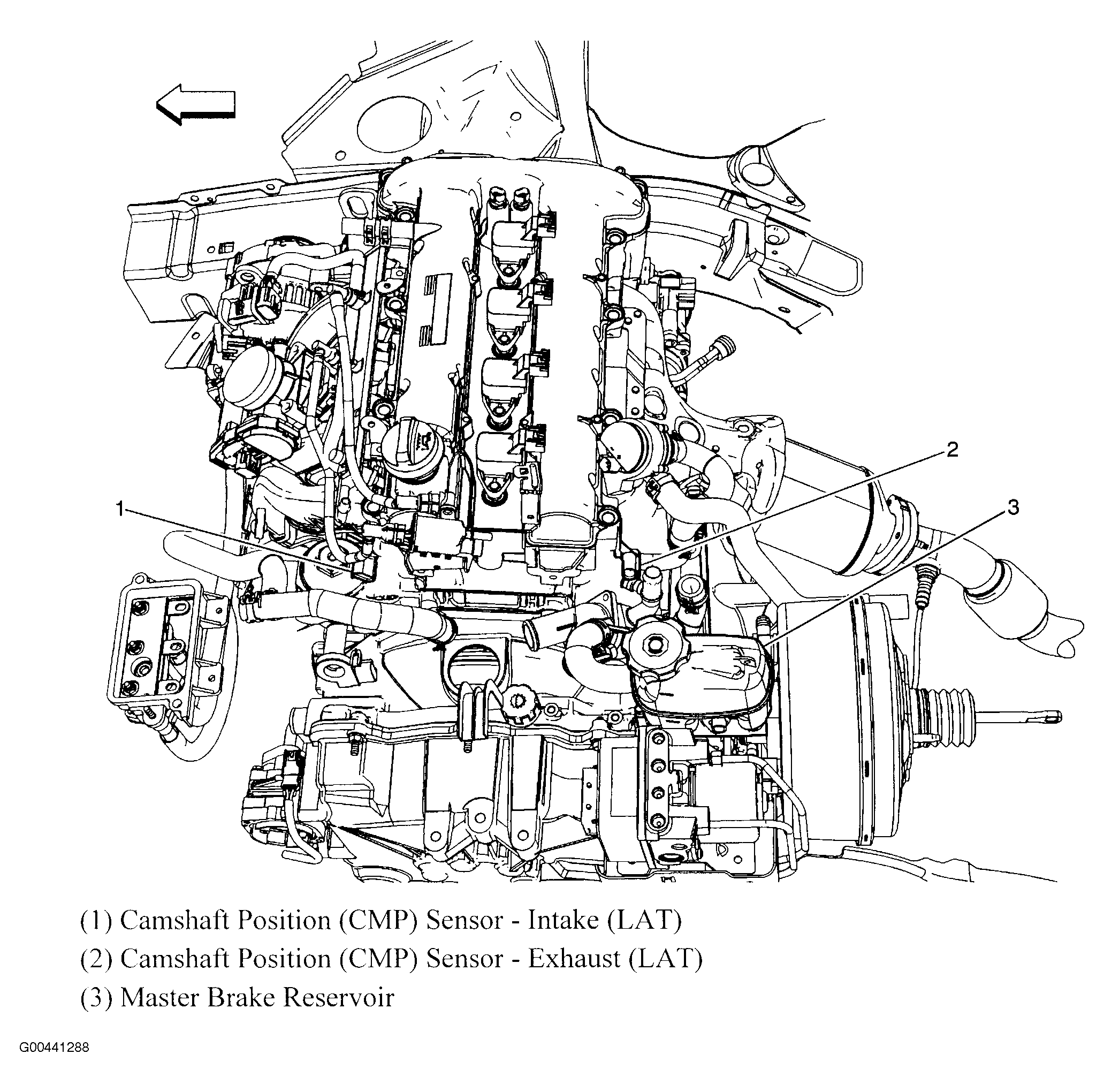

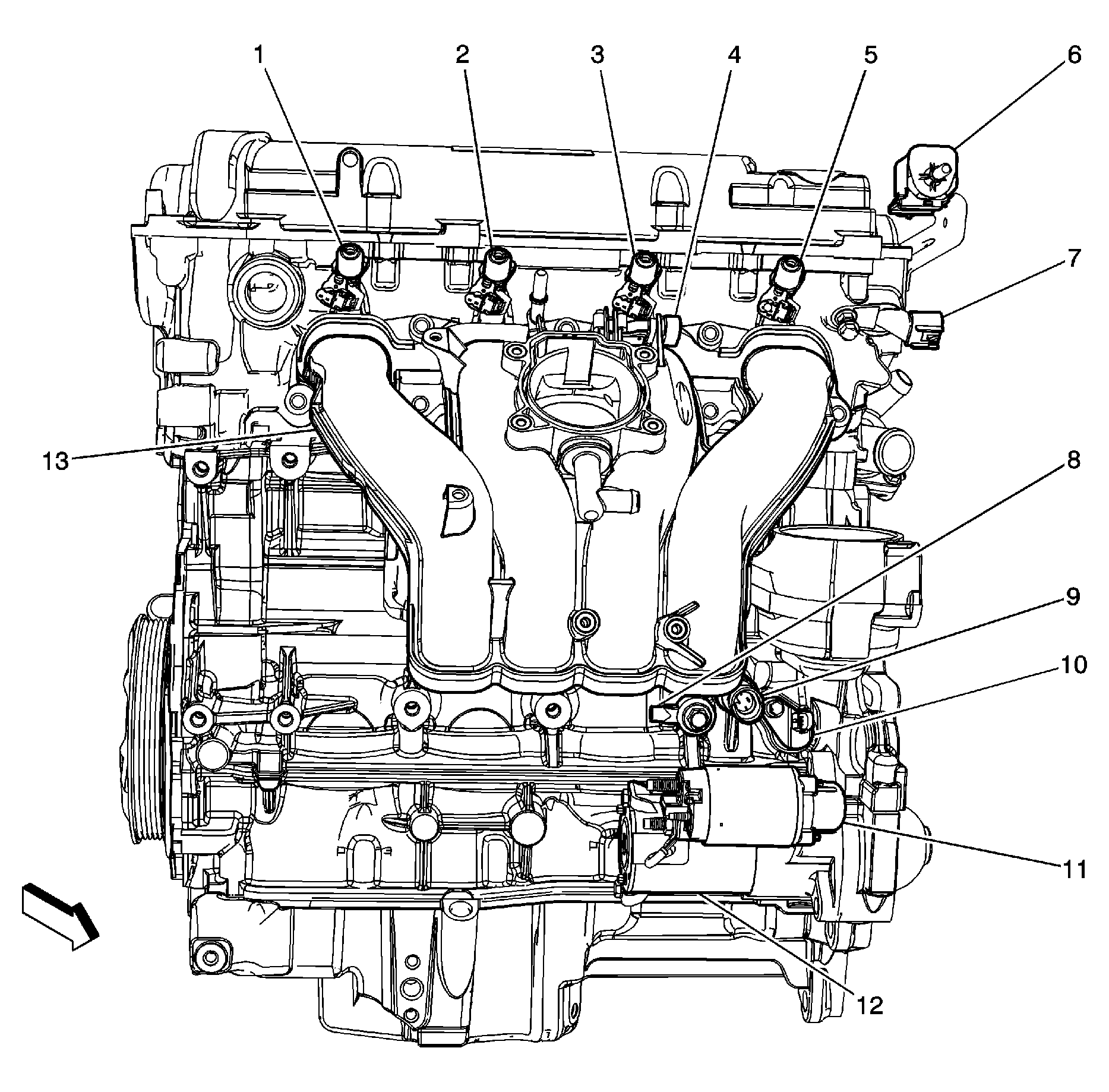

Fig 83: Top Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.

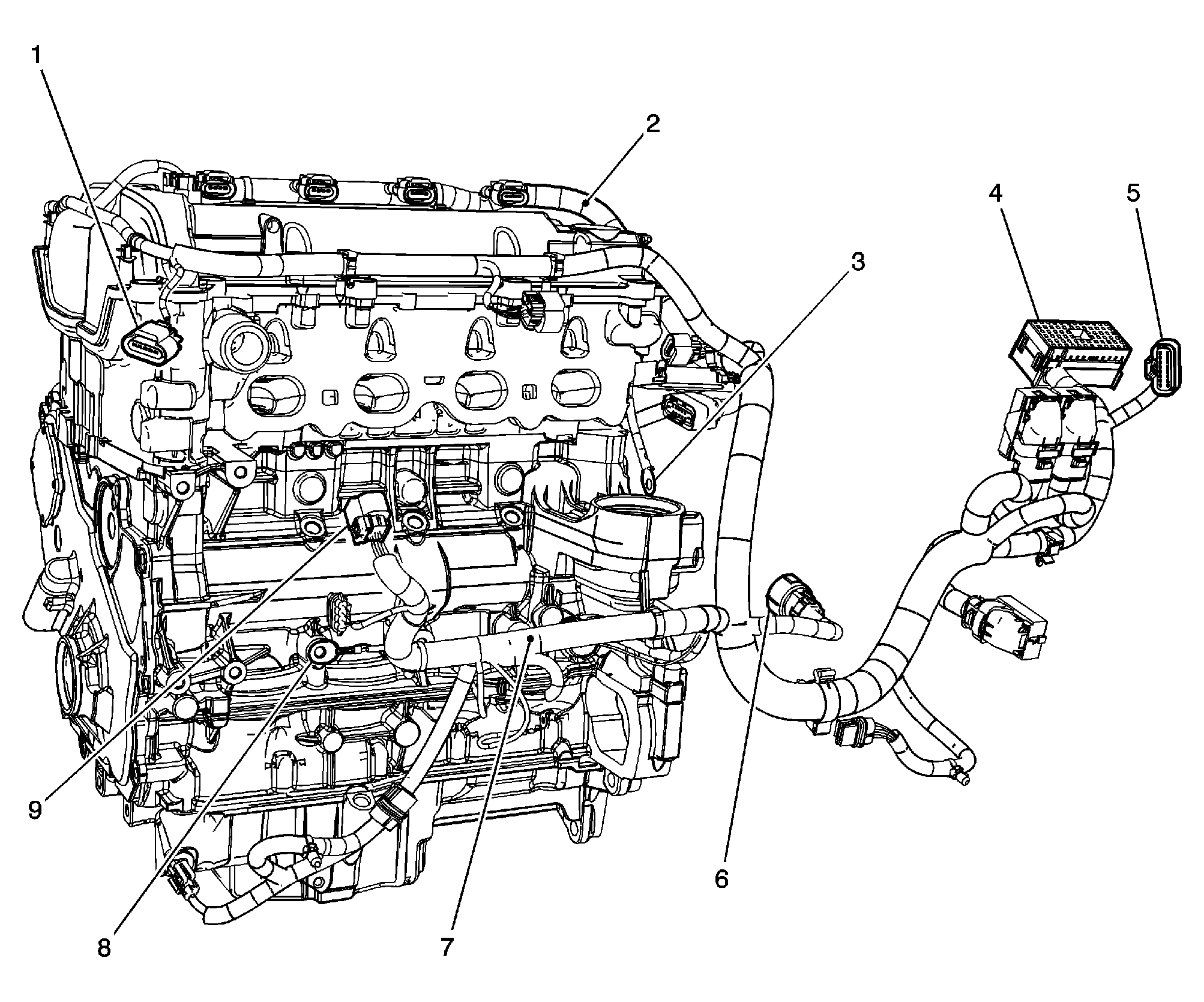

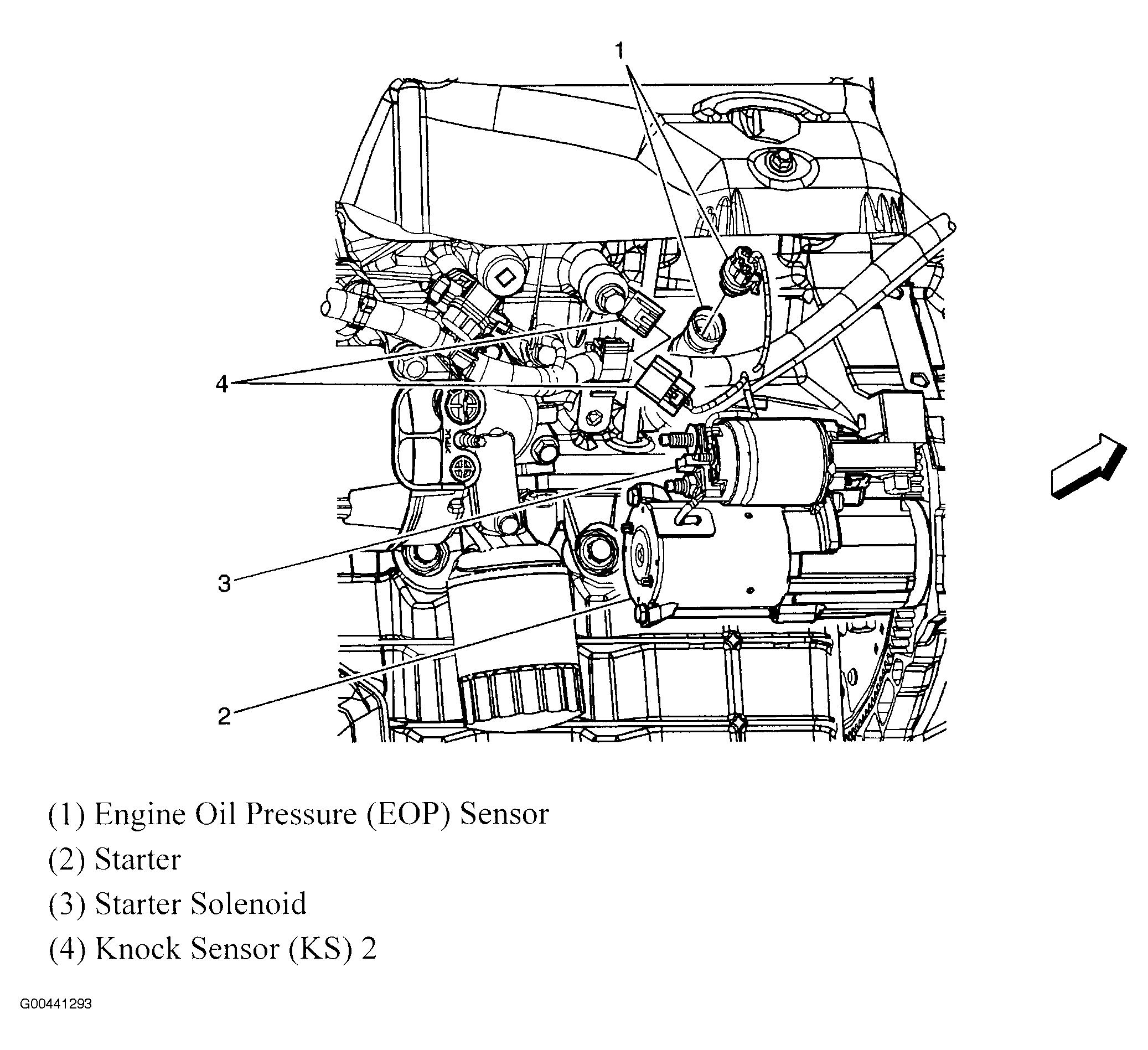

Fig 84: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 85: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.

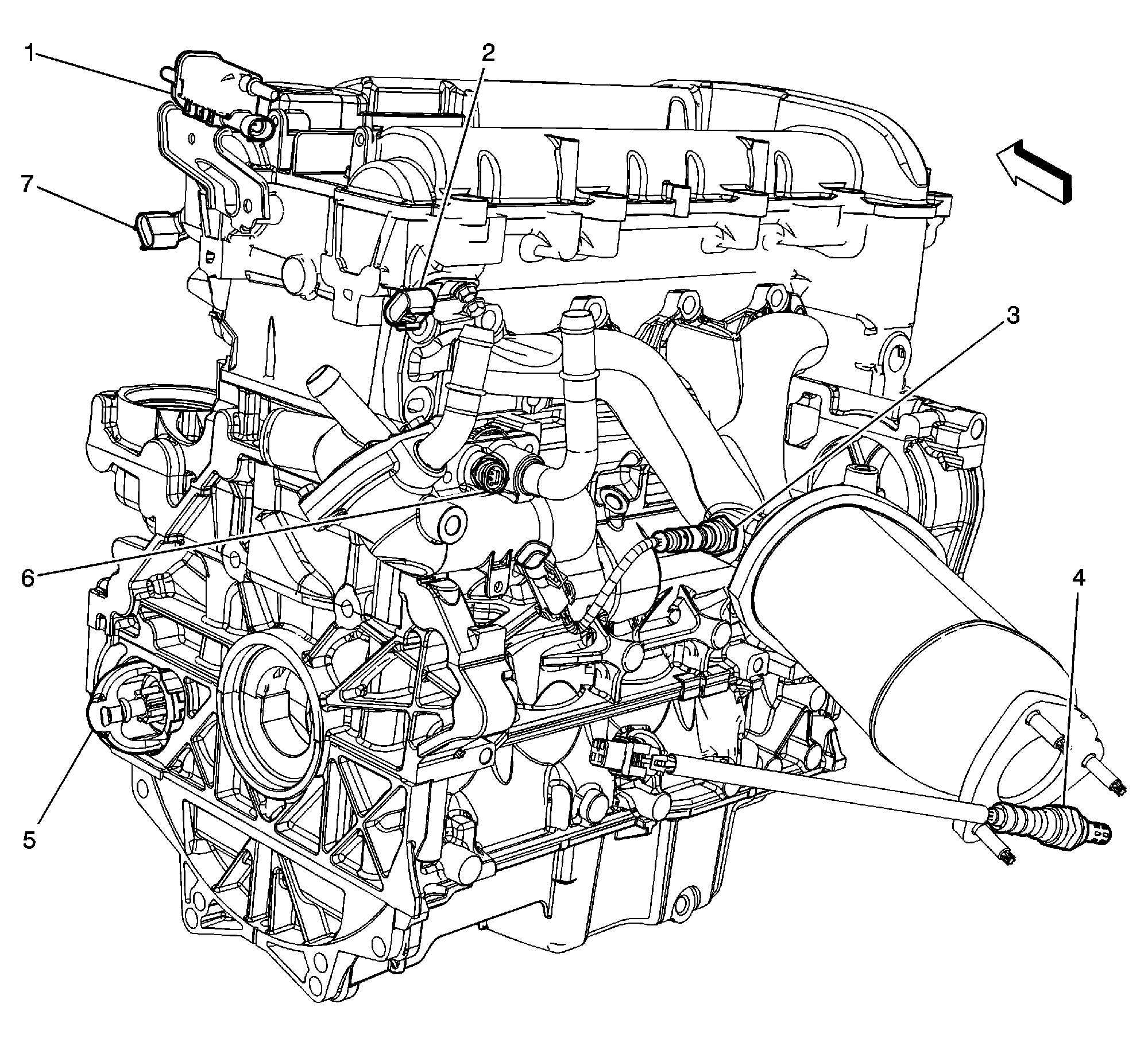

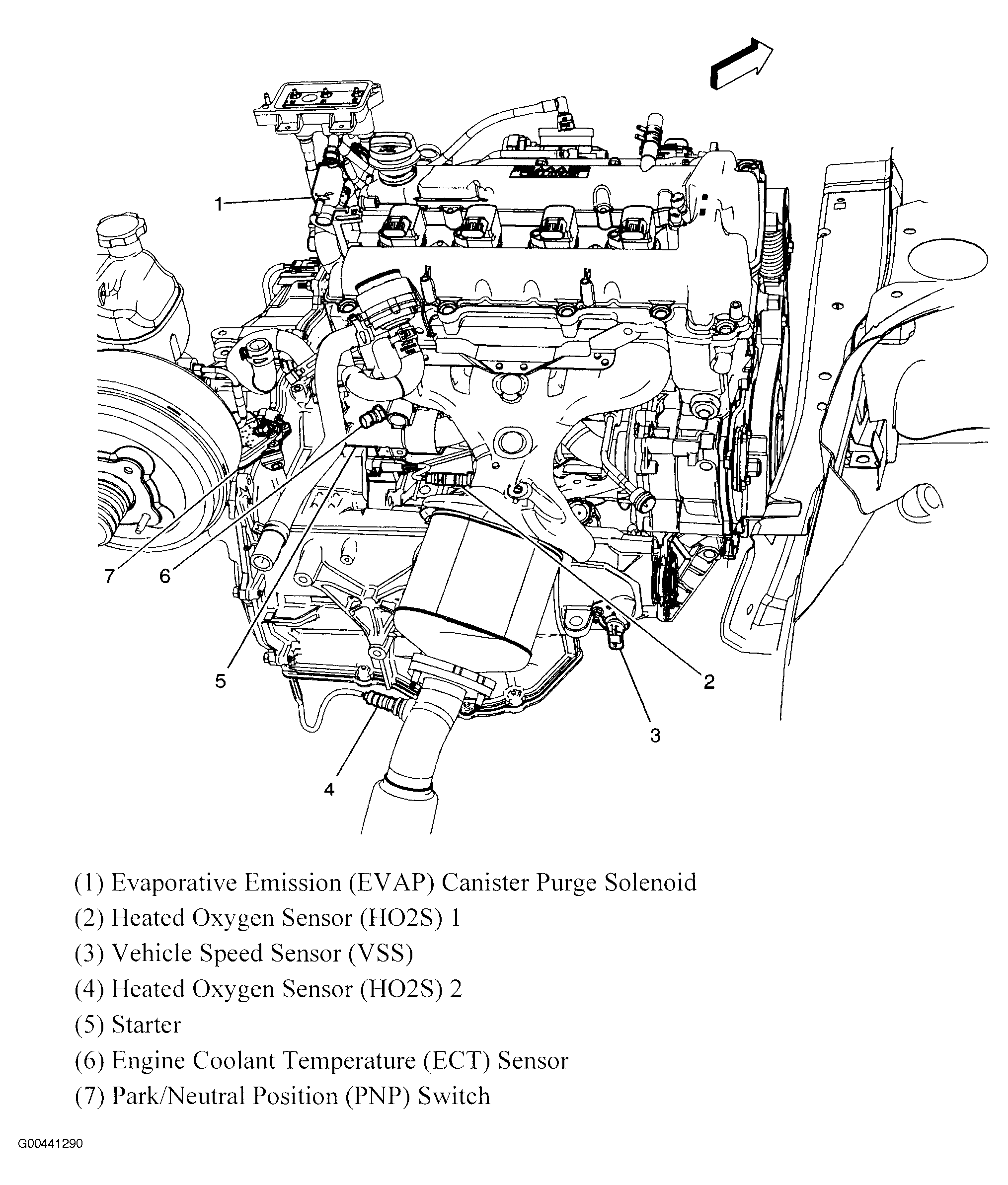

Fig 86: Rear Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.

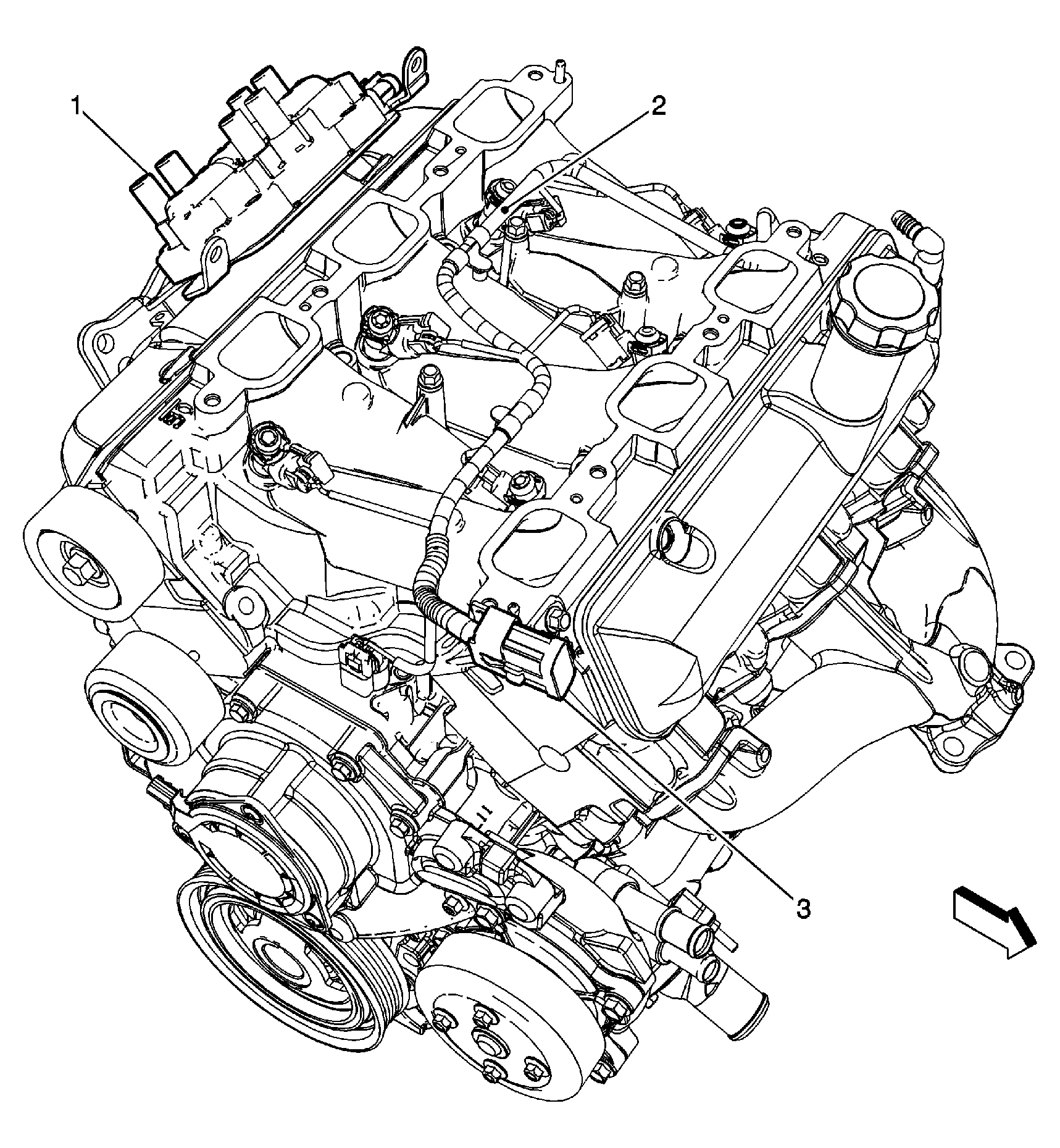

Fig 87: Top Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

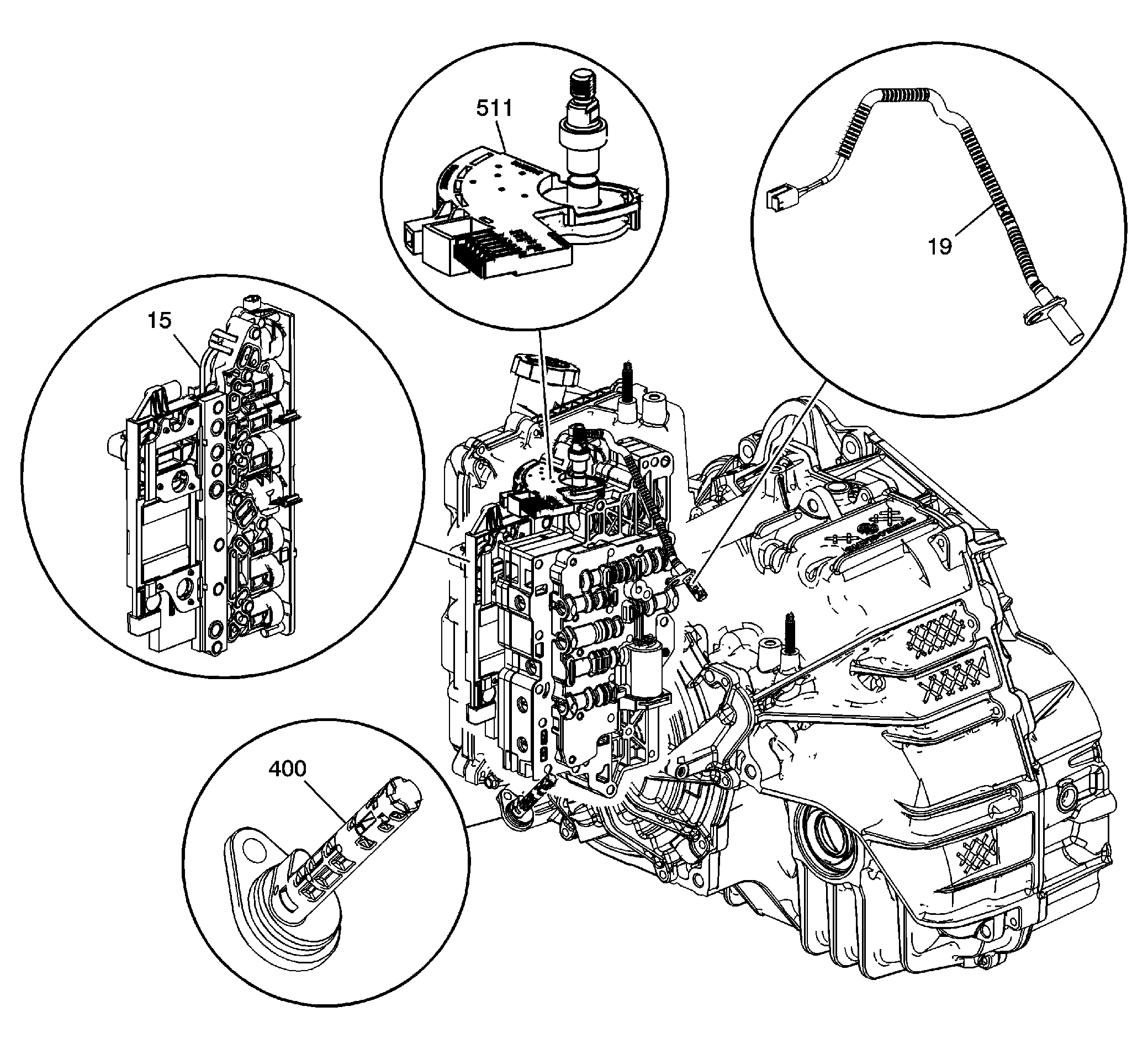

Fig 88: Automatic Transmission Electronic Components (6 Speed)
Courtesy of GENERAL MOTORS CORP.
Fig 89: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 90: Steering Column
Courtesy of GENERAL MOTORS CORP.

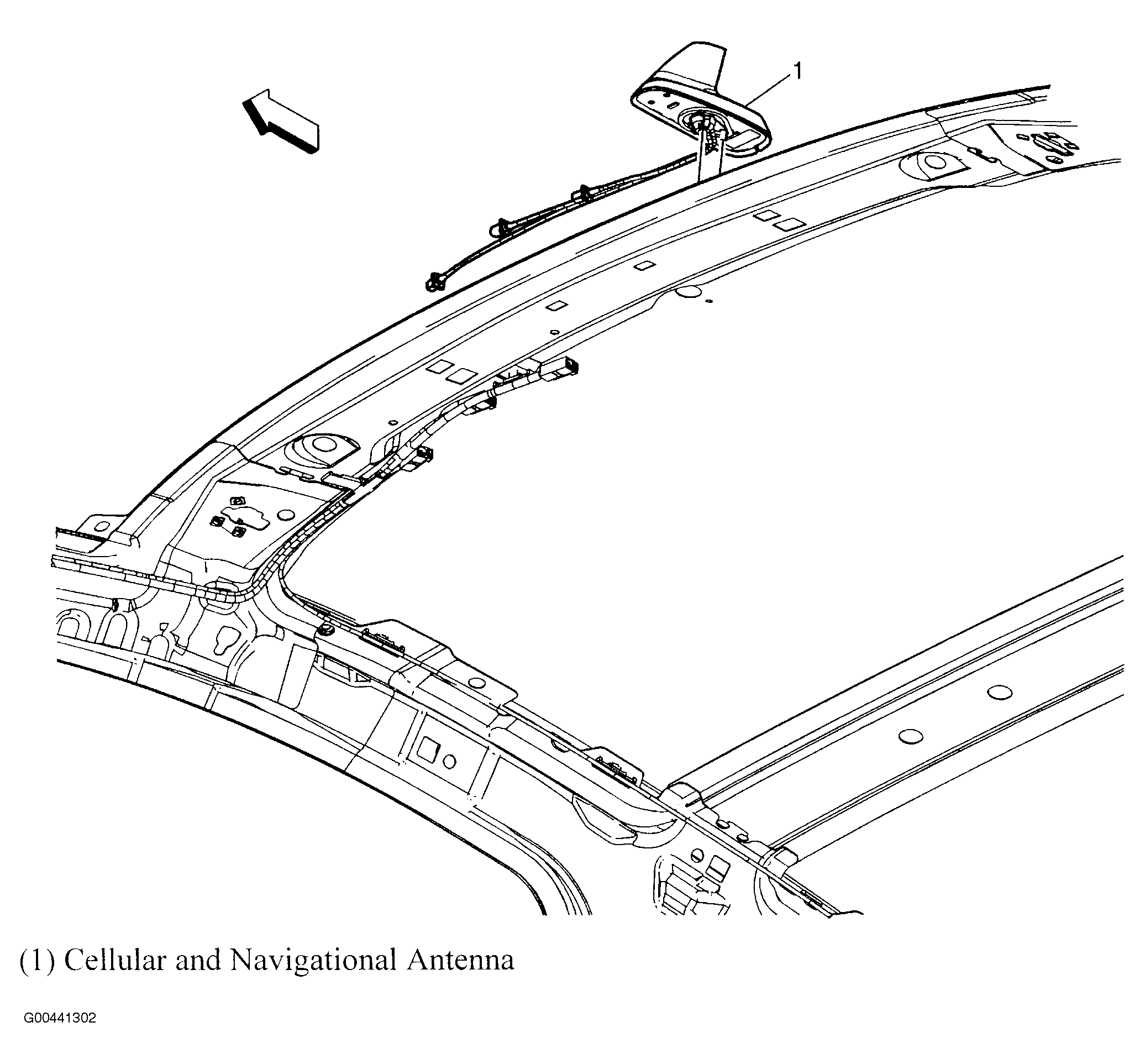

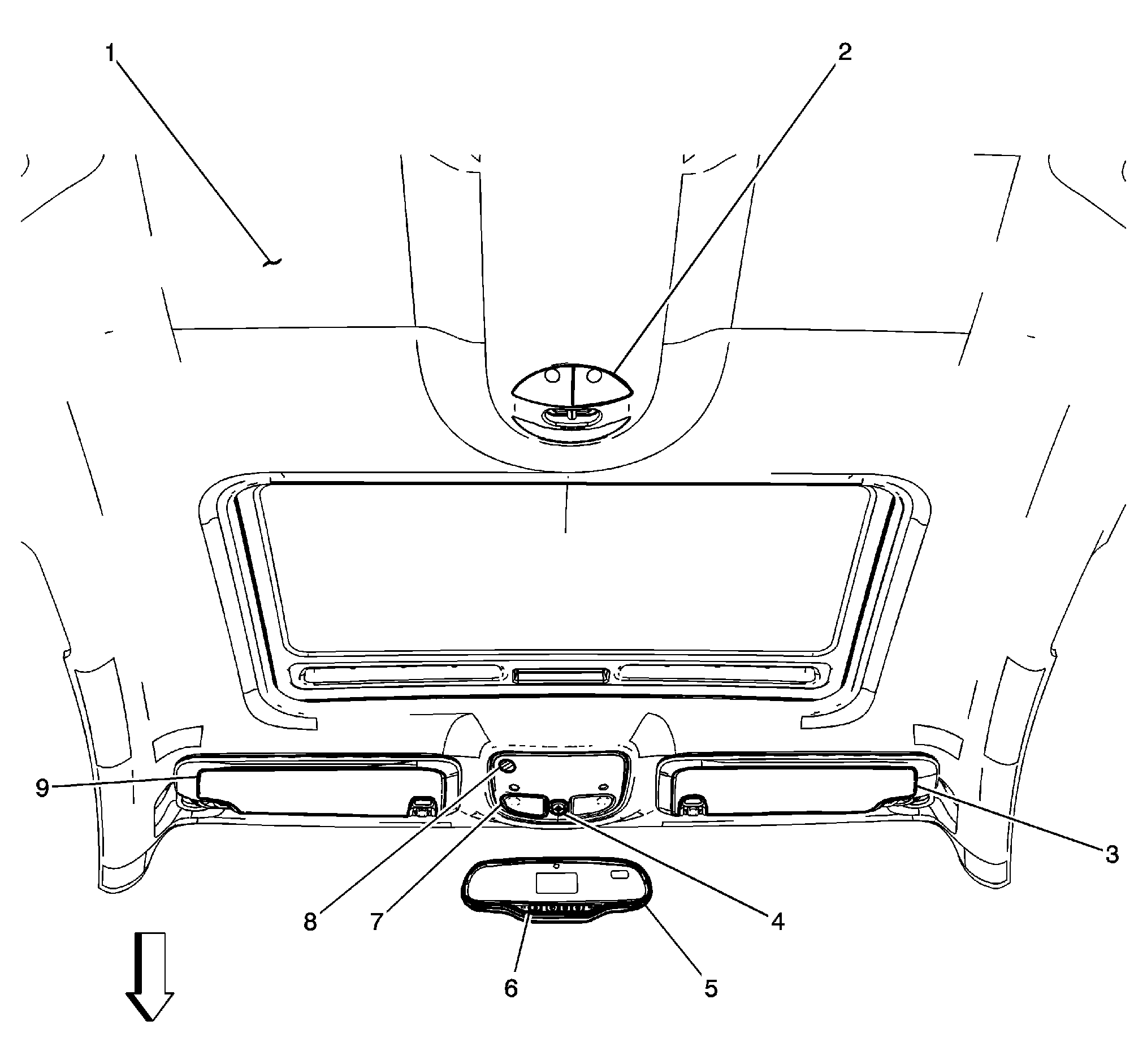

Fig 91: Front Center Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 92: Top Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
