Radio/Navigation System Schematics

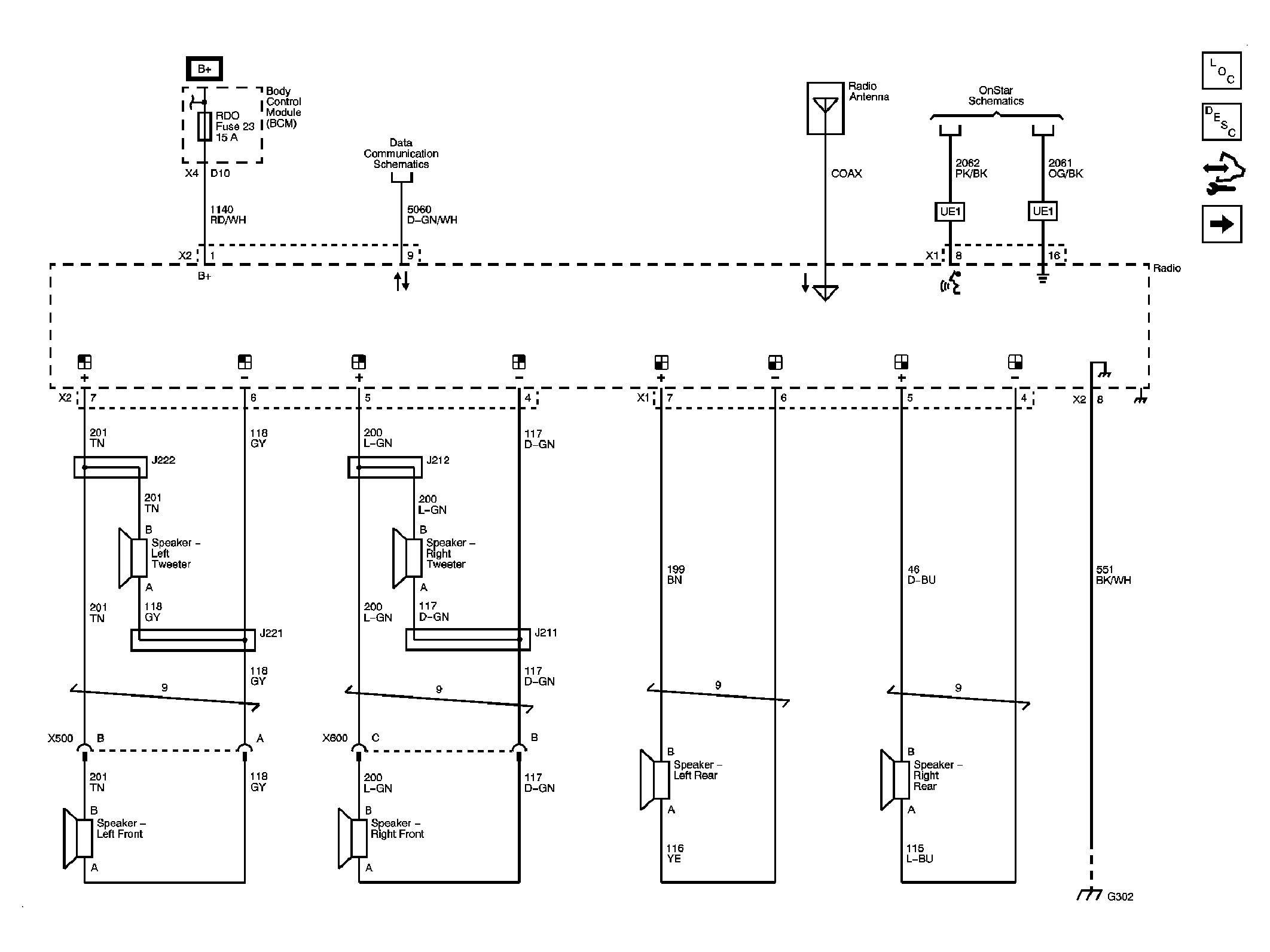

Fig 1: Radio, Speakers (UW5)

Courtesy of GENERAL MOTORS CORP.

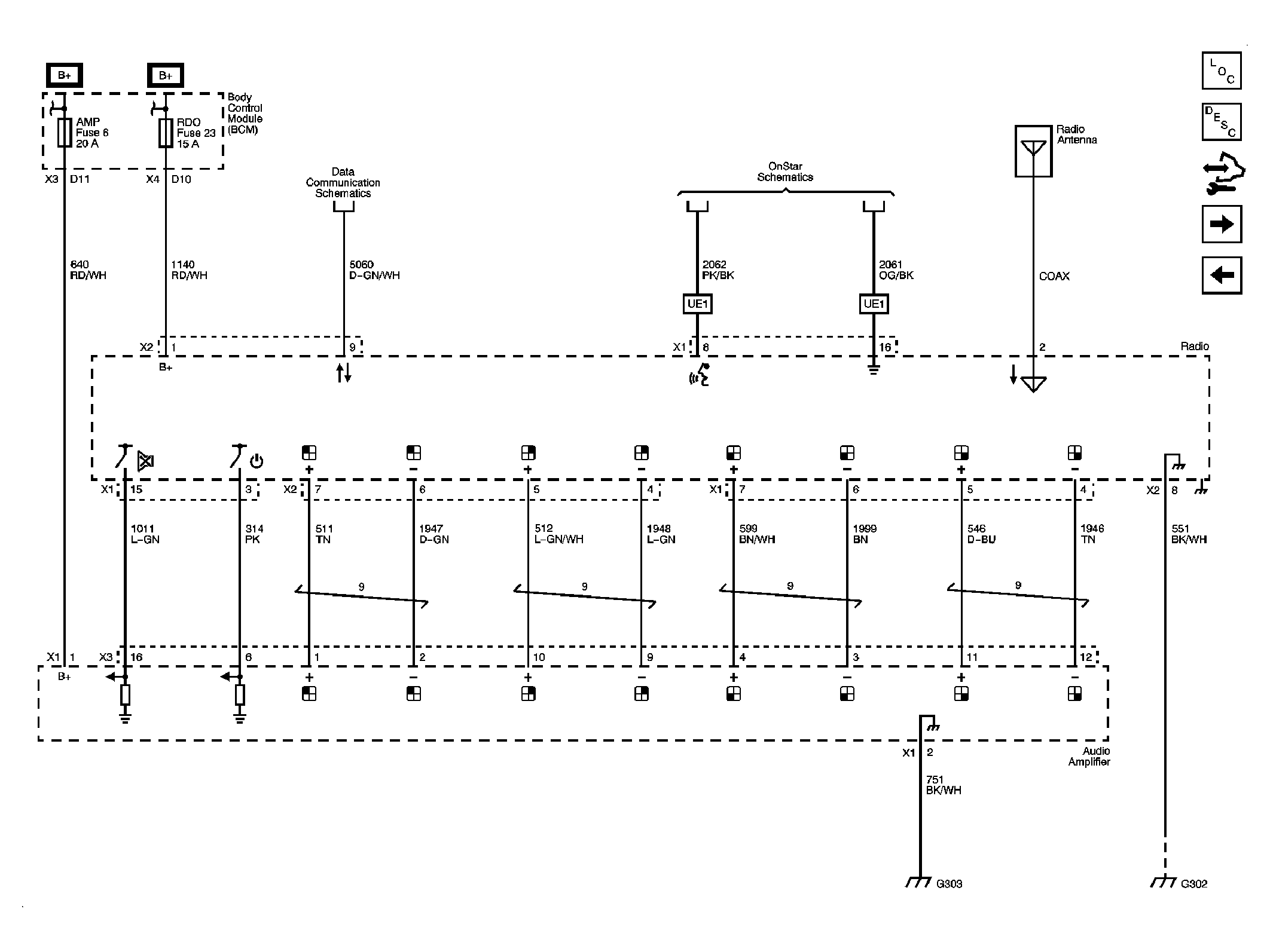

Fig 2: Amplifier Power, Speakers (UQ3) (1 of 2)

Courtesy of GENERAL MOTORS CORP.

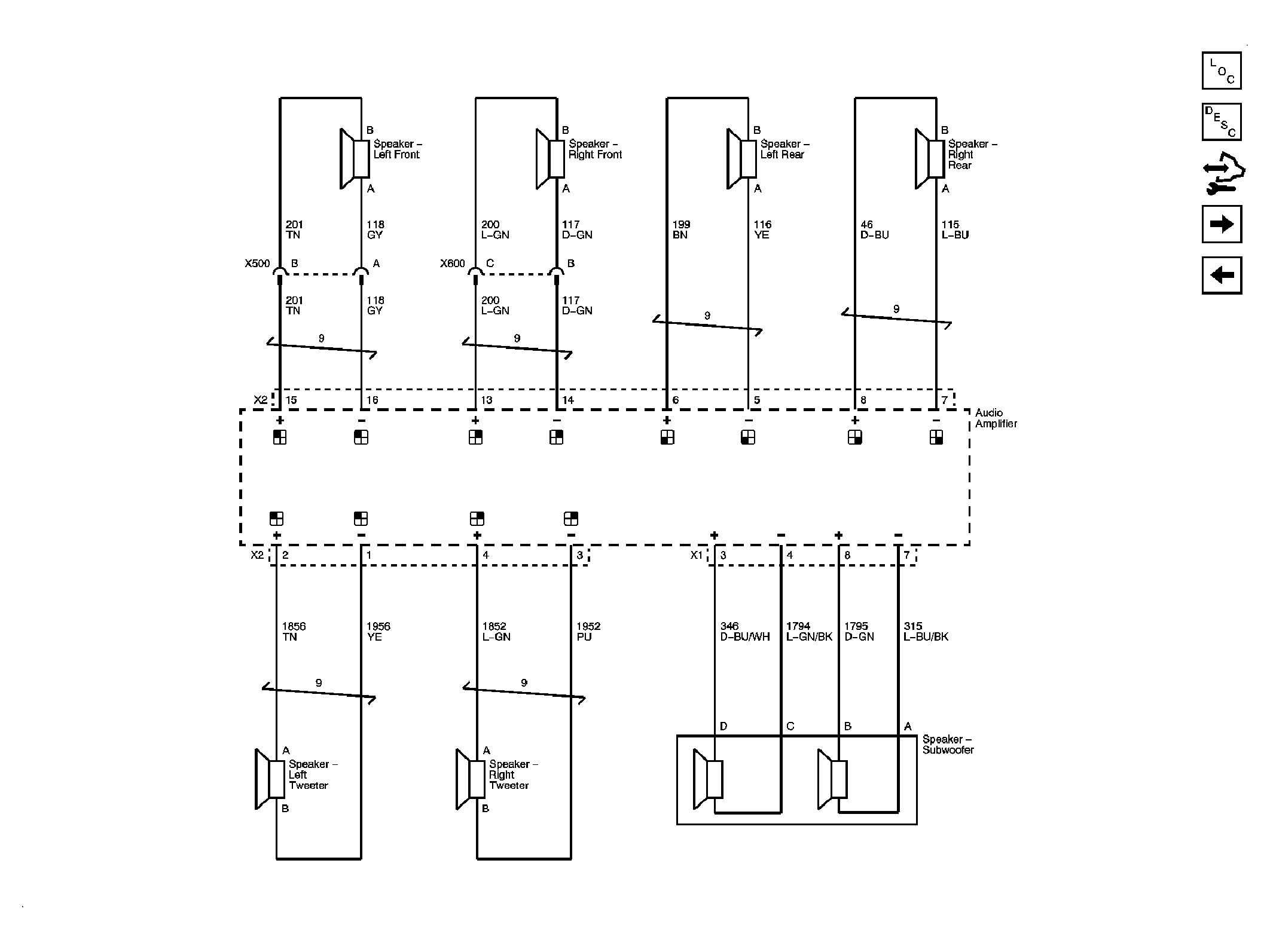

Fig 3: Amplifier Power, Speakers (UQ3) (2 of 2)

Courtesy of GENERAL MOTORS CORP.

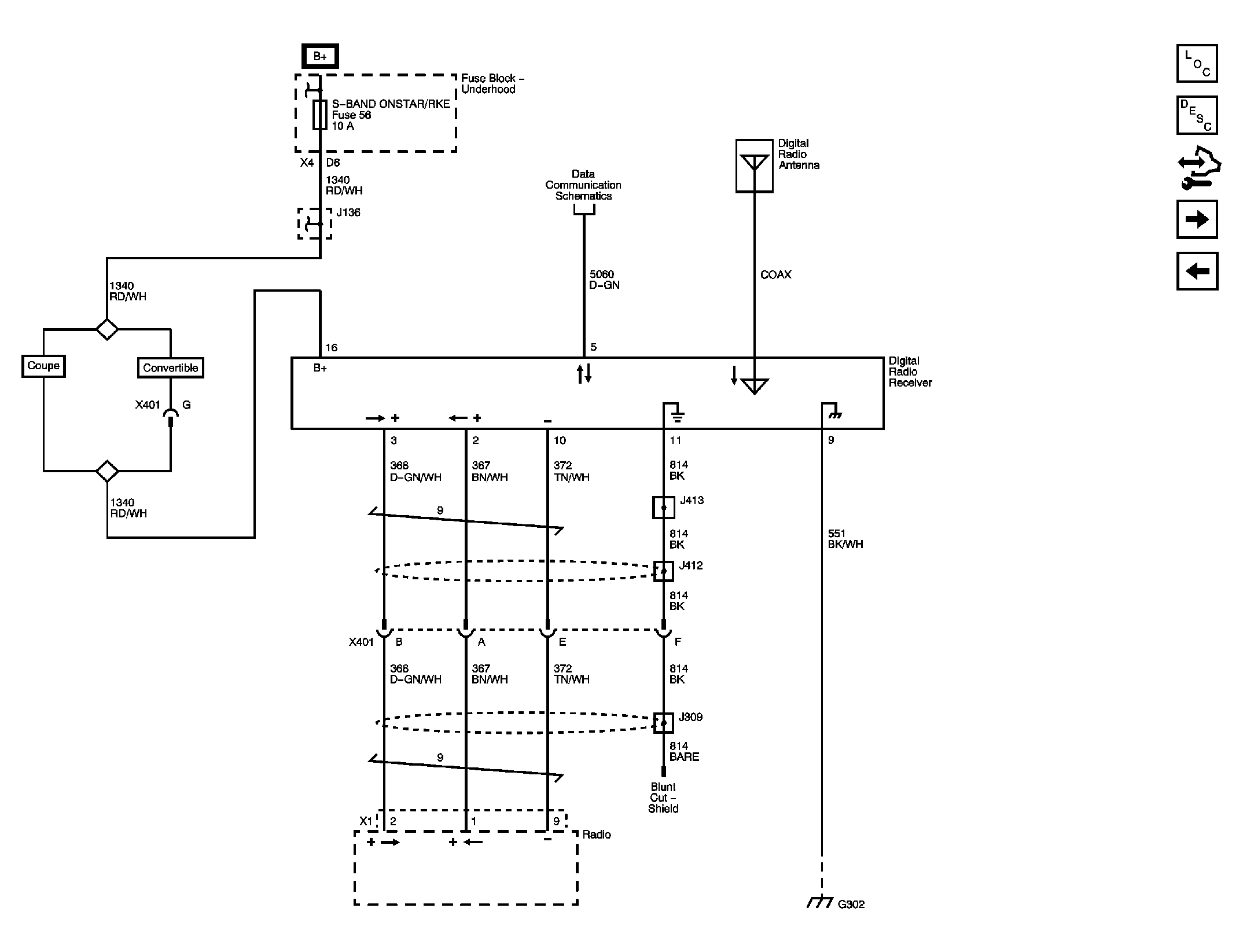

Fig 4: Digital Radio Receiver (U2K)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Redundant Radio Controls

Courtesy of GENERAL MOTORS CORP.
