Steering Wheel Replacement

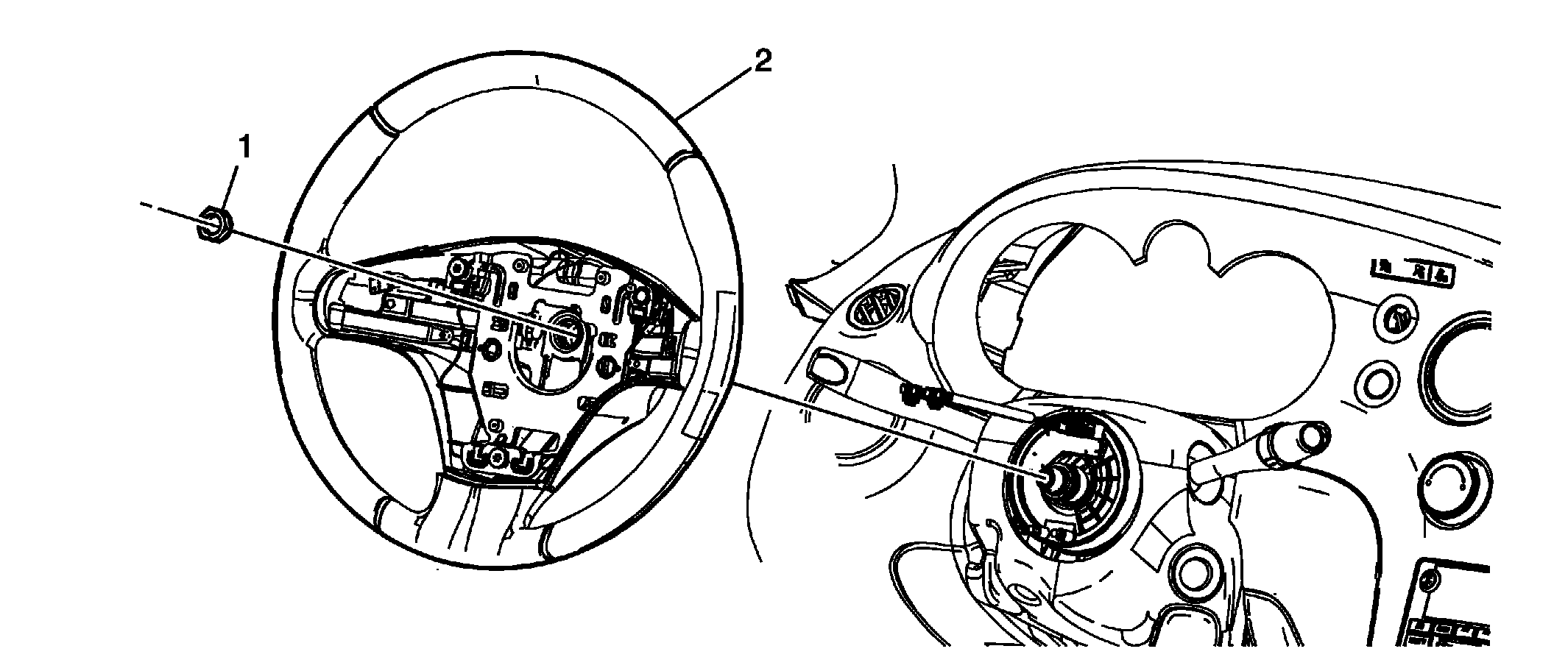

Fig 1: Identifying Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Nut CAUTION: Refer to Fastener Caution . Tighten: 37 N.m (27 lb ft)
2	Steering Wheel Procedure Disconnect the electrical connectors as needed. Remove the steering wheel using puller J 1859-A with puller legs J 36541-A . Make an alignment mark to note the relationship between the steering wheel and the steering shaft. The marks will be needed to align the wheel during installation. Special Tools J 1859-A Steering Wheel Puller J 36541-A Steering Wheel Puller Legs

Callout

Component Name

Preliminary Procedure:
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .

Steering Wheel Nut

CAUTION: Refer to Fastener Caution .

Tighten: 37 N.m (27 lb ft)

Steering Wheel

Procedure

Disconnect the electrical connectors as needed.
Remove the steering wheel using puller J 1859-A with puller legs J 36541-A .
Make an alignment mark to note the relationship between the steering wheel and the steering shaft. The marks will be needed to align the wheel during installation.

Special Tools
