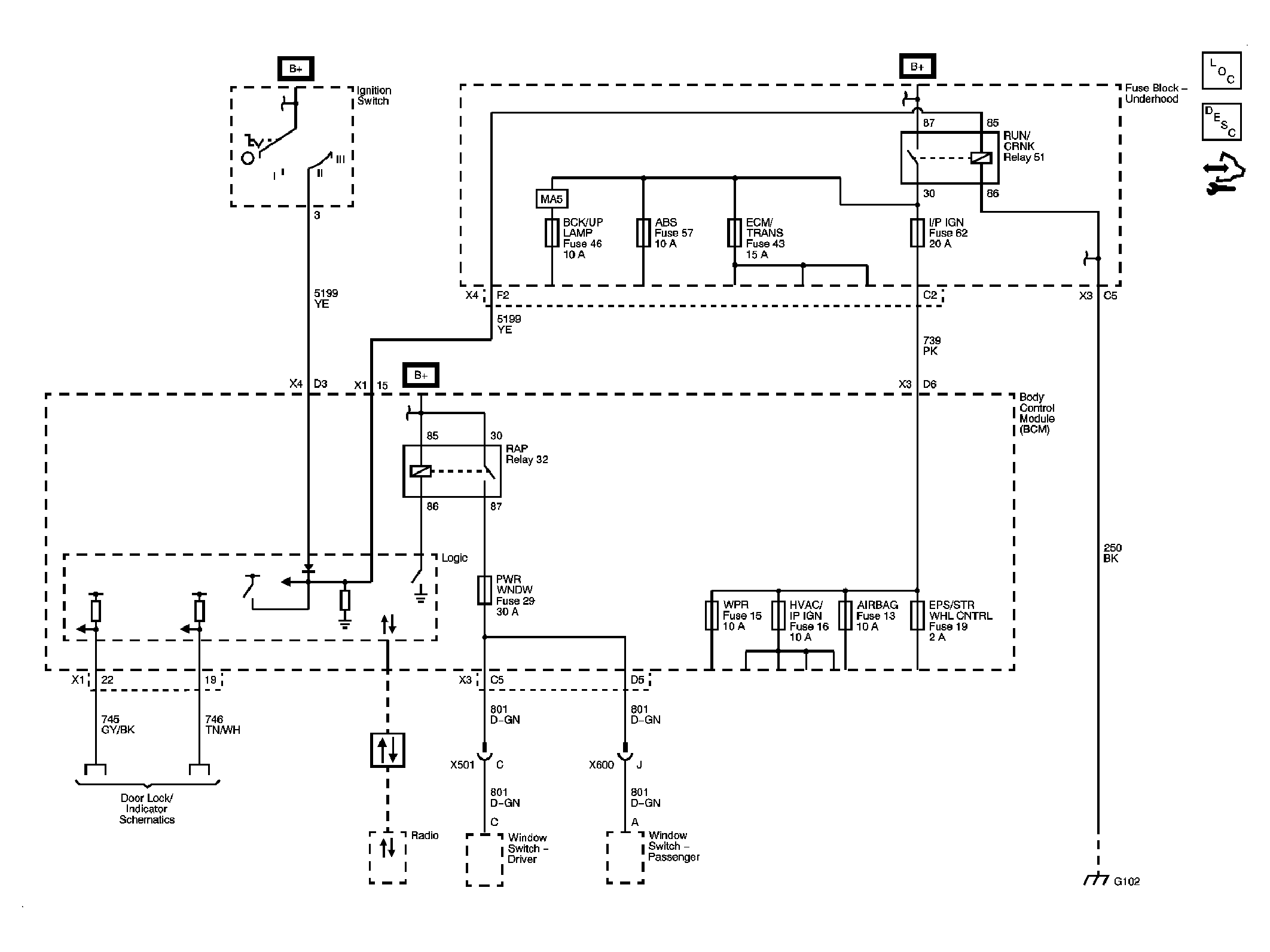

Home › Saturn › 2009 › Sky Red Line, Automatic › Repair and Diagnosis › Body & Frame › Ignition Switch/Steering Lock › Wiring Systems And Power Management - Introduction › Schematic and Routing Diagrams › Power Moding Schematics
