Inside Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

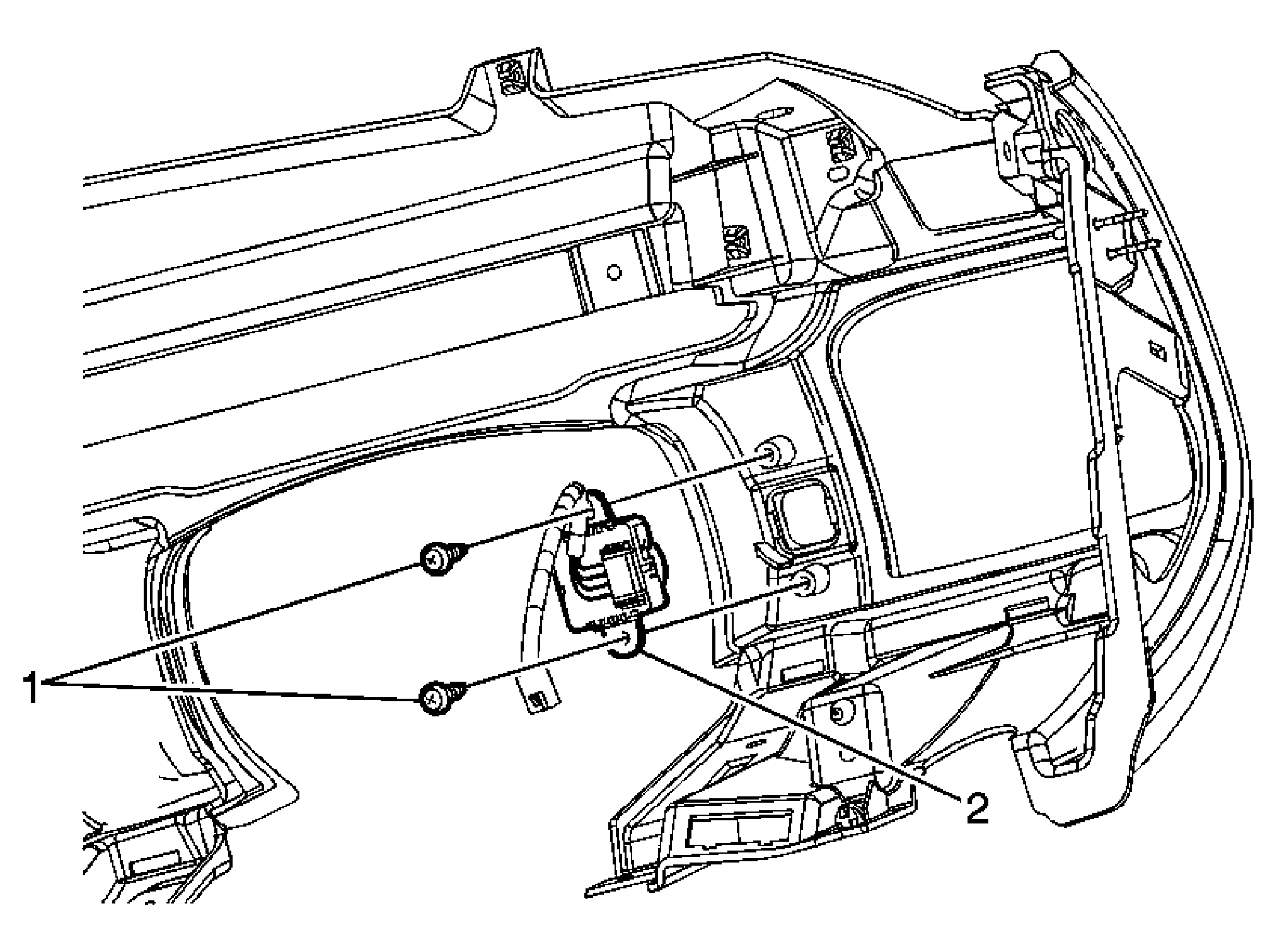

Fig 1: Inside Air Temperature Sensor Assembly & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the left outer trim plate. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side . Disconnect the inside air temperature sensor electrical connector.
1	Inside Air Temperature Sensor Screw (Qty: 2) Tighten: 1 N.m (9 lb in)
2	Inside Air Temperature Sensor

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the left outer trim plate. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side .
Disconnect the inside air temperature sensor electrical connector.

Inside Air Temperature Sensor Screw (Qty: 2)

Tighten: 1 N.m (9 lb in)

Inside Air Temperature Sensor
