Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Saturn Sky and 2010 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

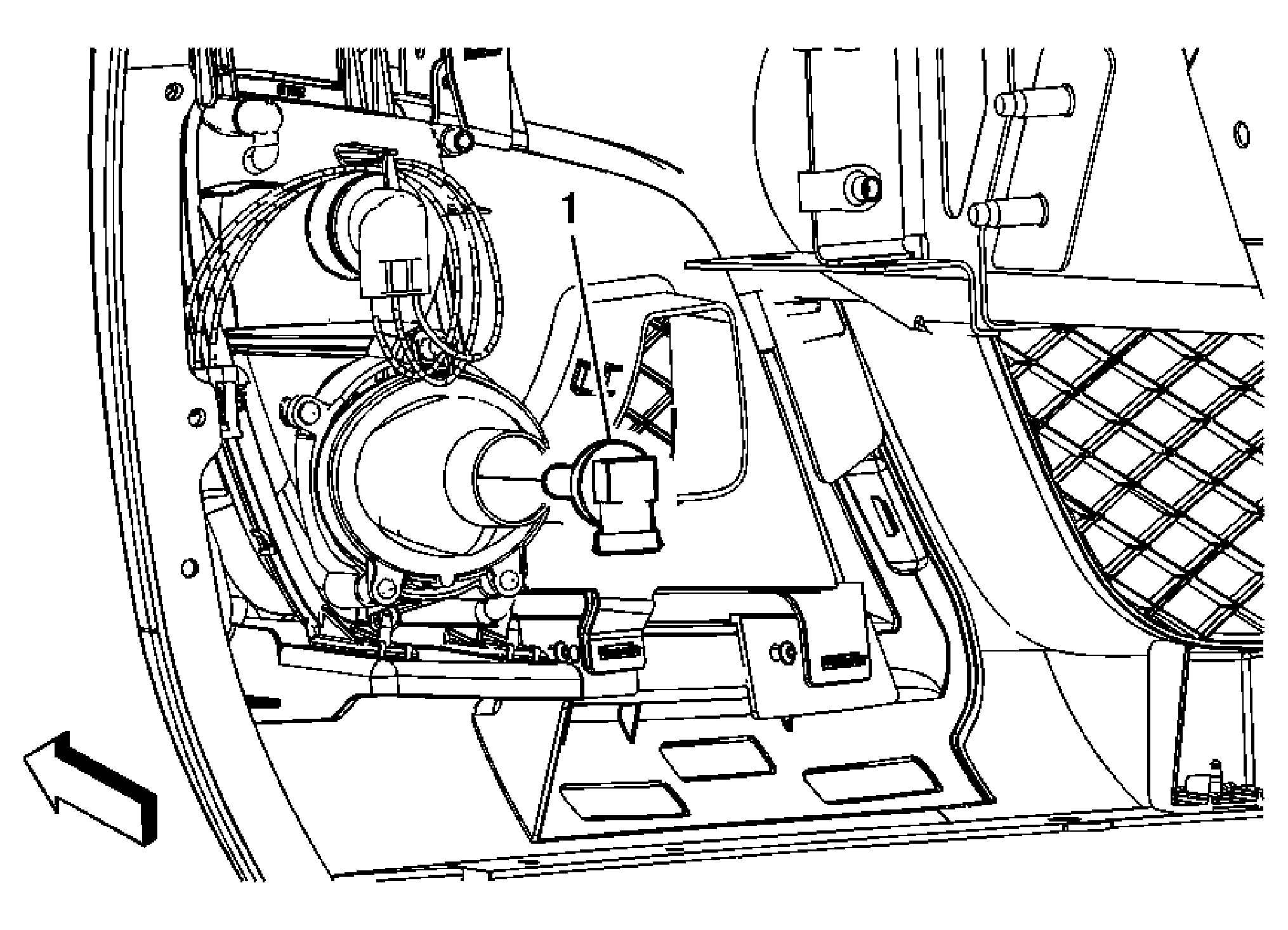

Fig 1: Identifying Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the hood. Reach in between the bumper and front hood opening to disconnect the fog lamp electrical connector.
1	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Tip: Rotate the bulb socket counterclockwise from the lamp housing in order to remove.

Callout

Component Name

Preliminary Procedures

Open the hood.
Reach in between the bumper and front hood opening to disconnect the fog lamp electrical connector.

Front Fog Lamp Bulb

WARNING: Refer to Halogen Bulb Warning .

Tip: Rotate the bulb socket counterclockwise from the lamp housing in order to remove.
