Accelerator Pedal Position Sensor Replacement

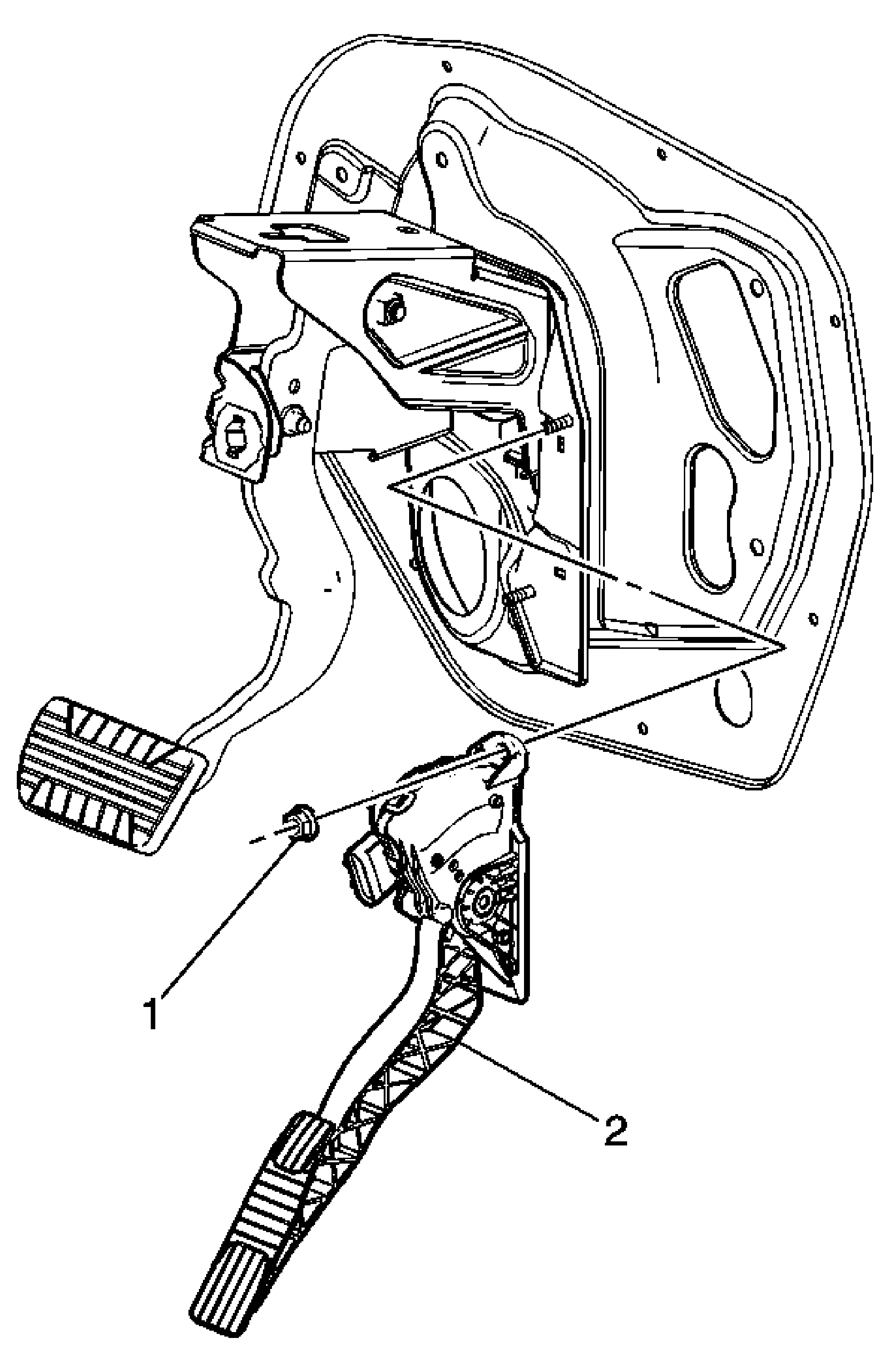

Fig 1: Accelerator Pedal Position Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position Sensor Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  10 N.m (89 lb in)
2	Accelerator Pedal Position Sensor Procedure:  Disconnect the electrical connector.
