Front Air Deflector Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

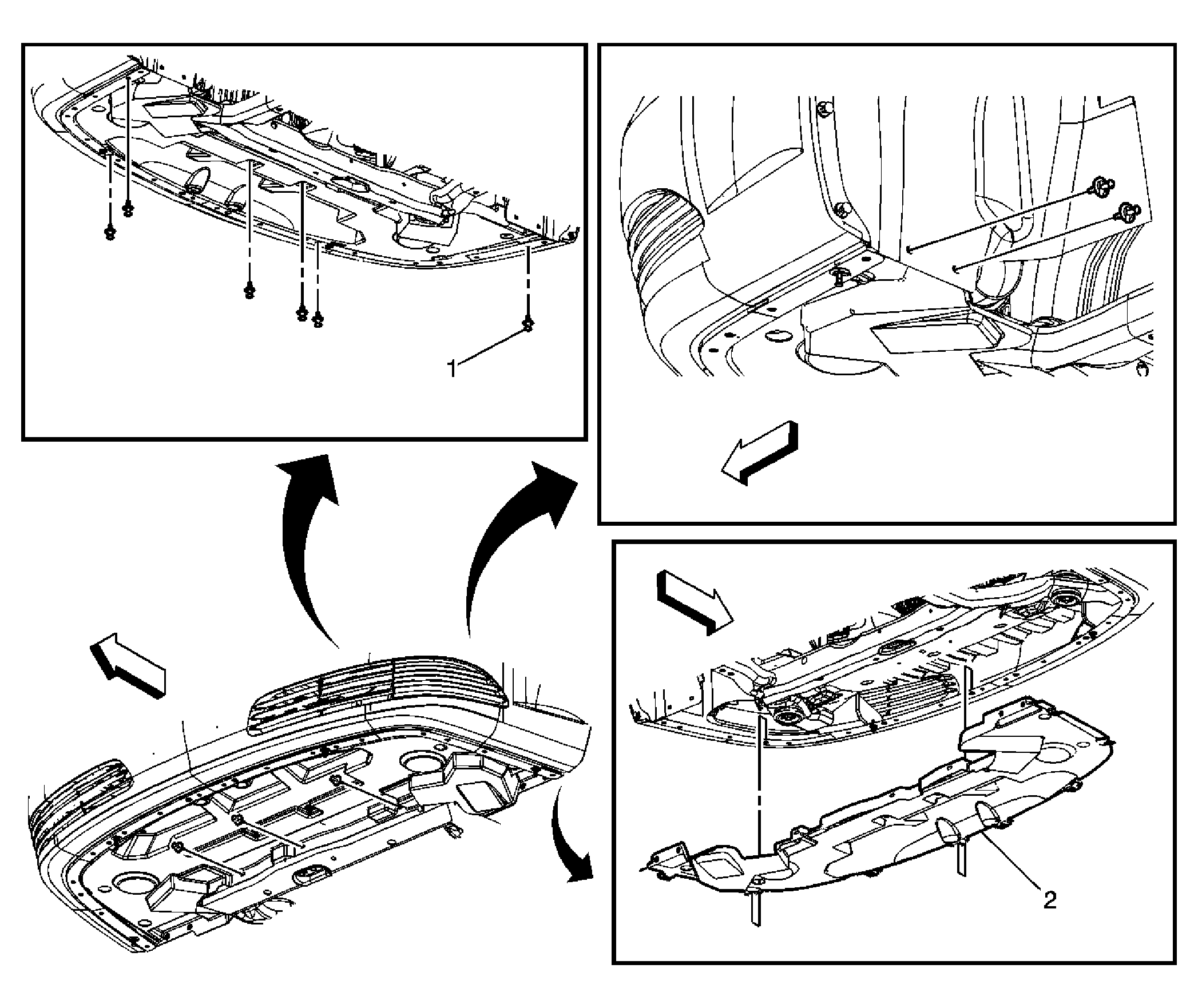

Fig 1: Removing/Installing Front Air Deflector & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Air Deflector Fasteners (Qty: 17)
2	Front Air Deflector
