Front Wheelhouse Liner Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

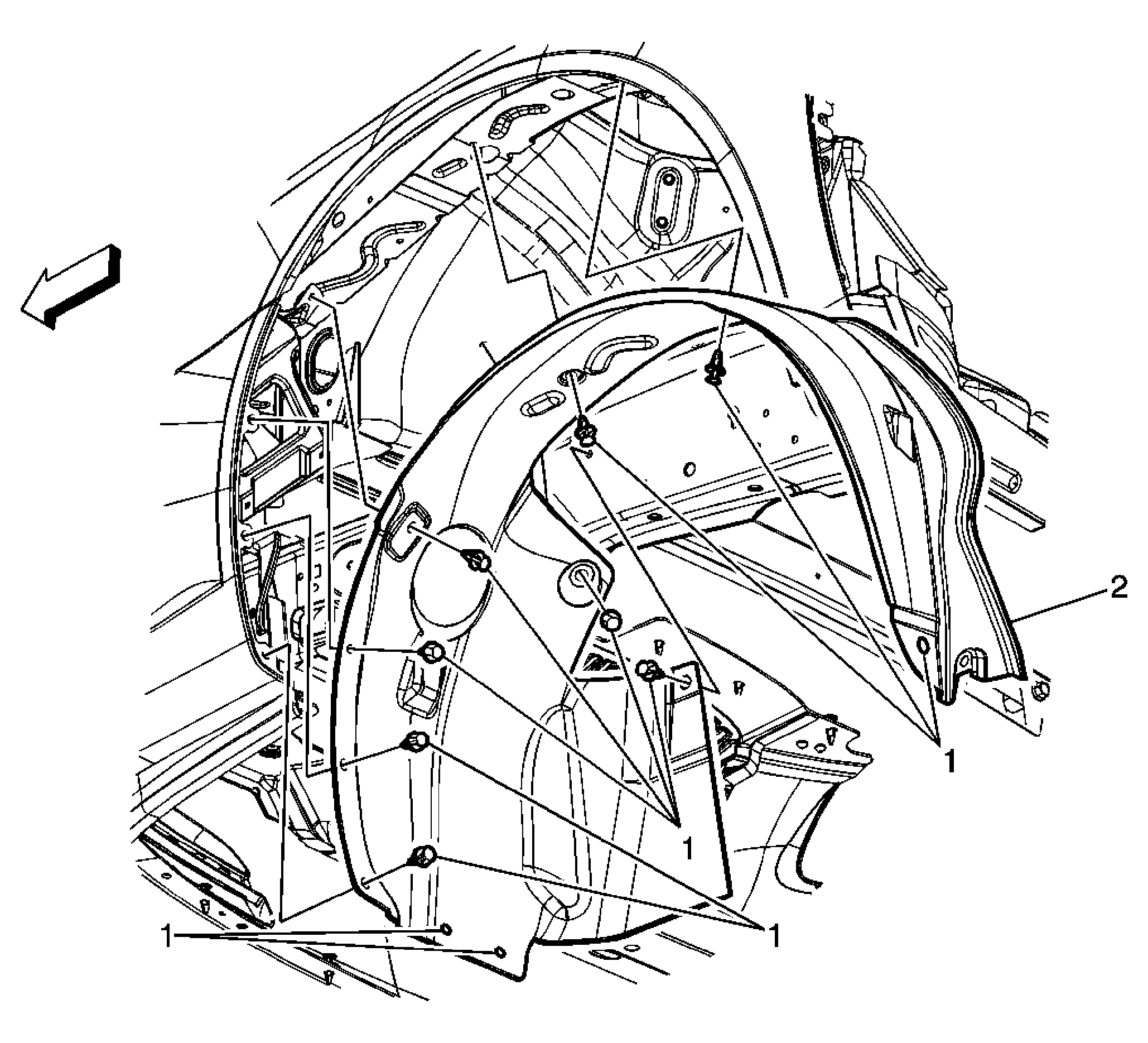

Fig 1: Removing/Installing Front Wheelhouse Liner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Front Wheelhouse Liner Retainers (Qty: 11)
2	Front Wheelhouse Liner
