Power Seat Component Views

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

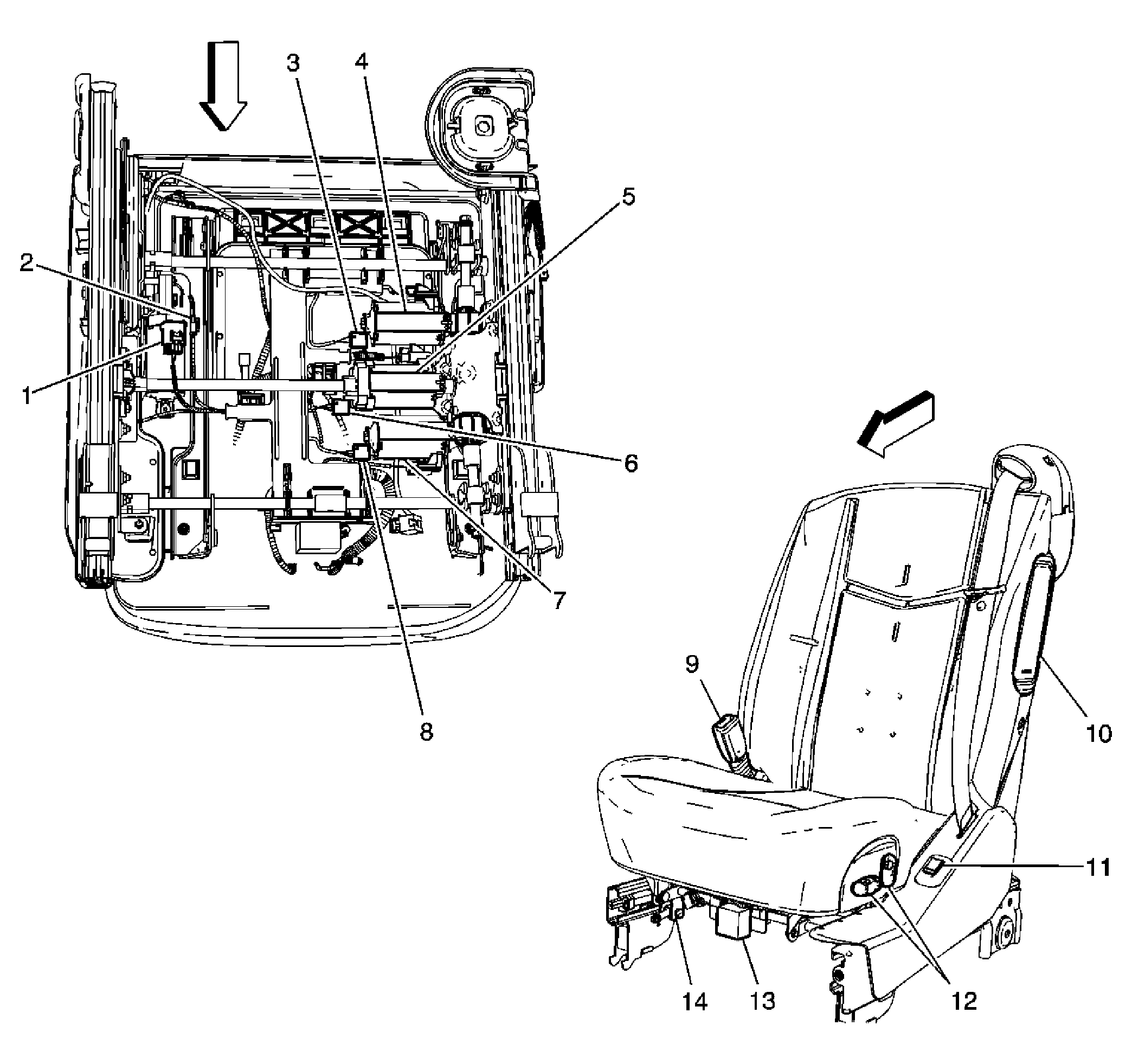

Fig 1: Identifying Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Seat Recline Motor
2	Seat Recline Motor Position Sensor (A45)
3	Seat Front Vertical Position Sensor (A45)
4	Seat Front Vertical Motor
5	Seat Horizontal Motor
6	Seat Horizontal Position Sensor (A45)
7	Seat Rear Vertical Motor
8	Seat Rear Vertical Position Sensor (A45)
9	Seatbelt Switch-Left
10	Inflatable Restraint Side Impact Module - Left
11	Seat Lumbar Switch
12	Seat Adjuster Switches
13	C300
14	C301

Fig 2: Identifying Driver Power Seat Motors and Switches

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Seat Belt Switch - Driver
2	Seat Adjuster Switch - Driver
3	Seat Recline Motor - Driver
4	Seat Horizontal Motor - Driver
5	Seat Vertical Motor - Driver

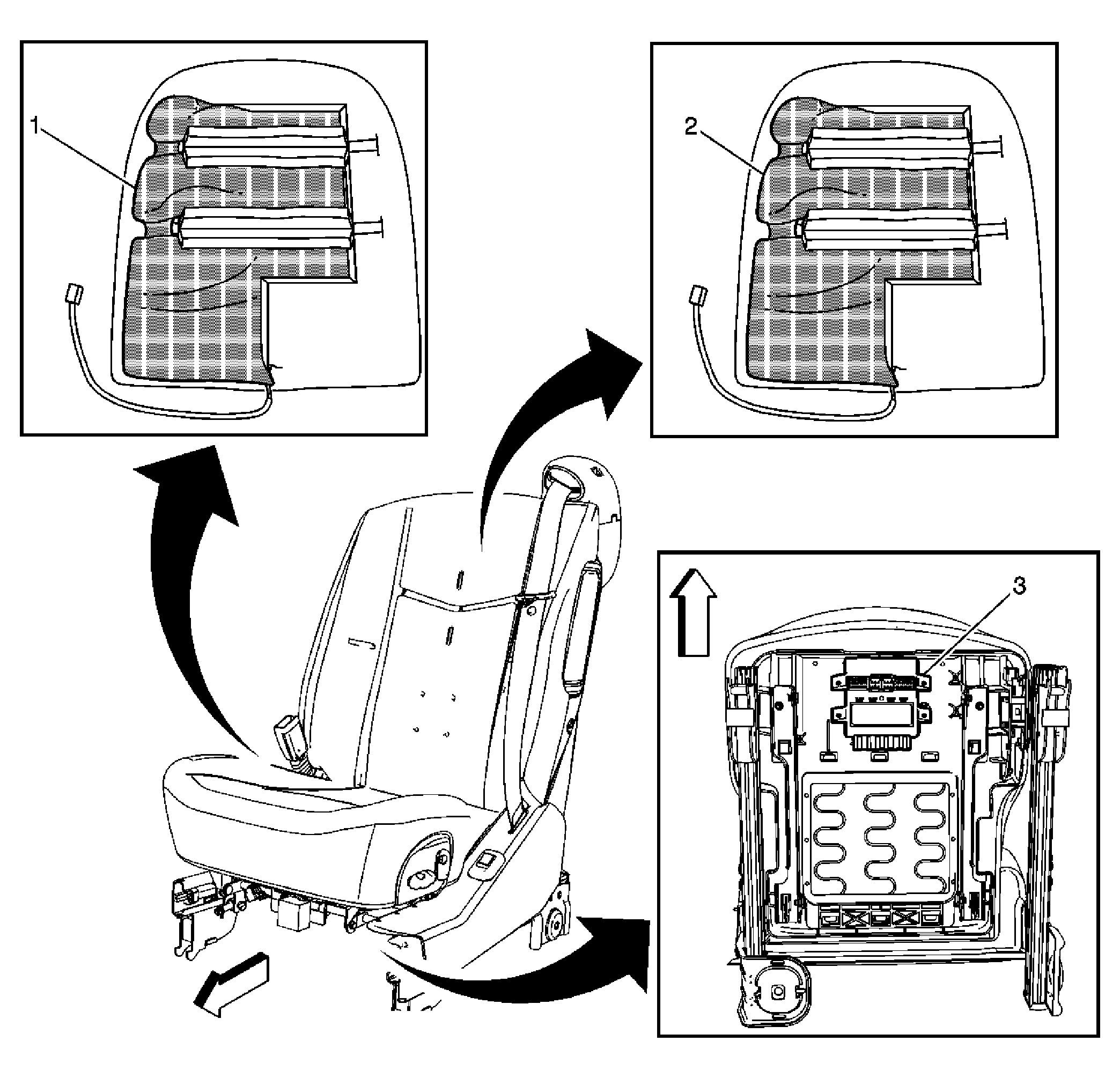

Fig 3: Identifying Front Heated Seat Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Heated Seat Element - Driver Seat Cushion (KA1), Passenger Side Similar
2	Heated Seat Element - Driver Seat Back (KA1), Passenger Side Similar
3	Memory Seat Module (MSM) - (A45)

Fig 4: Identifying Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	Driver Door
2	Heated Seat Switches (KA1)
3	Memory Seat Switch (A45)
4	Outside Rearview Mirror (OSRVM) Switch
5	Driver Door Module (DDM)
6	Window Switches
7	Window Lockout Switch
8	Door Lock/Unlock Switch

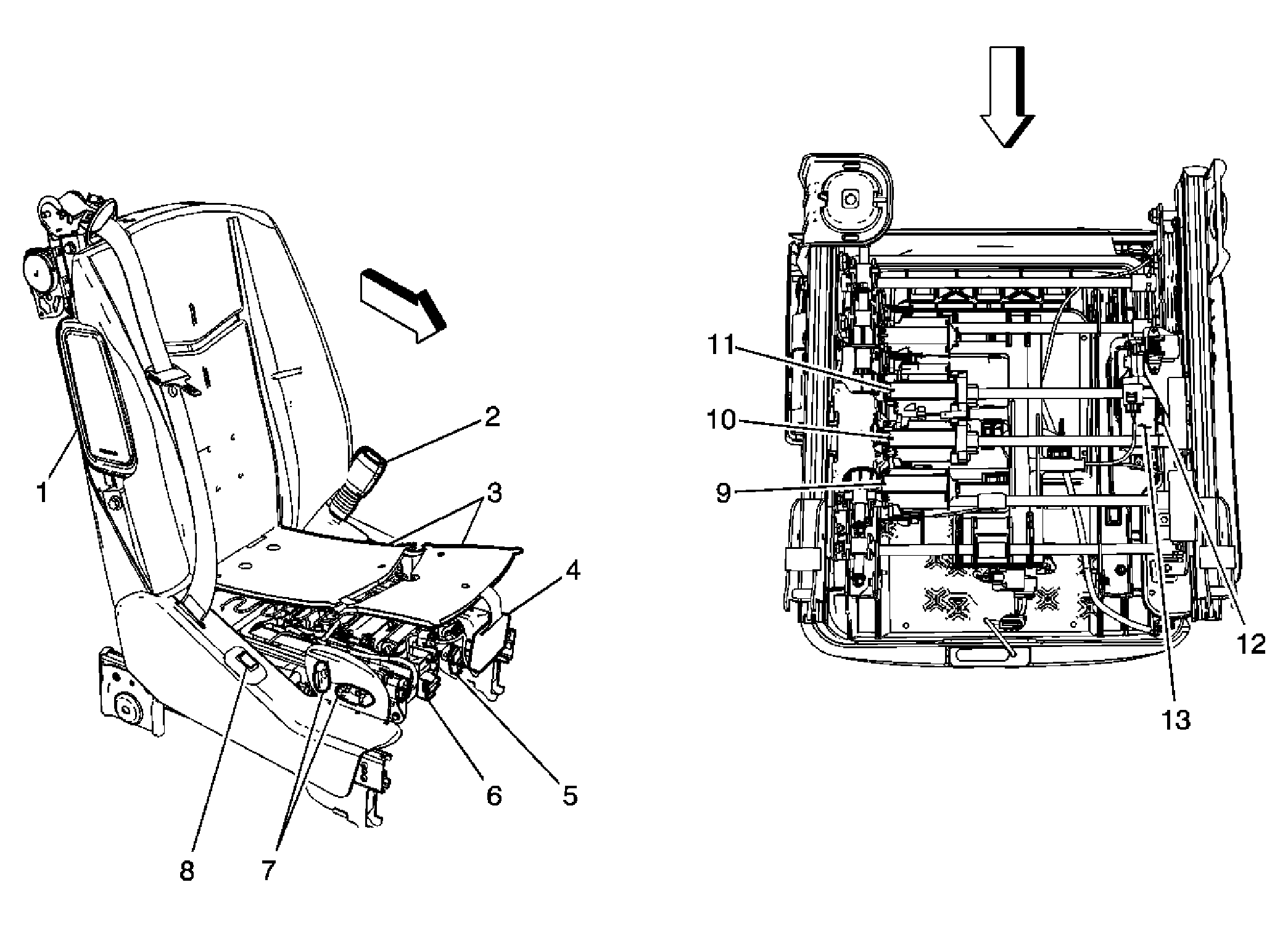

Fig 5: Identifying Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Right
2	Seatbelt Switch-Right
3	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
4	Inflatable Restraint Front Passenger Presence System (PPS) Module
5	C306
6	C307
7	Seat Adjuster Switches
8	Seat Lumbar Switch
9	Seat Rear Vertical Motor
10	Seat Horizontal Motor
11	Seat Front Vertical Motor
12	Seat Position Switch
13	Seat Recline Motor

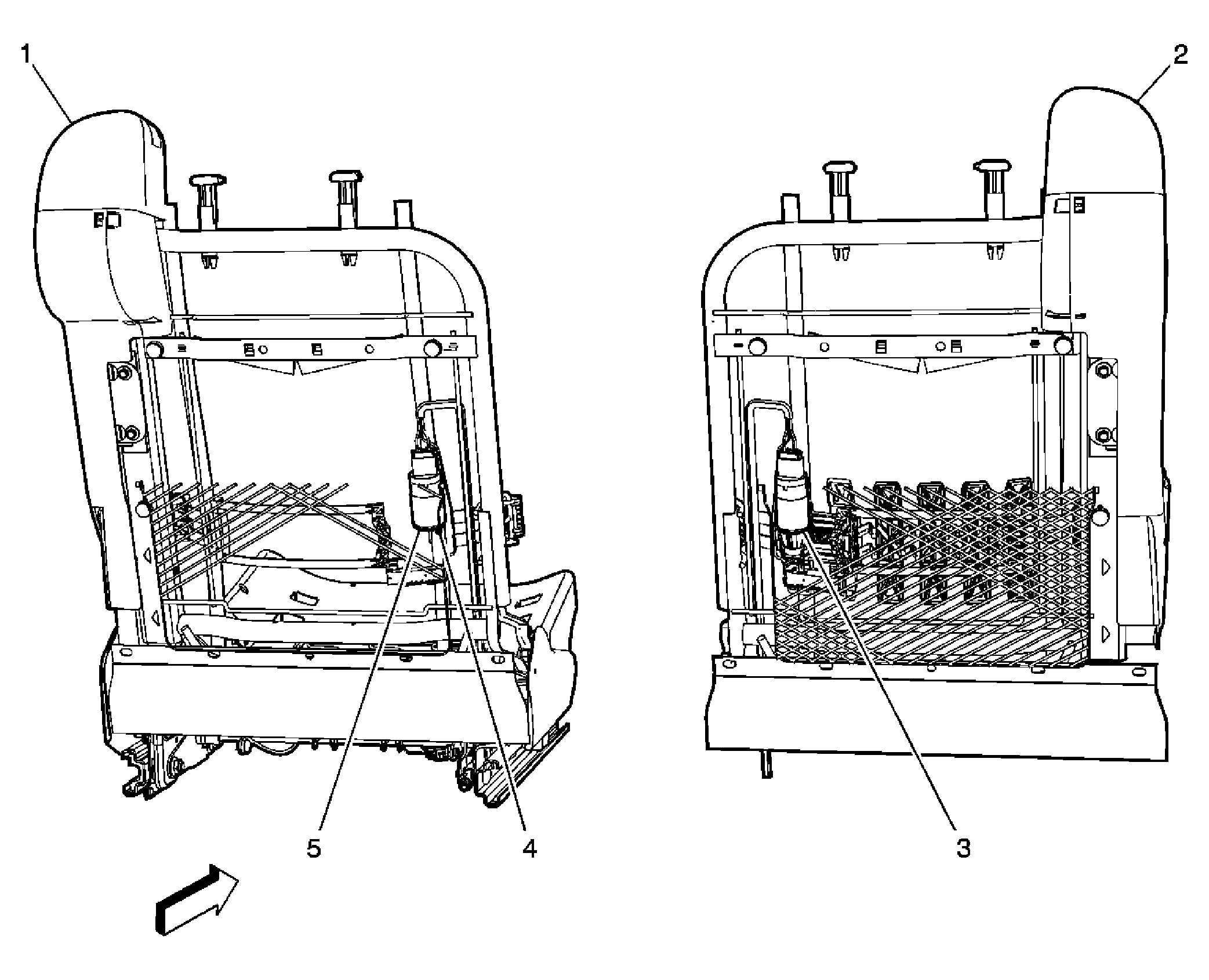

Fig 6: Identifying Seat Lumbar Motors & Sensors (AL2)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	Driver Seat
2	Front Passenger Seat
3	Seat Lumbar Motor - Passenger (AL2)
4	Lumbar Position Sensor - Driver (A45)
5	Seat Lumbar Motor - Driver (AL2)

Fig 7: Identifying Third Row Folding Seats Components (AM0)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 7

Callout	Component Name
1	Third Row Seats
2	Folding Seat Rotation Motor Assembly
3	Seat Back Load Floor Position Switch
4	Folding Seat Recline Motor Assembly
5	Folding Seat Horizontal Motor Assembly
6	Rear Seat Module
7	C311
8	Seat Back Panel Position Switch

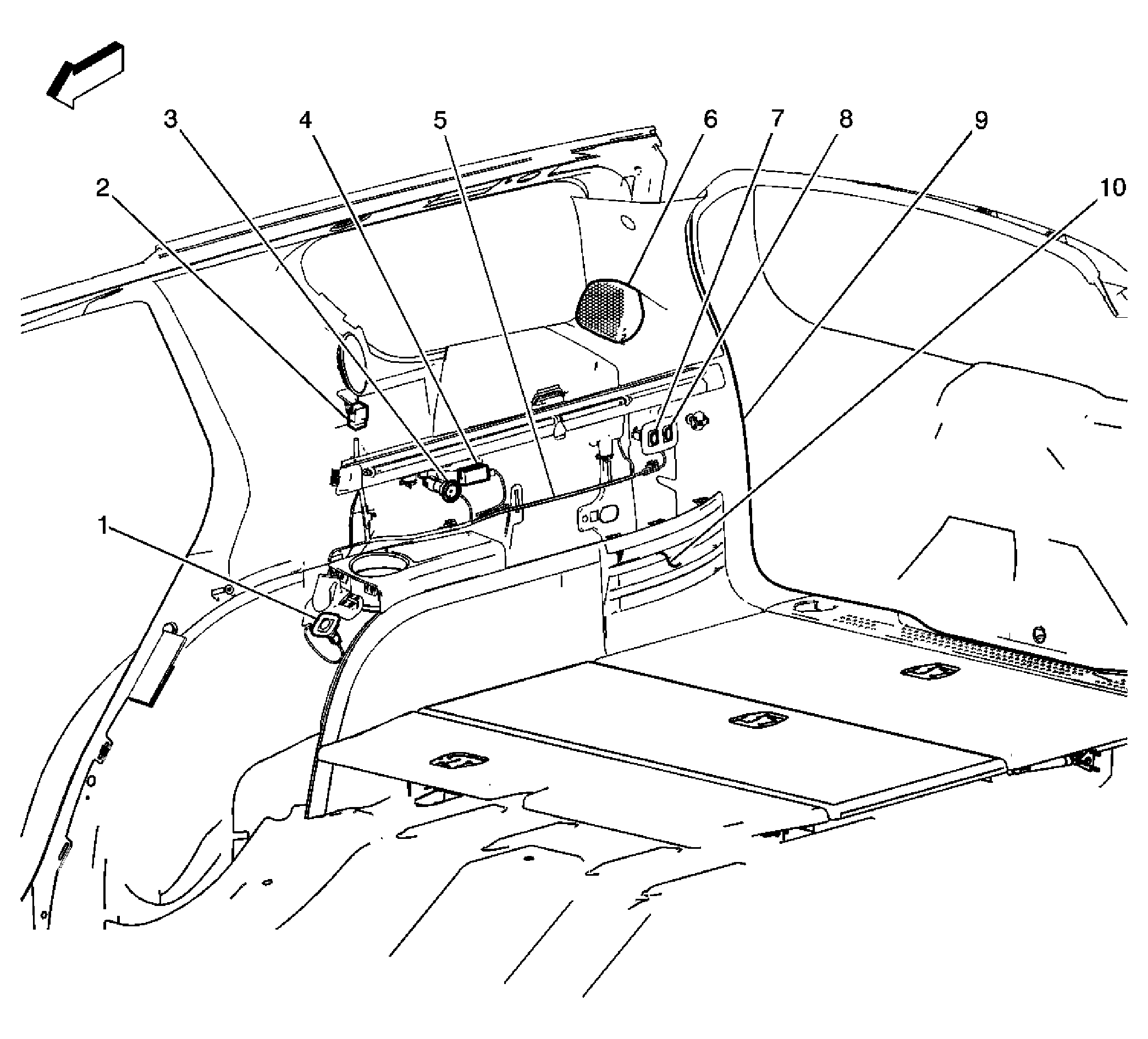

Fig 8: Identifying Rear Compartment Components (Right Side - 1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 8

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	C316
3	S306 (AMO)
4	Speaker - Right D-Pillar (UQS)
5	Folding Seat Recline Switch (AM0)
6	Folding Seat Stow Switch - Rear (AM0)
7	Rear Quarter Trim Panel - RH
8	Speaker - Rear Subwoofer
9	Folding Seat Stow Switch - Front (AM0)
10	Auxiliary Power Outlet - Rear

Fig 9: Identifying Rear Compartment Components (Right Side - 2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 9

Callout	Component Name
1	Folding Seat Stow Switch - Front (AM0)
2	Auxiliary Power Outlet - Rear
3	Storage Compartment
4	Folding Seat Recline Switch (AM0)
5	Folding Seat Stow Switch - Rear (AM0)
