Installation Procedure

  1. Install the power steering pump pulley using installer J 25033-C  .

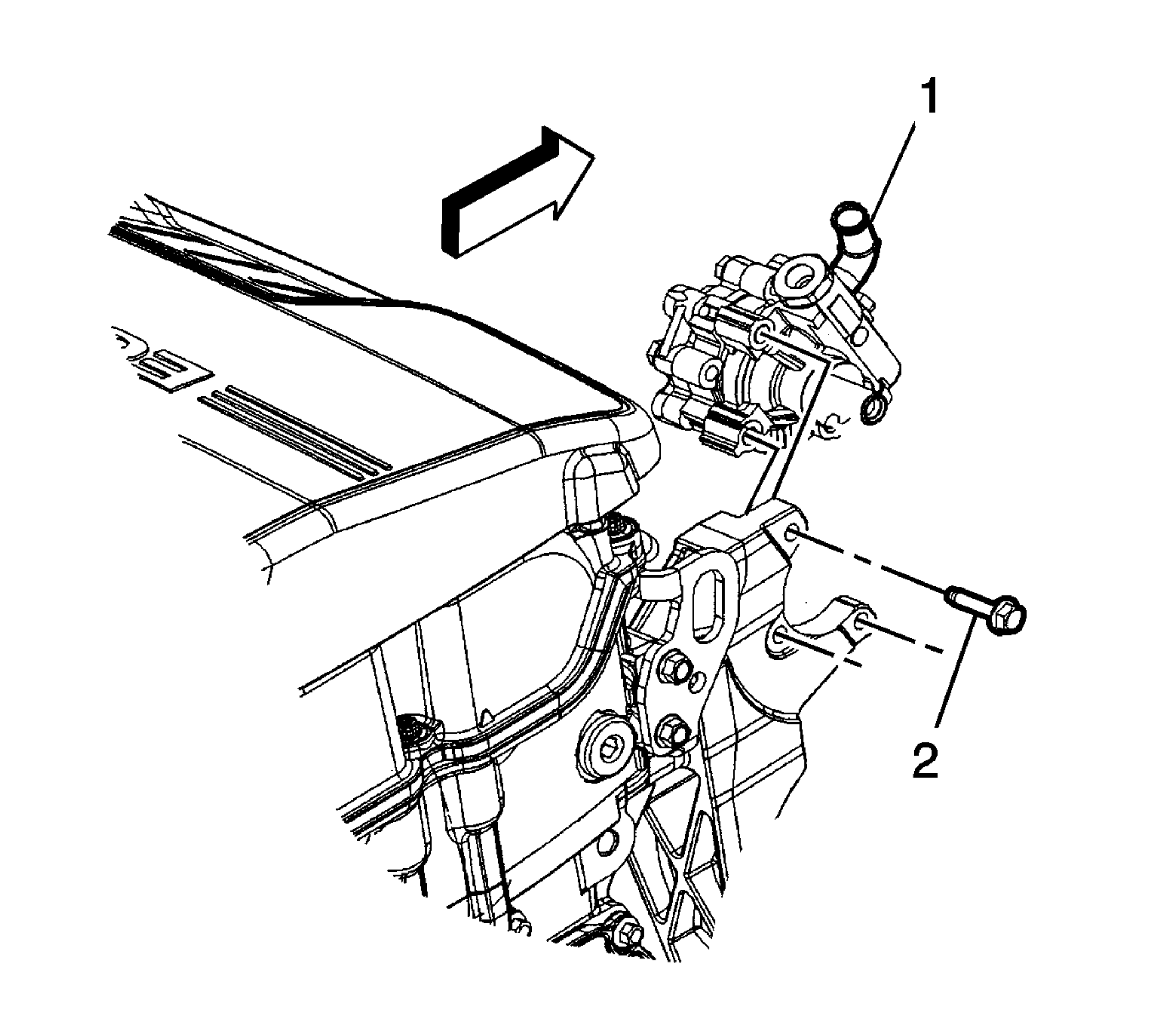

    2. Fig 1: Power Steering Pump & Bolts
    GM2054366Courtesy of GENERAL MOTORS CORP.
  2. Position the power steering pump (1) to the vehicle.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the power steering pump bolts (2) and tighten to 22 N.m (16 lb ft).

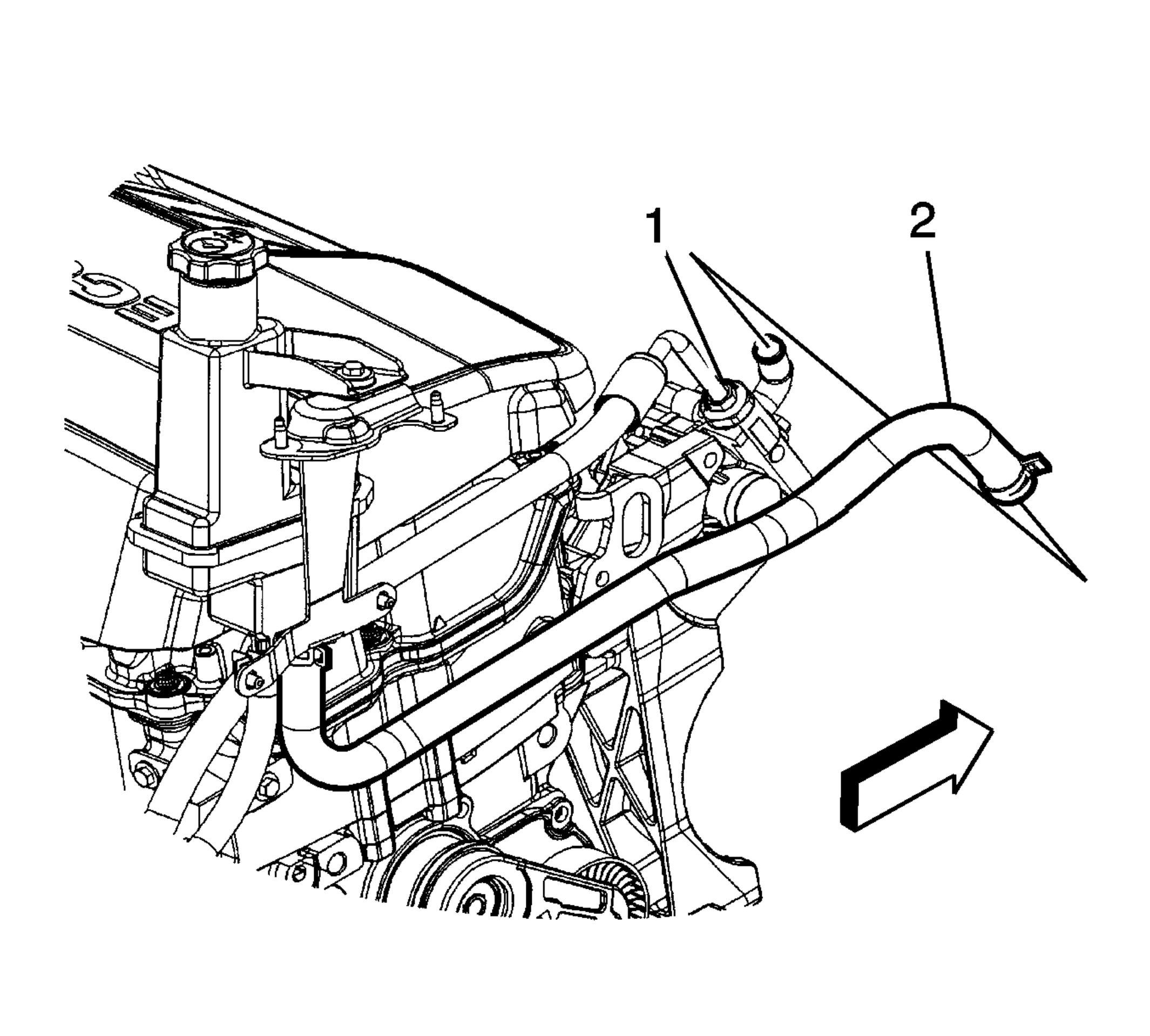

    4. Fig 2: Power Steering Reservoir Outlet Hose & Power Steering Gear Inlet Hose Fitting
    GM2054365Courtesy of GENERAL MOTORS CORP.
  4. Connect the power steering gear inlet hose fitting (1) to the power steering pump. Tighten the fitting to 25 N.m (18 lb ft).
  5. Compress the power steering reservoir outlet hose clamp and connect the power steering reservoir outlet hose (2) to the power steering pump.
  6. Clean any excess fluid from the vehicle and remove the drain pans.
  7. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
