Installation Procedure

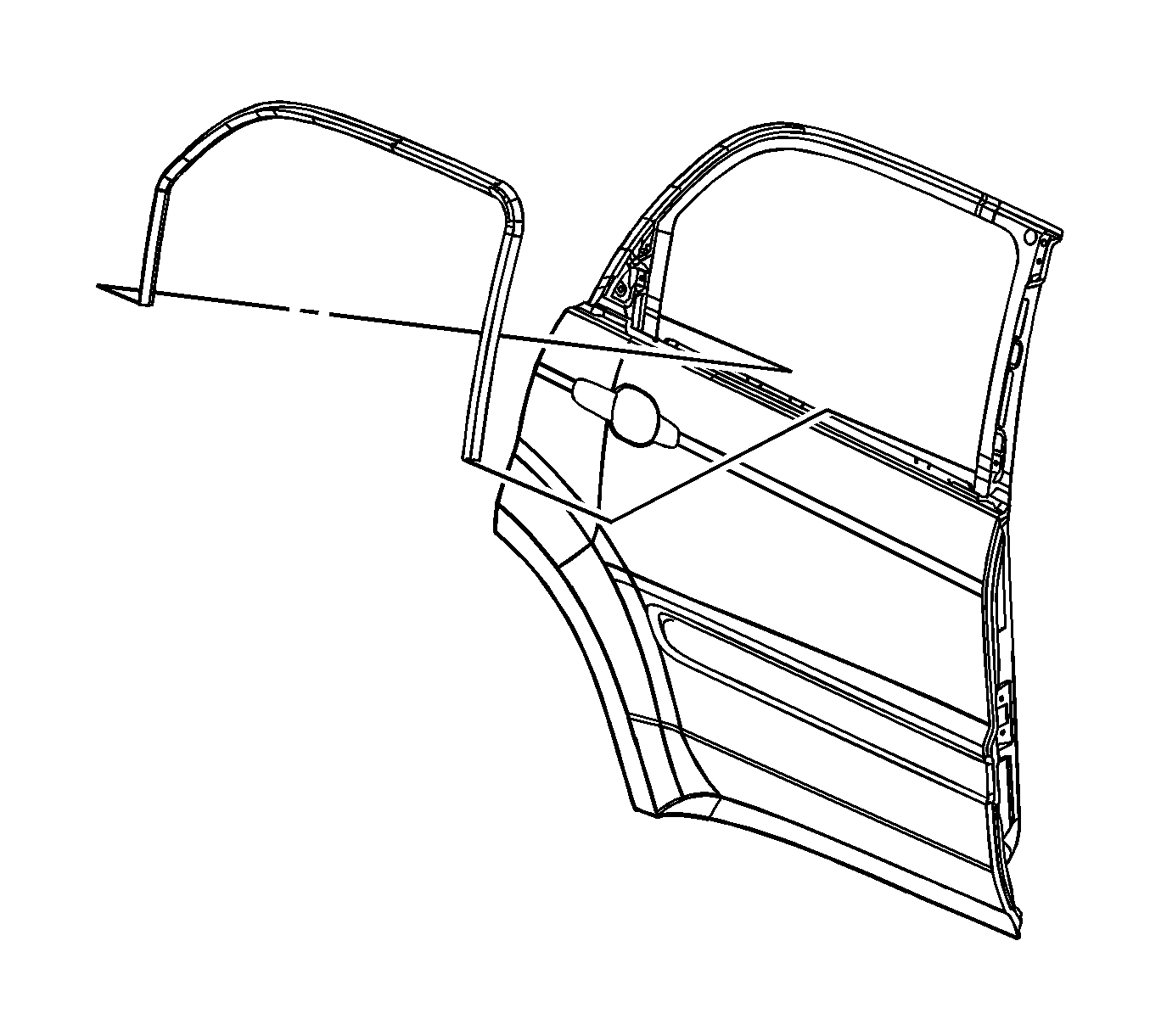

Fig 1: View Of Rear Window Weatherstrip Run Channel Assembly

Courtesy of GENERAL MOTORS CORP.

Align the notch in the window weatherstrip seal to the fixed window post and press the weatherstrip onto the window flange.
1. Press the weatherstrip channel onto the door flange.
2. Ensure that the weatherstrip is fully secured into the channel upper corners and sides of the door frame.
Install the water deflector.
Install the rear door trim panel. Refer Rear Side Door Trim Panel Replacement .
Inspect the window for proper operation.
