Garage Door Opener Replacement
WARNING: This page is about a different car, the 2008 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

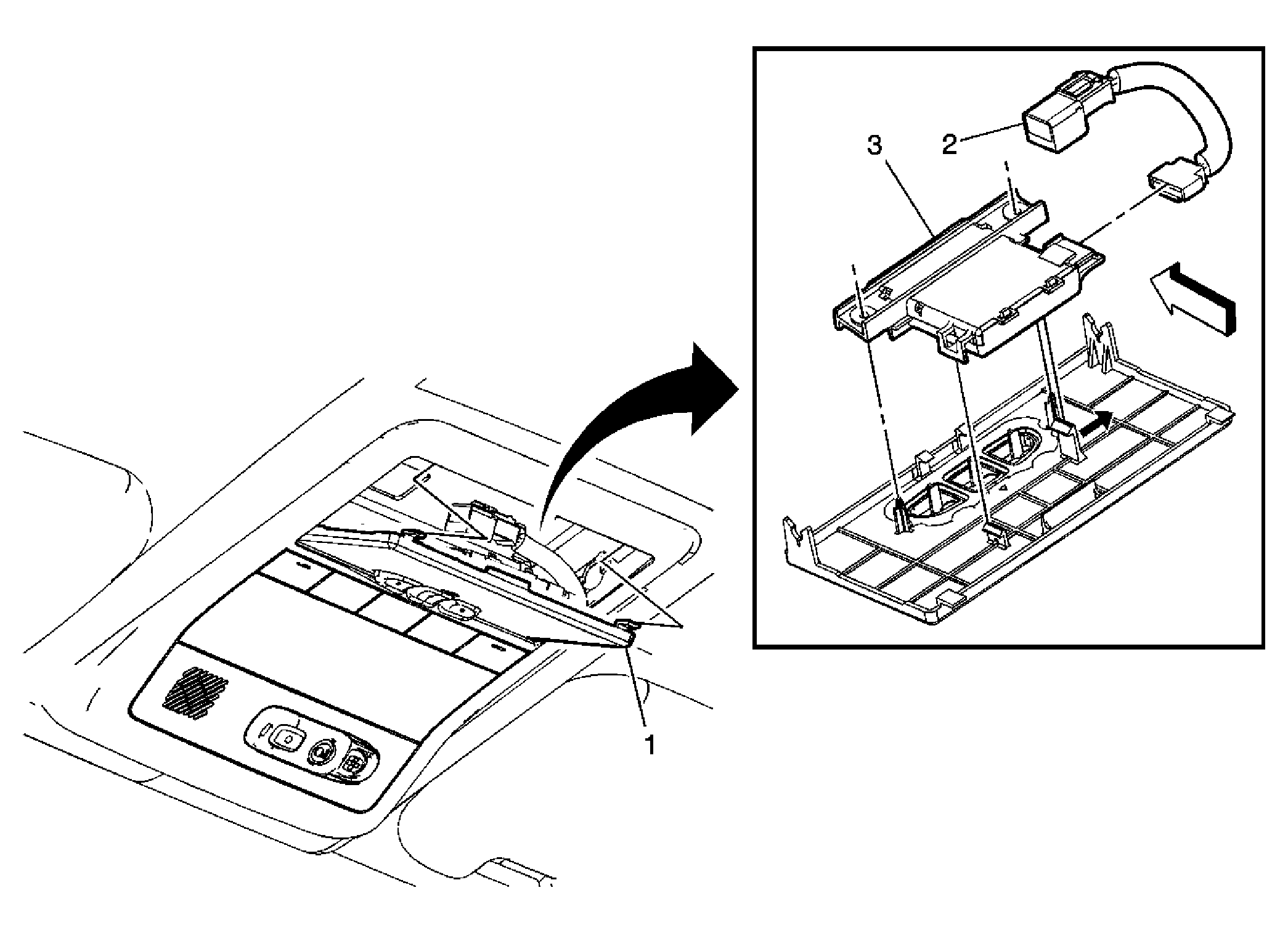

| Callout |
Component Name |
| 1 |
Garage Door Opener Transmitter Bezel
Procedure:
Carefully use a plastic flat bladed tool to release the two tabs on the bezel door. |
| 2 |
Garage Door Opener Transmitter Push Button Extension
Procedure:
Disconnect the electrical connector. |
| 3 |
Garage Door Opener Transmitter Assembly |
