Antilock Brake System Schematics

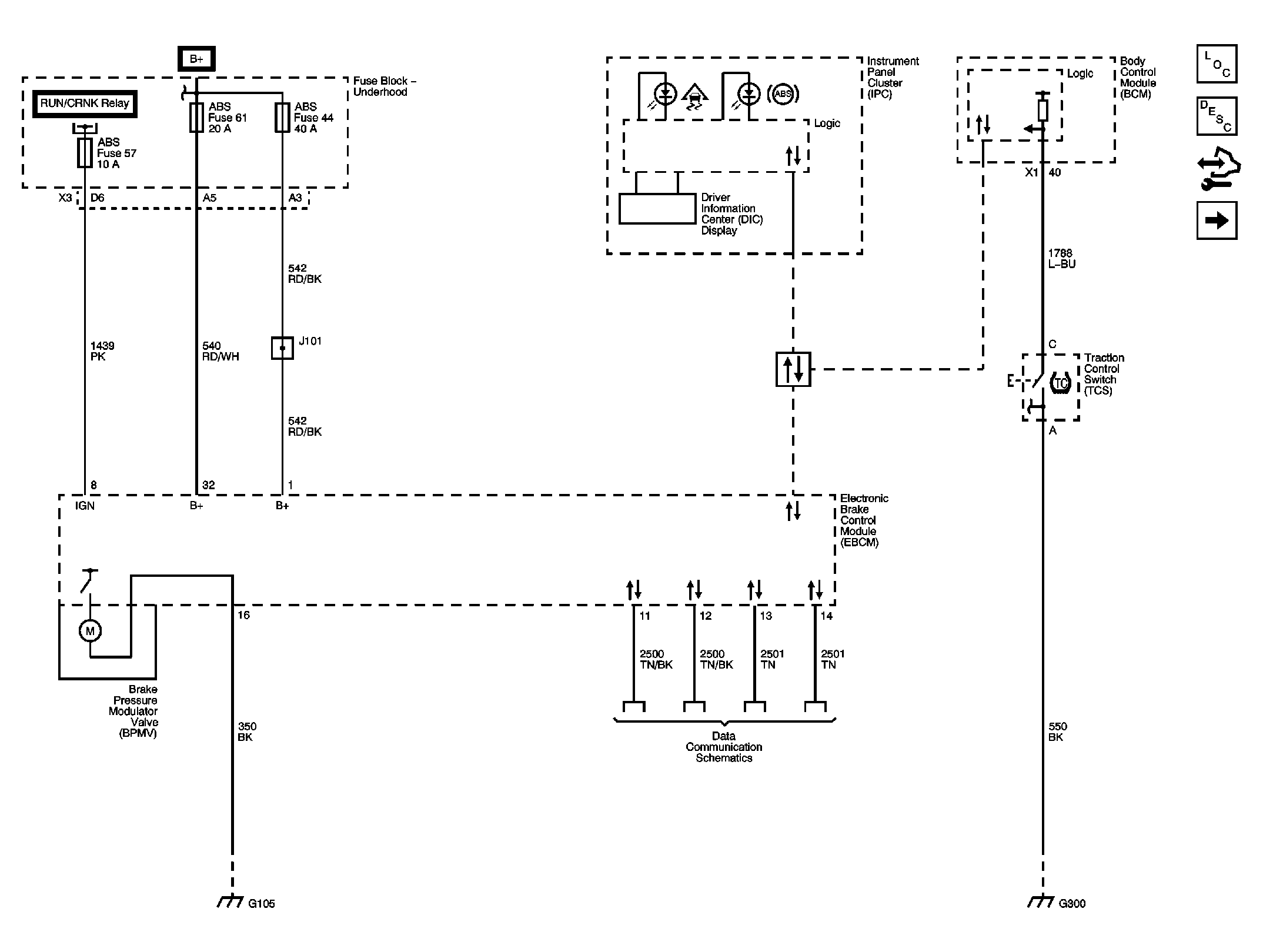

Fig 1: Power, Ground & Indicator Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

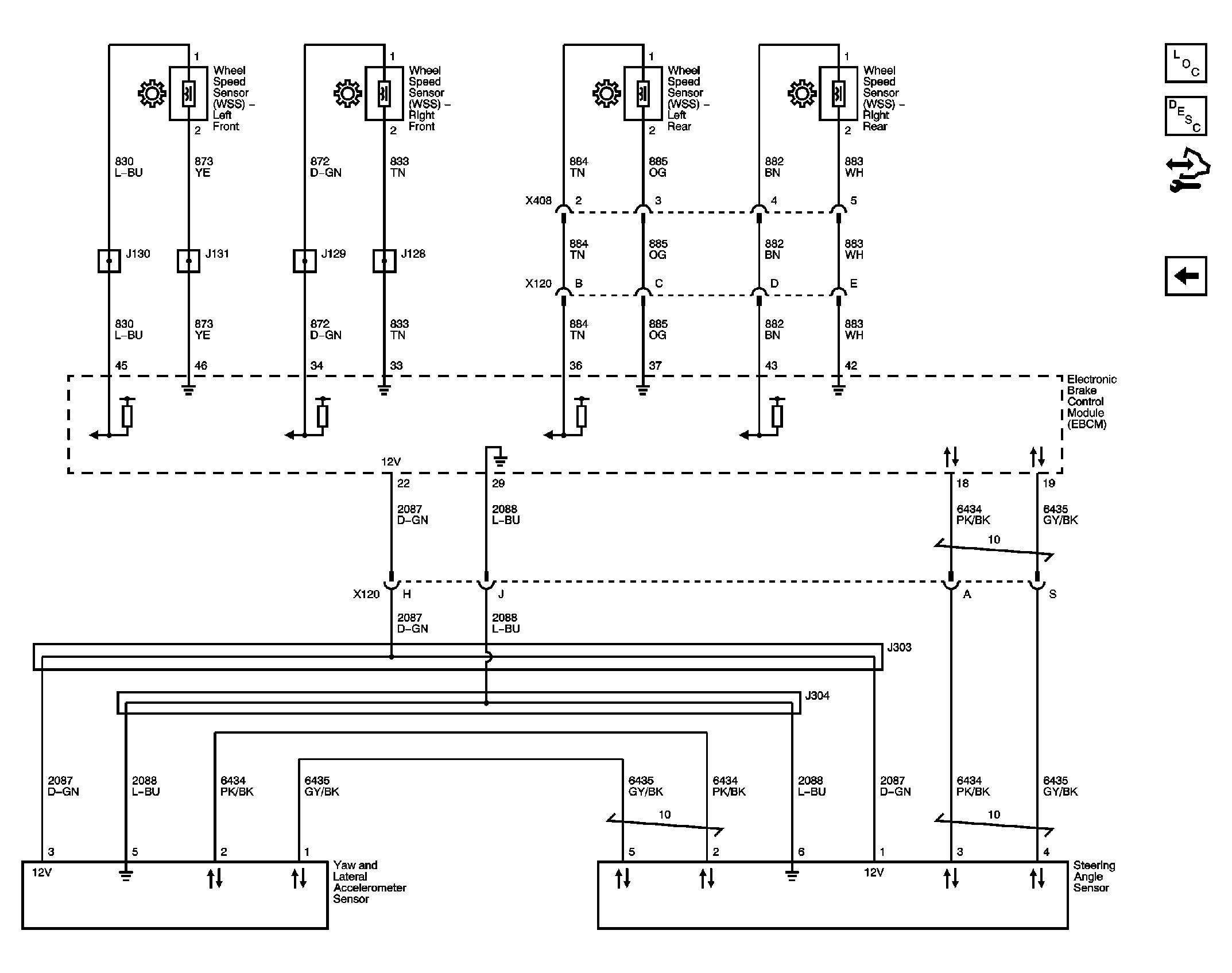

Fig 2: Stability Control Sensors Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
