Moveable Window Schematics

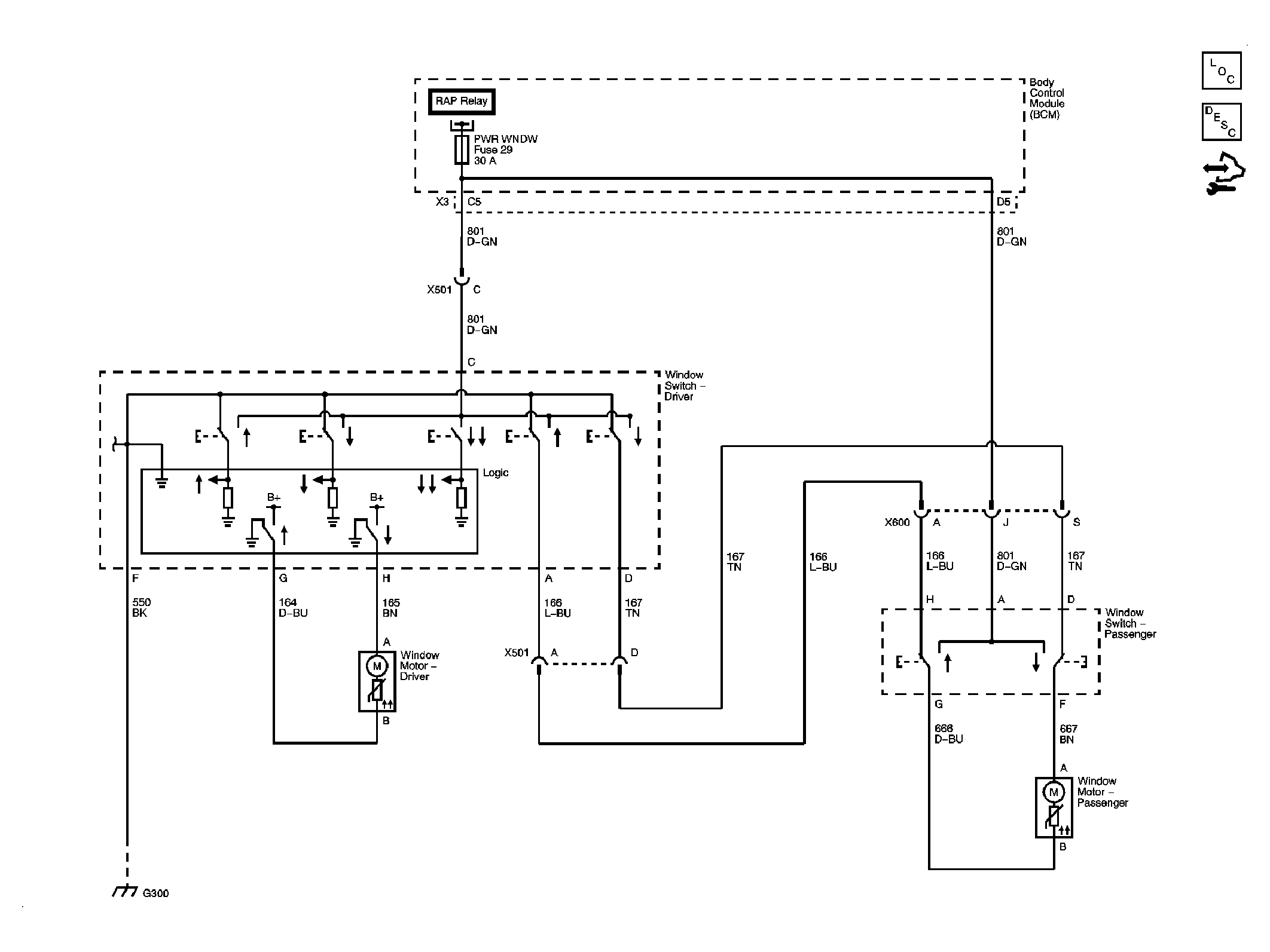

Fig 1: Moveable Window Circuit Schematic
GM2225098Courtesy of GENERAL MOTORS CORP.
