Installation Procedure

Fig 1: Identifying CKP Sensor

GM1578475

Courtesy of GENERAL MOTORS CORP.

Lubricate the CKP sensor O-ring seal with clean engine oil.
Install the CKP sensor.
CAUTION: Refer to Fastener Caution .
Install the CKP sensor bolt and tighten to 10 N.m (89 lb in).

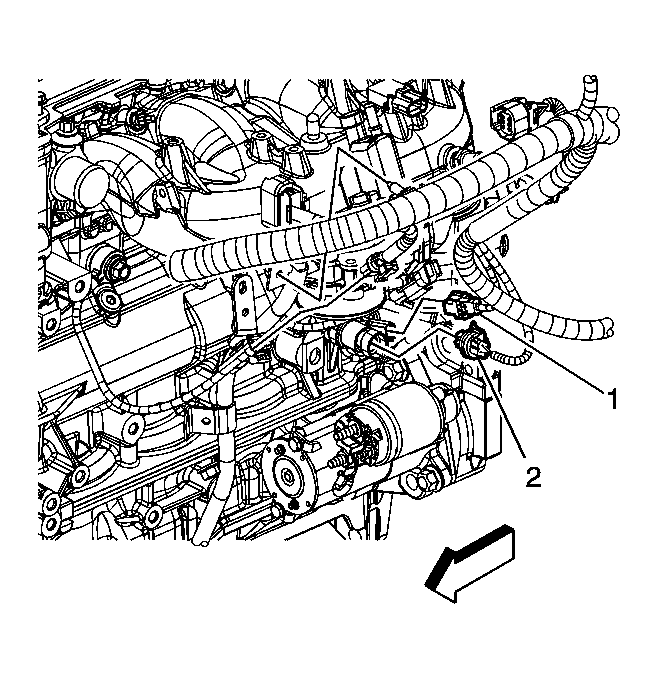

Fig 2: Identifying CKP Sensor Electrical Connector

GM1716603

Courtesy of GENERAL MOTORS CORP.

Connect the engine wiring harness electrical connector (1) to the CKP sensor.
Install the starter. Refer to Starter Replacement .
