Outer Rear View Mirror: Replacement

NOTE:

The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
Use the same procedures for the RH side and LH side.

REMOVE FRONT DOOR SERVICE HOLE COVER LH (See OVERHAUL )
1. Remove the front door lower frame bracket garnish.
2. Remove the power window regulator master switch.
3. Remove the front door trim board.
4. Remove the front door inside handle.
5. Remove the front door trim bracket.
6. Remove the front door service hole cover.
REMOVE OUTER REAR VIEW MIRROR ASSY LH
1. Disconnect the connector.
2. Remove the 3 nuts and mirror.

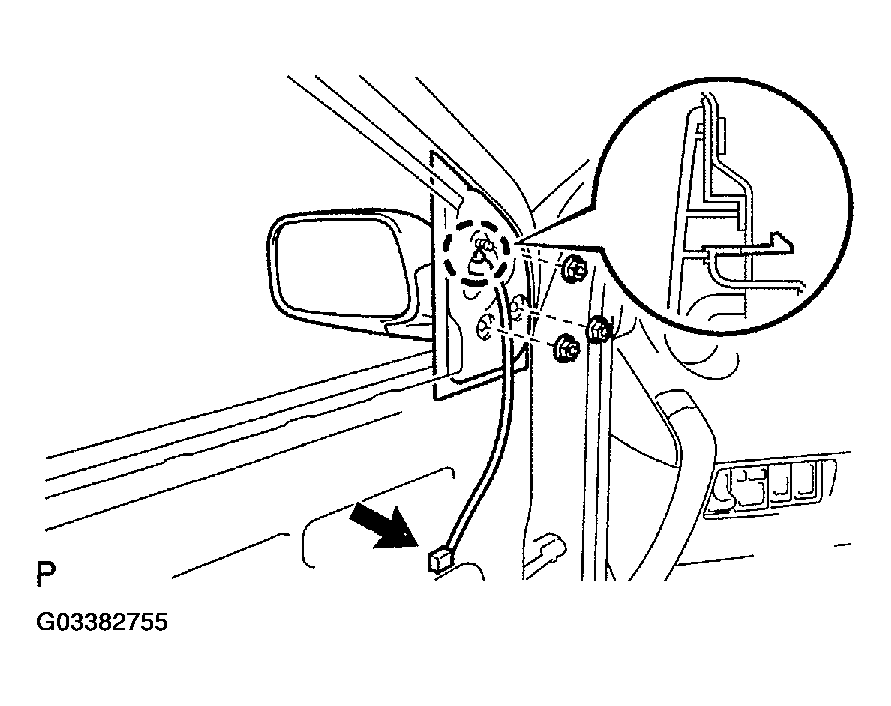

  Fig 1: Removing Outer Rear View Mirror
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OUTER MIRROR COVER LH
1. Using a screwdriver, disengage the 2 clips and 2 claws, and remove the mirror.
  NOTE: Tape the screwdriver tip before use.

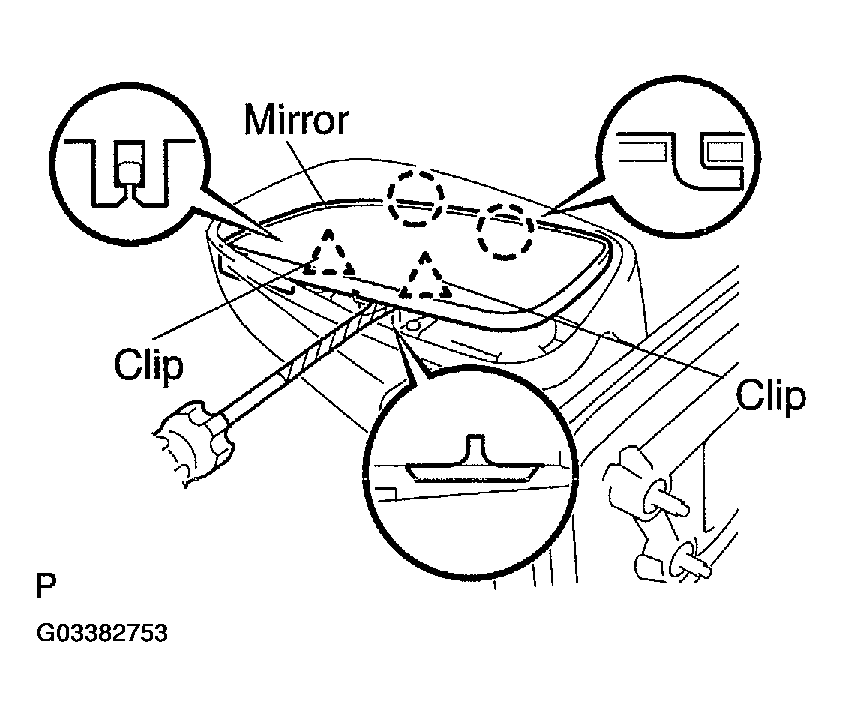

  Fig 2: Removing Outer Mirror Cover LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disengage the 9 claws and remove the mirror cover.
  NOTE: Tape the screwdriver tip before use.

  Fig 3: Disengaging Claws & Removing Mirror Cover Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTER REAR 'VIEW MIRROR ASSY LH
1. Install the mirror with the 3 nuts.
  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

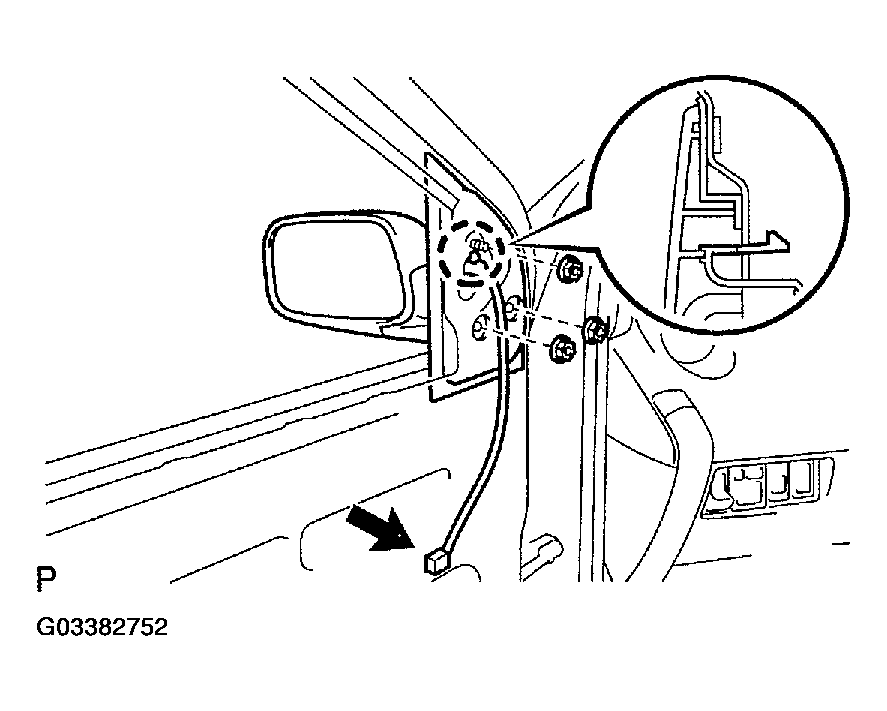

  Fig 4: Installing Outer Rear View Mirror Assy LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
