Chain Sub-ASSY: Components

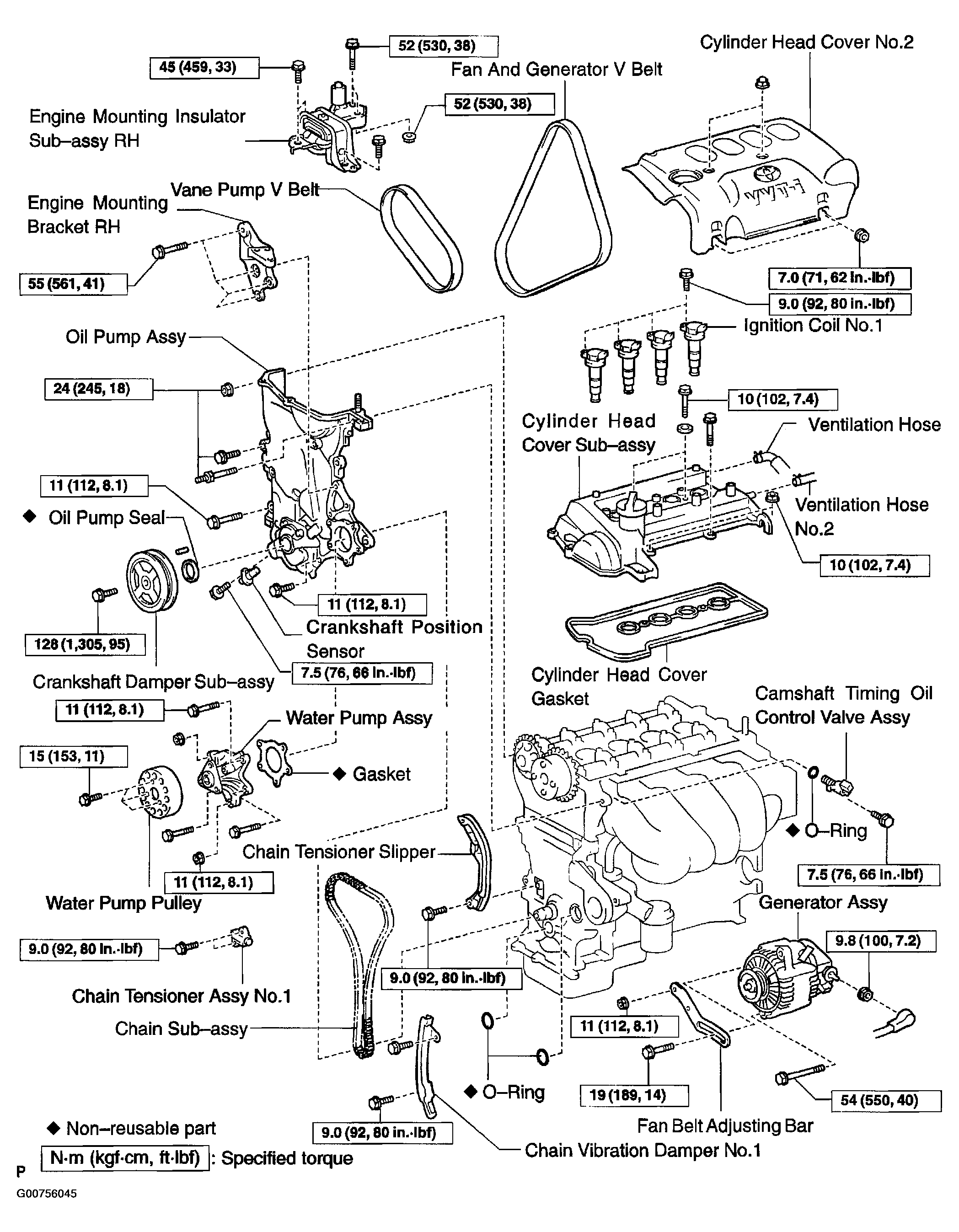

Fig 1: Locating Components Of Chain Sub-Assembly
G00756045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
