Problem Symptoms Table

WARNING: This page is about a different car, the 2004 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

Use the table below, with suspected areas listed in numerical order, to determine the cause of the problem. Inspect and repair or replace parts as necessary according to the steps on the following pages.

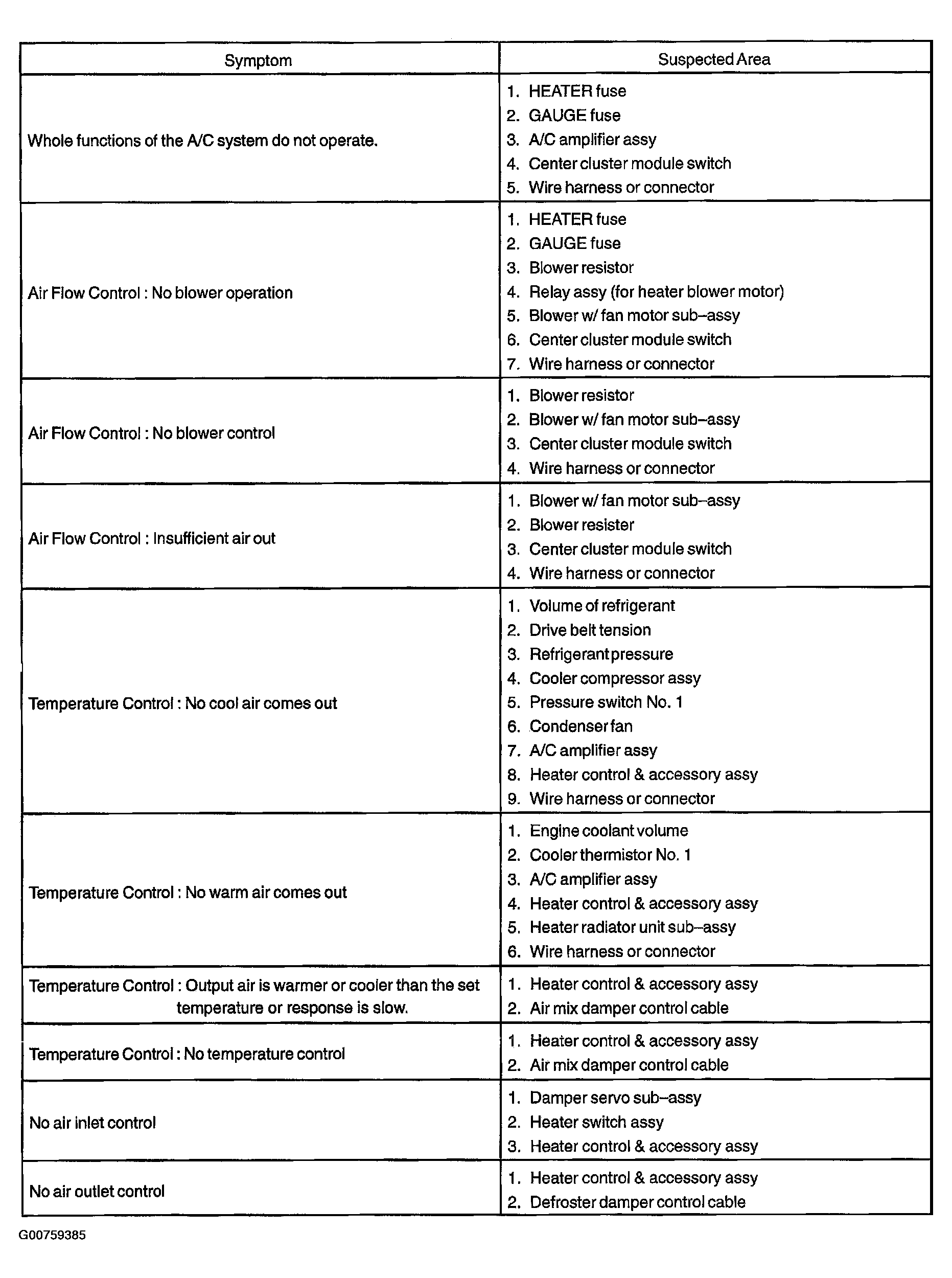

Fig 1: Air Conditioning System - Problem Symptoms Table (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

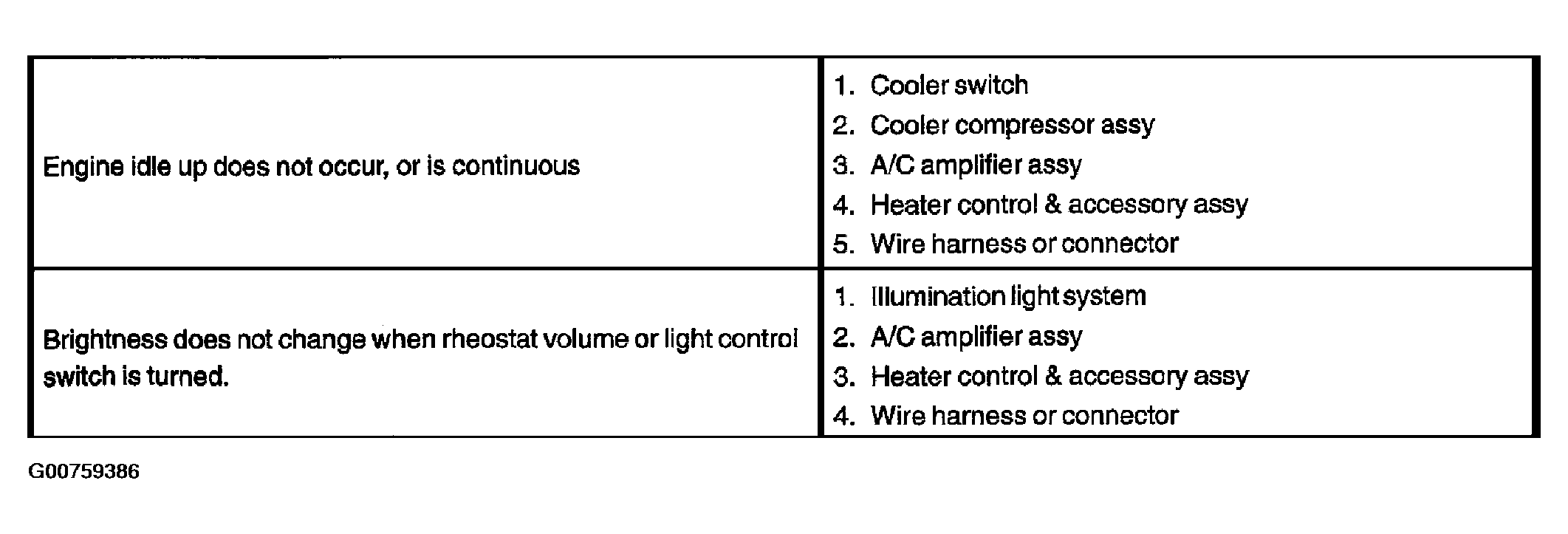

Fig 2: Air Conditioning System - Problem Symptoms Table (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PTC heater:

PROBLEM SYMPTOMS TABLE - PTC HEATER

PTC heater does not operate, in these conditions:

Engine coolant temp.: 65 °C (149 °F) or below
Engine speed: 650 rpm or above
Temperature control selector: MAX. HOT

PTC heater relay
Heater radiator unit sub-assy
