Center Cluster Module Switch: Overhaul

WARNING: This page is about a different car, the 2004 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

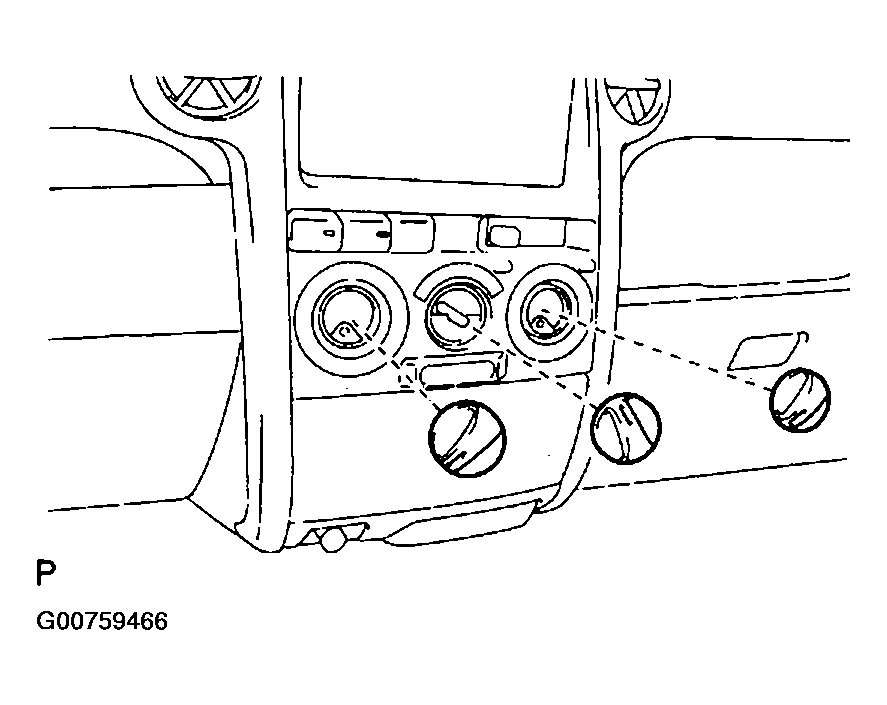

REMOVE HEATER CONTROL KNOB
1. Remove the 3 heater control knobs.

  Fig 1: Removing Heater Control Knob - Center Cluster Module Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

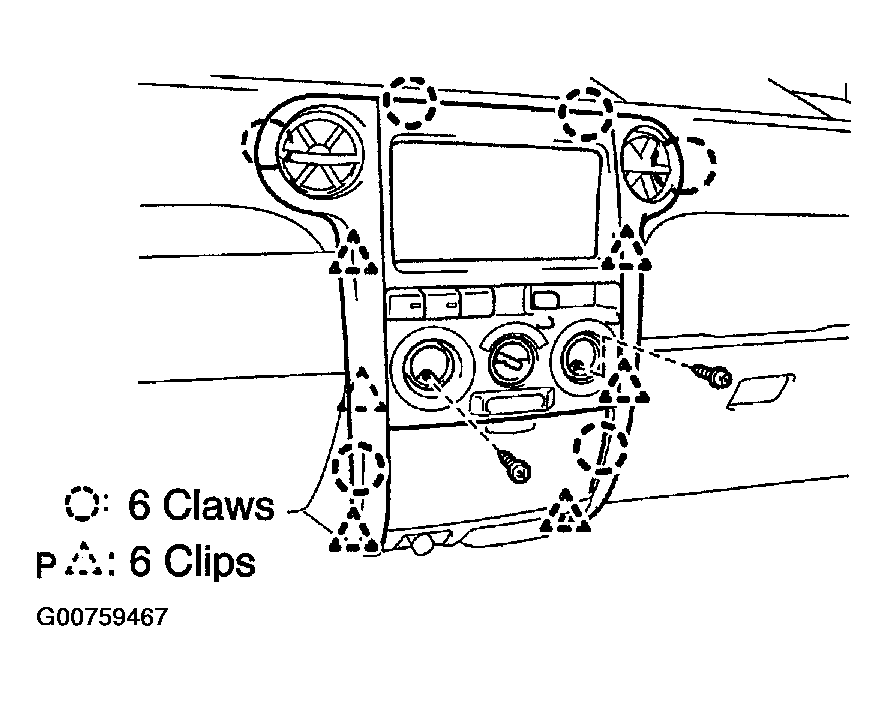

REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CTR
1. Remove the 2 screws.
2. Using a molding remover, disengage the 6 claws and 6 clips, then remove the instrument cluster finish panel SUB-ASSY CTR.
3. Disconnect the 2 connectors.

  Fig 2: Removing Instrument Cluster Finish Panel Sub-Assembly CTR - Center Cluster Module Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

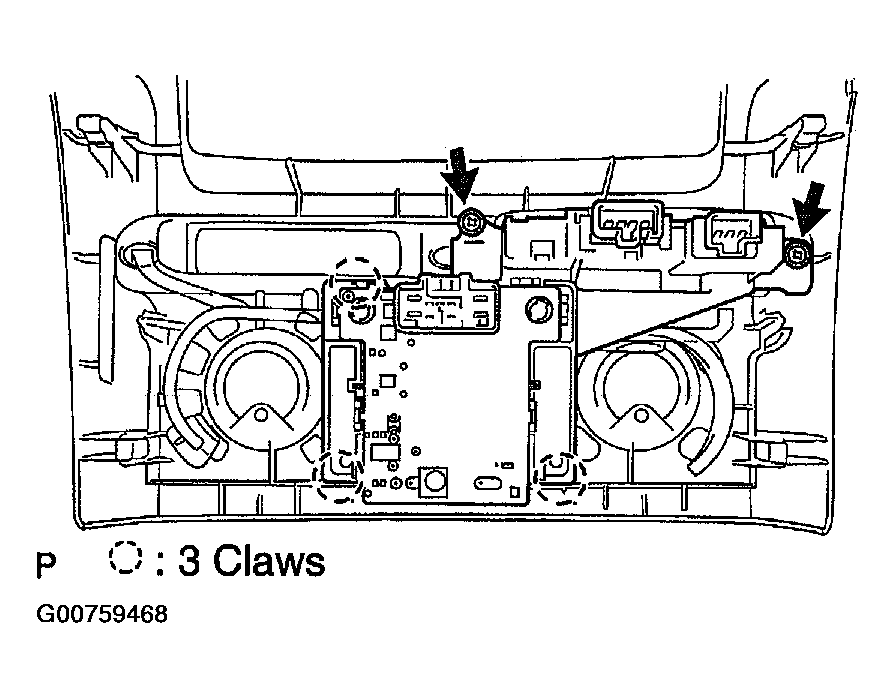

REMOVE CENTER CLUSTER MODULE SWITCH
1. Remove the 2 screws.
2. Release the 3 claws and remove the center cluster module switch.

  Fig 3: Removing Center Cluster Module Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER CLUSTER MODULE KNOB NO. 7
1. Disengage the 3 claws and remove the center cluster module knob No. 7.

  Fig 4: Removing Center Cluster Module Knob No. 7
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER CLUSTER MODULE KNOB NO. 5
1. Disengage the 3 claws and remove the center cluster module knob No. 5.

  Fig 5: Removing Center Cluster Module Knob No. 5
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER CLUSTER MODULE KNOB NO. 6
1. Disengage the 3 claws and remove the center cluster module knob No. 6.

  Fig 6: Removing Center Cluster Module Knob No. 6
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

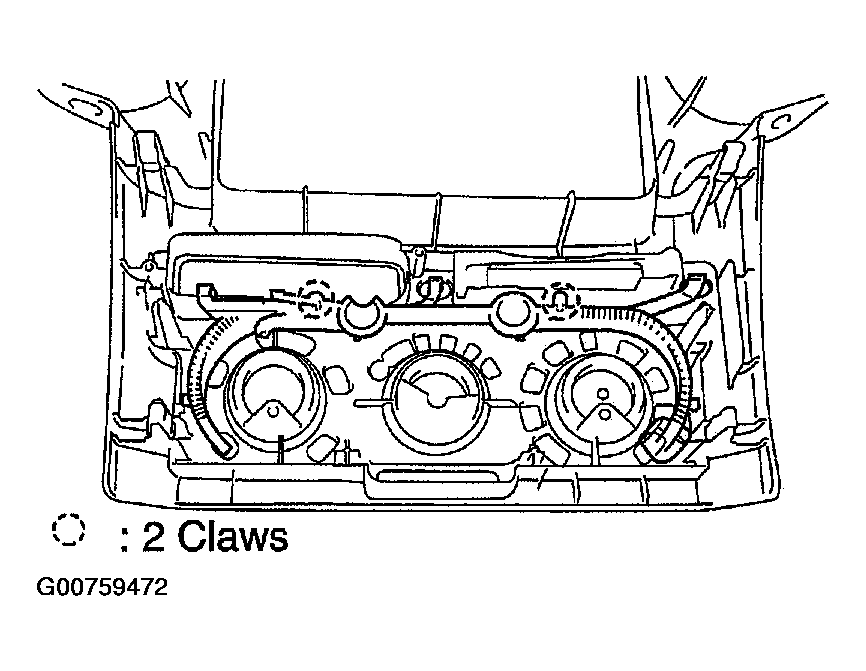

REMOVE HEATER CONTROL LENS ASSY
1. Disengage the 2 claws, and then remove the heater control lens assy.

  Fig 7: Removing Heater Control Lens Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
