Section 942 (Audio & Visual System): Inspection
WARNING: This page is about a different car, the 2004 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

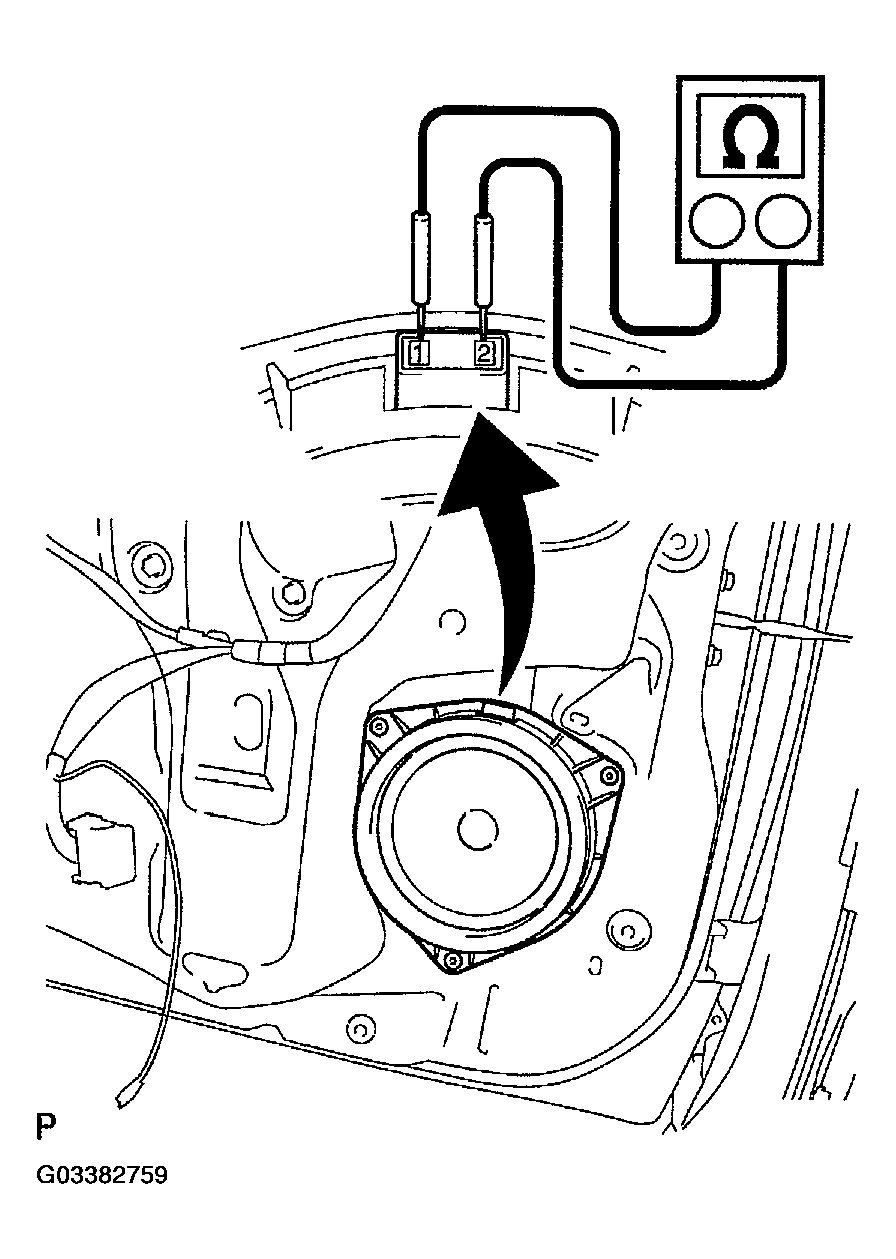

- FRONT NO.1 SPEAKER ASSY
- Inspect front No.1 speaker assy continuity.
- Check that there is continuity between terminal.
Standard:
FRONT SPEAKER STANDARD
| Tester connection |
Condition |
Specification |
| 1 - 2 |
Always |
4 Ω |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

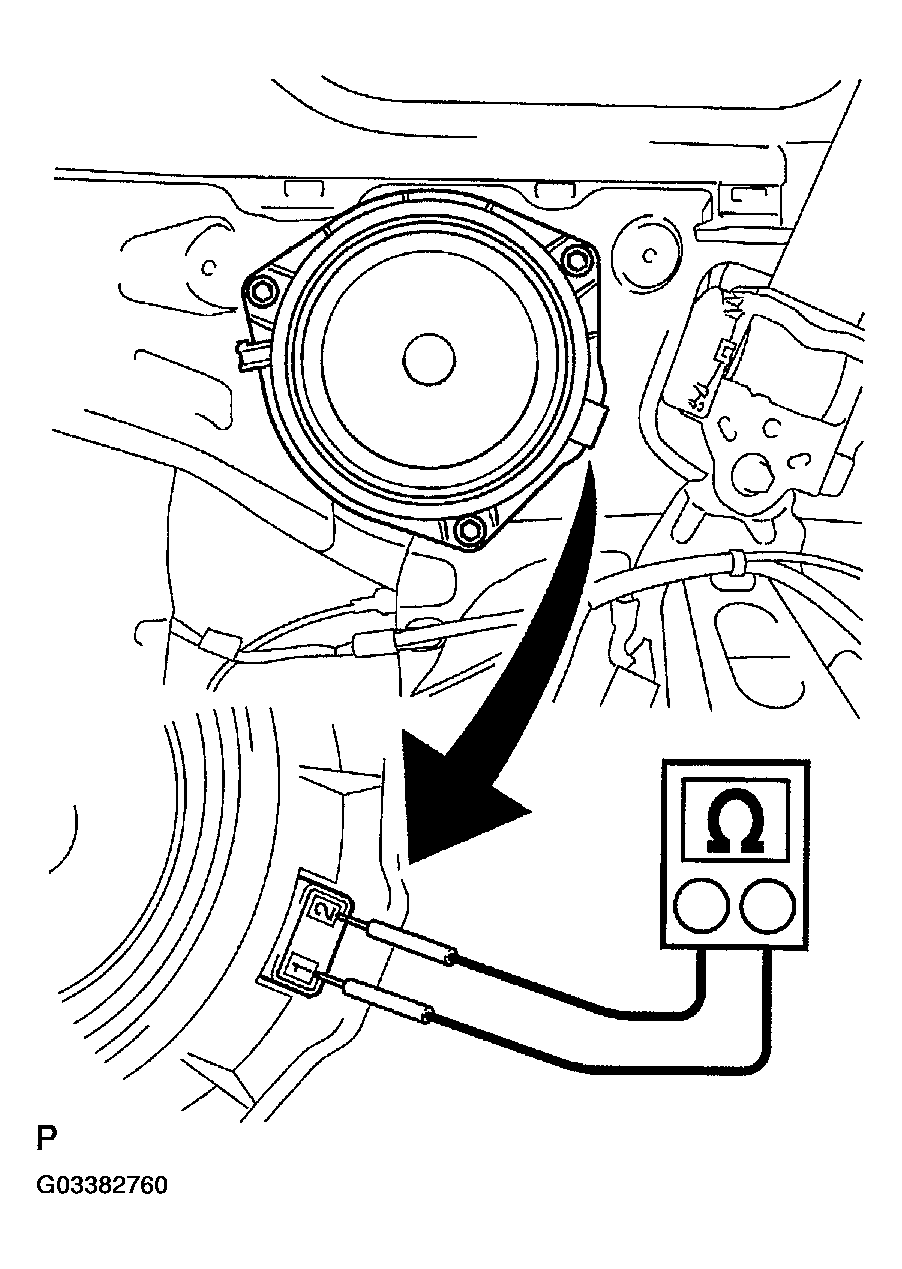

- REAR SPEAKER ASSY
- Inspect rear speaker assy continuity.
- Check that there is continuity between terminal.
Standard:
REAR SPEAKER STANDARD
| Tester connection |
Condition |
Specification |
| 1 - 2 |
Always |
6 Ω |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
